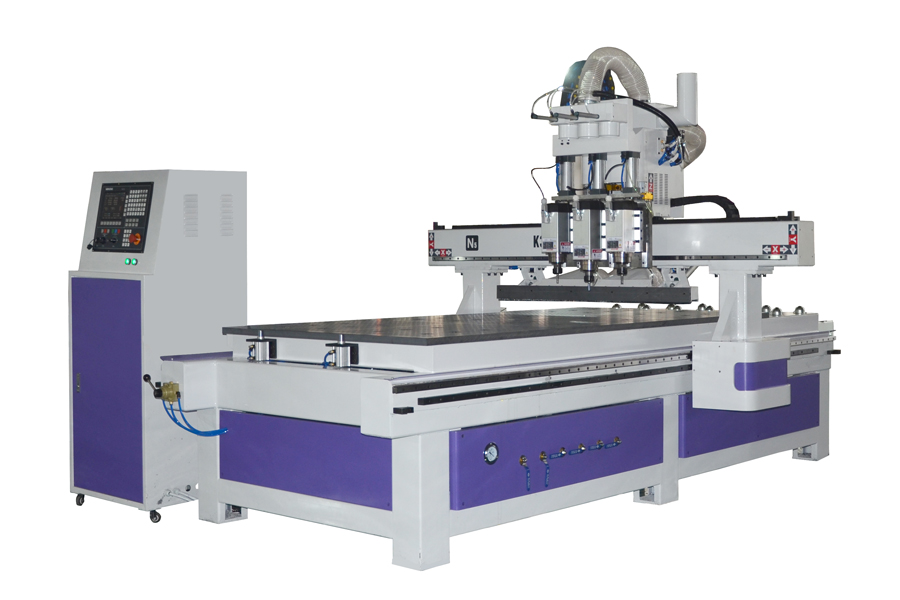

1. Heavy-duty CNC machining center, stable operation, low noise and high precision.
2. The 3-process spindle can only switch the system to meet the needs of complex processes and save time.
3. High-power AC servo with strong power and guarantee accuracy.
4. Intelligent cylinder positioning system to ensure the accuracy of square machining.
5. Efficient vacuum adsorption system, intelligent control, strong adsorption power.
6. Optional automatic feeding and unloading system
 |
 |
|
Industrial grade box-type structure bed body |

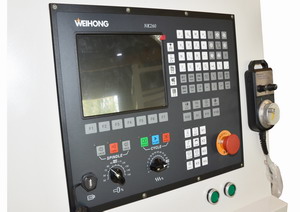

Professional Ncstudio control system |
 |
 |
|

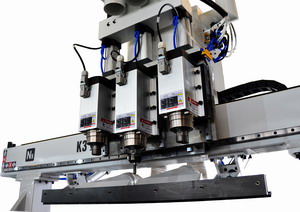

3 air cooled spindles,3-cylinder linkage |

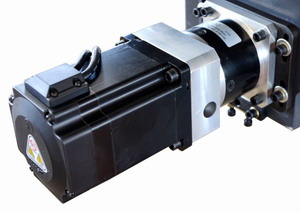

Servo driving motor with planetary reducer |
 |
 |
|

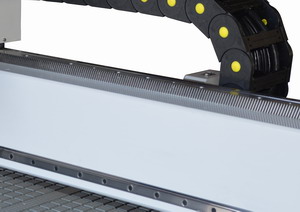

Helical rack and pinion drive |

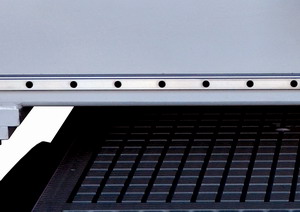

Imported linear rail from TaiWan |
 |
 |
|

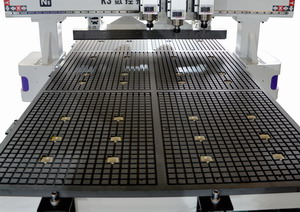

Multi-zone vacuum adsorption bed |
Auto media pushing system |
 |
 |
|

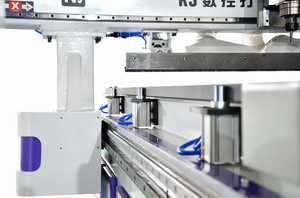

Pneumatic locating pin |

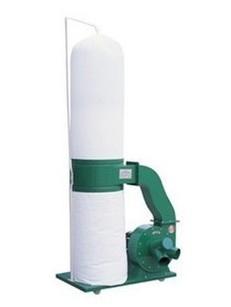

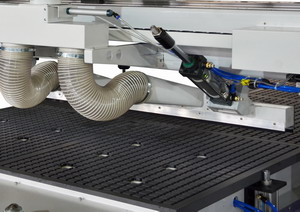

With dust extractor |
|
Model |
N5-AT3 |
|
Table Size |
1368mmx3120mm |
|
Working Size |
1300x2500x200mm |
|
Spindle |
Air cooling 6KW/380V,4.5KW/380V*2,18000rpm Optional 4 spindles |
|
Transmission |
TBI Ball screw for Z;XY rack pinion,and BEITTOP planetary reducer |
|
Driver |
Maxsine AC servo(Motor 1.3kw,Driver 1.5kw ) |
|
Inverter |
7.5kw |
|
Tool Diameter |
ER32/ER25-3.175/4/6/12.7mm |
|
Structure |
Cast Square Tube (8mm+6mm) |
|
XYZ Guiding Rails |
PMI Linear Rails 25mm |
|
Machining Arruracy |
0.01mm |
|
Reposition Accuracy |
0.03mm |
|
Working Table |
PVC vacuum table |
|
Vacuum pump |
Water cooling 7.5KW ,380V |
|
Control System |
Ncstudio NK280B |
|
Format of Command |
G code,u00,mmg,plt |
|
Dust extractor |
With |
|
Auto Lubrication system |
With |
|
Voltage |
380V,50-60Hz,3 phase |
|
Power of whole machine |
1200W |
|
Gross/Net Weight |
1500/1600kg |
|
Machine Dimensions |
3600mmx3000mmx1700mm |
|
Package Dimensions |
2250mm*7220mm*2100mm |
