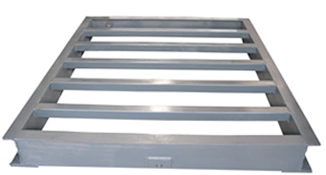

Base Frame: it is an iron casting base being precisely processed by gantry milling machine

and stress relieved by vibration device so that the foundation remains true and steady

over the operational life of the machine.

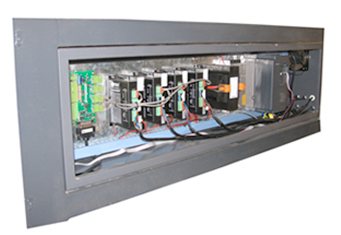

Electric Cabinet:All the electrical components are housed and wired in a electrical enclosure.This allows for easy access and service when needed.Every wire is tagged so that when service is required, the customer can easily navigate the cabinet.

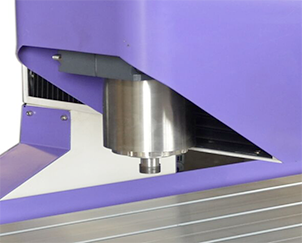

Spindle: Quality 1.5kw water cooling spindle with better performance of cost effectiveness,various spindle options available for different requirements.

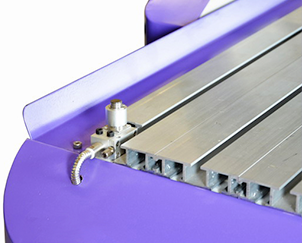

Auto Tool Sensor：It allows for easy and accurate “Z” zero position for single and multiple

tool changes through the program, saves time & error-free.

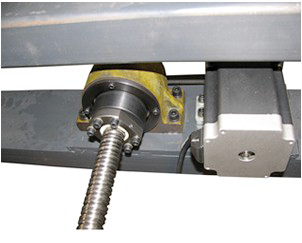

Imported Lead screw: ;bearing ;run ;along ;the ;lead screw ;to ;eliminate ;its shaking,

which ;offers much smooth motion.

Stepper ;Motor: ;Industrial ;subdivided ;stepper ;motor ;centered ;drive ;has ;outstanding wearability and ;it ;offers ;long-term ;maintenance-free ;solution.

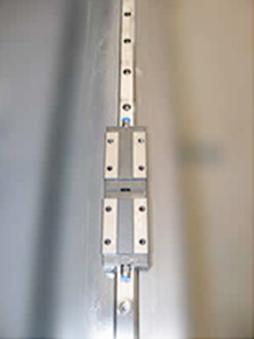

Linear ;Guide: ;25MM ;Linear ;Guide ;with ;double ;bearings,an ;ultra heavy ;type ;that ;achieves ;a deep ;grooved ;raceway ;with ;its ;diameter ;more ;approximate ;to ;the ;ball ;diameter ;and ;has ;highrigidity, ;vibration ;and ;shock ;resistance, ;and ;damping characteristics, ;which ;are ;required ;formachine ;tools.

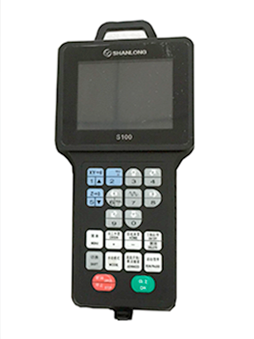

Controller: ; ;DSP ;with ;128M ;internal ;memory,it ;supports ;USB ;flash ;stick ;as ;well ;as ;

online ;file communication.It ;is ;available ;with ;standard ;G ;code ;or ;HPGL,and ;has ;practical ;functions ;like faster ;calculation, ;stronger ;processing ;ability,breakpoint ;memory ;and ;power ;failure ;protection function,etc.
