Details:

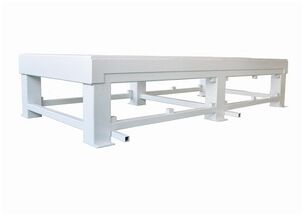

Industrial steel pipe frame, with stable moving,low noise and high precision

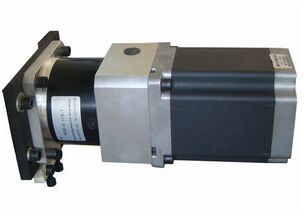

XY axis stepper motors with reduction drive, it is for high load and smoother machining.

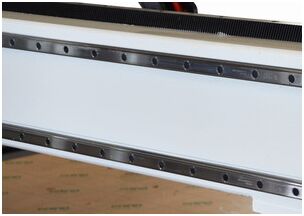

Taiwan PMI Linear Square Guide size 20MM linear square guide with double bearing.2 linear rails on each axis.
Origin NC Studio Control system as standard. PC based NC Studio Controller with more friendly human & machine interface/HMI , fully executed with computer.
3KW Water Cooling Spindle as standard, available bigger power spindles.
Connection type: Collet ER25
Rated voltage: 220V or 380V
Rated speed: 24000 rpm
Max speed: 24000rpm

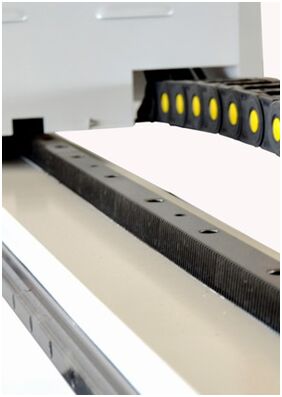

High quality Gear & Rack for X,Y axis, more powerful and faster working.
|

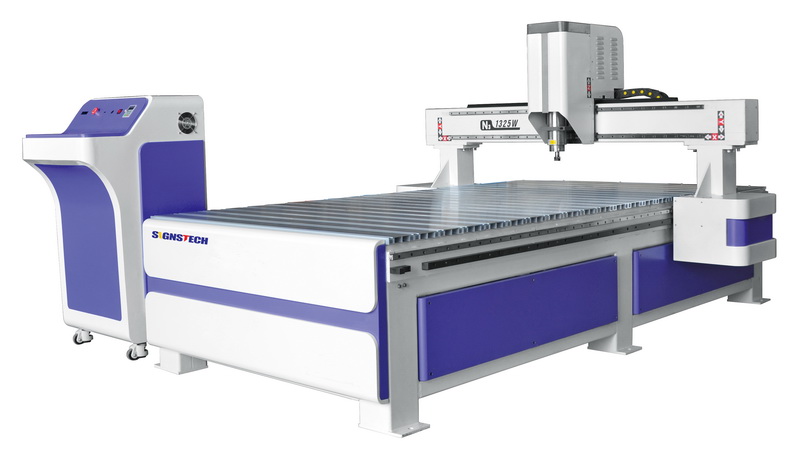

Model |
1325W |
|
Table Size |
1440x2630mm |
|
Working Size |
1300x2500x200mm |
|
Max .Material Height |
250mm |
|
Spindle Power |
Water Cooling 3.0kw |
|
Speed RPM |
0-24000rpm |
|
Driver |
Stepper Subdivided |
|
Control system |
Origin Ncstudio |
|
Tool Diameter |
Ø3.175,Ø4,Ø6,Ø12.7 |
|
Mechanical Structure |
Square Steel Pipe |
|
Transmission |
Ball Screw for Z ; Pully and Rack&Pinion for X,Y |
|
Guide Ways |
PMI Linear rails |
|
Repositioning Accuracy |
<0.03mm/300mm |
|
MAX. Engraving Speed |
20000mm/min |
|
File Format |
G Code or HPGL |
|
Power Supply |
AC220V or 380V,50-60Hz |
|
External Form Size |
2200x3060x1650mm |
|
Packing Size |
2280x3210x1800mm |
|
Net/Gross Weight |
500/700kg, 900/1100kg |
|
Optional sizes |
1300mmx1300mm,1300mmx1800mm, 1500mmx3000mm,2000mmx4000mm |
|
Optional parts |
Vacuum bed, Extractor, Tool height sensor, Central Lubricator, hybrid servo system , 4th axis, air cooled or bigger power spindle |
