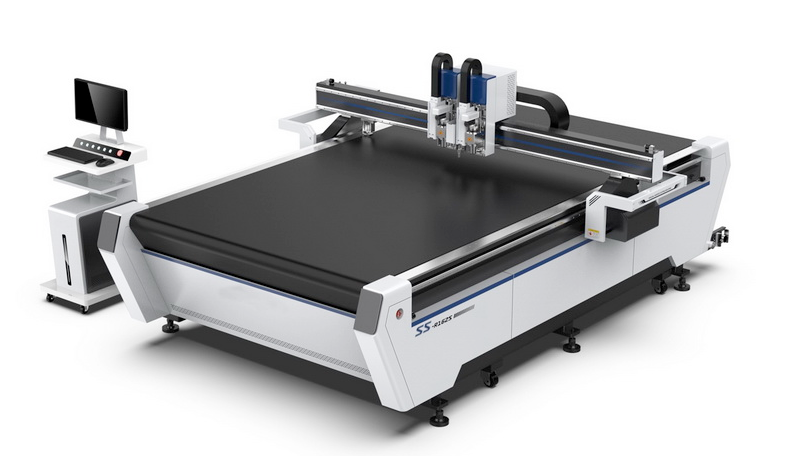

1.Machine body: Industrial steel pipe frame，industria tempering to eliminate welding stress.gantry is processed by
processing center，make sure stable mowing. low noise and high precision.
2.Transmission: XY high precision helical rack+ linear guide,to ensure high precision and high load.6.Control software: 12-axis control system with independent intellectual property rights,easy to upgrade and maintain. The network
interface supports remote upgrades, and the transmission is more efficient and secure.
7.Camera: 5-milion-pixel industrial grade camera,scanning positioning accuracy and speed.8.Software format: The software has automatic generate contour function which supports JPG,DXF，PDF，etc: and has 2D3D
engraving function,supports CDMCAM software, and is in line with international standards.
9.Tools: Can be combined with various cutting and engraving tools: oscillating knife，drag knife，pneumatic knife,half cutter，round
knife,pen manual and automatic tool change spindle. Multi-purpose in one machine, effectively saving costs for multi-process and
waries material operations.
10.Exterior. Designed by professional team,advanced structure，simple and generous exterior

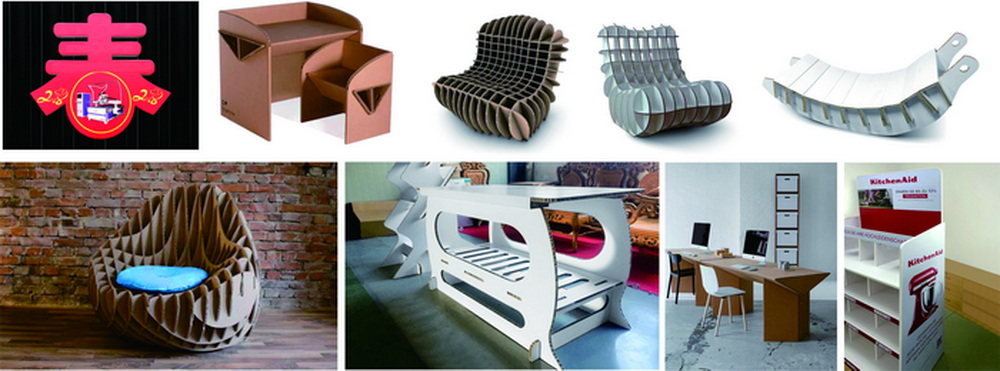

Oscillating knife: KT board,PVC (less than 7mm), leather, single layer cloth,PP paper, car paste,reflective film, corrugated paper,
card paper, grey board paper, soft composite material etc.
Oscillating knife: KT board, PVC (less than 7mm), leather, single layer cloth, PP paper, car paste, reflective film, corrugated paper,
card paper, grey board paper, soft composite material etc.
Drag knife: flexible materials less than 5mm, such as paperboard, thin plastic, PP backing, rubber blanket, gasket, imitation leather

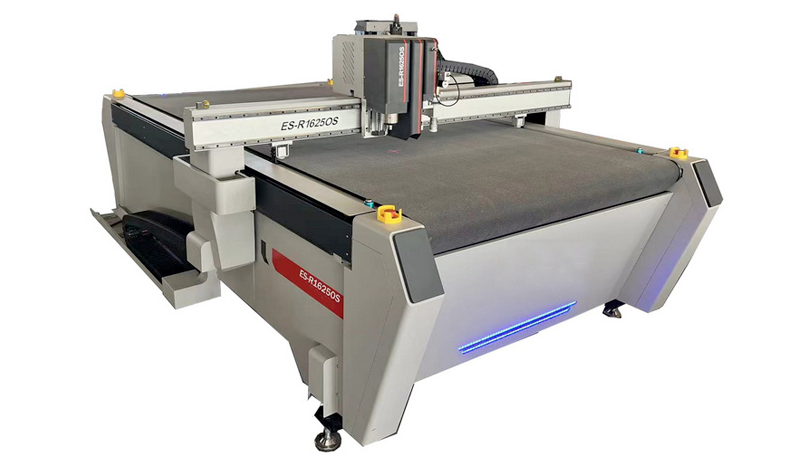

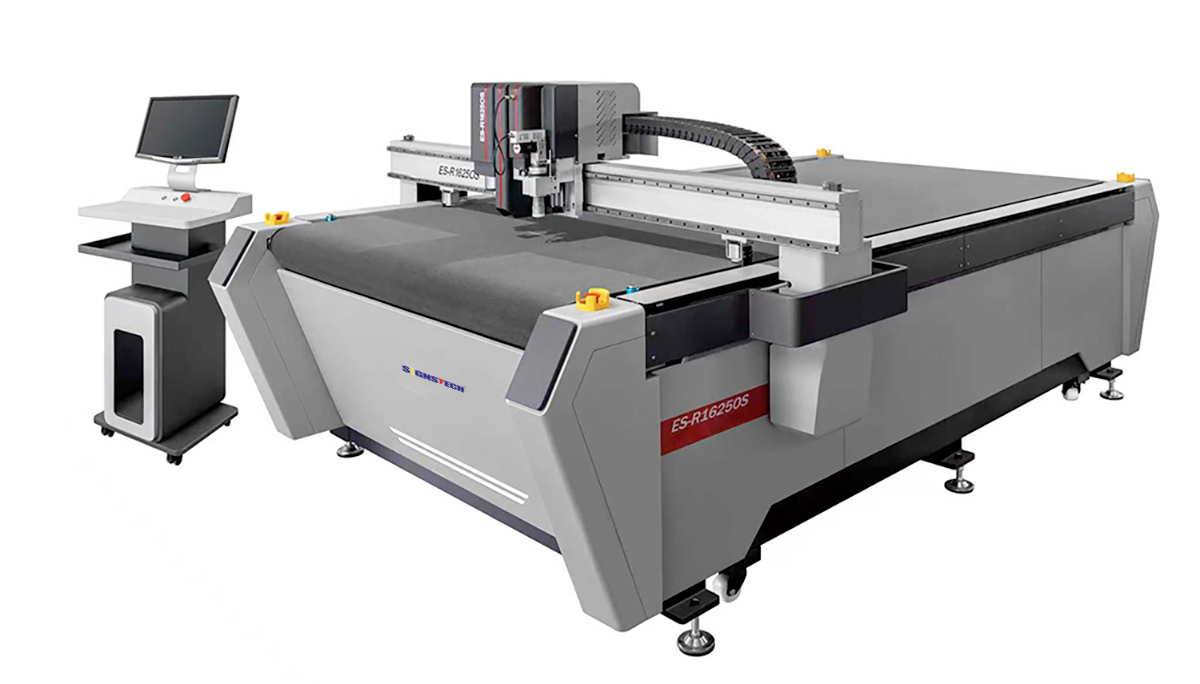

| Model |
R1625OD |
R1625OS |
R1625ODS-AT4 |
|
| Table size |
1620x2550mm |
|
|
|
| Working size |
1520x2500x140mm |
|
|
|
|
Feed height |
140mm |
|
|
|

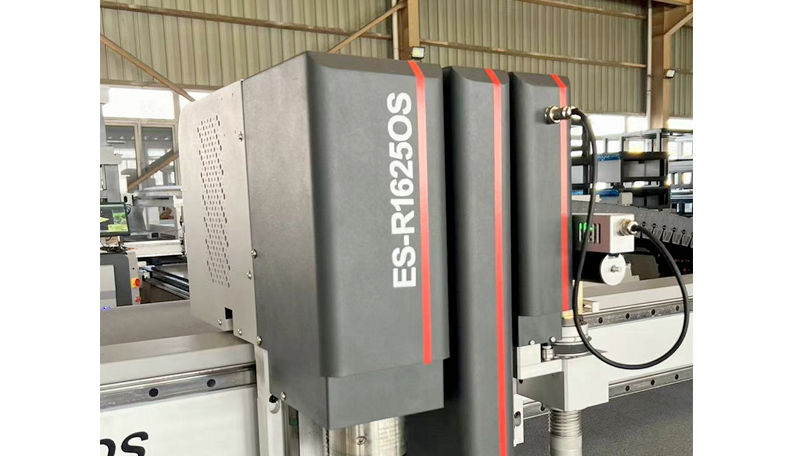

| Spindle |
NoneNone |
3KW/220V water cooling | 5.5KW/220V water cooling ATC spindle | |
| Tool |
Oscillating knife + drag knife |
Oscillating knife+ spindle | Oscillating knife + drag knife + spindle | |
| Oscillating knife frequency |
15000~20000rpm |
|
|
|
| Air pressure specification |
90Psi/16Cfm |
|
|
|
|
Shank mode |
None |
By manual |
|
HSK |
| Tool stock |
None |
ER20 |
|
HSK E32 |
| Spindle rotary speed | None |
0~40000rpm |
|
0-36000rpm |
| Tool diameter |
None |
Ø3.175, Ø4, Ø8 |
|
Ø3.175, Ø4, Ø6 ,Ø8,Ø12.7 |
| Driver |
AC Servo |
|
|
|
| Control system |
Customized control system |
|
|
|
| Transmission |
Z-ball screw direct connection; XY rack + planetanry reducer |
|
|
|
| XYZ rail |
Imported linear rail |
|
|
|
| Max.unload speed |
120m/min |
|
|
|
| Working table |
Vacuum & roll feeding |
|
|
|
| Sorting platform |
0ptional Sorting platform includes projector and projector stand |
|
|
|
| Dust collect |
Powerful dust collector |
|
|
|
| Vacuum pump |
7.5KW air cooling |
|
|
|
| Voltage |
380V,50-60Hz |
|
|
|
| Machine size |
3900/5300(Sorting platform)x2500x1700mm |
3900x3000x1630mm | ||
| Package size |
4000x2200x1800mm |
|
|
|
| Net/Gross weight |
1700/2000kg |
2200/2500kg |
||
| Optional sizes |
2000x3000mm、2000x4000mm、5300x3500mm |
|||
