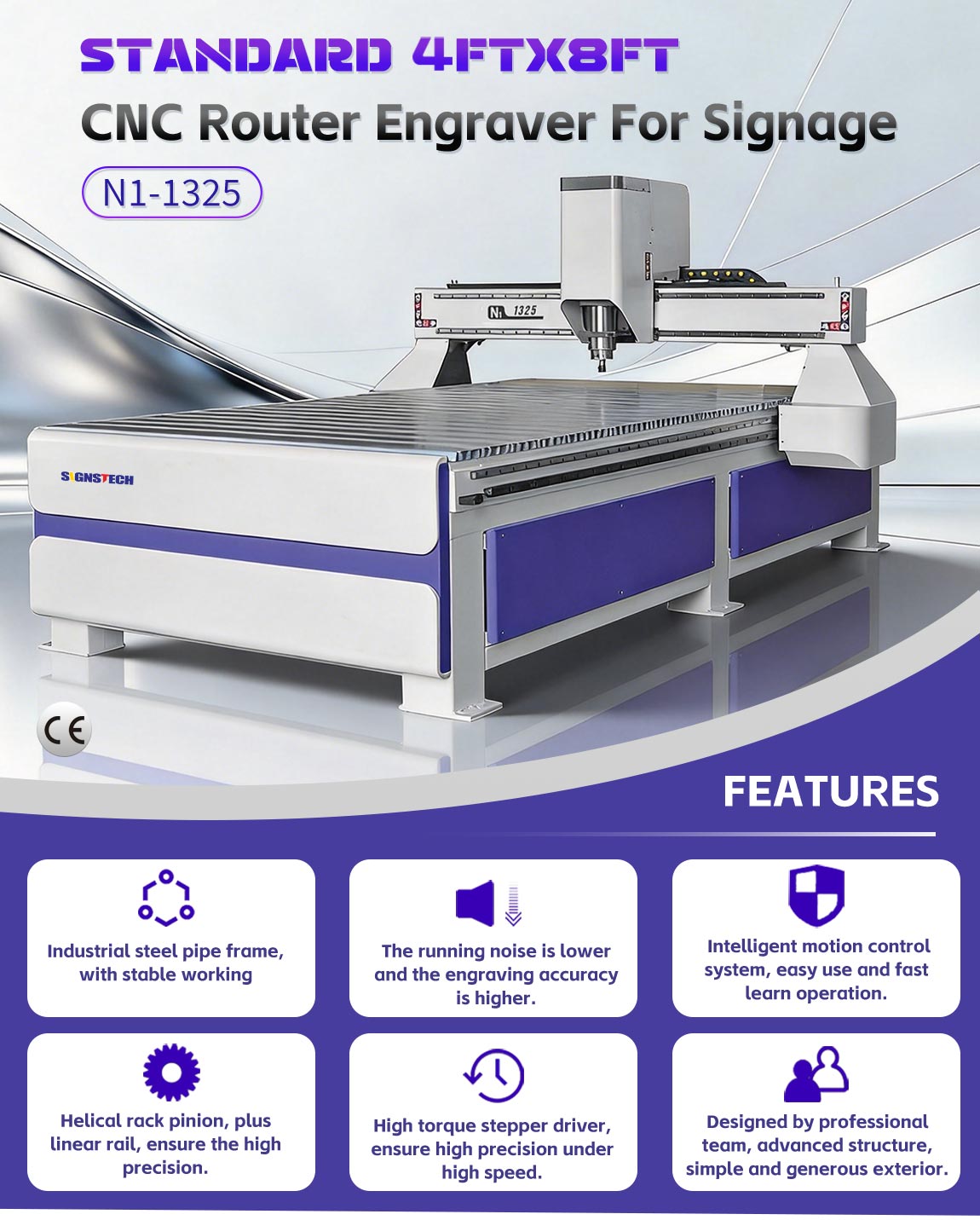

Standard Features
1. Industrial steel pipe frame, with stable working, low noise and high precision.
2. Intelligent motion control system, easy use and fast learn operation.
3. Helical rack pinion, plus linear rail, ensure the high precision.
4. High torque stepper driver, ensure high precision under high speed.
5. Designed by professional team, advanced structure, simple and generous exterior.
Applicable Fields
Nonmetallic material engraving and cutting, soft metal cutting, solid wood and non-painting door processing, advertising making, mould manufacturing, etc.
 |
 |
|

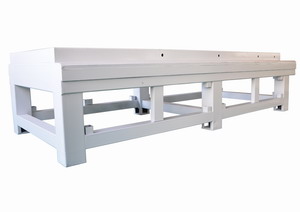

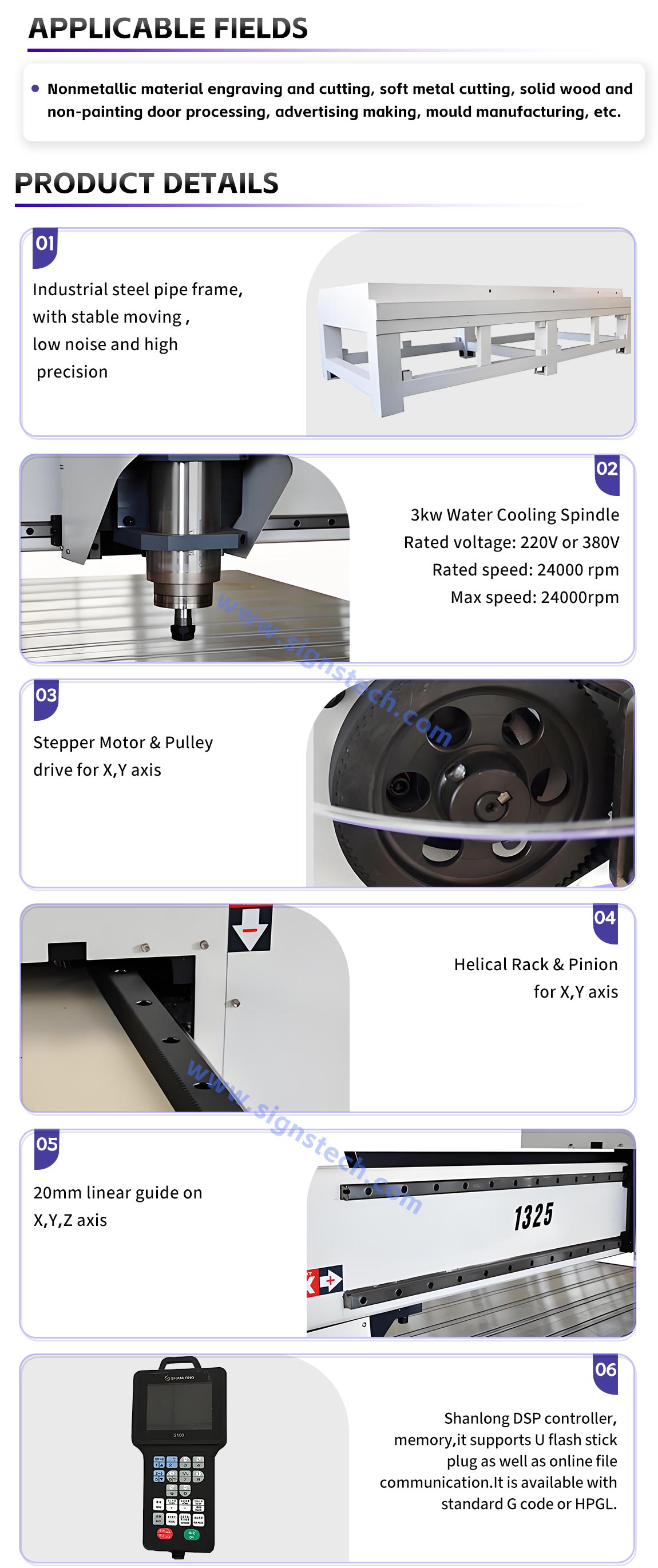

Industrial steel pipe frame, with stable moving, low noise and high precision |

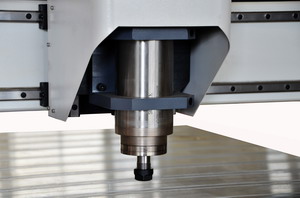

3kw Water Cooling Spindle Rated voltage: 220V or 380V; Rated speed: 24000 rpm Max speed: 24000rpm |
 |
 |
|

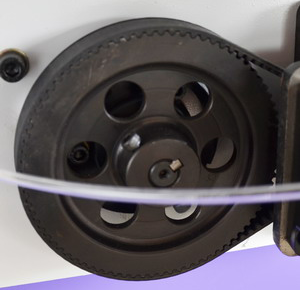

Stepper Motor & Pulley drive for X,Y axis |

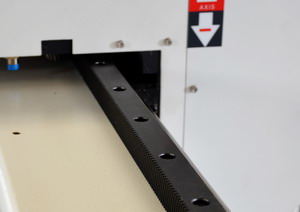

Helical Rack&Pinion for X,Y axis |
 |
 |
|

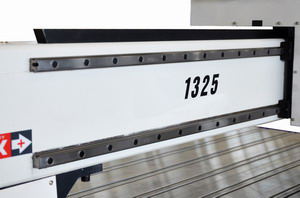

20mm linear guide on X,Y,Z axis |

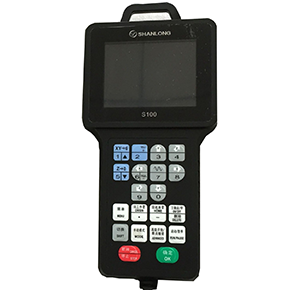

Imported linear rail from TaiWanShanlong DSP controller,memory,it supports U flash stick plug as well as online file communication.It is available with standard G code or HPGL. |
  |
|
|

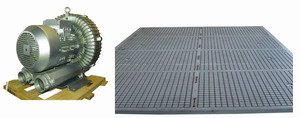

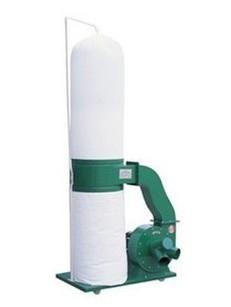

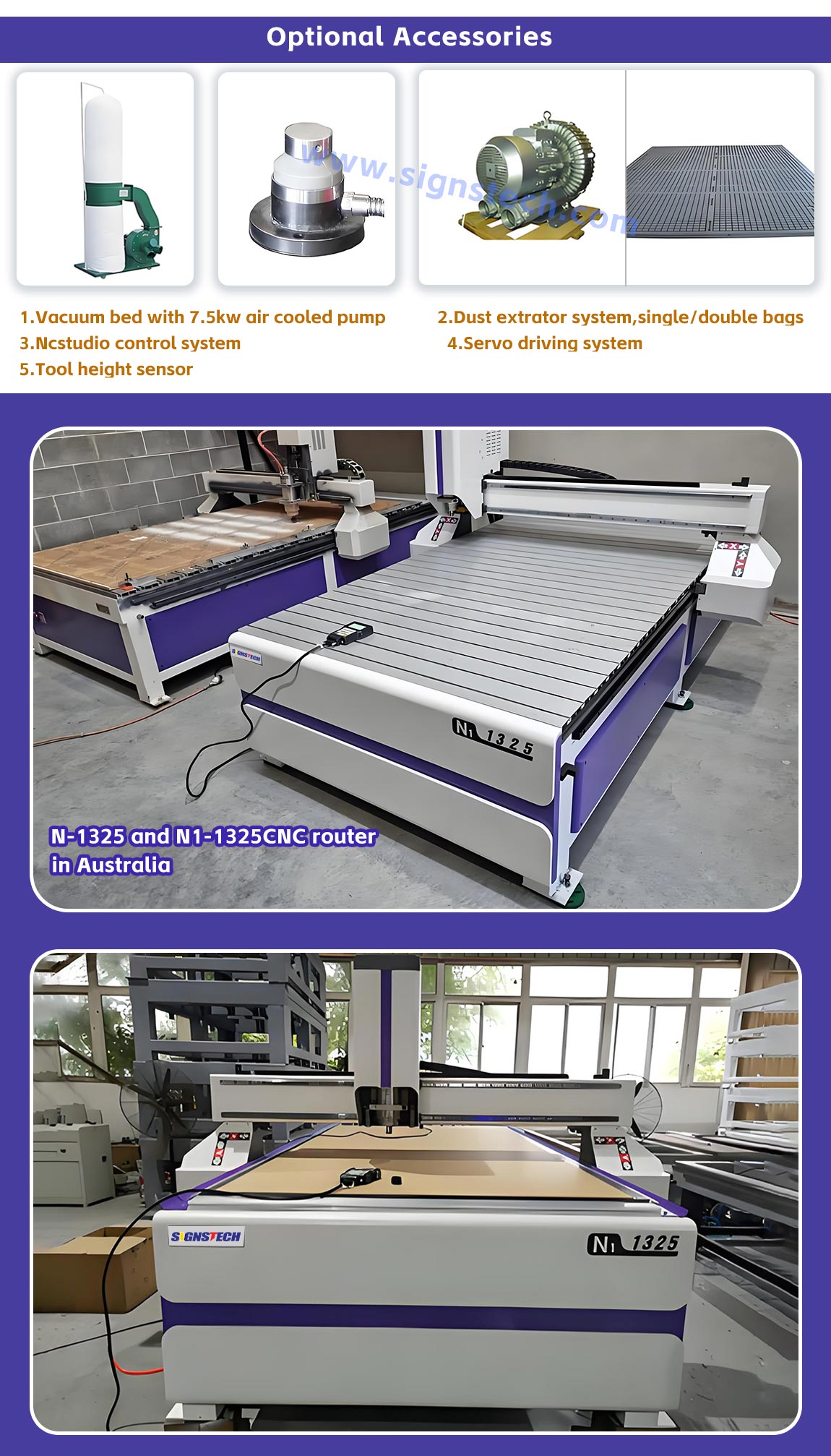

Auto media pushing systemOptional Accessories: |
|
|

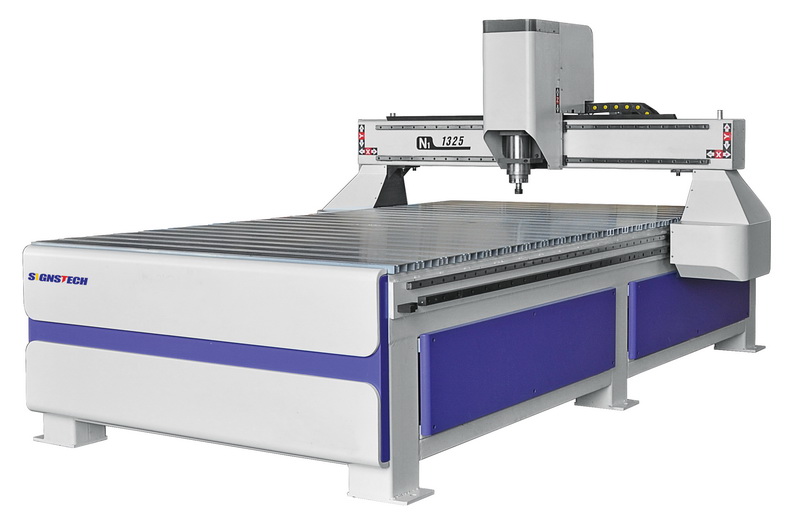

Model |
N1-1325 |
|
Table Size |
1440x2630mm |
|
Working Size |
1300x2500x200mm |
|
Max. Material Height |
200mm |
|
Spindle Power |
water cooling 3.0KW ,optional 5.5kw |
|
Spindle RPM |
0-24000rpm |
|
Tool Diameter |
Ø3.175,Ø4,Ø6,Ø8,Ø12.7 |
|
Driver |
Stepper Subdivided |
|
Control System |
Shanlong S100 DSP |
|
Mechanical Structure |
Industrial Square Steel Pipe |
|
Transmission |
Ball Screw for Z ; Pully and Rack & Pinion for X,Y |
|
XYZ Rail |
Linear Rails |
|
Repositioning Accuracy |
<0.03mm/300mm |
|
Max. No-loading Speed |
20000mm/min |
|
File Transfer |
USB |
|
File Format |
HPGL or standard G Code |
|
Power Supply |
AC220V or 380V,50-60Hz |
|
External Form Size |
2050x3060x1650mm |
|
Packing Size |
2200x3210x1800mm |
|
Net/Gross Weight |
800/1000kg |
|
Optional Models |
NE-1313，NE-1318，NE-1530 |
