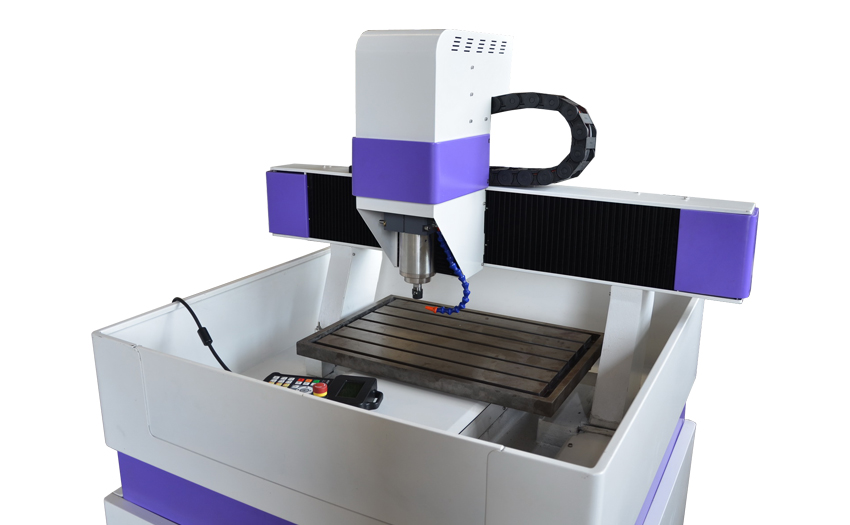

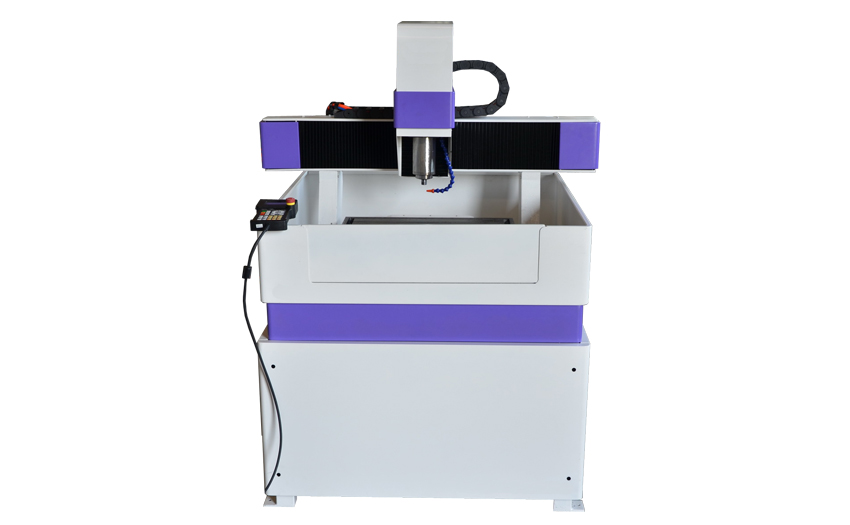

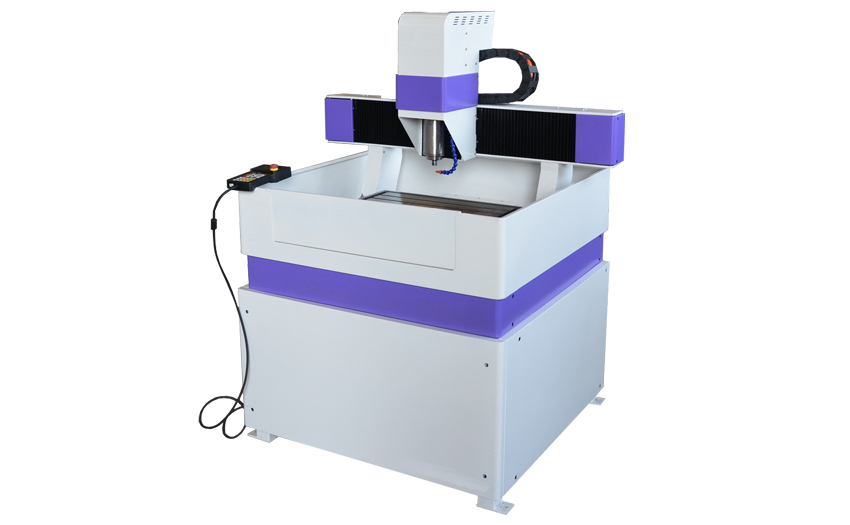

Cutting,Milling,Engraving on wide ranges of material including metal and non-metal with high precision.
|
 |
Testful exterior & reasonable mechanical structure |
 |
Cast steel base frame with liear guide-ways and high precision ball screws.
|
 |
Base ;Frame:iron ;casting ;base ;being ;precisely ;processed ;by ;gantry ;milling ;machine ;and ;stress ;relieved by ;vibration ;device ;so ;that ;the ;foundation ;remains ;true ;and ;steady ;over ;the ;operational ;ife ;of ;the ;machine.
|
 |
Linear ;Square ;Guide:20MM ;linear ;square ;guide ;with ;double ;bearings. |
 |
Shanlong DSP controller
|
 |
Spindle: ;Quality ;1.5kw ;water ;cooling ;spindle ;with ;better ;performance ;of ;cost-effectiveness,various ;spindle ;options ;available ;for ;different ;requirements.
|
 |
Bolt ;Pole: ;Quality ;C5 ;bolt ;pole ;with ;diameter ;16mm ;and ;re-positioning accuracy ;0.01mm ;for ;X,Y,Z ;axis.
|
|
Model |
4540DS |
6040DS |
|
Table Size |
450x400mm |
600x400mm |
|
Working Size |
450x400x100mm |
600x400x100mm |
|
Spindle Power |
Water Cooling 1.5kw |
Water Cooling 1.5kw |
|
Speed RPM |
6000-24000rpm |
6000-24000rpm |
|
Driver |
Stepper |
|
|
Tool Diameter |
Ø3.175,Ø4,Ø6 |
Ø3.175,Ø4,Ø6 |
|
Mechanical Structure |
Cast Steel |
|
|
Transmission |
Imported Ball Screw |
Imported Ball Screw |
|
Power Consumption |
400W |
400W |
|
Guide Ways |
Linear Guide Ways |
Linear Guide Ways |
|
Repositioning Accuracy |
<0.02mm/300mm |
<0.02mm/300mm |
|
Fast Speed |
4500mm/min |
4500mm/min |
|
CNC |
Shanlong S100 |
Shanlong S100 |
|
File Transfer |
USB |
USB |
|
File Format |
G Code or HPGL |
G Code or HPGL |
|
Power Supply |
AC220V,50-60Hz |
AC220V,50-60Hz |
|
Net Weight |
400kg |
350kg |
