Multilayer Imaging Mode
1. Multi-layer imaging: full color, color white, white color, color white varnish.2.The multi - layer imaging function can quickly present relief and 3 D image effects on the printing material, making the concave and convex feel within easy reach.
|
Full Color |
color+ white ink |
|
|
 |
|
white ink+ color |
Color+ white ink+ varnish |
|
|
|
Details:
|
|
 |
|

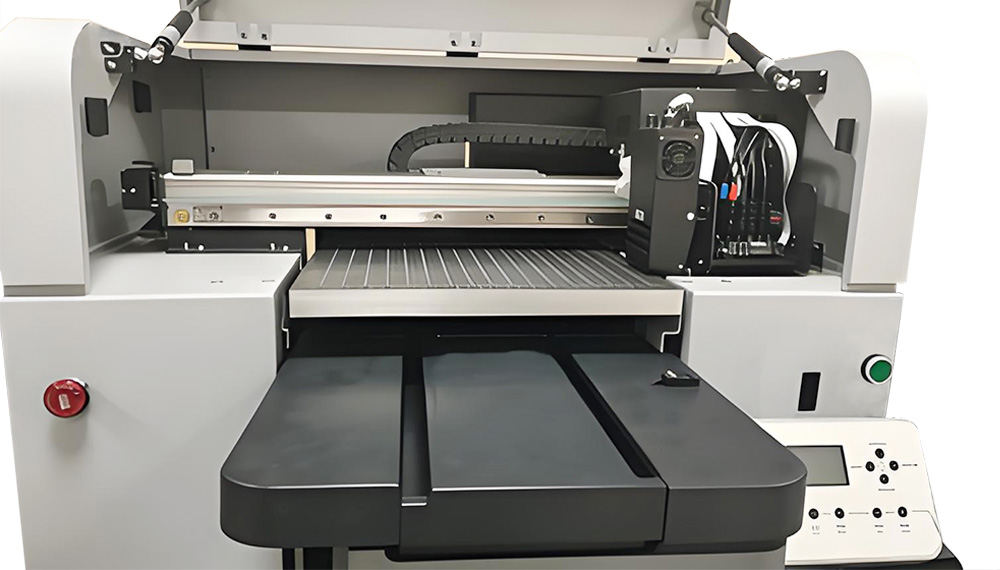

Silent linear rail Selected high - quality guide rail transmission ensures more stable printing of the trolley and lower noise; |
Air cooling system Air - cooled UV lamp, strong energy, high power utilization, easy maintenance; |
|
|
 |
|
Ink configuration Four colors + white ink + varnish, can be formed at one time, saving time for printing;Equipped with an ink shortage alarm, it can remind you to replenish ink in time to make the printing process more at ease. |
Suction platform High - hardness suction platform, full of wind, better fixedmaterial;The platform height can be adjusted from 0 - 7 3 mm to ensure that different thicknesses materials can beused,improving theapplication |
|
 |
|
White ink stirring system There is special motor installed to stirring white ink during power on in case of precipitating and it is not easy to make print head clog |
Z axis lead screw drive The Z-axis screw drive ensures the stability of the platform up and down. |
Applications
|

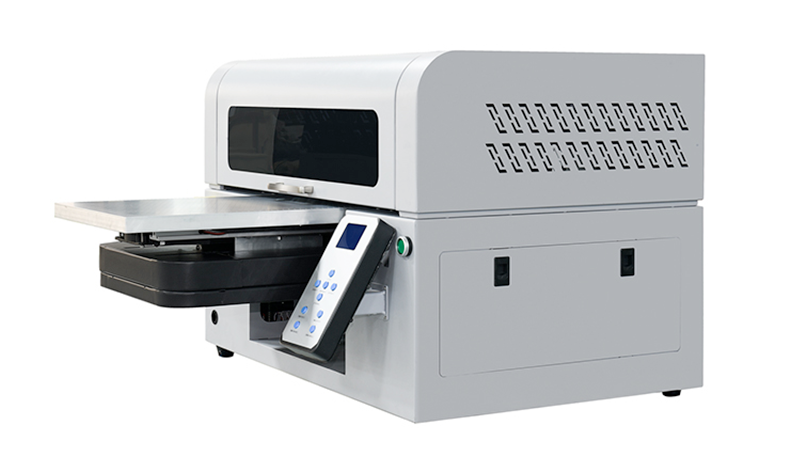

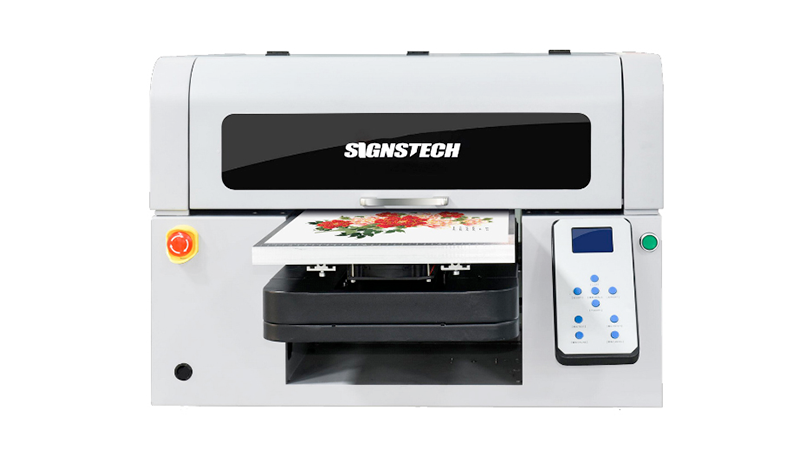

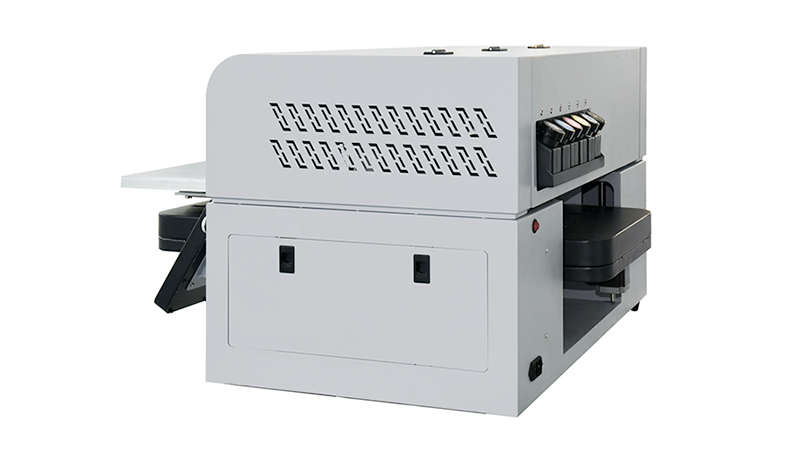

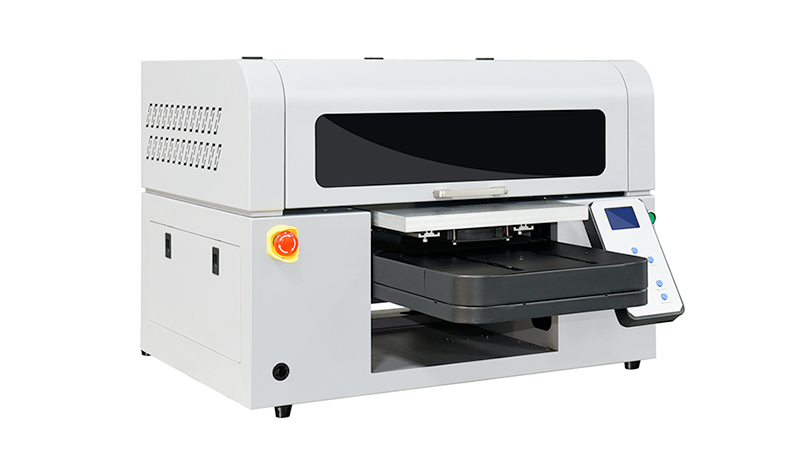

Model |
3050UL |
|
Printer head |
Epson XP600 x2 Optional Epson I3200 |
|
Ink configuration |
CMYK+White+V |
|
Maximum print range |
300mmx500mm |
|
Output accuracy |
360*720dpi/360*1080dpi/720*720dpi |
|
Speed |
2.5m²/H Draft mode |
|
1.9m²/H Production mode |
|
|
1.5m²/H High quality mode |
|
|
Ink type |
UV Hard / Neutral /Soft |
|
Ink supply |
Positive pressure continuous ink supply |
|
Cartridge capacity |
250ml/color |
|
Ink solidification method |
LED solidification |
|
Rip software |
Maintop 6.1 UV,Optional Photoprint 12 |
|
File format |
TIFF .JPEG.JPG.PNG,PSD,PDF,etc |
|
Operating system |
Windows 7/10 |
|
Bearing material |
Vacuum suction platform |
|
Maximum print height |
120mm |
|
Data interface |
USB2.0 |
|
Power supply |
220v,50HZ, 450W |
|
Dimensions: |
795mm*920mm*570mm |
|
Packing size: |
1120mm*1170mm*850mm |
|
Net weight |
110KG |
|
Gross weight |
160KG |
