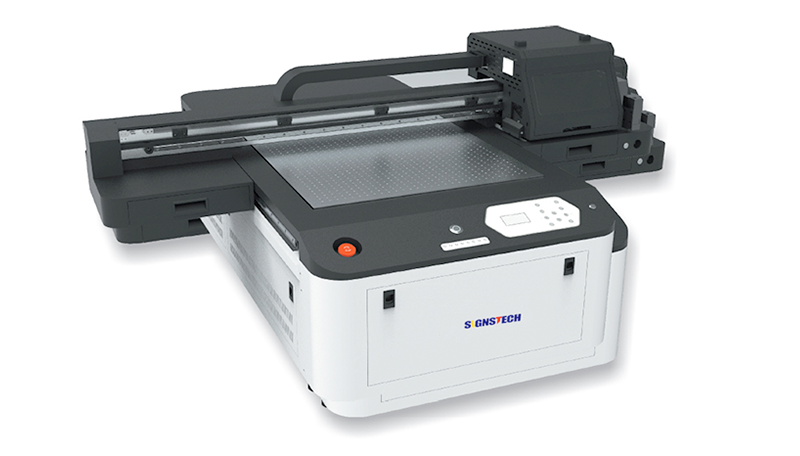

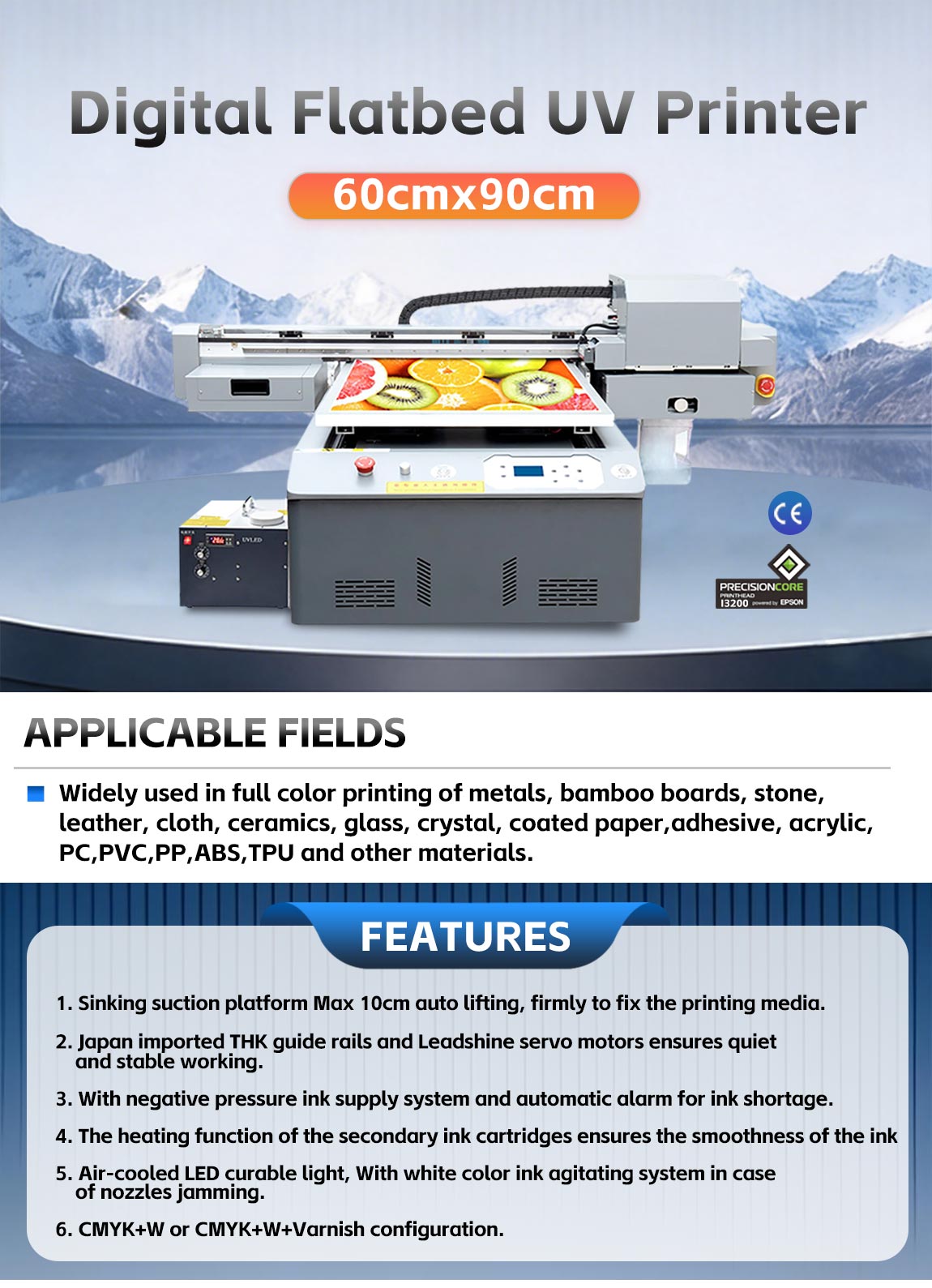

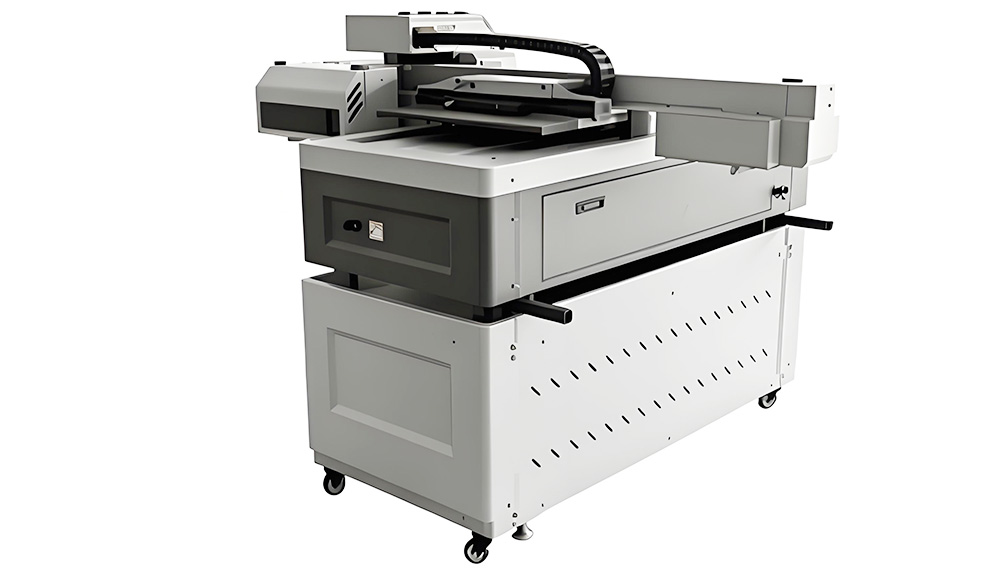

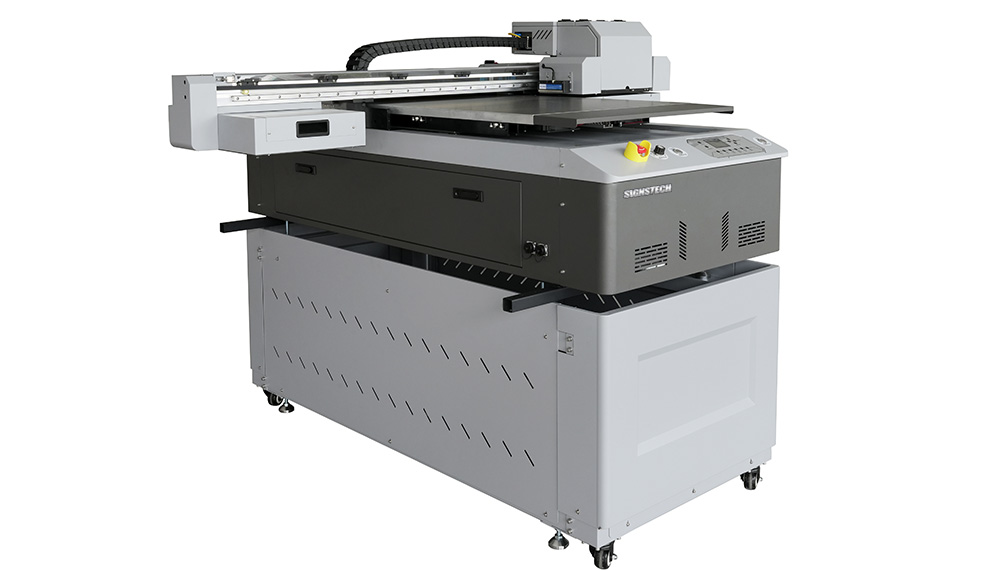

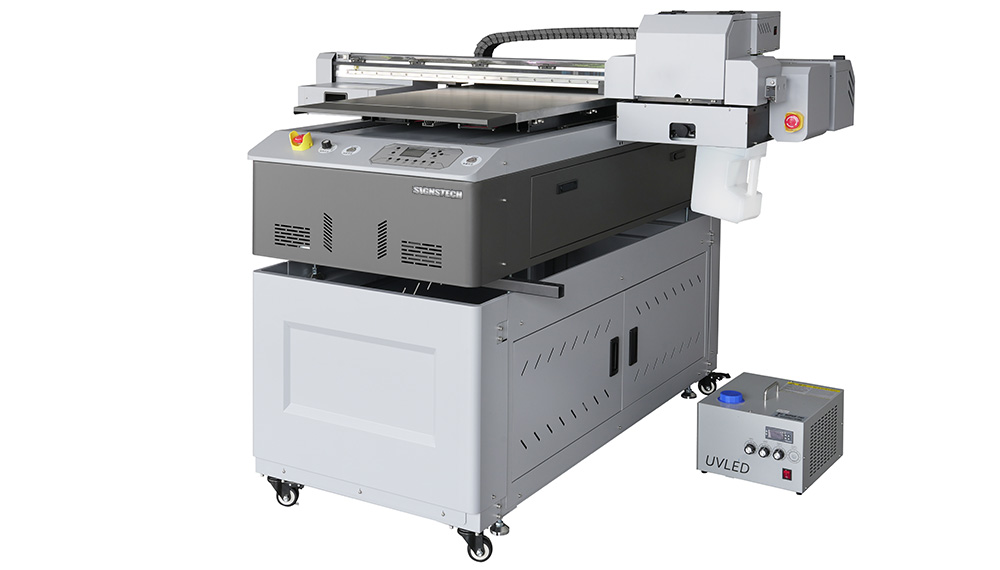

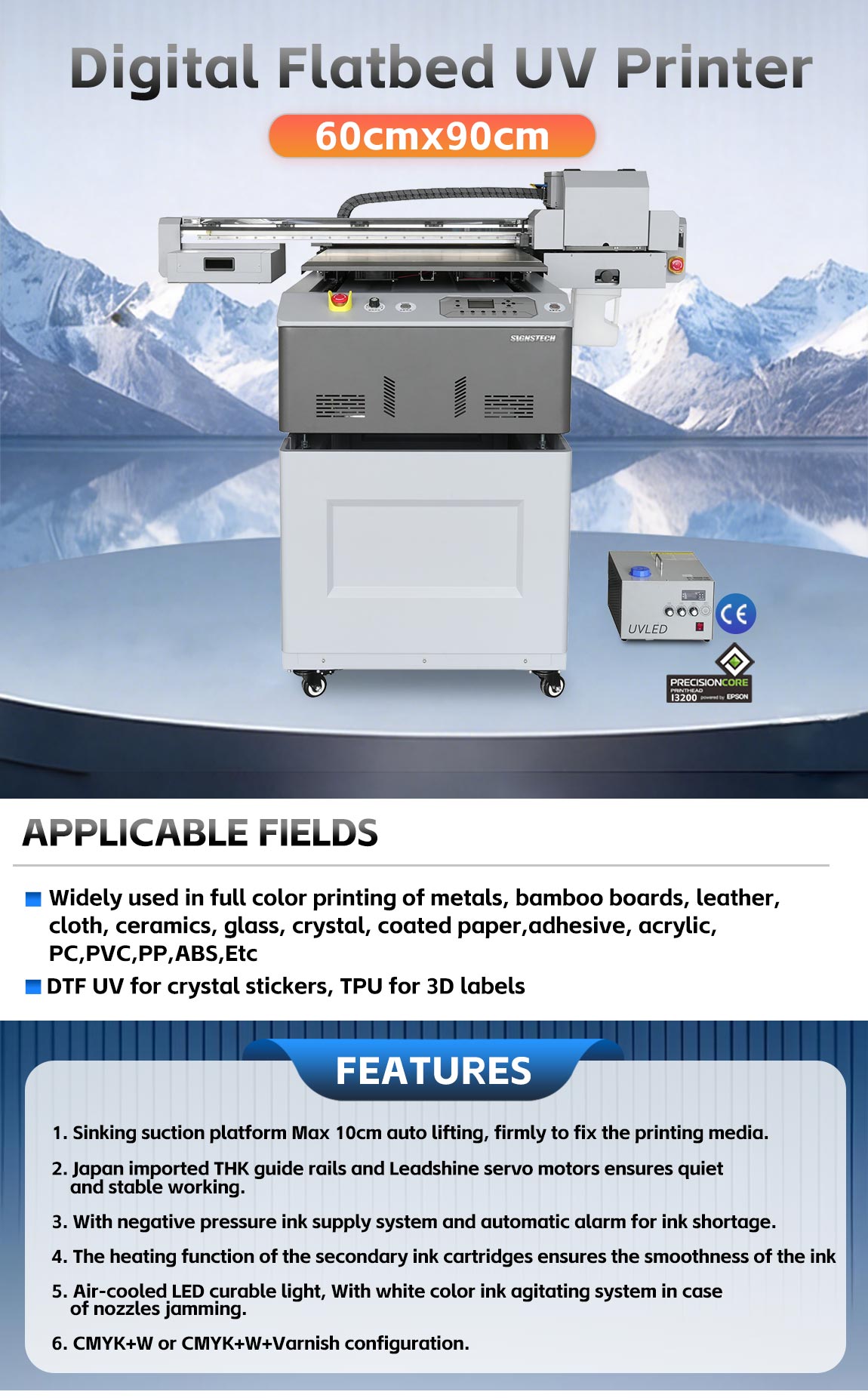

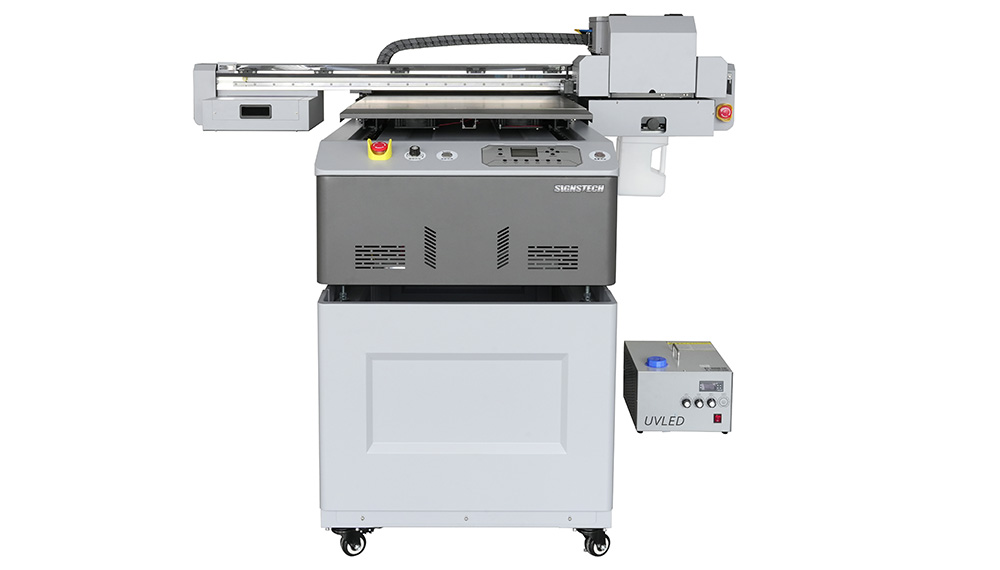

It is a small format and smart UV flatbed printer widely used in full color printing of metals, bamboo boards, stone, leather, cloth, ceramics, glass, crystal, coated paper,
adhesive, acrylic, PC,PVC,PP,ABS,TPU and other materials.

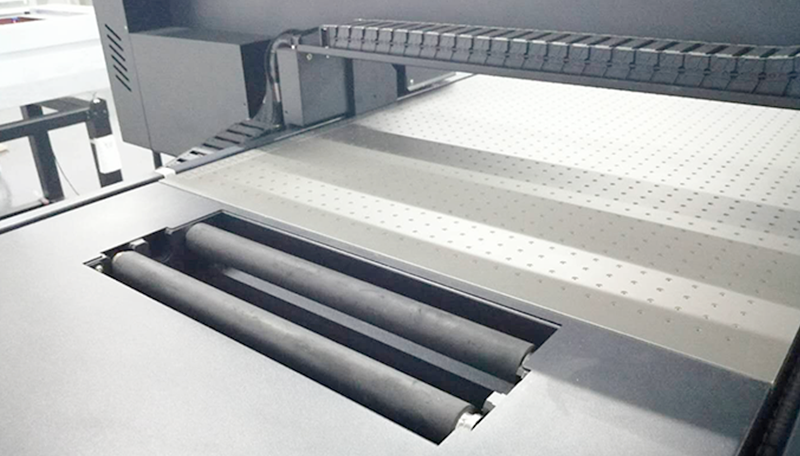

1. Sinking suction platform 10CM auto lifting, firmly to fix the printing media.

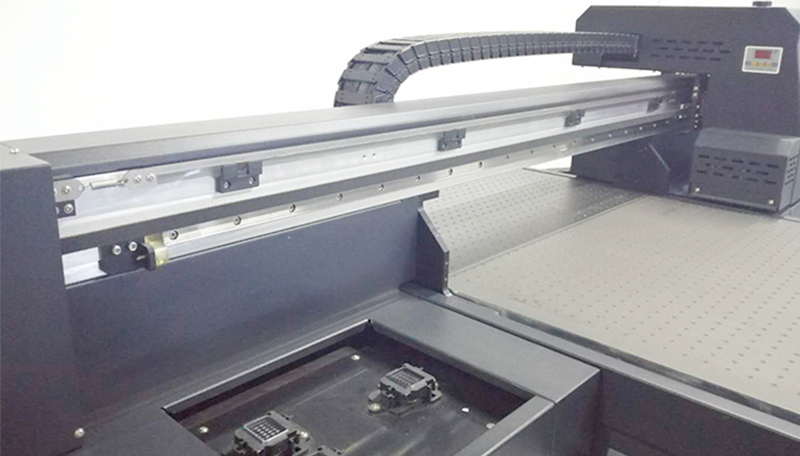

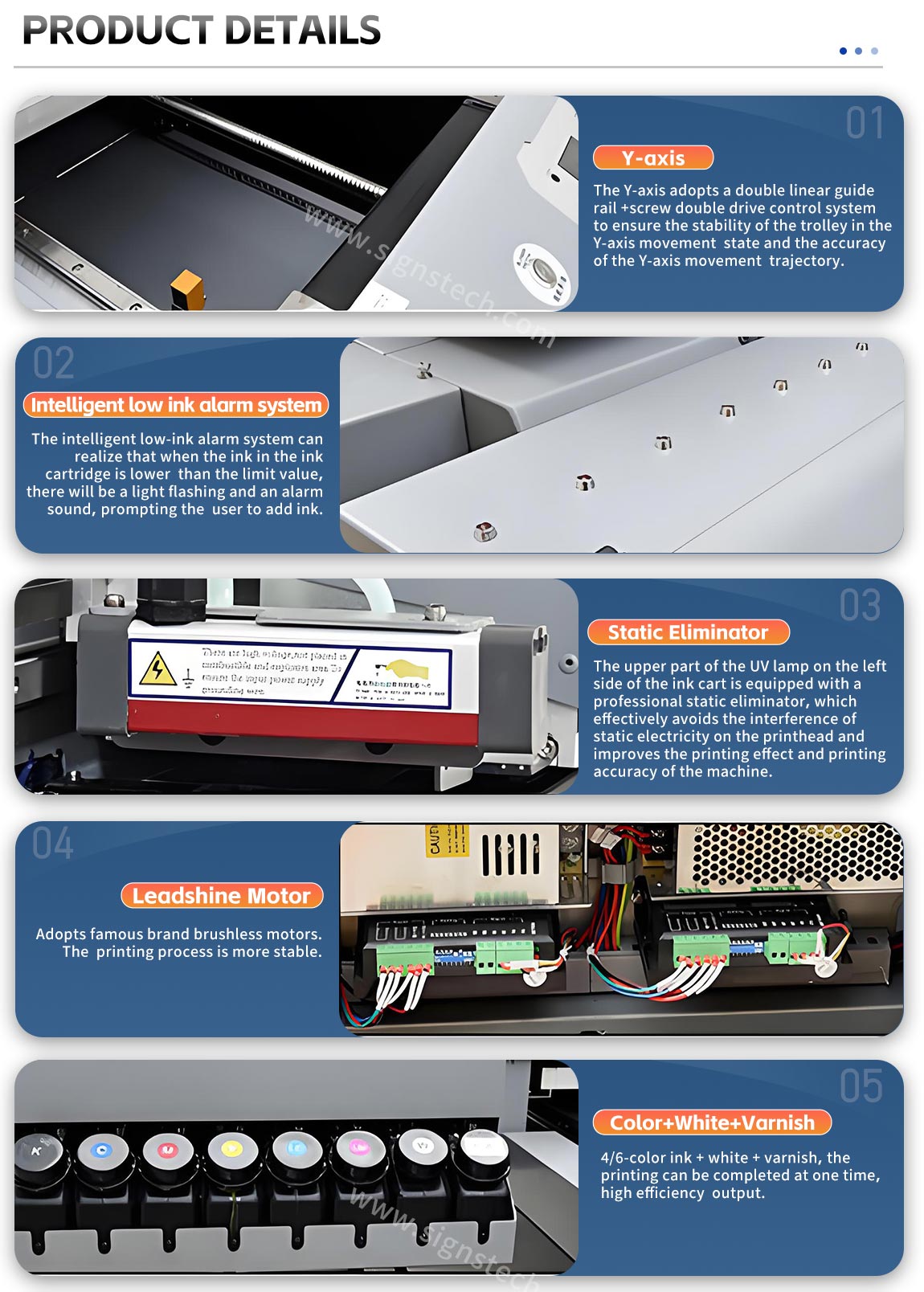

2. Japan imported THK guide rails and Leadshine servo motors ensures quiet and stable working.

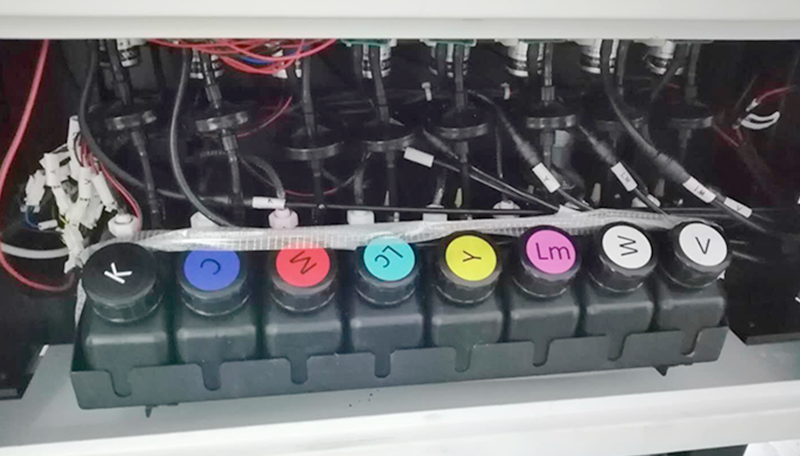

3. With negative pressure ink supply system and automatic alarm for ink shortage.
4. The heating function of the secondary ink cartridges ensures the smoothness of the ink
5. Air-cooled LED curable light, With white color ink agitating system in case of nozzles jamming,
6. Optional glossy oil,CMYK+W+O configuration.
 |
 |
|
Intelligentized Material Bearing Mode The machine is equipped with a set of strong air suction system to fix material. |
No more collision damage Collision sensor can prevent damage and defective products.For example, when the wrong material thickness is input or the edge of the material is raised, the printer head will immediately stop to prevent damage to the nozzle, but then printing can continue at the same PASS position |
 |
 |
|

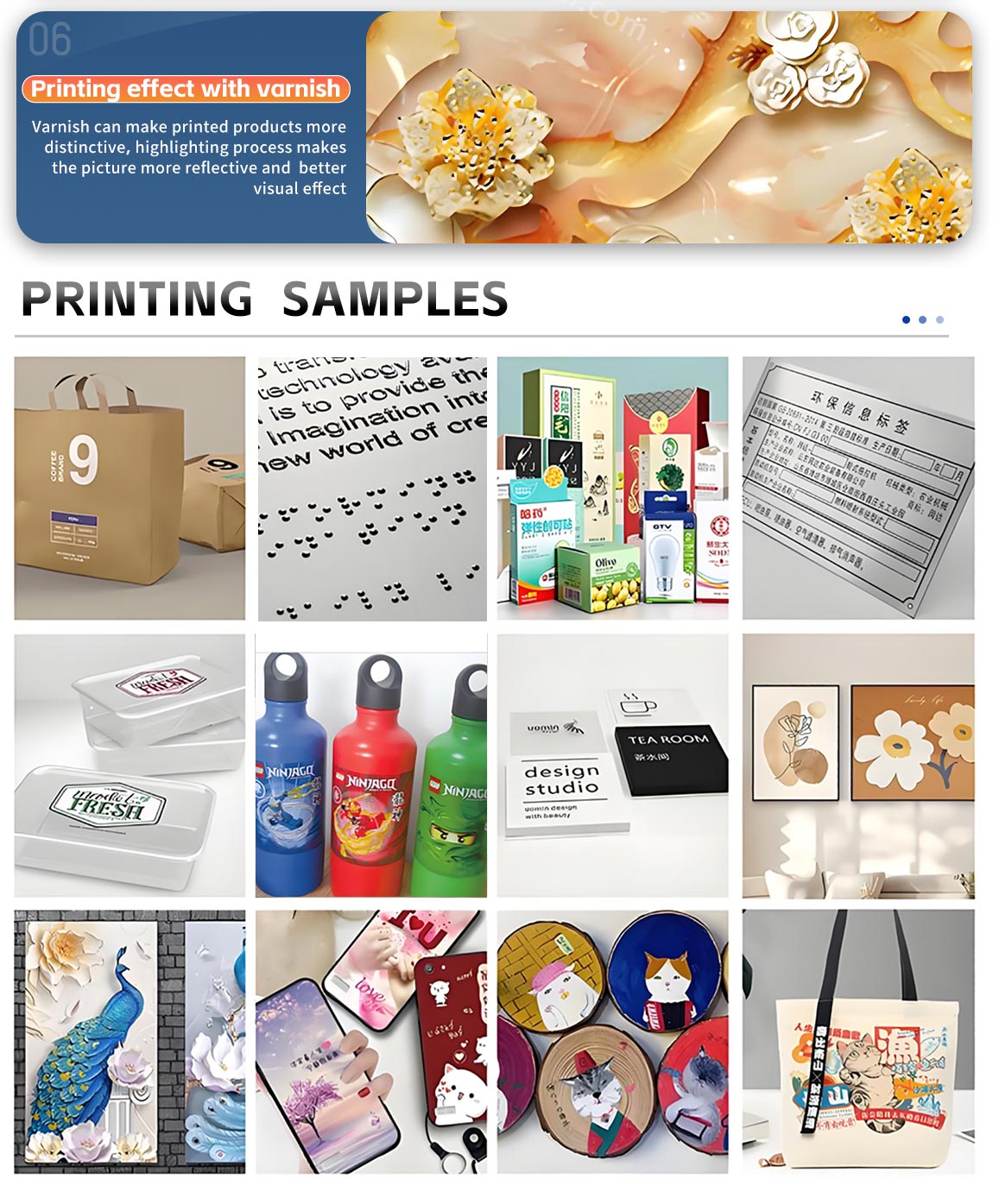

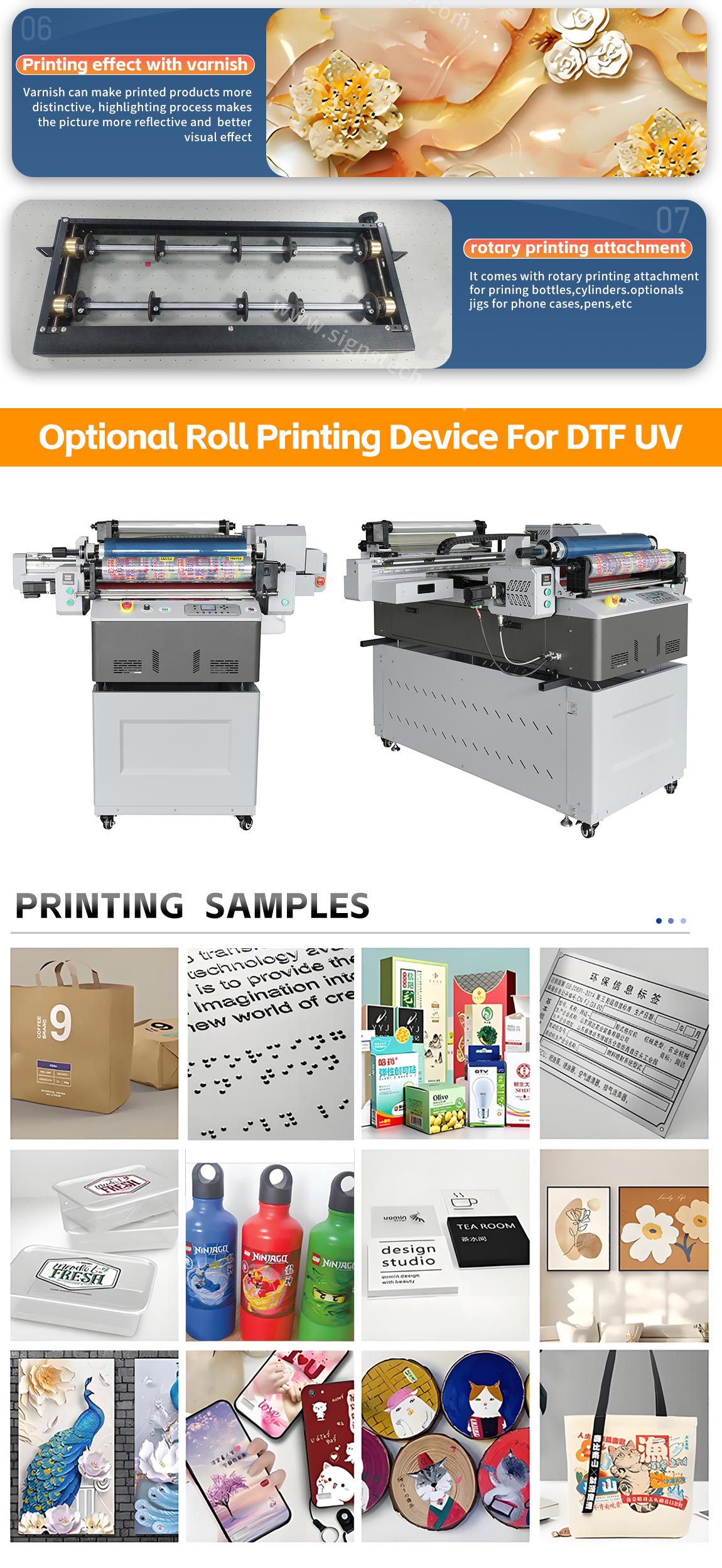

Visual and tactile effects are enhanced The varish effect makes the printed products different. Multi printing methods: select partial printing or overall overlay printing, thin or thick layer. |
One-time printing, double-sided effect The way to make the best use of transparent materials: multi-layer printing.It is made up of one layer of color, one layer of background color, one layer of shading color, plus one layer of background color. |
|
Model |
AC-6090 |
|
head type |
3x Epson XP600 * optional Epson I3200 U1 heads |
|
Maximum printing size |
60CM*90CM |
|
Printing table |
Sinkable Suction Platform |
|
Resolution/Speed |
360×720DPI (4 pass) 11m /2H |
|
360×1080DPI (6 pass) 5.5m /2H |
|
|
720×720DPI (8 pass) 3m /2H |
|
|
Ink sort |
UV ink |
|
Ink system |
Nagative Pressure System |
|
Maximum media thickness |
10CM *optional 20CM |
|
Media type |
PVC.Acrylic plate, ceramic tile, glass, stainless steel plate, signboard, mobile phone shell, paper shell, wine bottle, composite board, rubber, PVC |
|
Pic type |
PNG， JPG， JPEG， TIFF |
|
output port |
USB 2.0 |
|
Running system |
Windows 7,Windows 10. |
|
RIP software |
Photoprint,Ohyx |
|
Operation environment |
Temp: 20℃ - 35℃， Humidity: 35% RH - 70% RH |
|
Power supply spec |
AC 110V ±10%, AC 220V±10%, 50/60±1Hz |
|
Power |
1200W |
|
Dimension size |
L1665MM *W1560MM* H720MM |
|
Packing size |
L1830MM *W1760MM* H950MM |
|
Net weight |
225KG |
|
Gross weight |
300KG |
