Features:
 |
 |
|

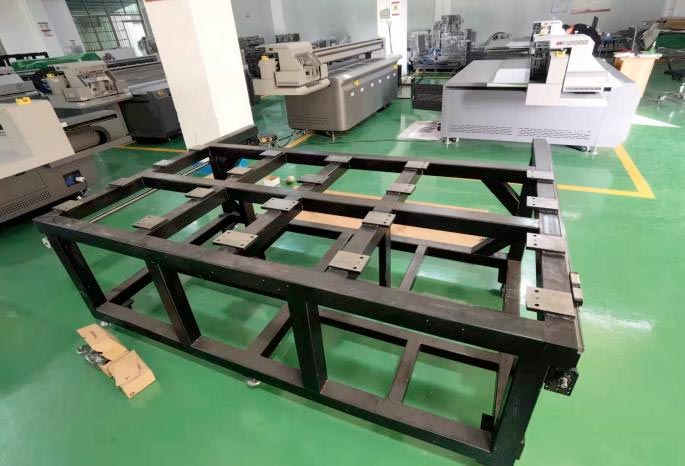

Primary quenching frame and double quenching beam,All steel frame processing by five-axis gantry milling machine |

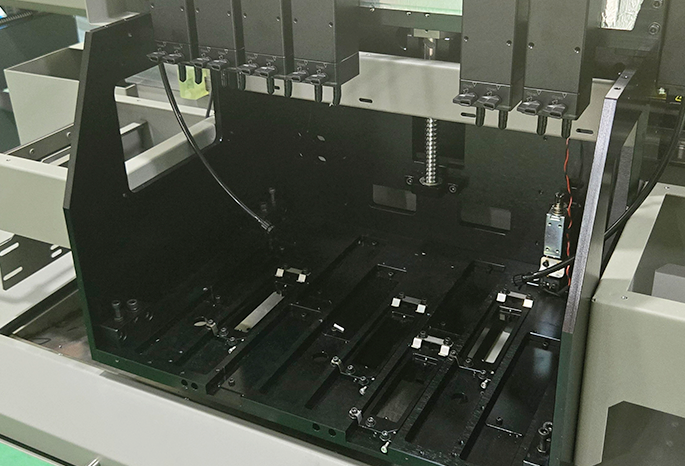

High precision made cartridge with least printheads cabrication ,can be installed 3 or more printheads,Qty of those is flexiable |
 |
 |
|

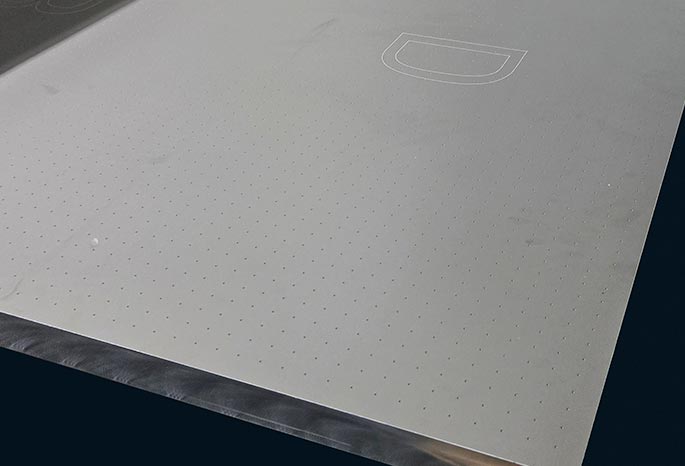

Hard aluminum suction platform,4-independent area absorbing design, staff gauge in axis X and axis Y, no deformation after long-term use |

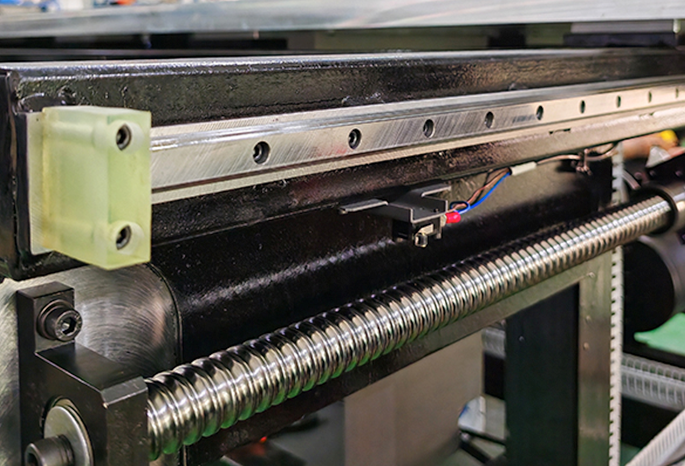

Double Japan THK muted linear rail in axis X, double grinding grade precision lead screw from Taiwan, high precision on repeat positioning |
 |
 |
|

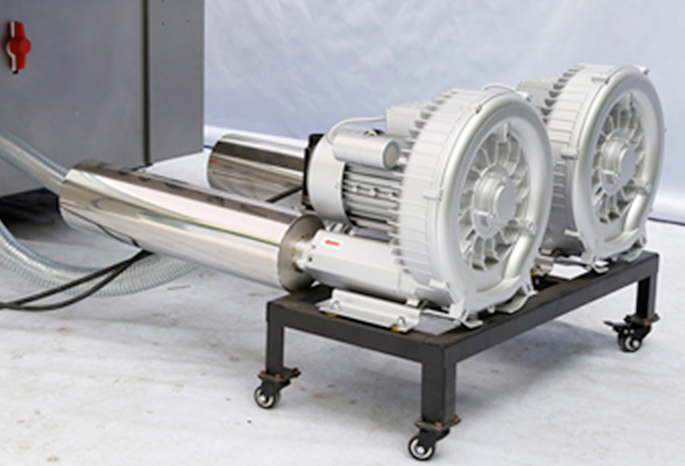

Double 1500W vacuum motors ensure strong power to fix materials. |

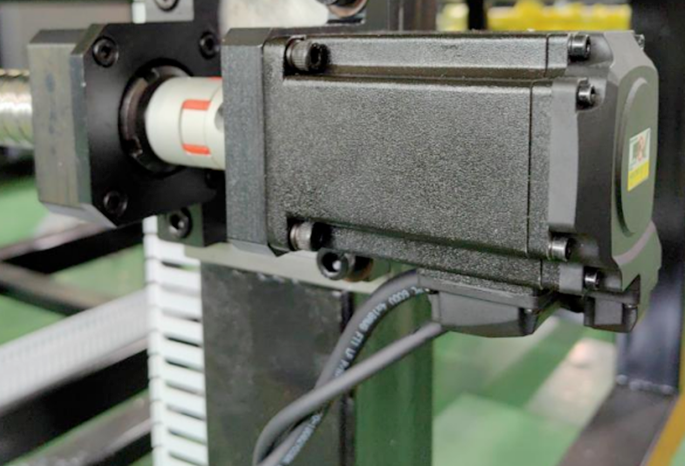

Taiwan Detal servo motors(X axis dual 400w and Y axis 750w), ensure the stable operation of the machine； |
 |
 |
|

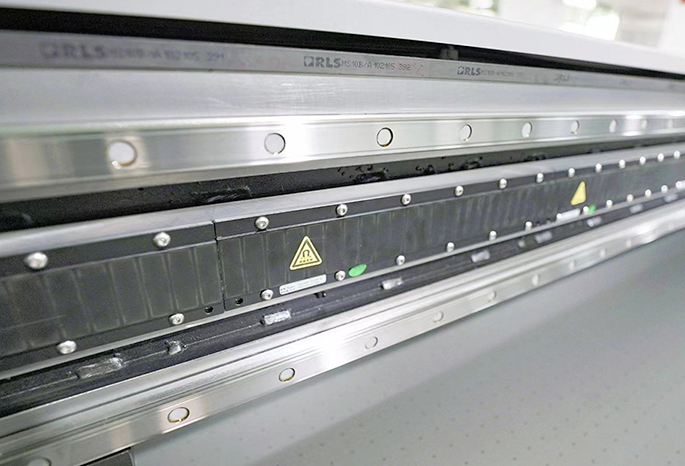

Metallic gratings and linear motor system, offering higher acceleration of the carriage |

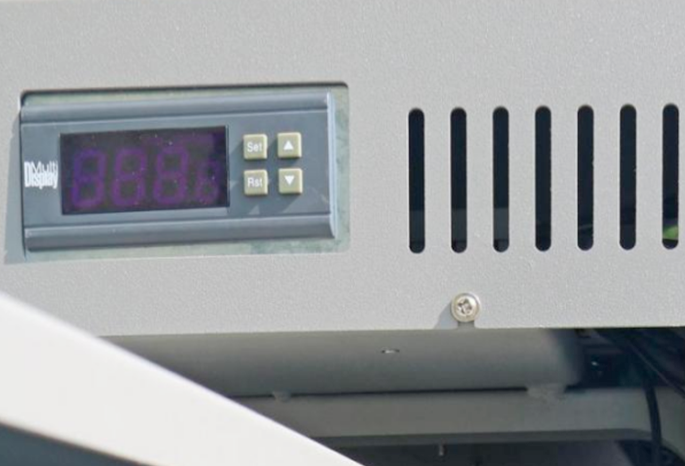

Secondly ink bottle heating system to stabilize the temperature of ink, ensure ink fluency |
|
|
 |
|

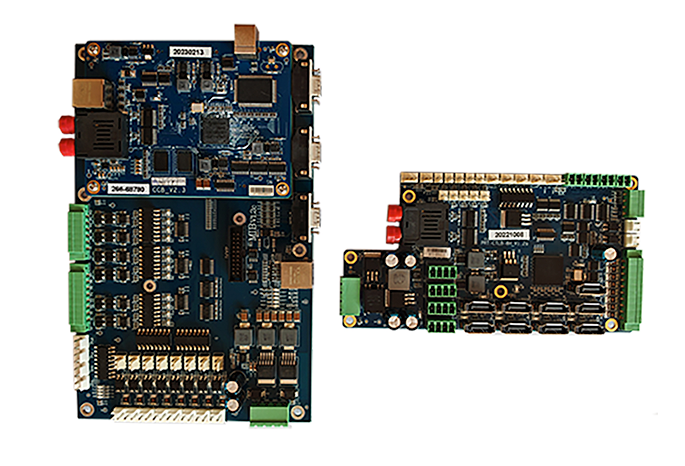

Professional UV control system from “Shanghai Royal”,the one of the top ensures reliablity and stability |
Automatic height detecting system to print different thickness materials |
|
|
 |
|

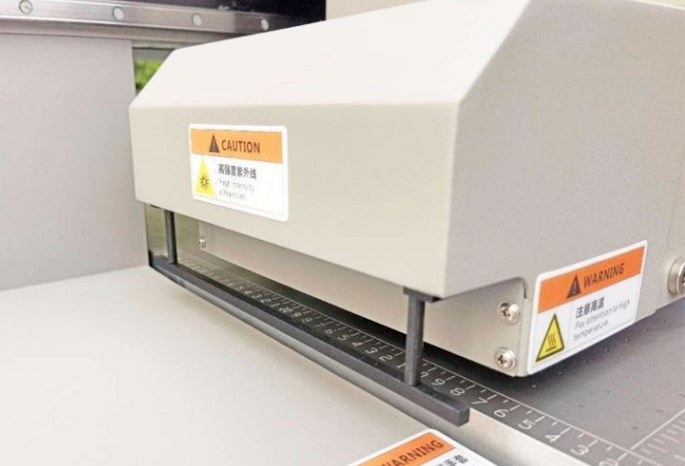

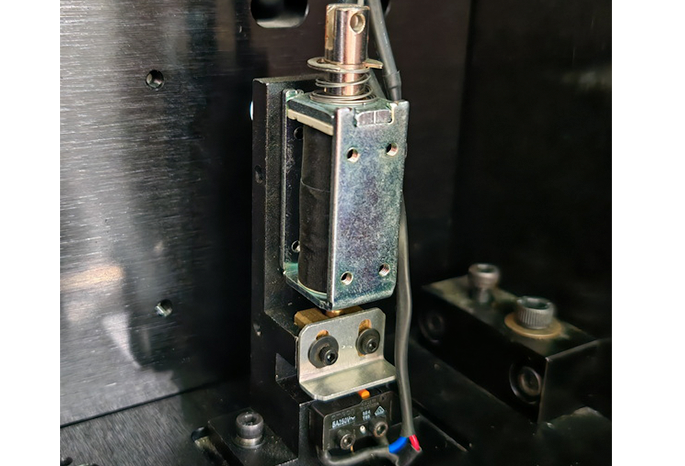

Carriage with anti-collision device to protect the printheads effectively |

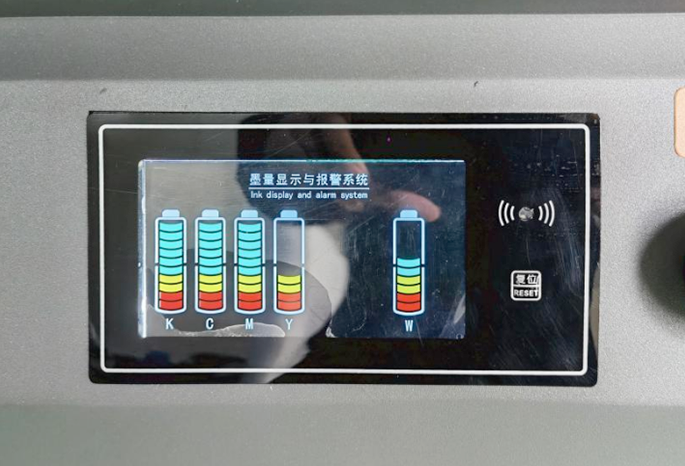

Independent ink storage display and ink shortage alarm device. |
Applications:
|

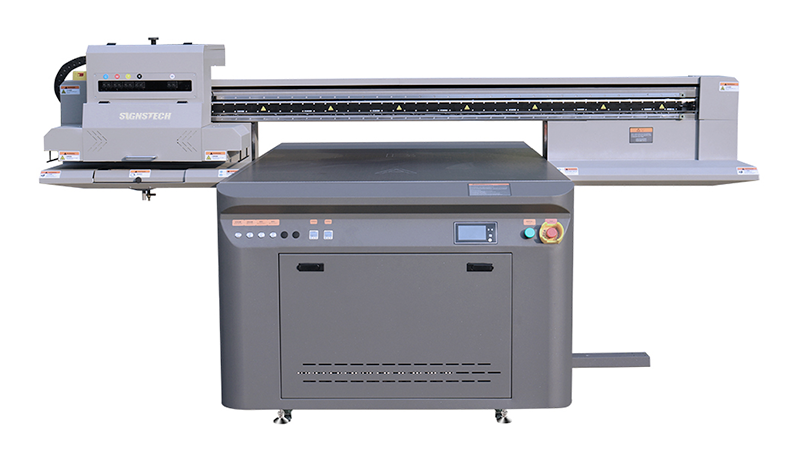

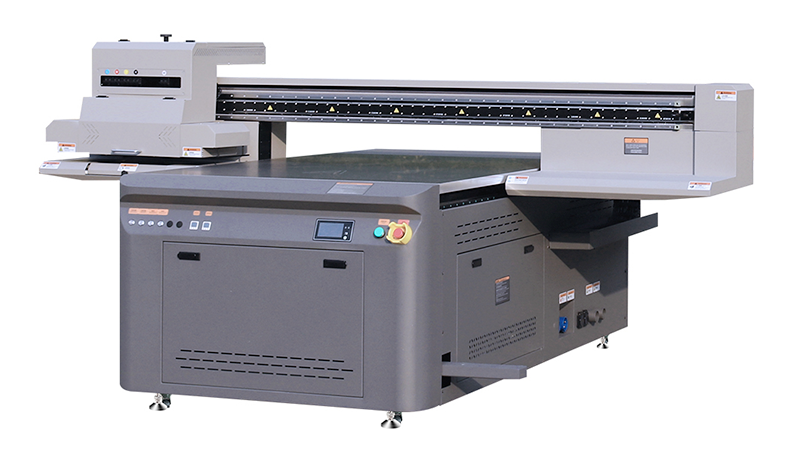

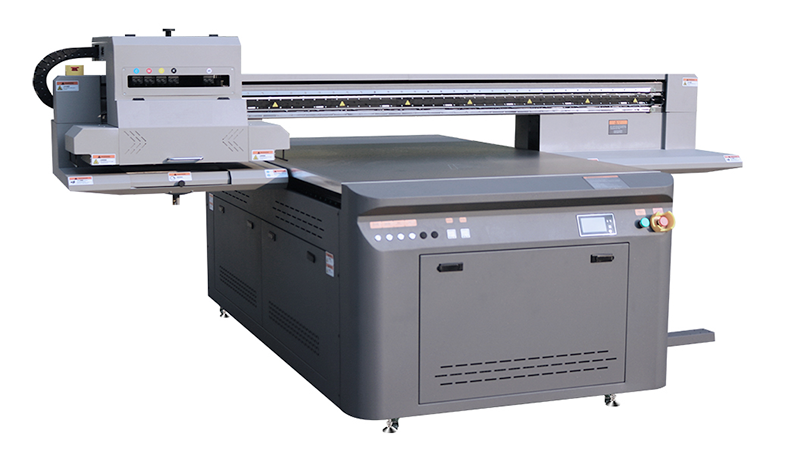

Model |
TM-1216 -R6 |
|
Printing area |
1200mm×1600mm |
|
Curing system |
UV LED lamp curing |
|
Printhead |
RICOH GH2220/G5/G6/G51 |
|
Print accuracy |
600DPI,900DPI,1200DPI |
|
Ink mode |
CMYK/LC/LM/W/V |
| Media thickness |
0-150mm/customized according to media height |
|
UV ink |
UV-curable inks/multiple ink applications |
|
Print speed |
Model of linear motor：4pass：7m2/h 6pass：4m2/h 8pass：2m2/h |
|
Printing medias |
fabric, plastic, acrylic, wooden sheets, glass, film,tiles,metal sheets, PVC sheets, cardboard, leather etc. |
|
RlP software |
Photoprint, Colorgate |
|
Operating system |
Windows7/8/10/11 64bit RAM≥8G |
|
File formats |
TIFF,JPEG,EPS,PDF,PDS,CDR,AI.CAD |
|
Cartridge capacity |
1.5 liter capacity, automatic ink shortage alarm |
|
Working environment |
Temperature: 18 “C ~ 26 °C ,Humidity: 40%~70% |
|
Safety certificate |
CE SGS MSDS |
|
Power supply |
5kw; AC220v(+10%>15A;50~60Hz |
|
Dimensions |
2900mmx2400mmx1450mm |
|
Total weight |
700kg |
