Features:
 |
 |
|
Primary quenching frame and double quenching beam,All steel frame processing by five-axis gantry milling machine |
High precision made cartridge with least printheads cabrication ,can be installed 3 or more printheads,Qty of those is flexiable |
 |
 |
|
Hard aluminum suction platform,4-independent area absorbing design, staff gauge in axis X and axis Y, no deformation after long-term use |
Double Japan THK muted linear rail in axis X, double grinding grade precision lead screw from Taiwan, high precision on repeat positioning |
 |
 |
|
Double 1500W vacuum motors ensure strong power to fix materials. |
Taiwan Detal servo motors(X axis dual 400w and Y axis 750w), ensure the stable operation of the machine； |
 |
 |
|
Metallic gratings and linear motor system, offering higher acceleration of the carriage |
Secondly ink bottle heating system to stabilize the temperature of ink, ensure ink fluency |
|
|
 |
|
Professional UV control system from “Shanghai Royal”,the one of the top ensures reliablity and stability |
Automatic height detecting system to print different thickness materials |
|
|
 |
|
Carriage with anti-collision device to protect the printheads effectively |
Independent ink storage display and ink shortage alarm device. |
Applications:
|

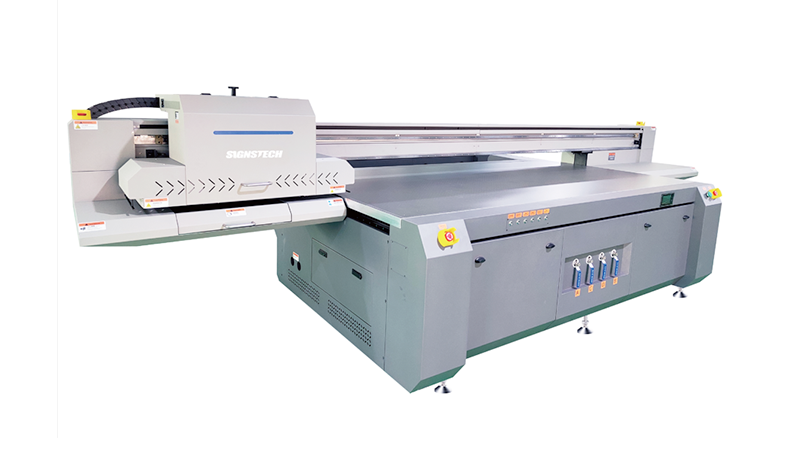

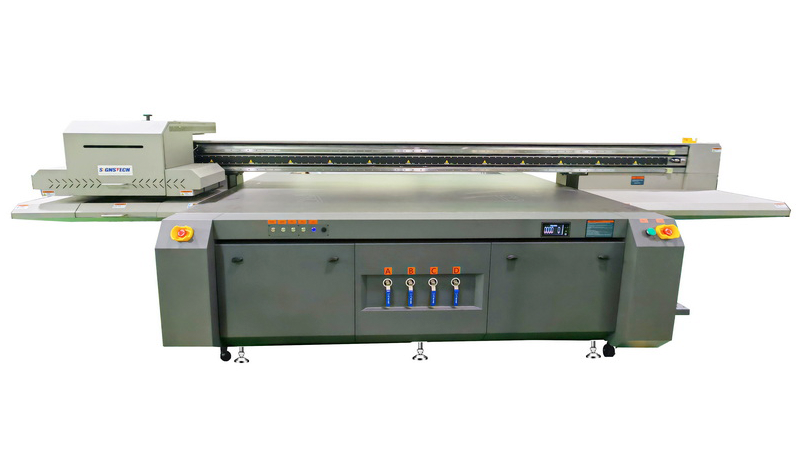

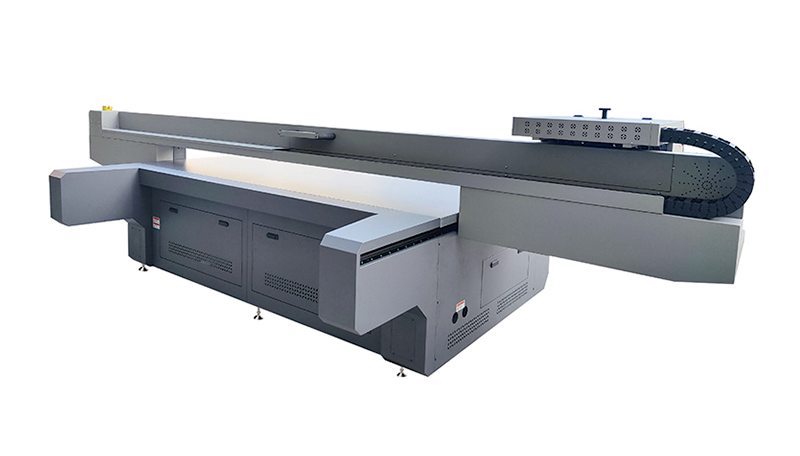

Model |
MT-2513-R6 |
|
Printing area： |
2500×1300mm |
|
Print head： |
2-8 Pieces Ricoh Gen5/Gen6 |
|
RIP software |
Photoprint or Colorgate |
|
Ink color： |
C M Y K LC LM W V |
|
Print Thickness |
0-100mm（optional 200mm-500mm），automatic detection |
|
Curing |
Double UV-LED, Water chilling |
|
Ink type： |
Environmentally friendly UV ink（Not include VOC） |
|
Print speed： |
Model of belt transmission：4pass：16m2/h 6pass：10m2/h 8pass：6m2/h Model of linear motor：4pass：30m2/h 6pass：18m2/h 8pass：10m2/h |
|
Power Supply： |
220VAC (±10%) ,50 / 60 Hz |
|
Print resolution： |
600dpi,900dpi,1200 dpi |
|
Image format |
TIFF/JPEG/AI/PDF/ESP |
|
Computer system |
Win7/Win8/Win10 |
|
Interface |
USB 2.0/3.0 |
|
Net weight： |
Model of belt transmission：1350kg Model of linear motor：1550kg |
|
Working temperature： |
15-30℃ |
|
Working humidity: |
20-75RH |
|
Equipment dimensions： |
2100*4300*1300mm |
|
Package dimensions |
2150*4400*1400mm |
