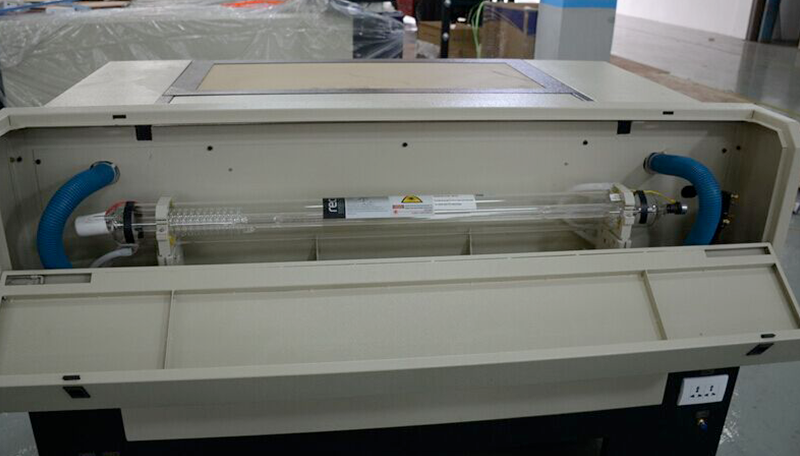

With Reci Co2 laser tube as standard, lifetime up to 10000 hours and warranty of 9 months. |
Winner  high speed linear rail from South Korean, High precision and high speed than regular linear rail. |
 |
 |
|

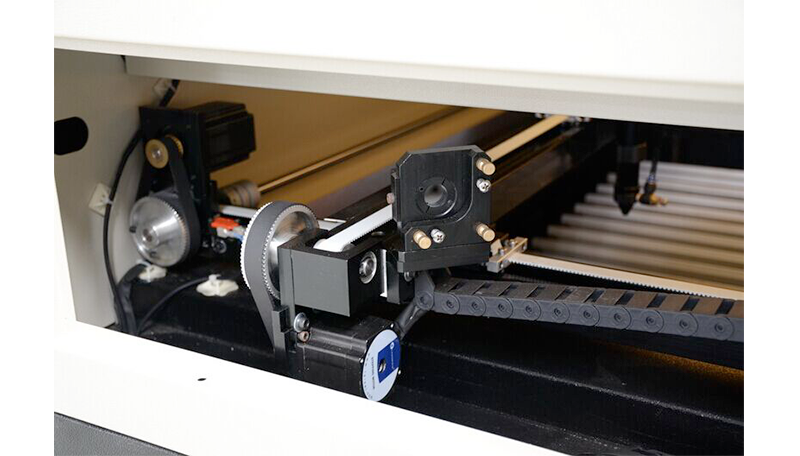

Leadshine Stepper motor and driver system, more durable and long life time working. |
High precision mechanical driving system with strict tuning. |
 |
 |
|
Additional both sides fume extractor system. |

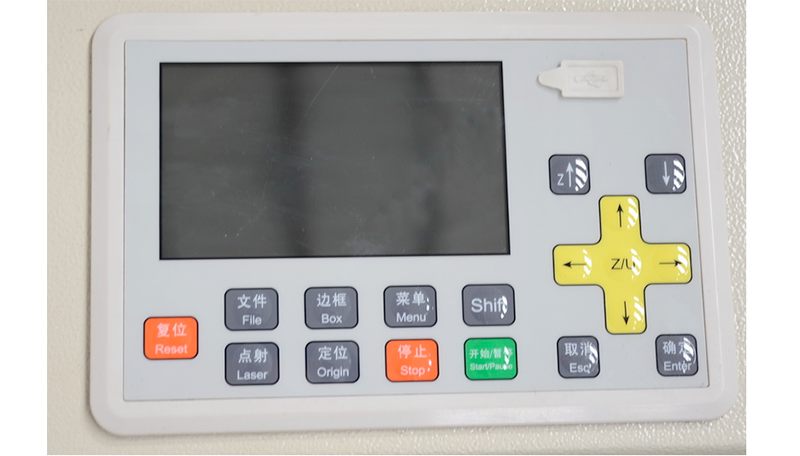

Professional LaserCad AWC708 system, color LED display with USB port on panel. |
 |
 |
|
Full aluminum shell laser power supply. High stability. |

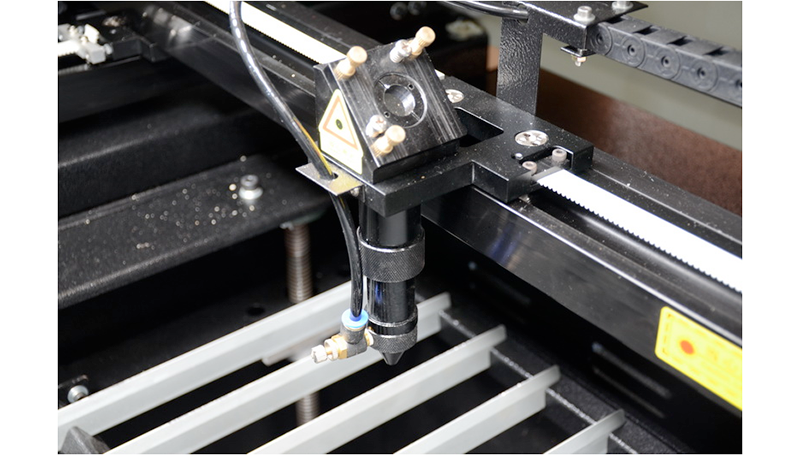

Singapore imported material laser lens, high reflectivity and small focal spot. |
|
Options: |
|
|
|
 |
|
1.Electric lifting bed |
2.Roatary attachment |
|
3.Red dot pointer |
4.Servosystem with lead screw upgrade |
|
5.Reci S4 laser tube(rated 100w, Max 130w) |
6. Reci S6 laser tube(rated 130w, Max 160w) |
|

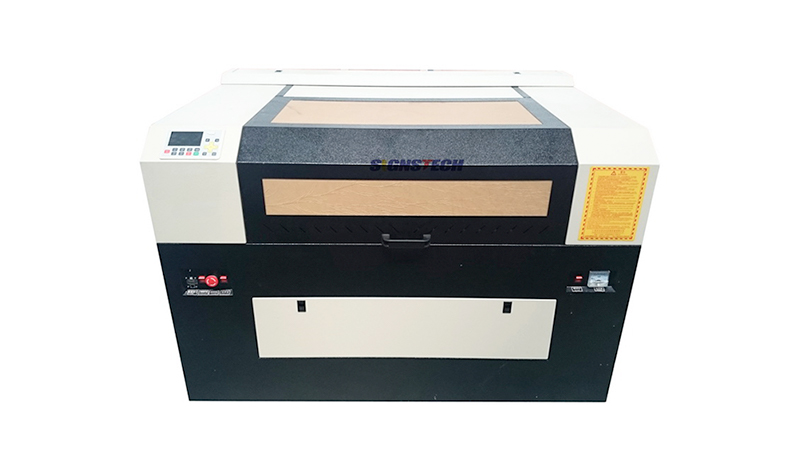

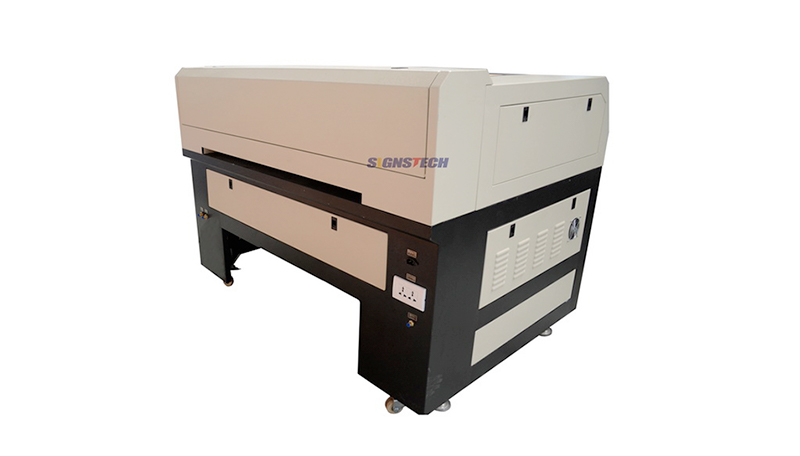

Model |
1310SP |
|
Working Area |
1300x1000mm 4.2ftx.3.2ft |
|
Laser Power |
Reci W2 90W rated power, Max power 100w |
|
Laser Strength Control |
PWM Control |
|
Max Working Speed |
0-1000mm/s Numeral timing |
|
Resolution Ratio |
0.025mm |
|

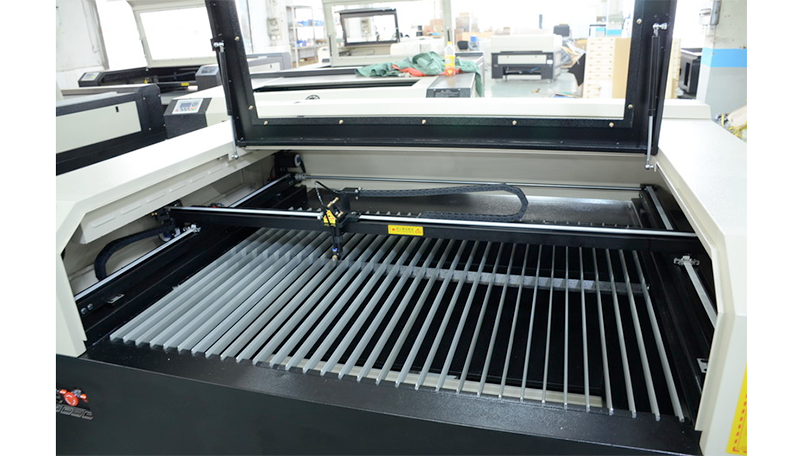

Cutting Bed |
Detachable Alu Formation |
|
Resetting positioning accuracy |
±0.01mm |
|
Cutting Depth |
0-15mm Acrylic |
|
Minimum Shaping Character |
1mm, Chinese character 2mm |
|
Interface |
USB |
|
Power supply |
220V±10% 50HZ or 110V±10% |
|
Gross power |
<1500w |
|
Supported Image Format |
BMP、GIF、JPEG、PCX、TGA、TIFF、PIT、CDR、DWG、DXF |
|
Cooling system |
CW-3000 water chiller |
|
Laser Tube Lifetime |
10000h |
|
Machine Net Weight |
400KG |
|
Machine Dimensions |
1850mmx1500mmx1130mm |
|
Package Dimensions |
1950mmx1600x1300mm,550kg |
|
Application |
Arts and Crafts processing, Advertisement and Decoration, Clothing Cutting, Leather processing, Model and printed hectograph making. photoelectric film, flexible circuit board and etc. |
