Heavy frame manufactured by ourselves, processed by industrial planer type milling machine with stable moving and high precision. |

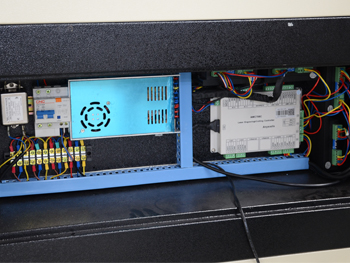

High quality DSP controller and anti-interference power supply |
 |
 |
|

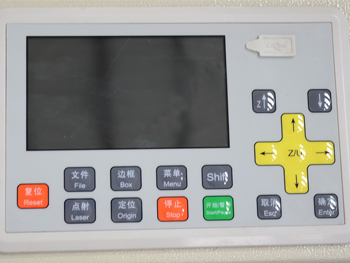

Professional LaserCAD DSP system, color LED display, supports Win10 |

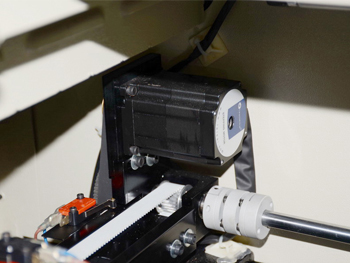

Leadshine stepper motors and drivers |
 |
 |
|

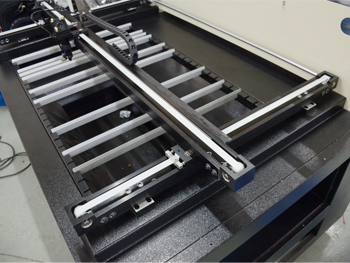

Constant optical path system ensures working precision of large size. |
“Leadshine” brand Stepper motor and driving system on XY axis, more durable and long life time working |
 |
 |
|
Winner |

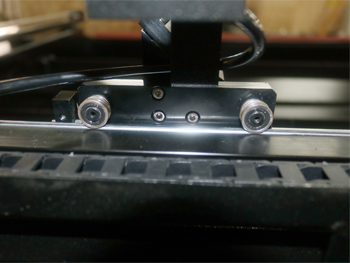

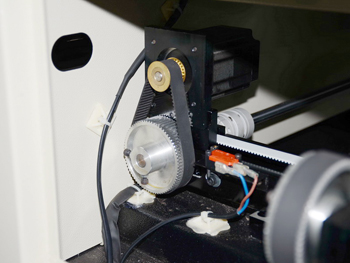

High precision mechanical driving system with fine tuning |
 |
 |
|

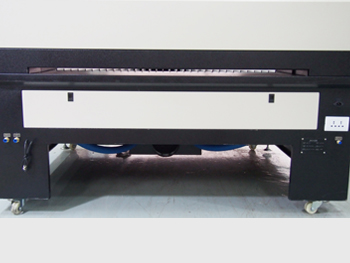

Feed through back door for Max thickness 40mm materials |

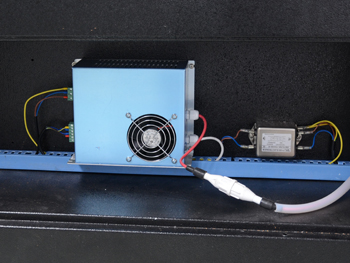

Laser power supply with full aluminum shell, With anti-interference, voltagestabilizing function, same one year warranty |
 |
 |
|

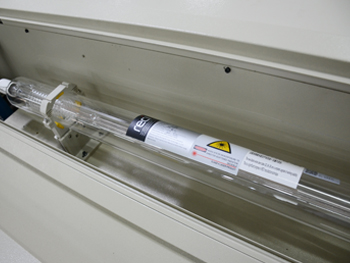

With Reci Co2 laser tube as standard, lifetime up to 10000 hours and warranty of 9 months |

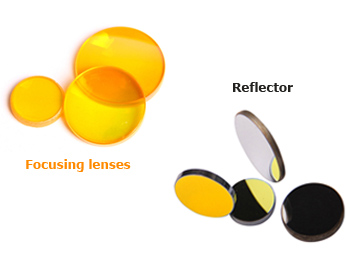

Singapore or US imported laser lens,high reflectivity and small focal spot |
|

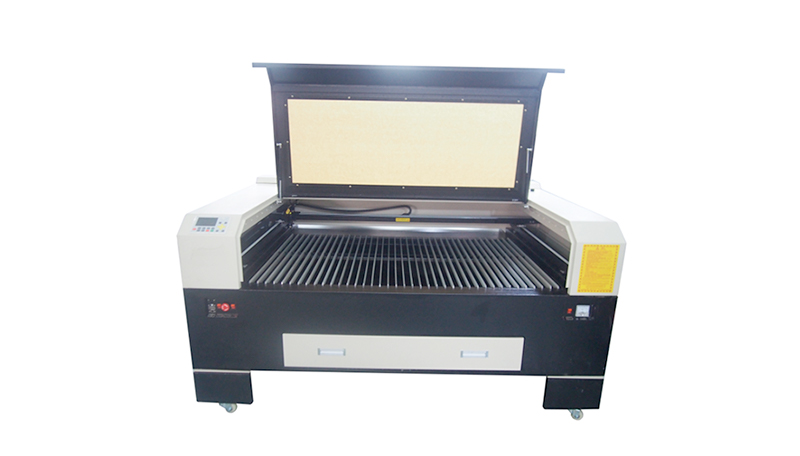

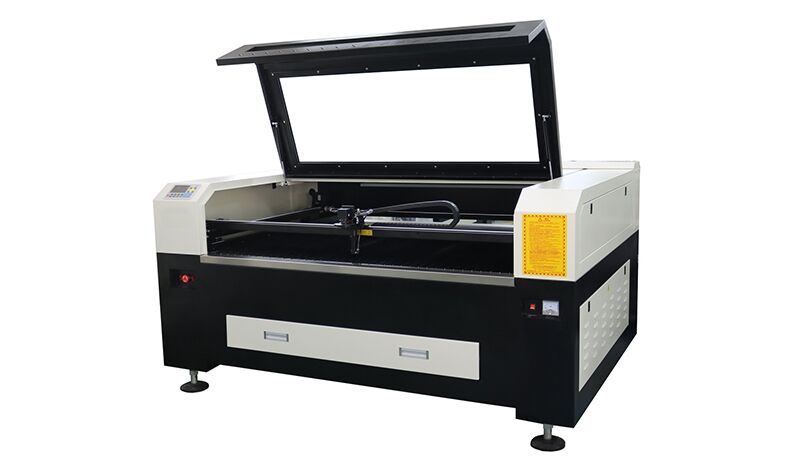

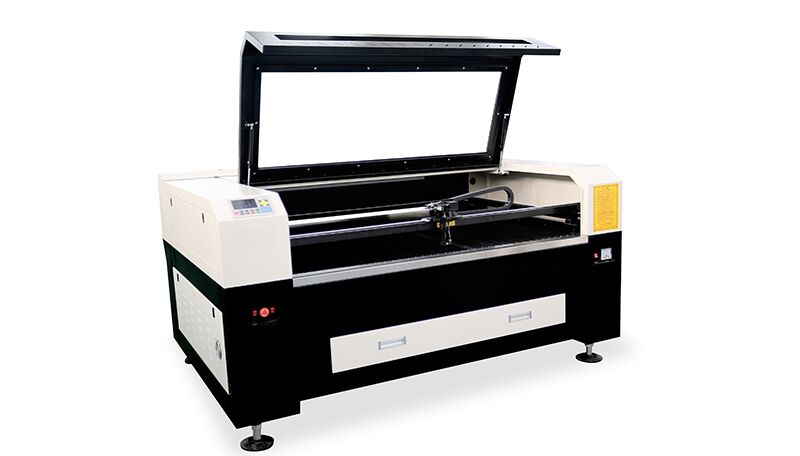

Model |
1610SP |
|
Working Area |
1600x1000mm 5.2ftx.3.2ft |
|
Laser Power |
Reci W2 90W rated power, Max power 100w |
|
Laser Strength Control |
PWM Control |
|
Max Working Speed |
0-1000mm/s Numeral timing |
|
Resolution Ratio |
0.025mm |
|
Cutting Bed |
Detachable Alu Formation |
|
Resetting positioning accuracy |
±0.01mm |
|
Cutting Depth |
0-15mm Acrylic |
|
Minimum Shaping Character |
1mm, Chinese character 2mm |
|
Interface |
USB |
|
Power supply |
220V±10% 50HZ or 110V±10% |
|
Gross power |
<1500w |
|
Supported Image Format |
BMP、GIF、JPEG、PCX、TGA、TIFF、PIT、CDR、DWG、DXF |
|
Cooling system |
CW-3000 water chiller |
|
Laser Tube Lifetime |
10000h |
|
Machine Net Weight |
500KG |
|
Machine Dimensions |
2150mmx1500mmx1140mm |
|
Package Dimensions |
2250mmx1600x1300mm, 650kg |
|
Application |
Arts and Crafts processing, Advertisement and Decoration, Clothing Cutting, Leather processing, Model and printed hectograph making. photoelectric film, flexible circuit board and etc. |
