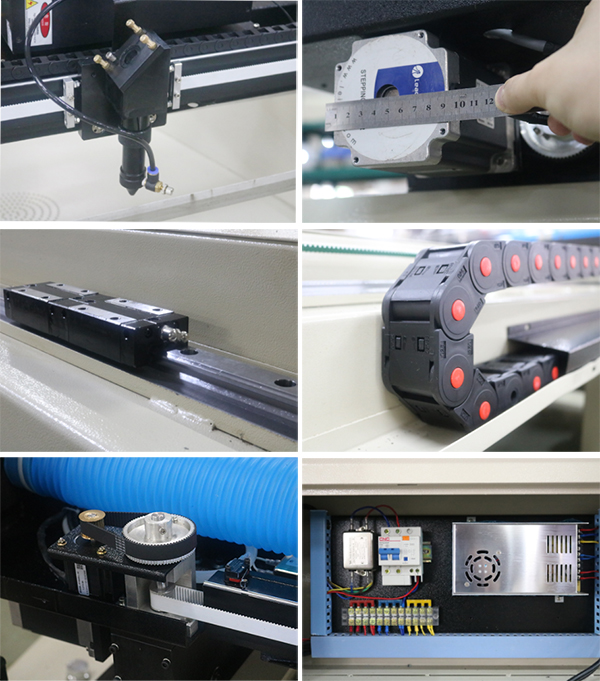

1,Co2 laser tube, lifetime up to 10000 hours and warranty 9 months.
2,High stability full aluminum shell laser power supply.
3, Singapore imported laser lens, high reflectivity and small focal spot.
4,High precision and inside steel wire driving belt, longer lifetime.
5, X axis: Korea imported adjustable high speed guide rail, more smoothly running.
6,Y axis: Taiwan imported straight guide rail, more stability.

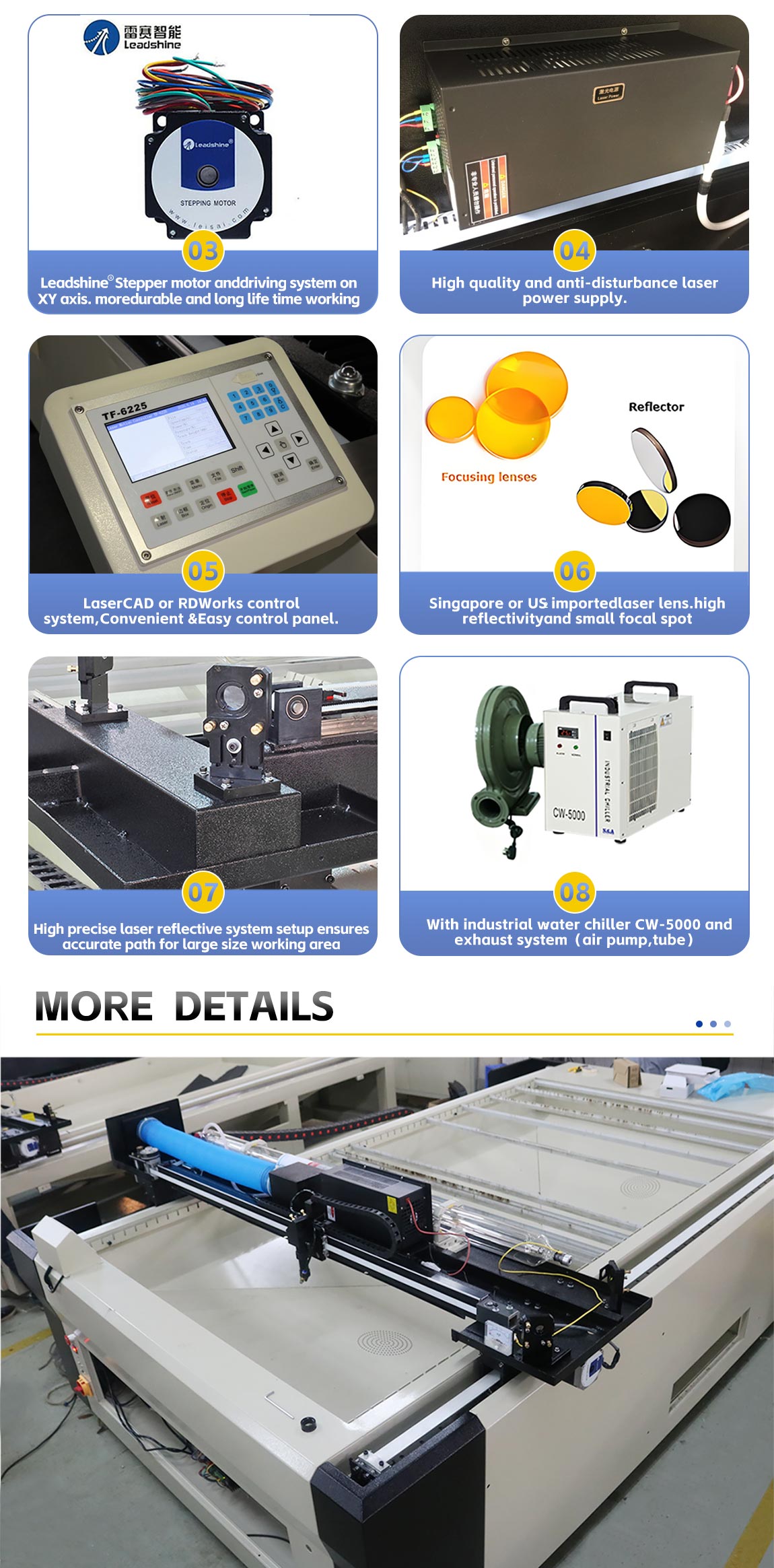

7,Leadshine stepper motor and driver, higher stability.
8, Professional operat software.
|
Model |
1325SP1325SP |
|
Working area |
1300X2500mm |
|
Laser power |
Reci S6 160w ,optional S8 |
|
Resolution ratio |
0.025mm |
|
Minimum shaping character |
Chinese character 2mm、English 1mm |
|
Resetting positioning accuracy |
±0.01mm |
|
Power supply |
Ac220v±100%,50HZ/60HZ |
|
Gross power |
<1500w |
|
Operating temperature |
0℃-45℃ |
|
Operating humidity |
5%-95% free ;of condensed water) |
|
Graphi format supported |
BMP、GIF、JPEG、PCX、TGA、TIFF、PIT、CDR、DWG、DXF. |
|
Net weight |
550kg |
|
Dimension |
3000×1800×1000mm |
|
Package size |
3300X2300X1500mm |
|

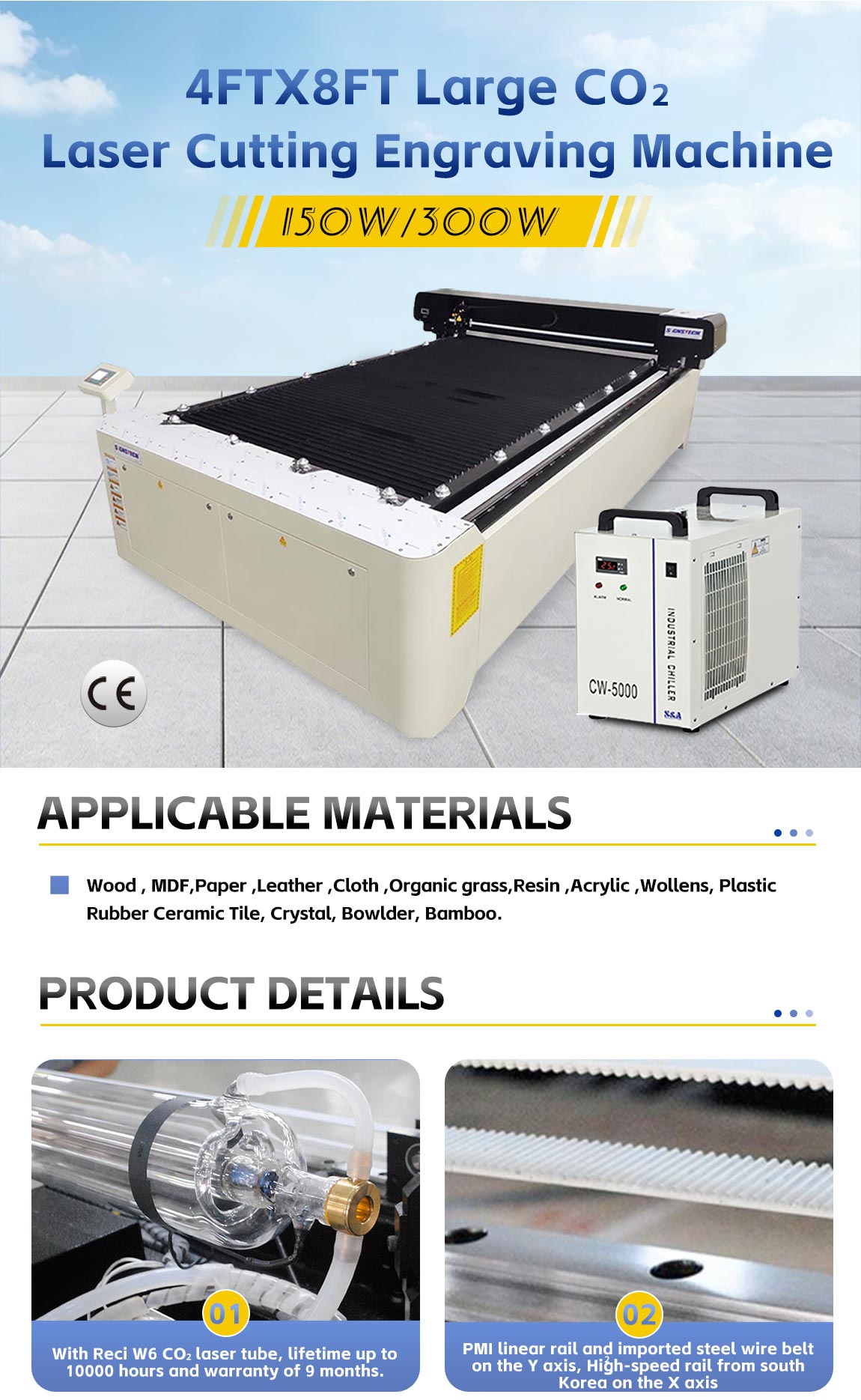

Applicable materials: Wood , Paper ,Leather ,Cloth ,Organic grass,Resin ,Acryli ,Wollens, ;Plastic Rubber Ceramic Tile, Crystal, Bowlder, Bamboo. |
|
