It is capable of cutting stainless steel, carbon steel, acrylic, leather, fabric, MDF and wood, carbon paper or related material laser processing. |
|
|
Features |
|
|
2in1 laser head with metal cutting laser auto focus system. Constant optical laser path system, keeps stable focus on the high moving. Leadshine stepper driving system.
Steel wire belt and PMI linear rail on X,Y axis. high reliability and faster working speed.
Industrial water chilling system and exhaust system Application: Stainless steel/ carbon steel, acrylic, leather, fabric, MDF and wood, carbon paper or related material laser processing. |
|
|
Details |
|
 |
 |
|

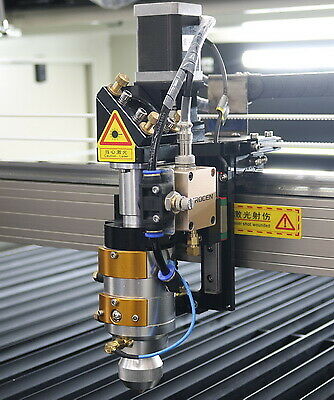

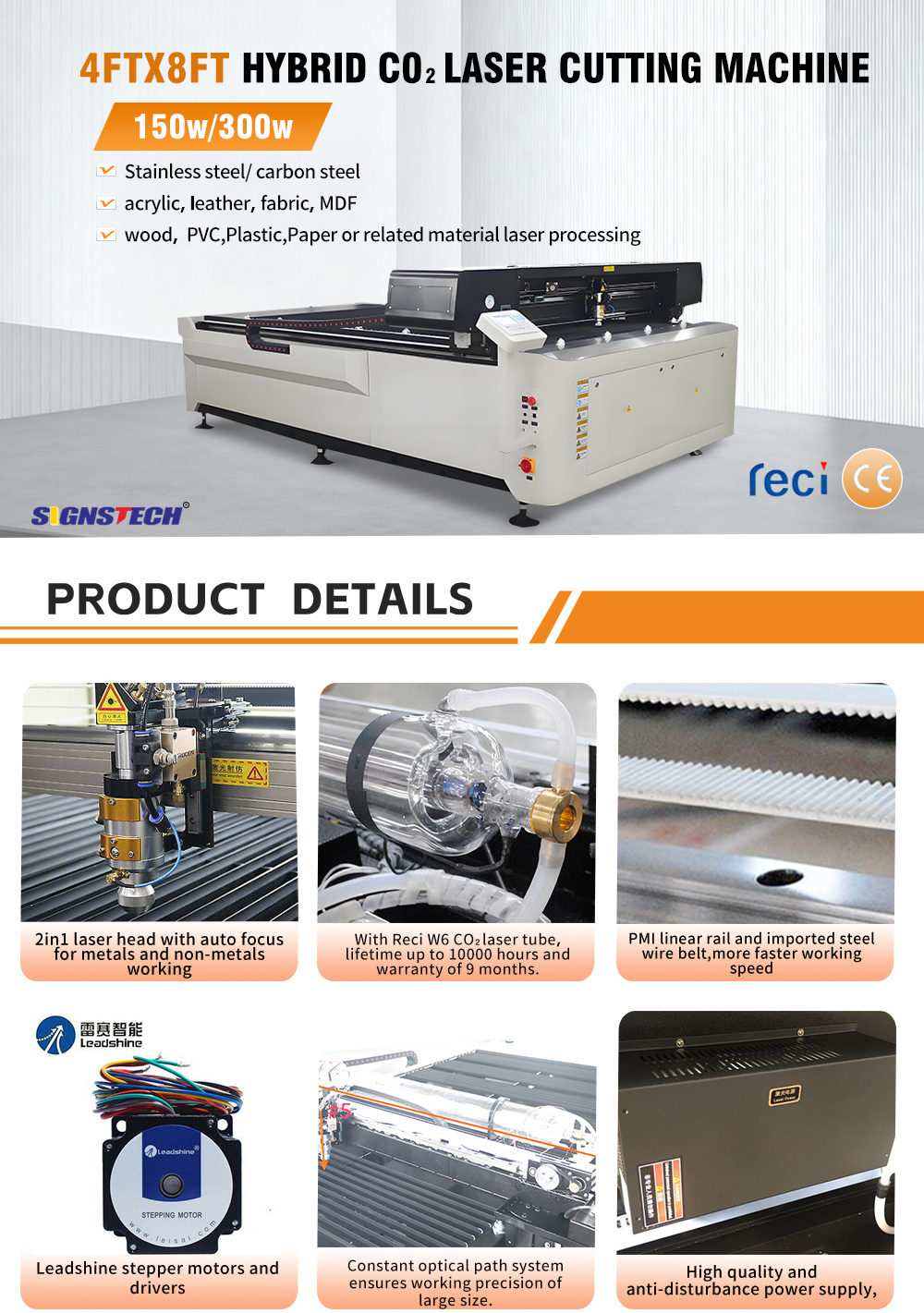

2in1 laser head with auto focus for metals and non-metals working |

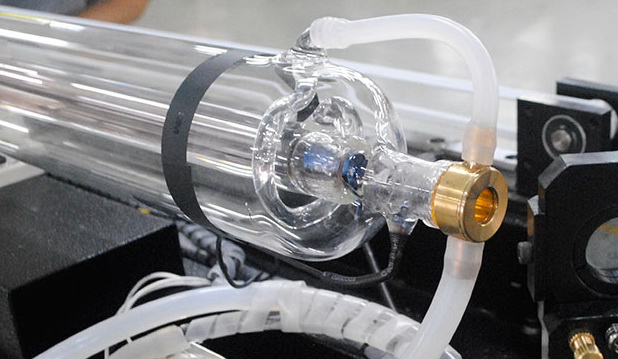

With Reci W6 Co2 laser tube, lifetime up to10000 hours and warranty of 9 months. |
 |
 |
|

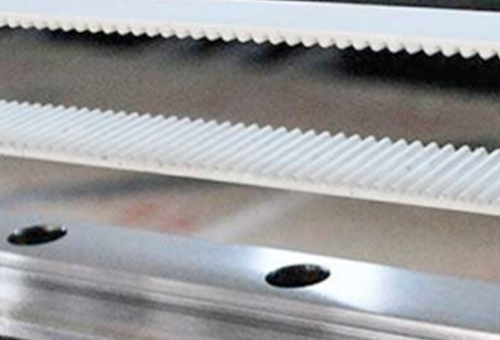

PMI linear rail and imported steel wire belt,more faster working speed |

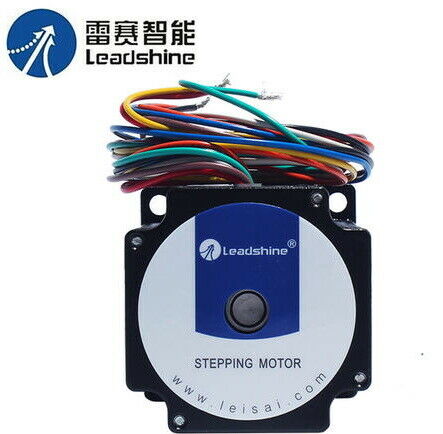

Leadshine stepper motors and drivers |
 |
 |
|

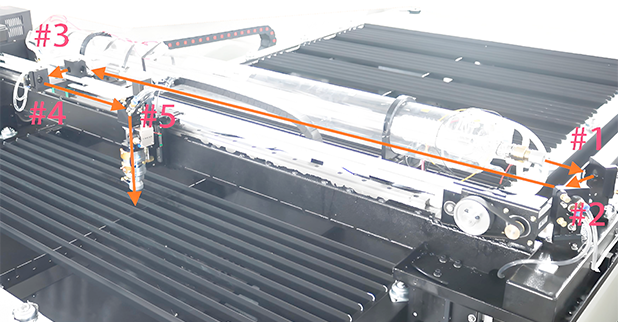

Constant optical path system ensures working precision of large size. |

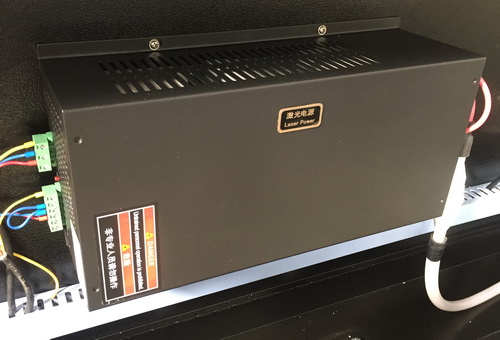

High quality and anti-disturbance power supply, |
 |
 |
|

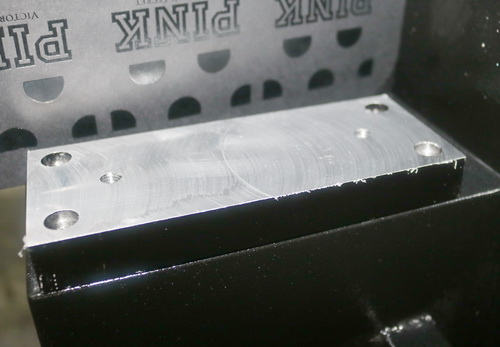

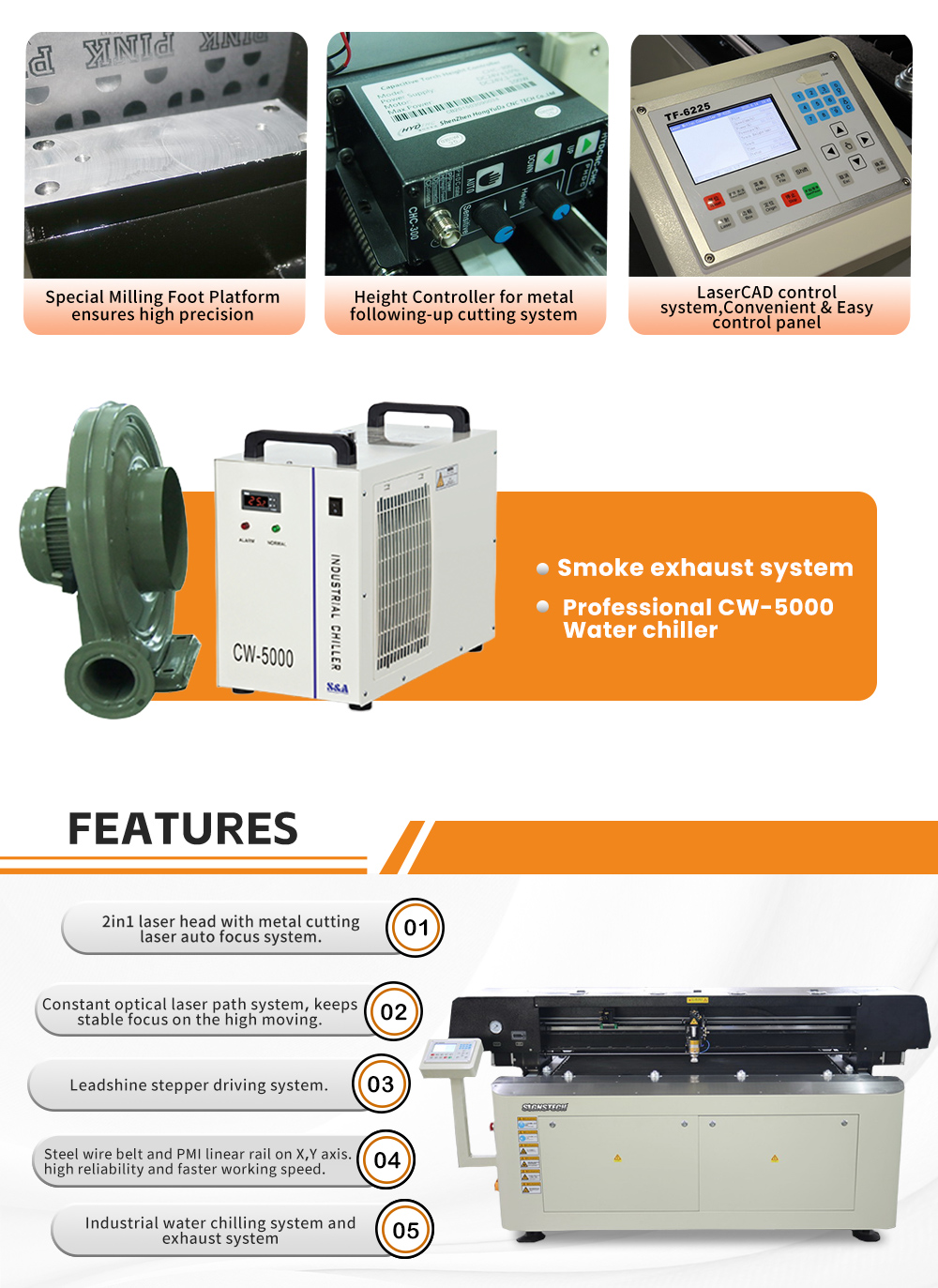

Special Milling Foot Platform ensures high precision |

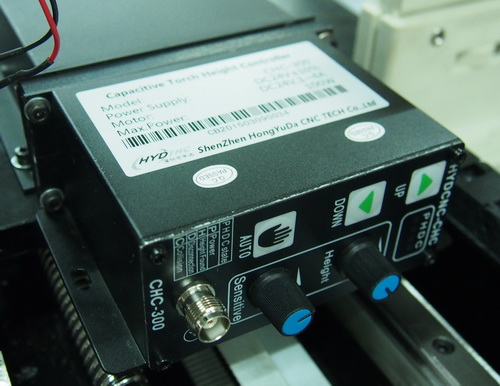

Height Controller for metal following-up cutting system |
 |
 |
|

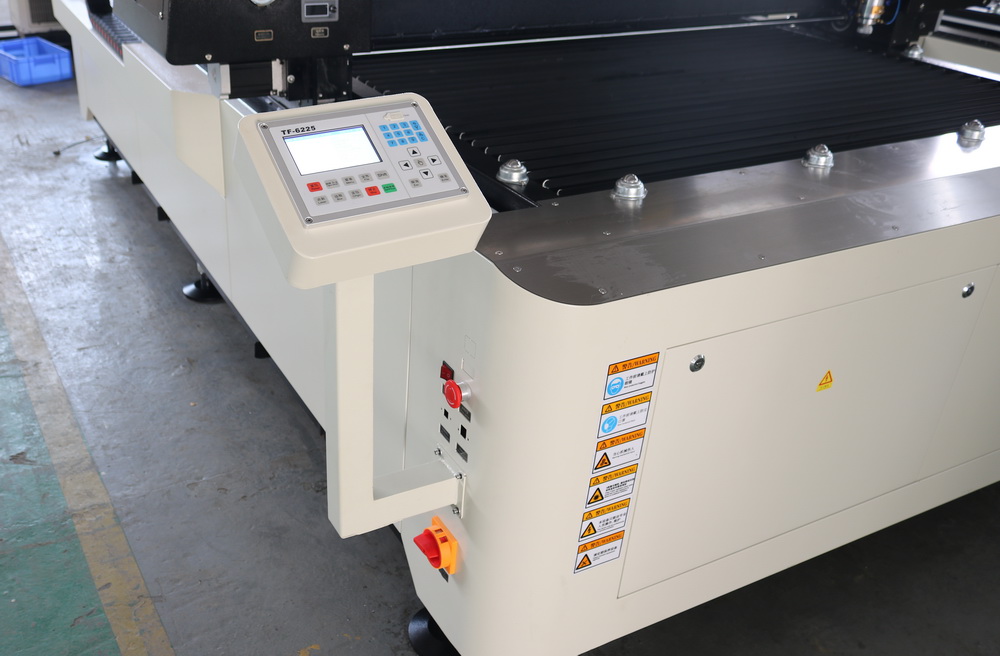

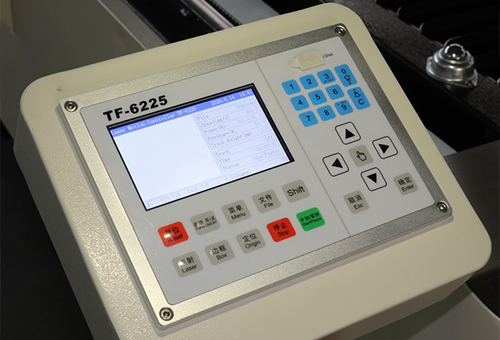

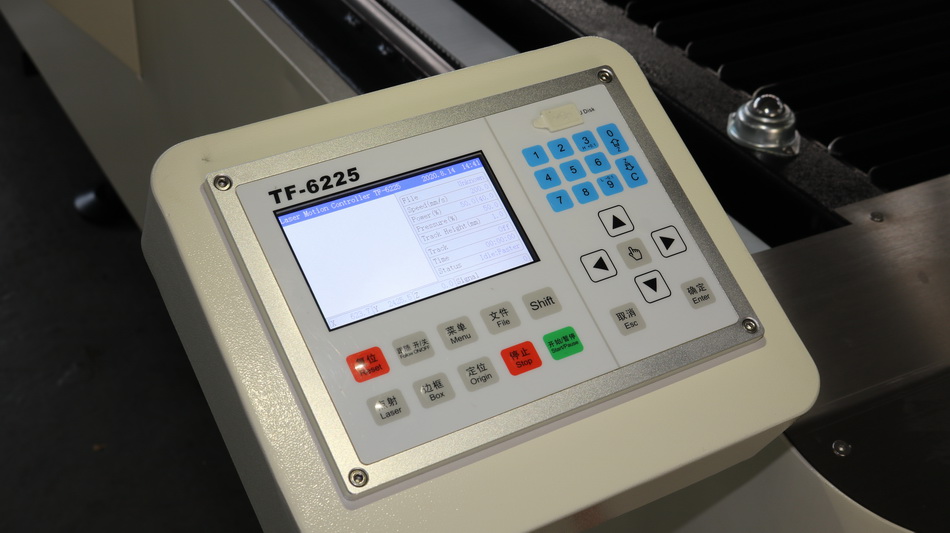

LaserCAD control system,Convenient & Easy control panel |

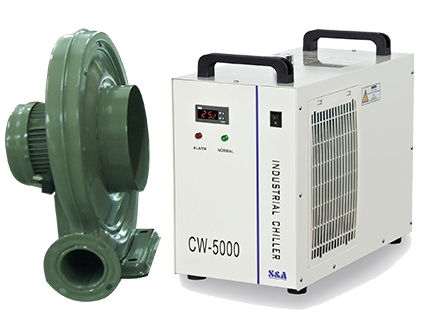

Smoke exhaust system and professional CW-5000 Water chiller |
|
Model |
MC-1325N |
|
Working Area |
1300mmx2500mm |
|
Laser Power |
Reci W6 Co2 Laser tube rated 130w, Max 160w |
|
Cutting Speed |
20000mm/min |
|
Power Supply |
220V±10%/10A |
|
Cutting Capability |
Stainless Steel≦1.5mm, Mild Wood or MDF ≦10mm, Acrylic/PMMA≦30mm |
|
Cutting Bed |
Detachable Alu Formation |
|
Resetting Accuracy |
±0.05mm |
|
Optical path |
Constant Optical system |
|
Cooling Mode |
Water cooling |
|
Interface |
USB/RJ45/U disk |
|
Supported Software |
CAD/CorelDraw |
|
Driving system |
Leadshine Stepper |
|
Supported Image Format |
BMF, GIF, JPEG, PCX, TGA, TIFF, PIT, CDR, DWG, DXF |
|
Gross weight |
900KG |
|
Laser Tube Lifetime |
10000Hours |
|
Dimension |
L3618xW2140xH1300mm |
|
Application |
Stainless steel/ carbon steel, acrylic, leather, fabric, MDF and wood, carbon paper or related material laser processing. |
