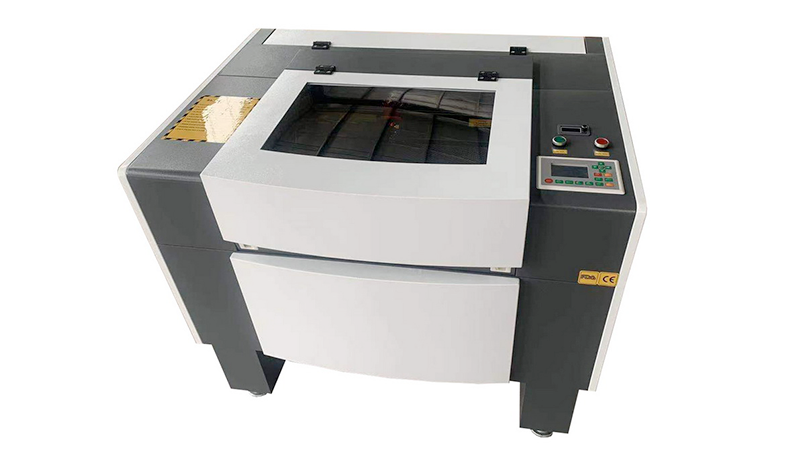

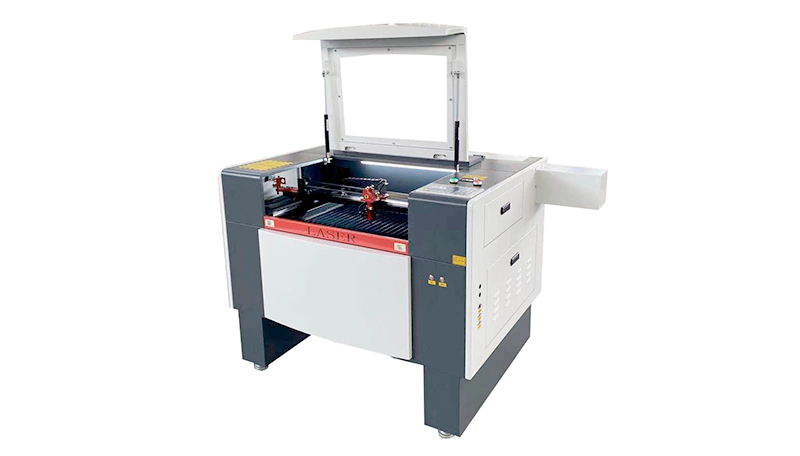

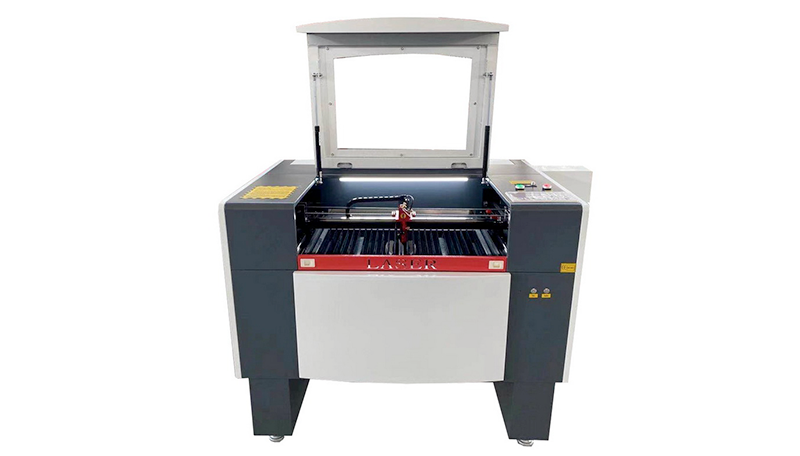

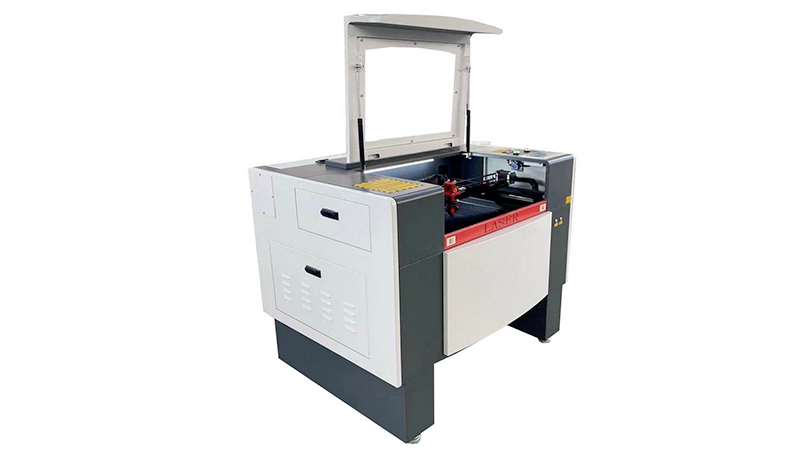

New product,economic and reliable,600mmx400mm laser engraver cutter,60w Co2 laser tube(optional 80w,100w)

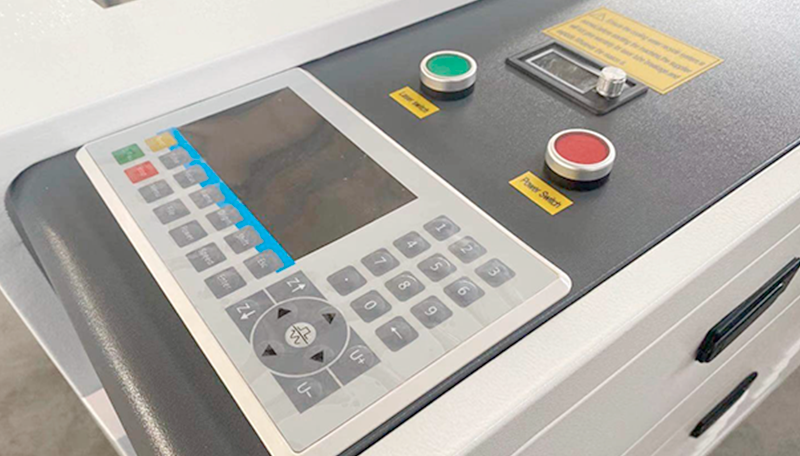

Rdwork 6445 control system

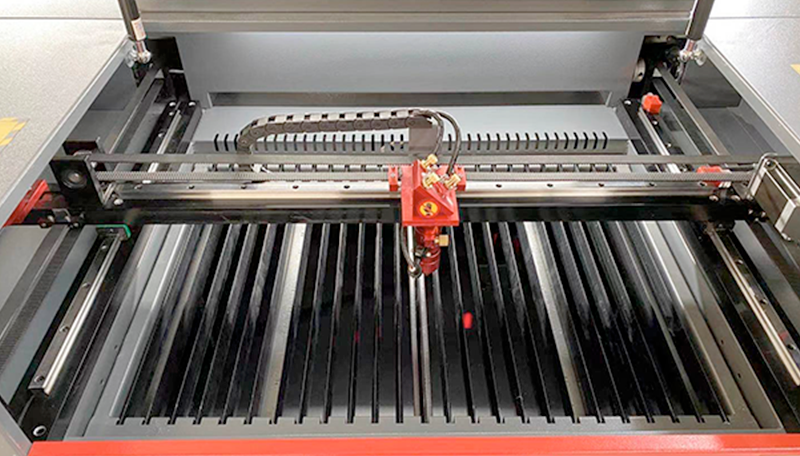

High quality Linear rail #15
Stepper driving system #57
Electric lifting bed
Red dot pointer
CW-3000 water chiller and air pump
(3).For the engraving of titles,types,signs,patterns etc.on electronic parts.etc
Samples:
|
Laser Power |
60w Optional 80w,100w |
|
Laser Type |
Sealed co2 glass tube |
|
Power Supply |
AC220±10% 50HZ/AC 110±10% 60HZ |
|
Working Area |
600mm×400mm |
|
Max Moving Speed |
0---1000mm/s |
|
Max lifting distance |
100mm |
|
Locating Precision |
＜0.01mm |
|
Cutting thickness |
0-20mm depends on materials |
|
Min Shaping Character |
character:3×3mm,letter:2×2mm |
|
Driving system |
JMC stepper |
|
Control system |
RDwork DSP |
|
DataTransfer Interface |
USB (Offline) |
|
Cooling system |
CW-3000 water chiller |
|
Svstem Environment |
WINDOWS XP/Vista/win7/win8/win10 |
|
Formats accepted |
BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX |
|
Red light location |
YES |
|
Lifting platform |
YES |
|
Automatic blowing |
YES |
|
Compatible software |
Coreldraw,Autocad |
|
Package dimensions |
145cmx92cmx90cm, 160kg |
