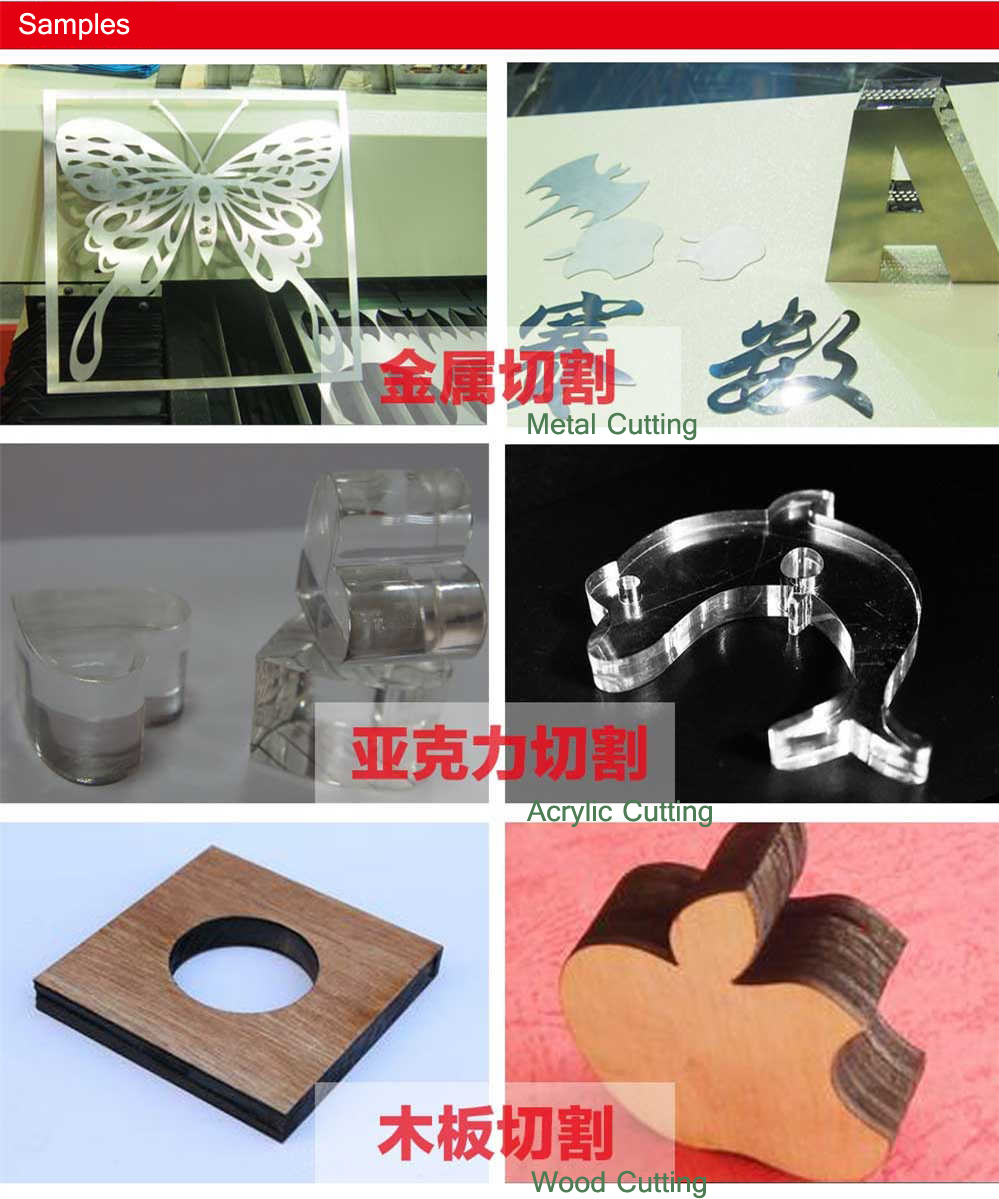

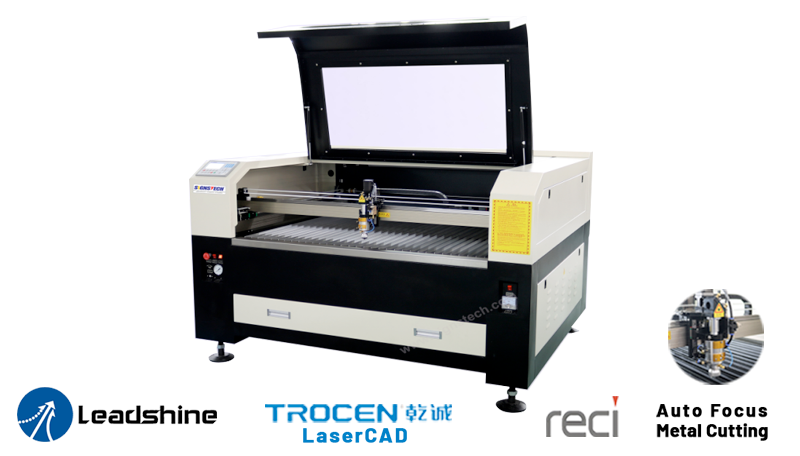

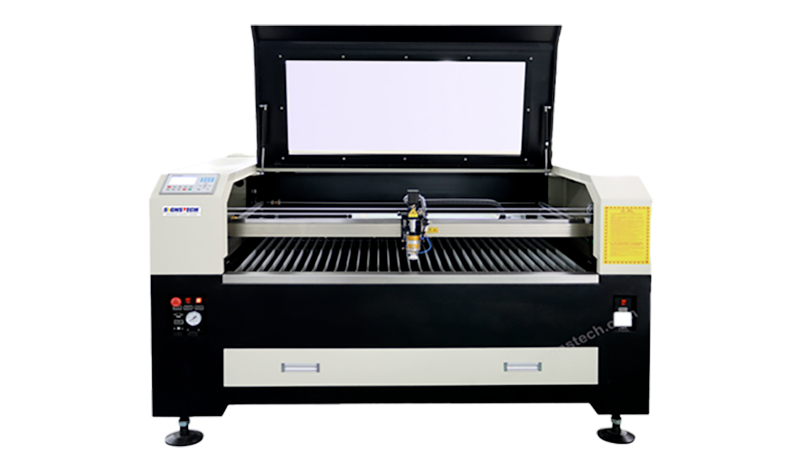

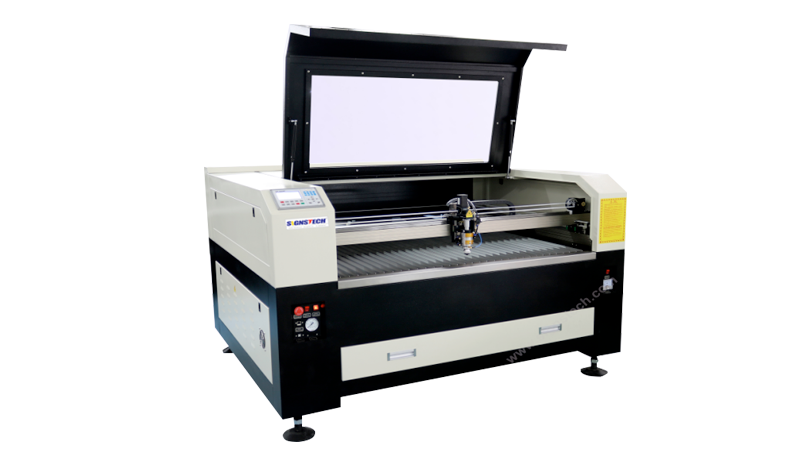

MC-1310 is new product with low cost, capable for stainless steel, mild
steel,;acrylic, ;leather, ;fabric, ;MDF ;and ;wood,;carbon ;paper ;or ;related ;material;laser ;cutting and engraving.
It is with:

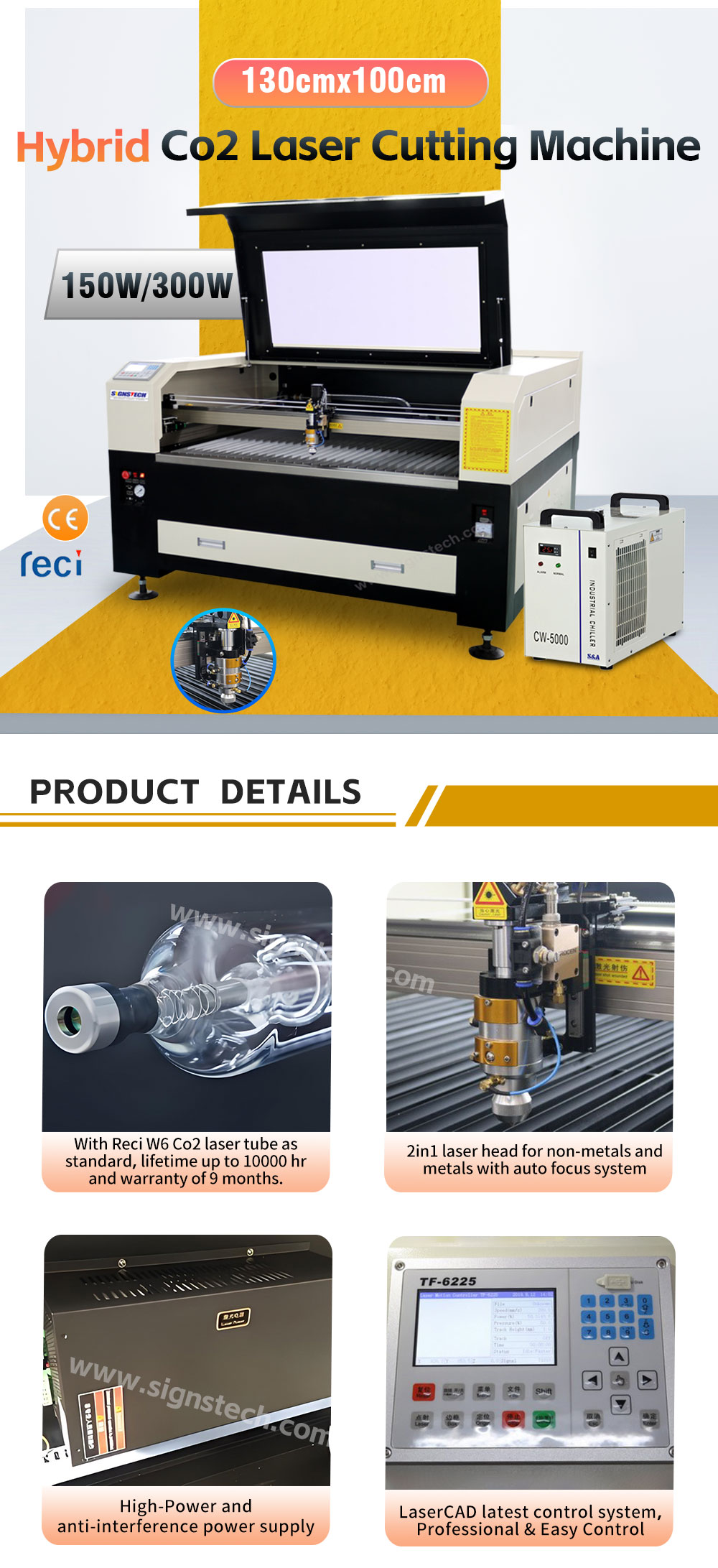

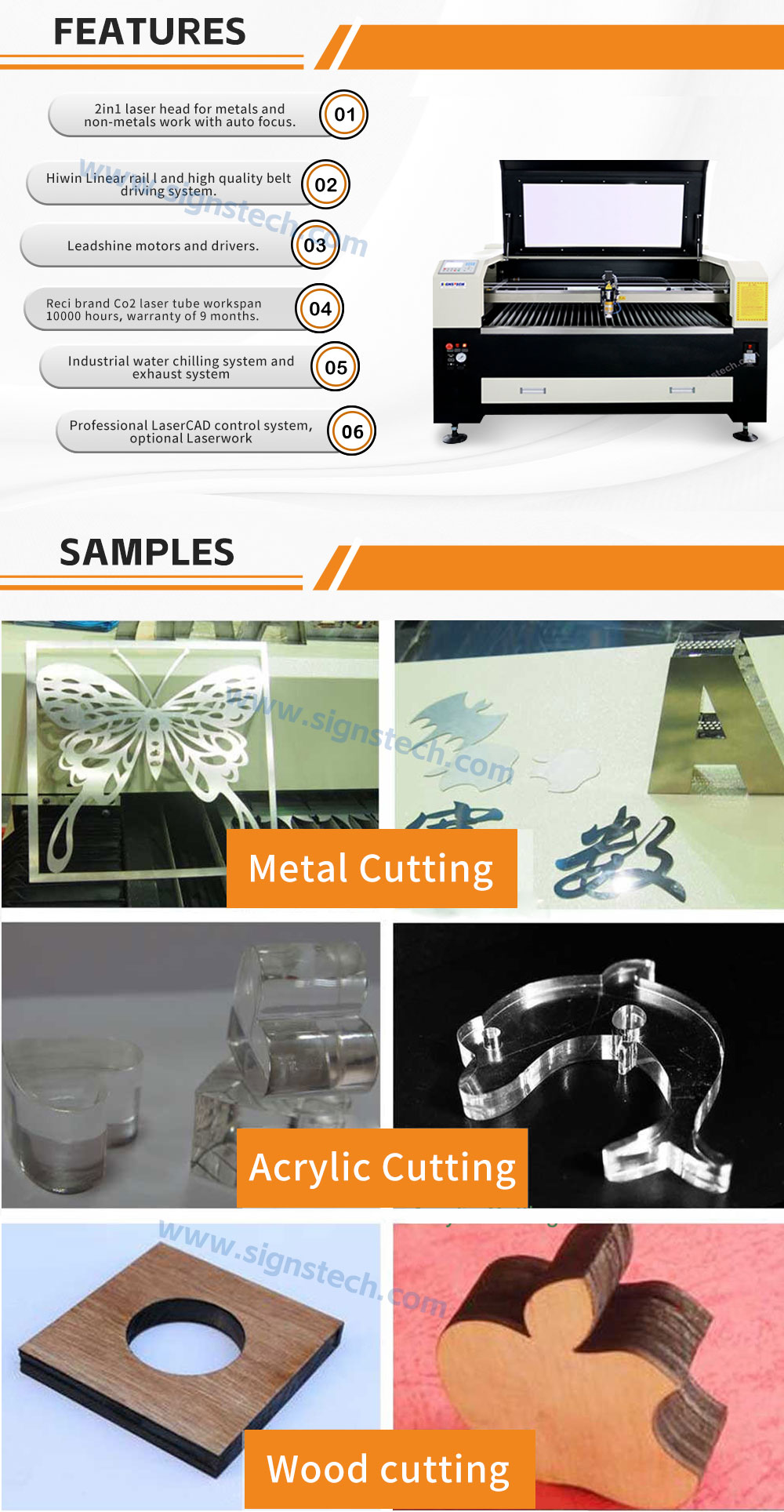

2in1 laser head for metals and non-metals work with auto focus for metals.

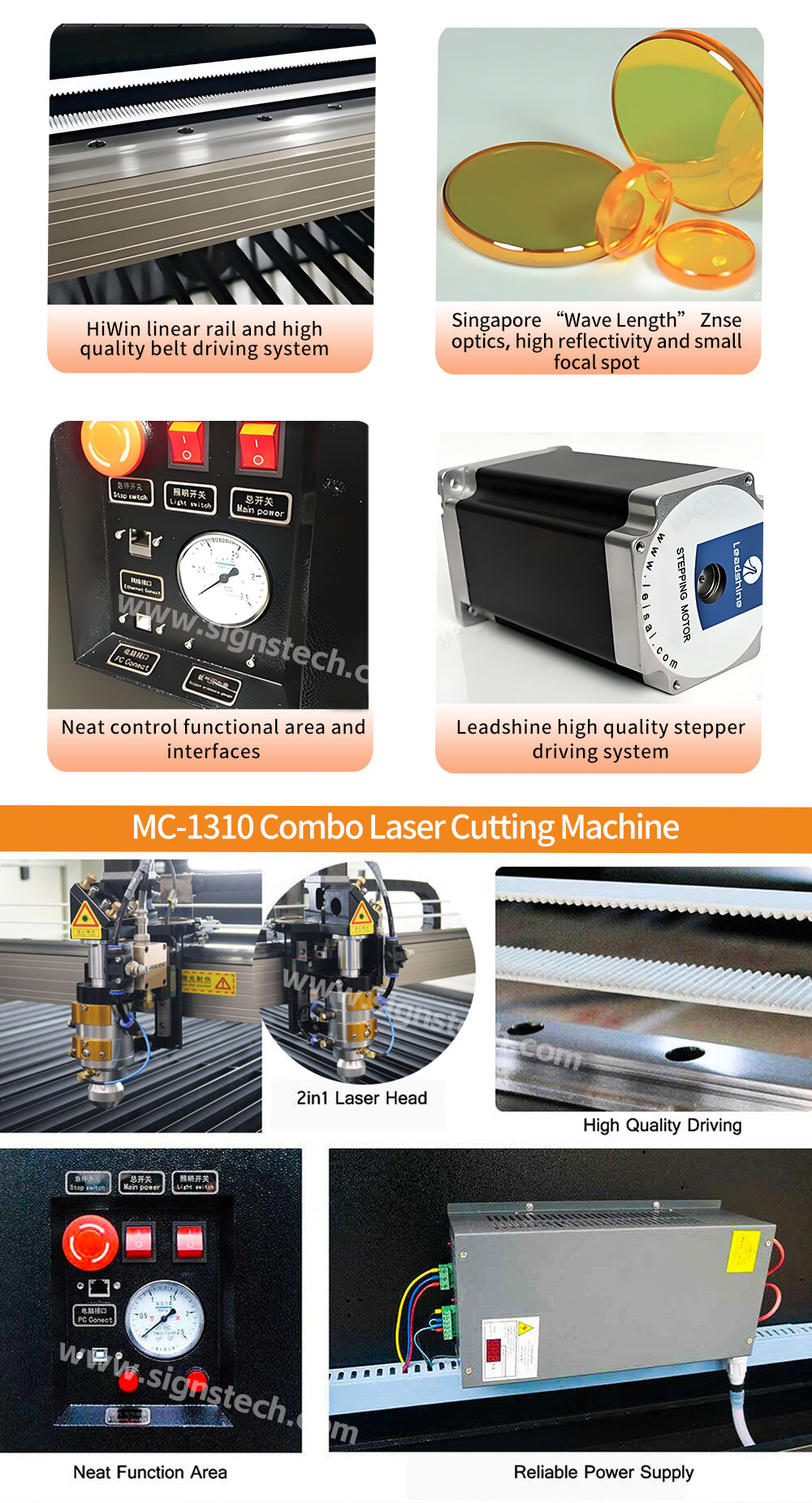

Hiwin Linear rail l and high quality belt driving system.
Leadshine motors and drivers.
Reci W6 Laser tube ;as standard, ;Work time 10000 hours, warranty of 9 months.
Industrial CW-5000 water chilling system
Professional LaserCAD control system, compatible with many formats files.
|
Model No. |
MC-1310 |
|
Working Area |
1300*1000mm |
|
Laser Power |
Reci W6 150w,otpional W8 180w and 300w |
|
Resolution Ratio |
0.025mm |
|
Engraving speed |
0-64000mm/min |
|
Minimum Shaping Character |
Letter :1mm |
|
Resetting Positioning Accuracy |
±0.01mm |
|
Gross Power |
< 1500w |
|
Operation System |
LaserCAD Or LaserWork |
|
Driving System |
Leadshine Stepper |
|
Cutting Ability |
Acrylic 35mm,stainless steel 1.5mm, mild steel 2mm |
|
Operating Temperature& Humidity |
0-45°C/5%-80% |
|
Graphic Format Supported |
BMP ,GIF , JPEG ,PCX ,TGA ,AI,TIFF,PLT, CDR ,DWG,DXF |
|
Power Supply |
220V±10%/10A |
|
Accessories |
Water chiller ,Air Pump ,Exhaust kit |
|
Machine Dimensions & weight |
1900mm*1600mm*1200mm, 450kg |
