1.6m/1.8m DX5 Eco Solvent Printer

Model:
V5-1601
Remarks:
Max 1520mm printing size, 60" ,Original Epson DX5 Printhead,1440dpi Optional 1.8m 6ft
BROCHURE INQUIRY NOW
Captcha

Features

Parameters

Features:

1.With EPSON DX5 print head uncoded version with better printing quality than the coded, Max 1440dpi.
2.Unique Variable ink dot printing technology
3.Printing with gradual change and feathering technology to remove printing lines effectively.
4.HIWIN linear rail with double sliders ensures smooth and stable carriage movement.
5.LeadShine servo motor for the carriage movement, higher accuracy, lower noise,
6.Automatic paper feeding, ink pumping, print head wiping and cleaning.
7.Auto bulk ink feeding system with 4 exterior ink tanks of 500ml each ensures high speed and fluent ink feeding.
8.Comes with one set of fast drying ink for FREE, fast drying , less smell, low cost.
9.Takes optical fiber instead of flat cable for inner communication, more faster speed and stable,
10.Front and back platform heating function with temperature controller ,can set the temperatures separately,
11.With front/back two side handle for lifting the pinch rollers conveniently.
12.With floater ink cartridges which can control the ink volume automatically while printing.

Details:

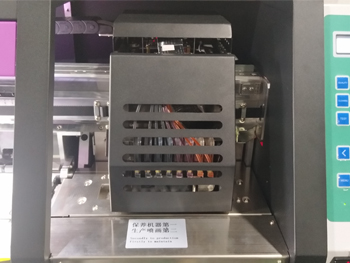

Single Epson  DX5 print head on fine-made carriage

Bulk ink system with 4 exterior big volume tanks


Upgraded carriage board with printhead install protection

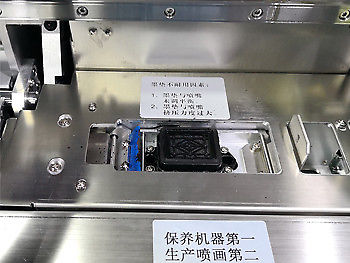

Printhead maintenance station,auto printhead cleaning and wiping

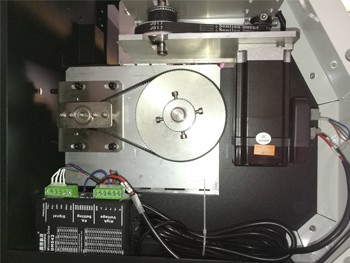

LeadShine servo motor for carriage movement

Enhanced friction roller system,All aluminium & big power absorption platform



Temperature controller for the platform heaters

Intelligent drying system with infrared heating tube



Hiwin linear rail with dual sliders

Auto take up system

What’s in package

Printhead x1,|Media feeding system x1set,|steel pipes for feed and take up system: 4pcs,|stand x1set |dring fan system x1 |Software Maintop x1 |Eco solvent ink x4 liters |cleaning solution:

1 liter| Power lead x1 |Damper x9 |USB cable x1 | spanner x1 |syringe x1 | screwdriverx1 |ink tube x1 reel | waste ink bottle x1 |bulk ink feeding system x1




Model

V5-1601    | V5-1801

Max Print Width

1520mm,Max Feeding 1600mm  | 1830mm, Max feeding 1900mm

Print head

Epson DX5

Number of Print head

1

Max Resolution

1440dpi

Color Mode

C M Y K

Speed 3 Pass(Produce mode)

16㎡/h

4 Pass(Quality mode)

13㎡/h

6 Pass(High resolution)

10㎡/h

Ink Type

Eco solvent ink/water based ink/sublimation ink

Heating system

Pre and after-heating, with temperature controller

Drying Fan system

With infrared heating tubes

Auto take up System

With

Interface

USB2.0

Language

English

Software

Maintop 5.3 with dongle, available Photoprint

Printer driver

Win7 32/64bit, Win8 ,Win10

Print head Cleaning

Automatic, anti-jam and keep nozzles moisten

Driving System

Leadshine servo and stepper

Print head height

1.8mm-3mm

Power

AC220v,50HZ/110v,60HZ

Power consumption

Idle 32w Max 1500w

Print Material

Vinyl, flex banner, PVC, One Way Vision ,canvas, leather, wall paper,Etc

Media process

Roll to Roll

Machine Dimensions

L2600mmxW700mmxH620mm
