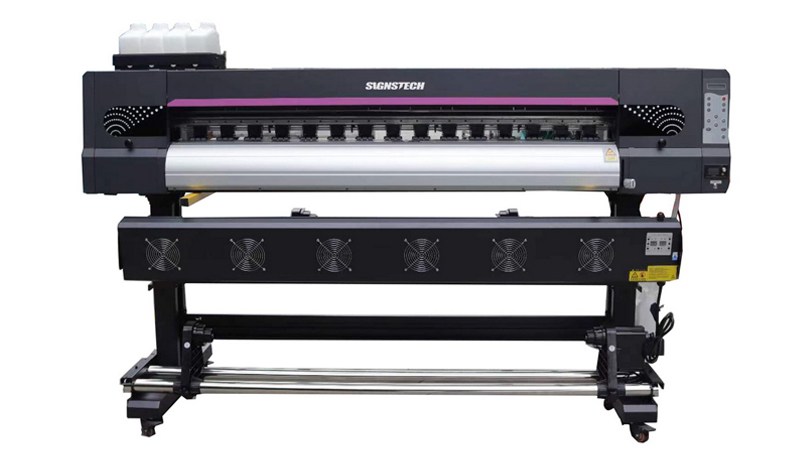

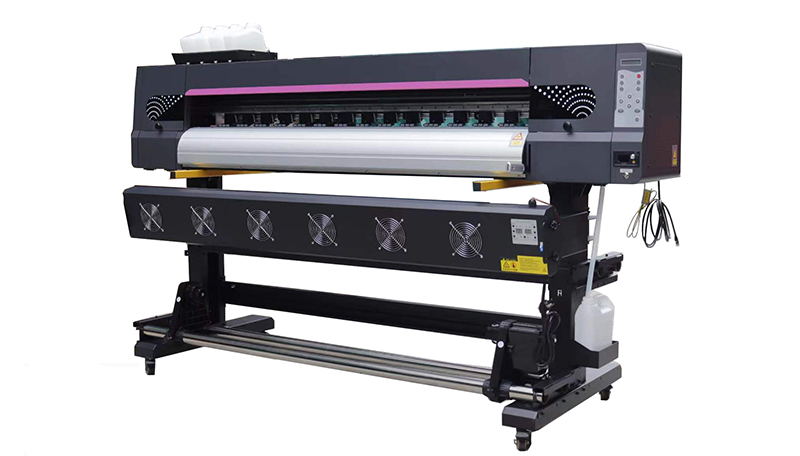

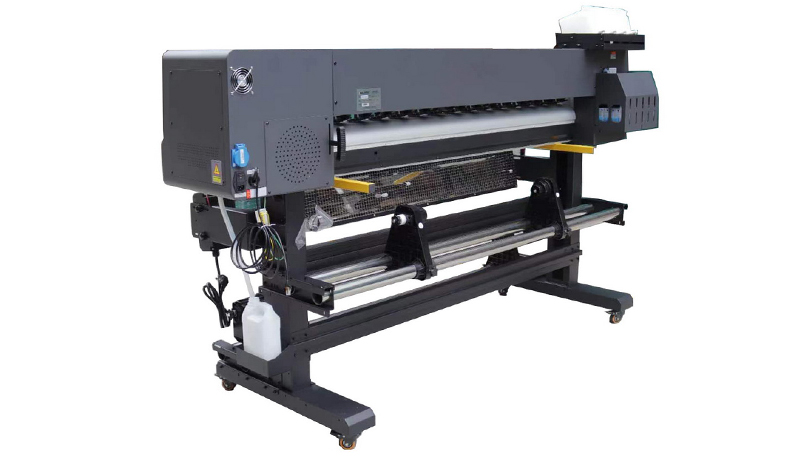

Model |
VI-1801E6 |
|
|
Max Print Width |
1830mm,MAX Feeding 1900mm |
|

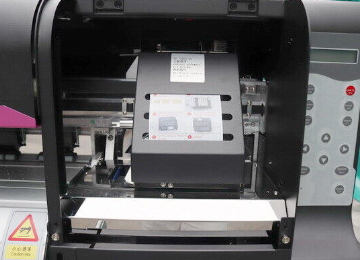

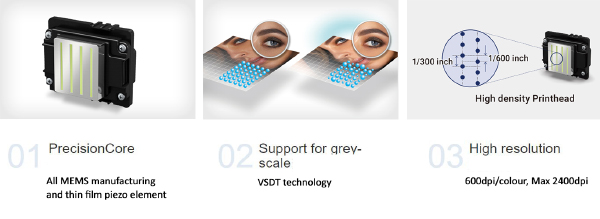

| Print head |
Epson I1600 |
|
| Number of Print head |
1 |
|
| Max Resolution |
2400dpi |
|
| Color Mode |
C M Y K |
|
| Speed | 4Pass 720x1200dpi |
20㎡/h |
|
6Pass 720x1800dpi |
15㎡/h |
|
|
8Pass 720x2400dpi |
10㎡/h |
|
| Ink Type |
Eco solvent ink/water based ink/sublimation ink |
|

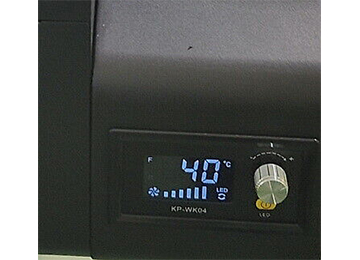

| Heating system |
Middle and post-heating, with temperature controller |
|

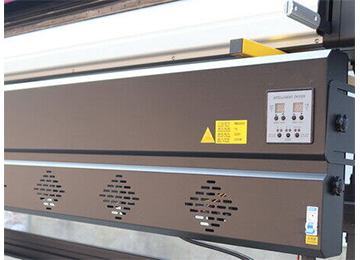

| Drying Fan system |
With infrared heating tubes |
|

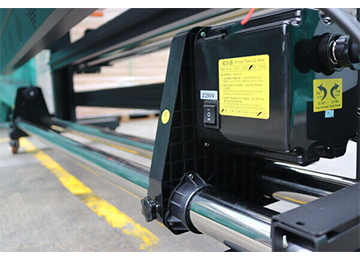

| Auto take up System |
With |
|
|
Interface |
Ethernet |
|
| Language |
English |
|
| Software |

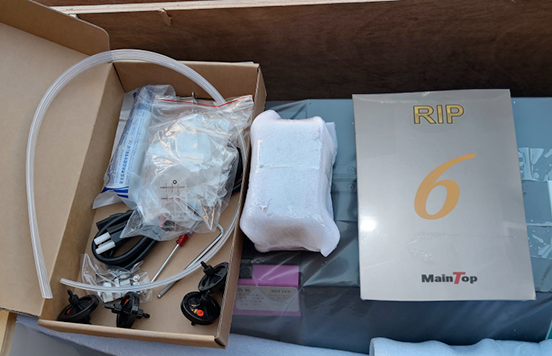

Maintop 6 with dongle, optional Flexi |
|
| Printer driver |
Win7 32/64bit, Win8 ,Win10 |
|

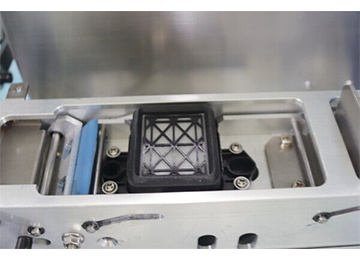

| Print head Cleaning |
Automatic, anti-jam and keep nozzles moisten |
|
|
Driving System |
Leadshine servo and stepper |
|
| Print head height |
1.8mm-3mm |
|
| Power |
AC220v,50HZ/60HZ |
|
| Power consumption |
Idle 32w Max 1500w |
|
| Print Material |
Vinyl, flex banner, PVC, One Way Vision ,canvas, leather, wall paper,Etc
|
|
| Media process |
Roll to Roll |
|
| Machine Dimensions |
2621mm Lx900mm Wx1500mm H 170kg |
|
