Features:
1. EPSON DX5 printhead,High resolution up to 1440dpi.
2.,Independent self-control system, Split design for cutting carriage and printing carriage.

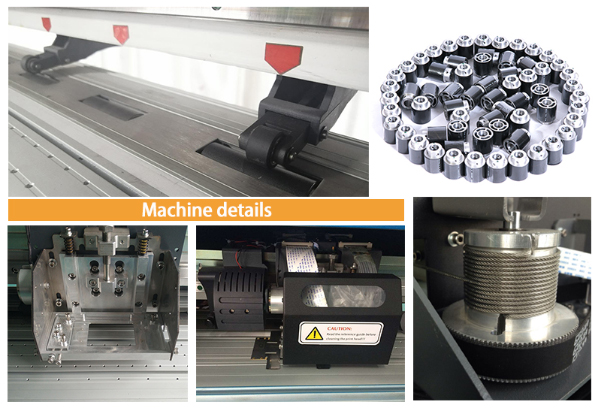

3. With Japan THK linear rail and stainless steel rope for transmission, highly resistant to temperature variation,high precision and low noise.
4. Patented grit roller system ensures precise media feeding with media alignment，
5. Three-section intelligent heating system with free adjustment.
6. With Photoprint 12 RIP as default,can extract graph outline automatcially.
7 Professional printing manager,the interval time between print and cut can be set according to paper drying level
8. It can work as 3 modes, single printing, printing cutting and single cutting.

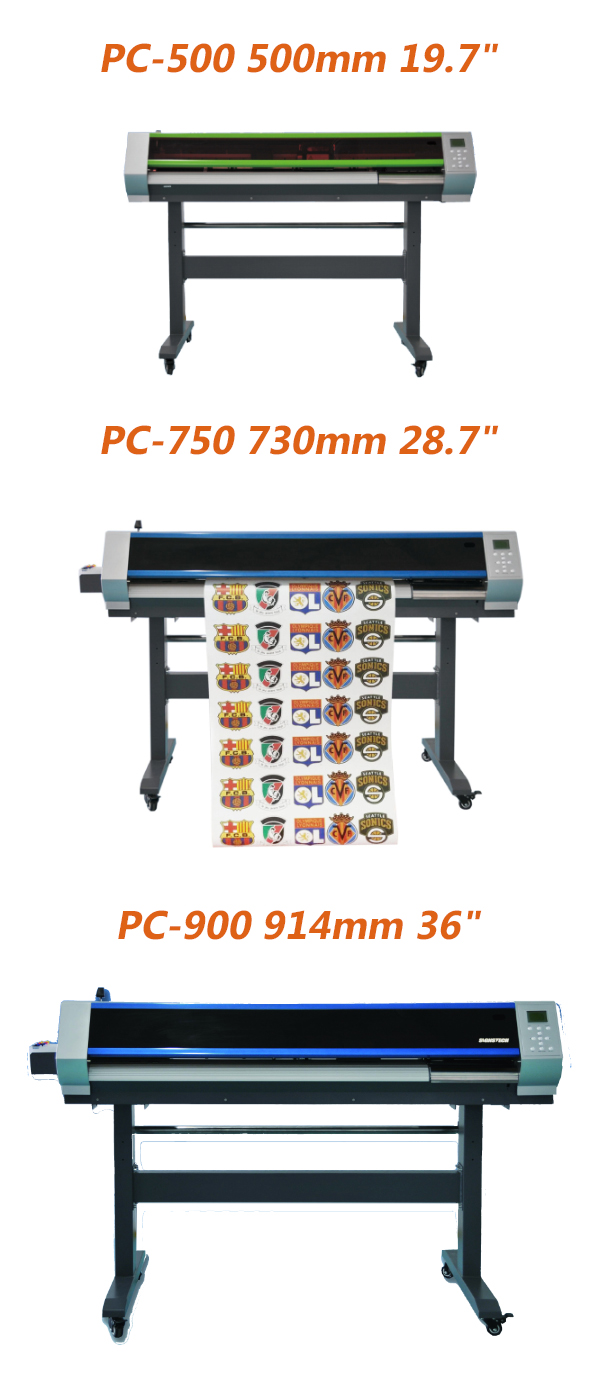

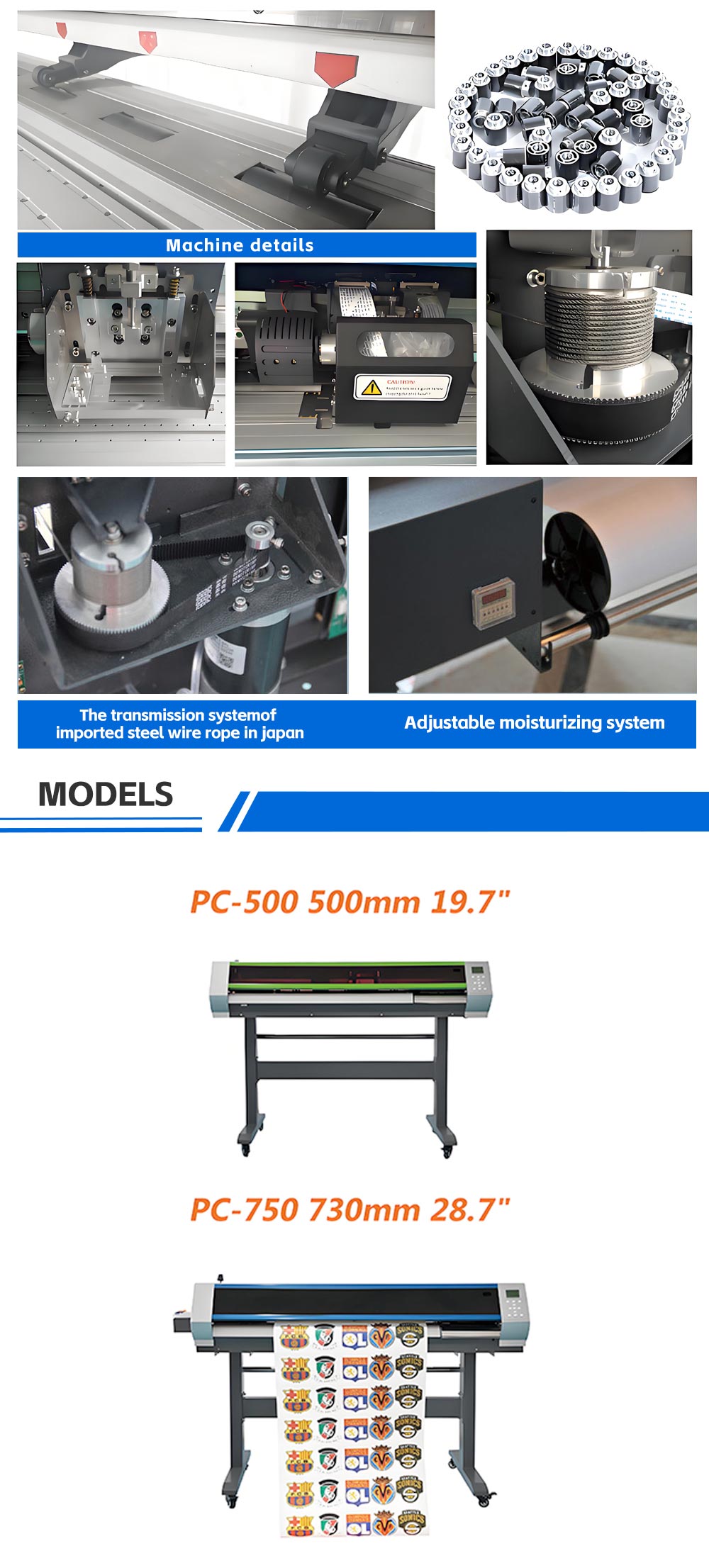

Optional models：
|
Model |

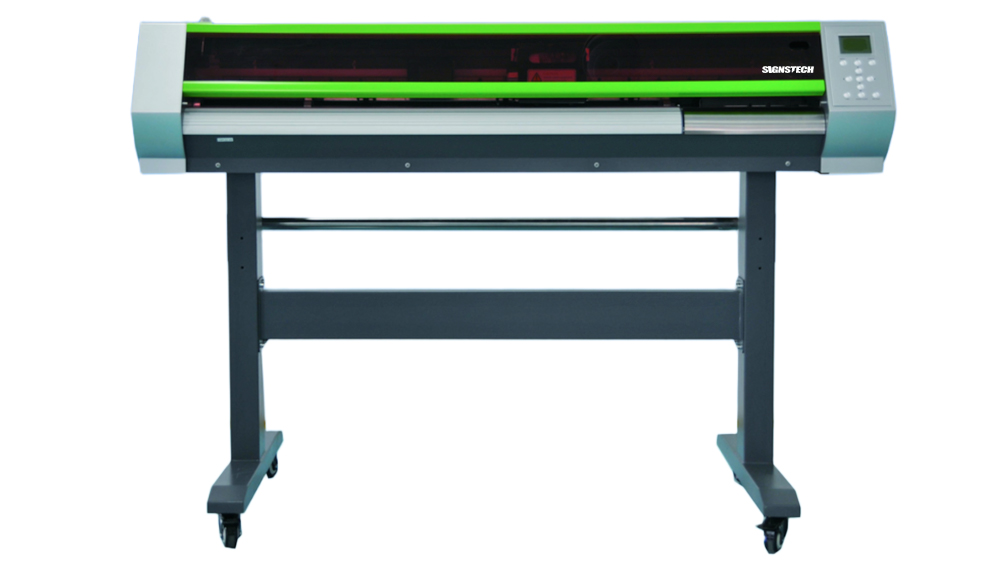

PC-500 |

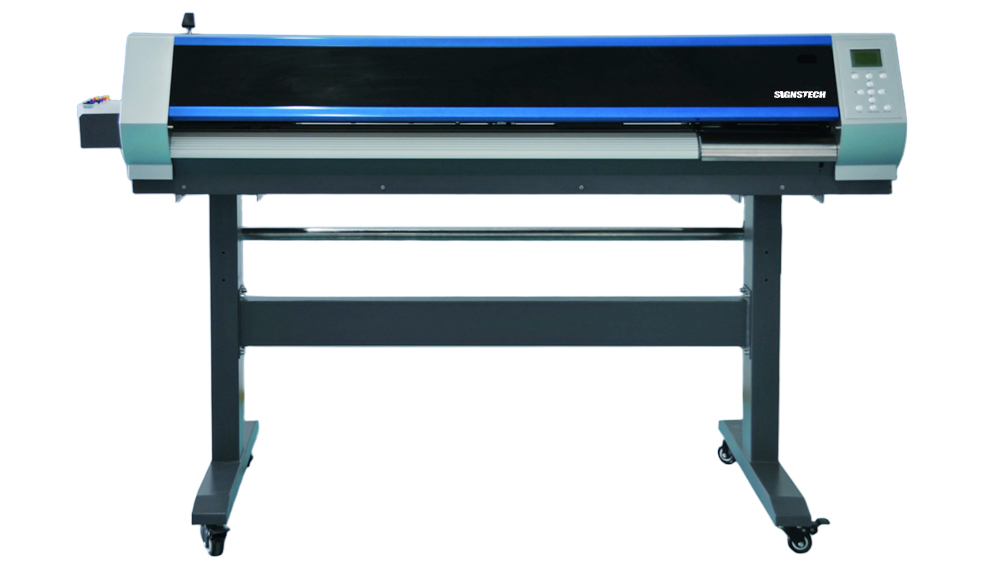

PC-750 |
|
Print head |
EPSON DX5 1PCS |
|
|
Maximum print width |
500mm 19.7” |
730mm 28.7” |
|
Printing resolution |
720dpi, 1080dpi, 1440dpi |
|
|
Ink dot type |
Gray scale variation points |
|
|
Speed and yield |
4pass 15M²/h 6pass 10M²/h 8pass 7.6M²/h |
|
|
Ink type |
Eco Solvent Ink\ Water based dyes\water based pigment |
|
|
Ink color |
4 colors, CMYK |
|
|

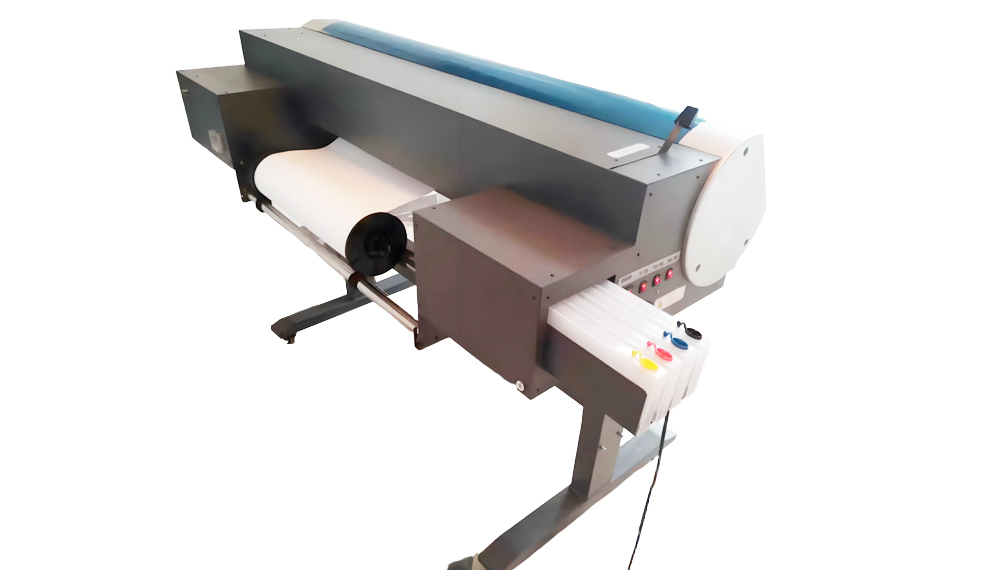

Ink supply system |
Cartridge ink supply system, continuous supply ink system |
|
|
Cartridge capacity |
Standard 220ml/color Standard 220ml*2/color |
|
|
Media type |
PP, photo paper, PVC ,Car stickers, vinyl stickers, flex banner, Transfer film etc |
|
|
Way of loading media |
Standard loading without power |
|
|
Max weight of media |
Less than 20KGS/roll |
|
|
Printhead cleaning system |
Auto cleaning system with anti-clogged flash spray |
|
|
Media heating system |
3 section constant temperature heating system, Temperature adjustable |
|
|
Dying system |
Standard cold air drying ,Optional PTC hot air drying |
|
|
Data interface |
USB2.0(Window10/7/2000/XP) |
|
|
RIP software |
Photoprint 12 |
|
|
Cutting system |
ROLAND Blade , Cutting force:0-300g ,Speed：0-400mm/s |
|
|
Repeat accuracy |
±0.1mm or less |
|
|
Power supply |
AC110 or 220V, 50Hz/60Hz |
|
|
Operating environment |
Temperature :20-28C Humidity:40-70% |
|
|
NW/GW |
78KG/120KG |
85KG/138KG |
|
Machine size |
1450*665*354 |
1690*665*354 |
|
Packing size |
1570*740*550 |
1810*740*550 |
