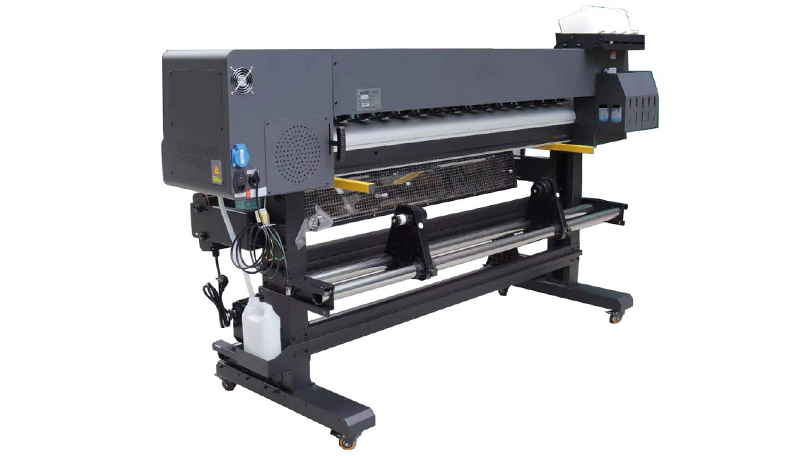

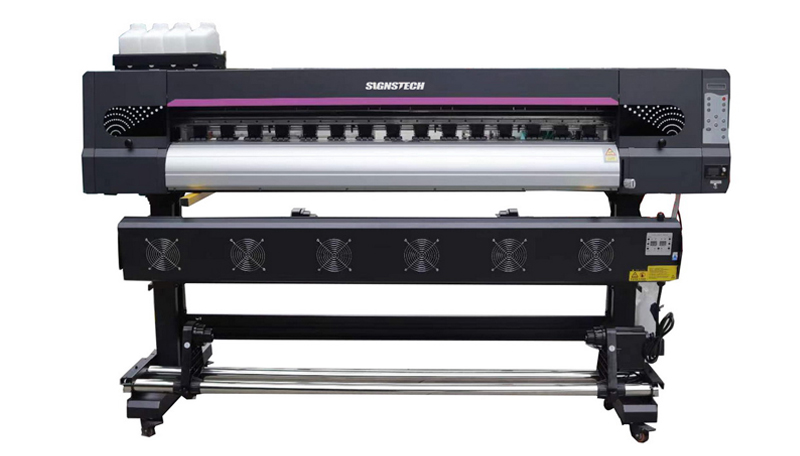

1.6m Eco Solvent Printer Epson I1600 Head

Model:
VI-1601E6
Remarks:
Deluxe version 60" With Epson I1600-E1 Printhead,Honson control system,High Quality And Reliable!
Price:
$ 3,600.00
BROCHURE INQUIRY NOW
Captcha

Features

Parameters

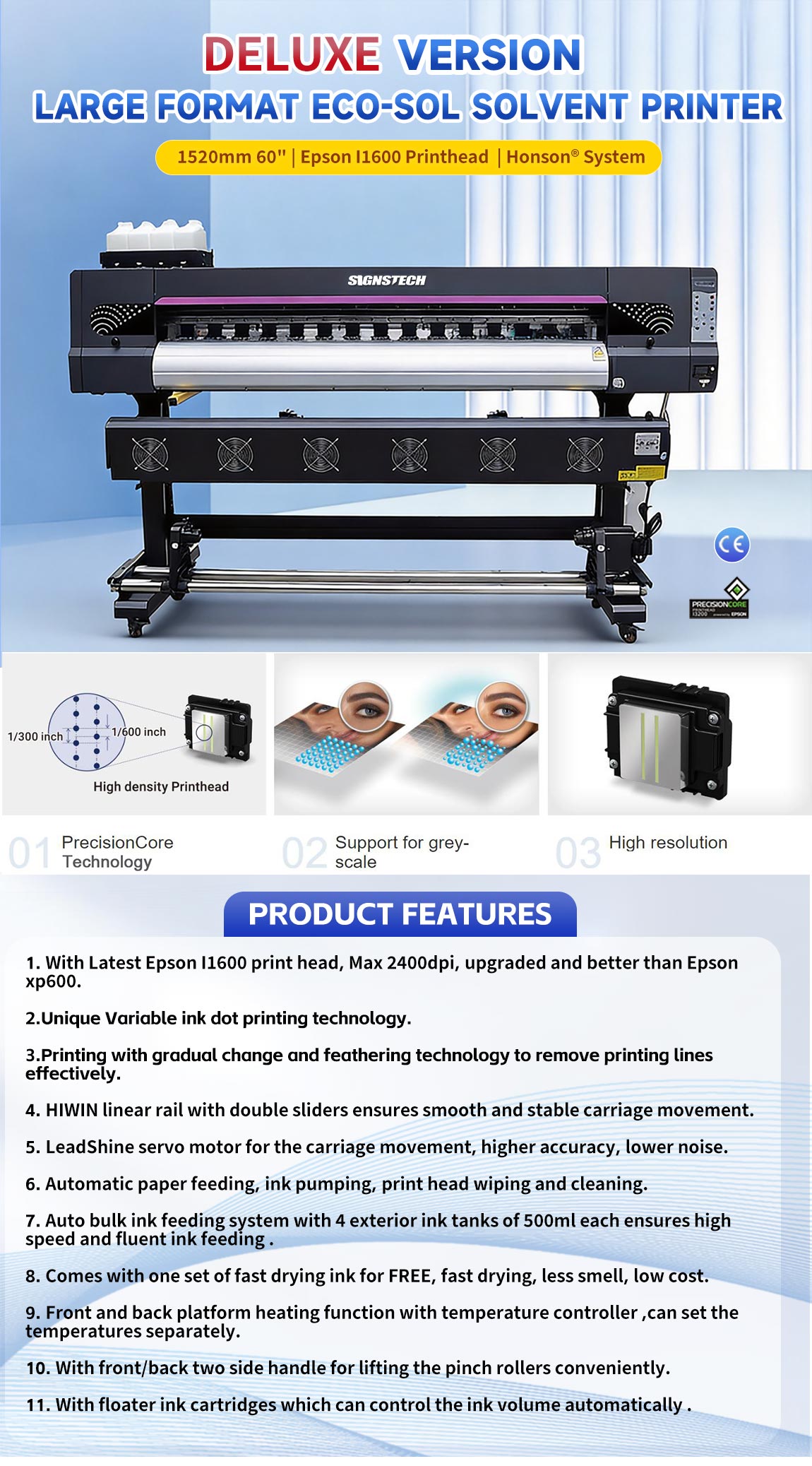

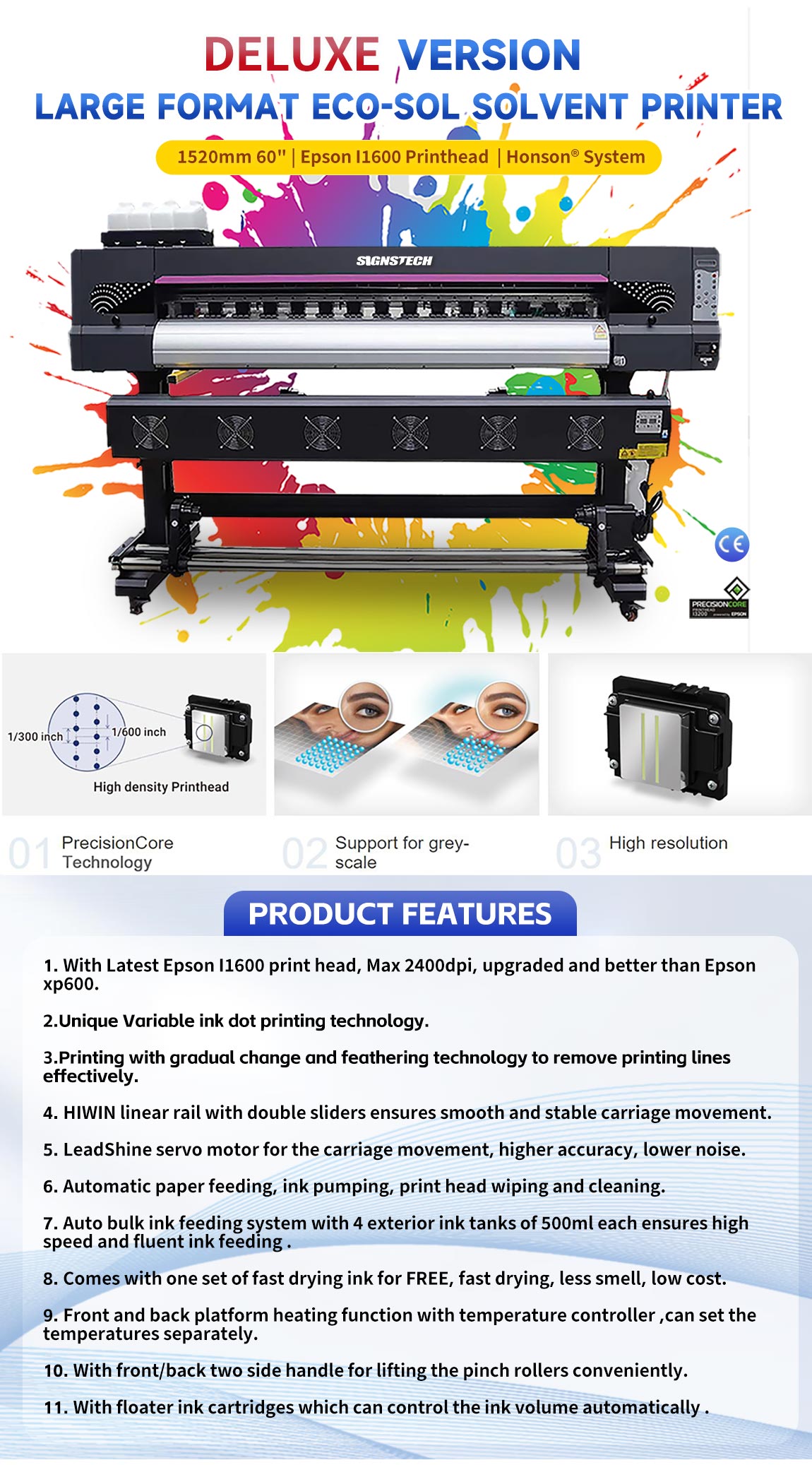

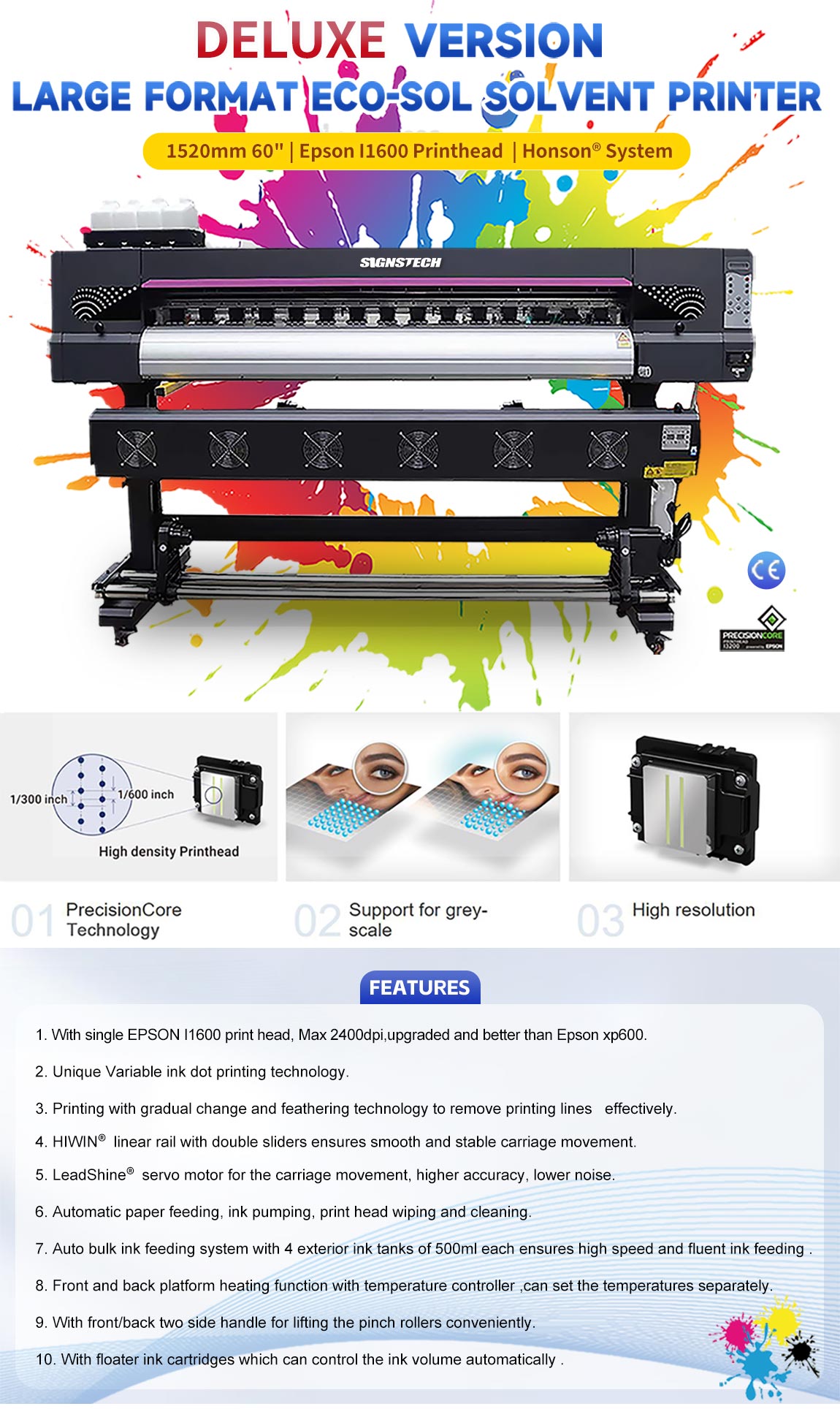

Features:

1.With EPSON I1600 print head, Max 2400dpi,upgraded and better than Epson xp600
2.Unique Variable ink dot printing technology
3.Printing with gradual change and feathering technology to remove printing lines effectively.
4.HIWIN linear rail with double sliders ensures smooth and stable carriage movement.
5.LeadShine servo motor for the carriage movement, higher accuracy, lower noise,
6.Automatic paper feeding, ink pumping, print head wiping and cleaning.
7.Auto bulk ink feeding system with 4 exterior ink tanks of 500ml each ensures high speed and fluent ink feeding.
8.Comes with one set of fast drying ink for FREE, fast drying , less smell, low cost.
9.Takes optical fiber instead of flat cable for inner communication, more faster speed and stable,
10.Front and back platform heating function with temperature controller ,can set the temperatures separately,
11.With front/back two side handle for lifting the pinch rollers conveniently.
12.With floater ink cartridges which can control the ink volume automatically while printing.

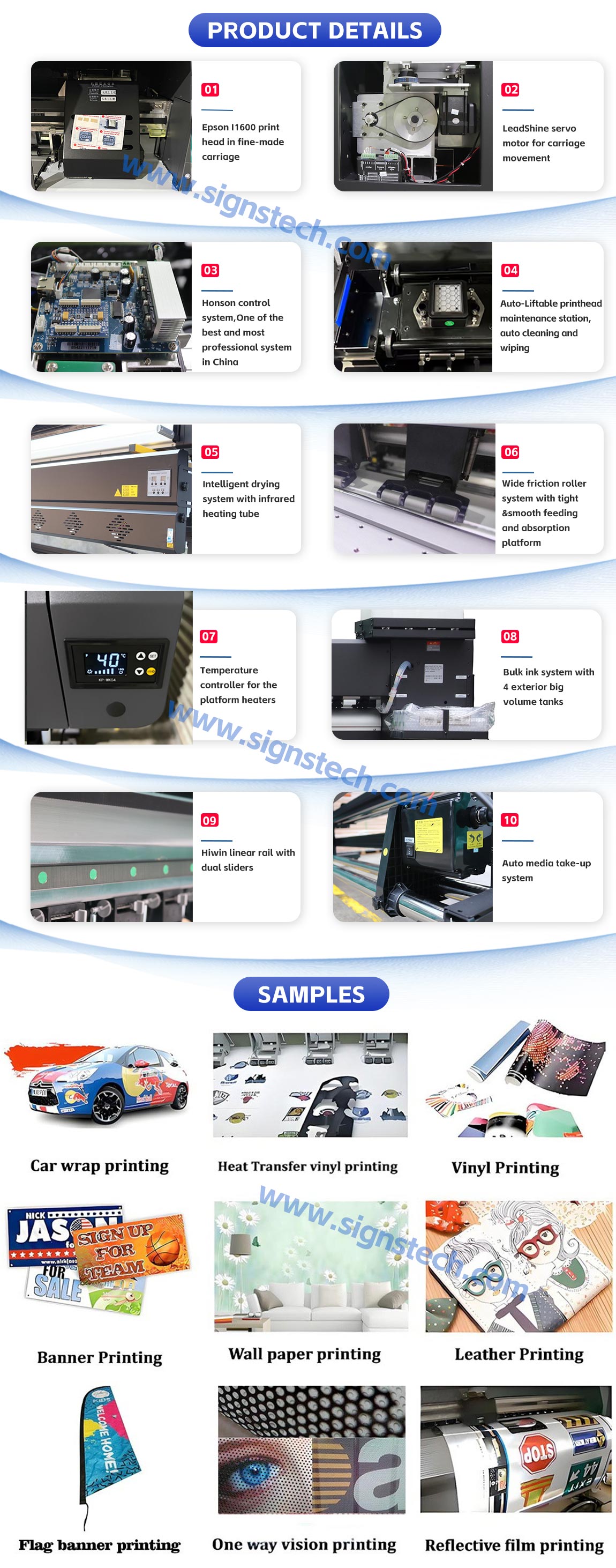

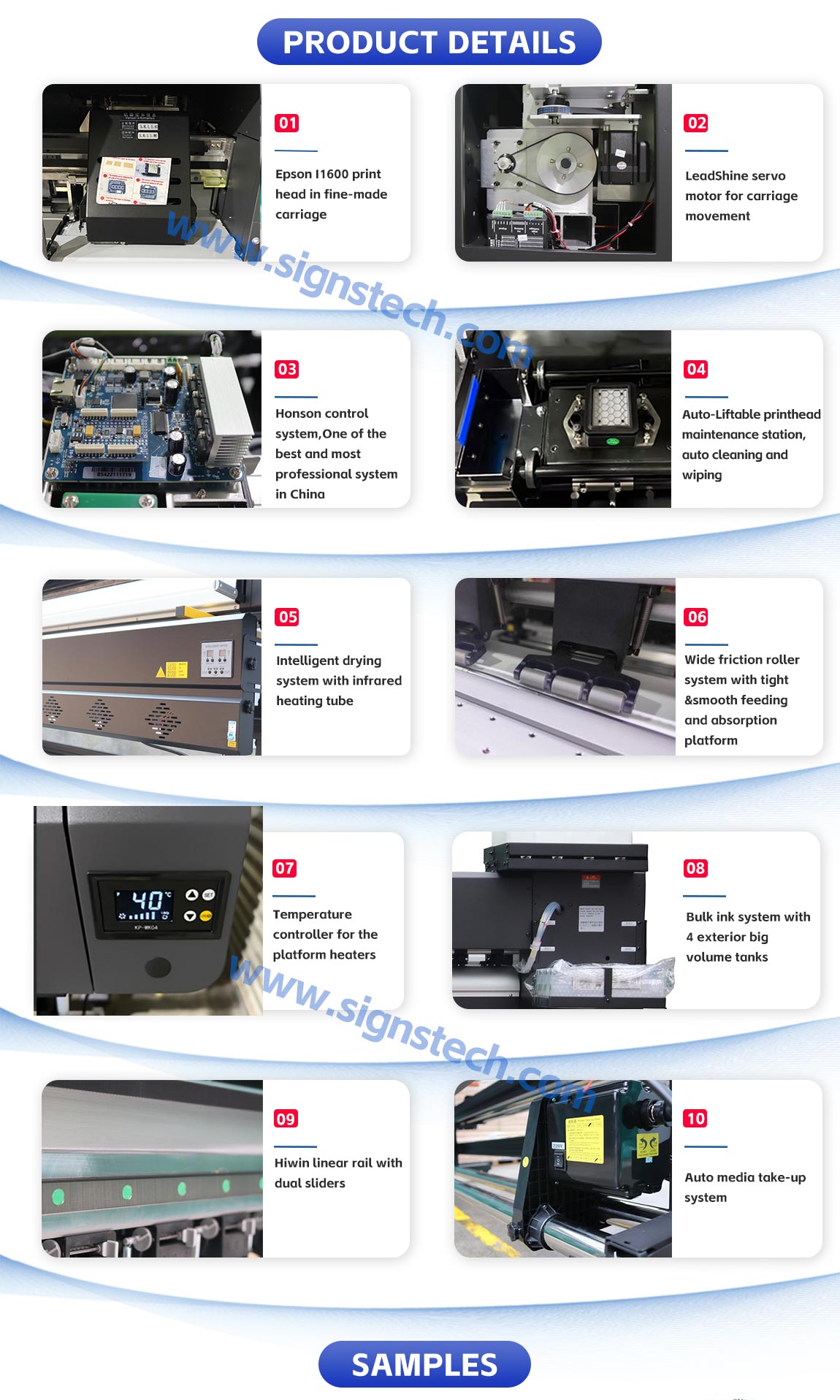

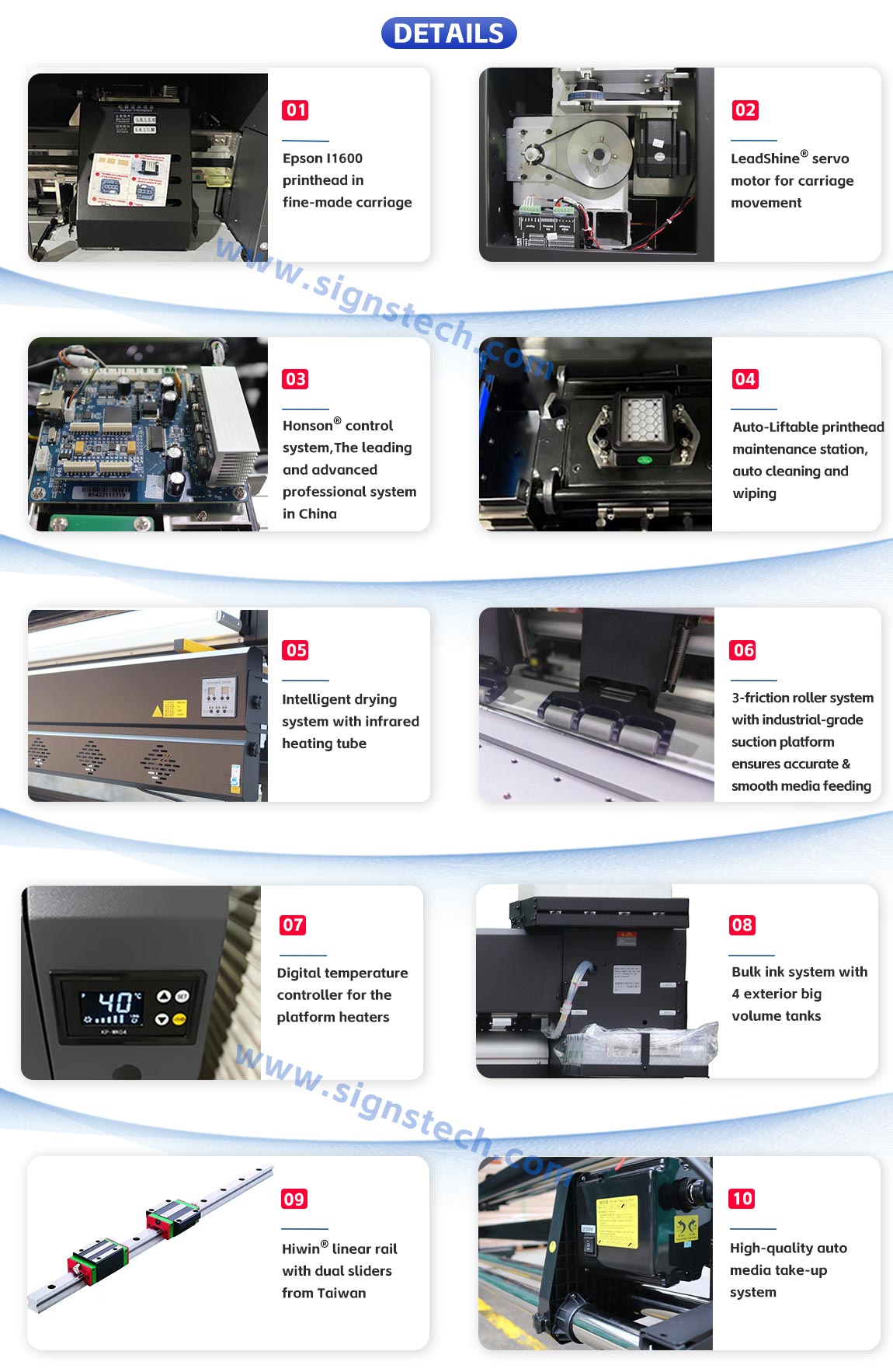

Details:

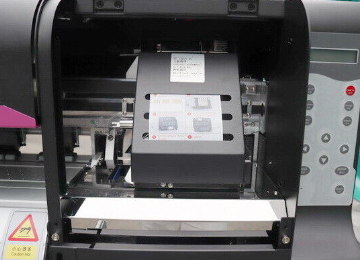

Single Epson I1600 print head on fine-made carriage

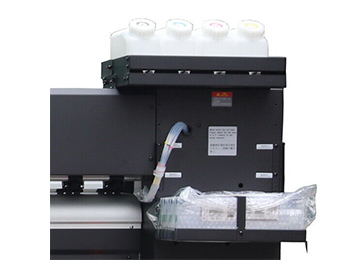

Bulk ink system with 4 exterior big volume tanks

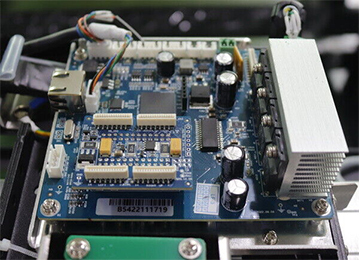

Honson control system,The leading and superior system in China

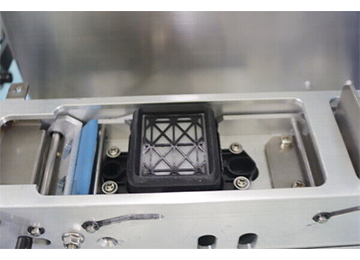

Printhead maintenance station,auto printhead cleaning and wiping

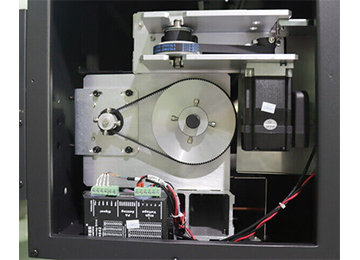

LeadShine servo motor for carriage movement

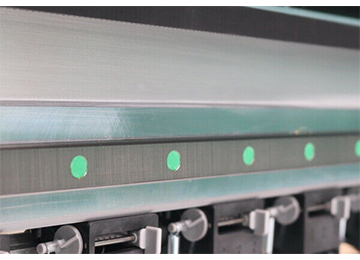

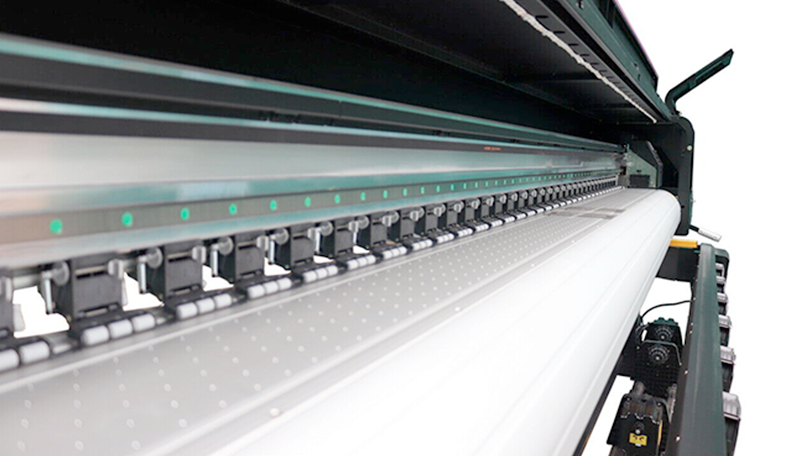

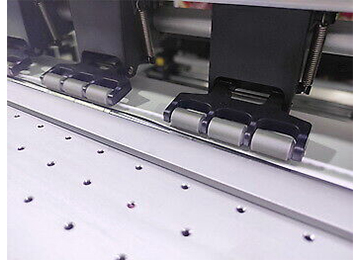

Enhanced friction roller system,All alumnium & big power absorption platform

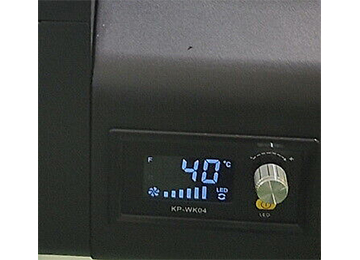

Temperature controller for the platform heaters

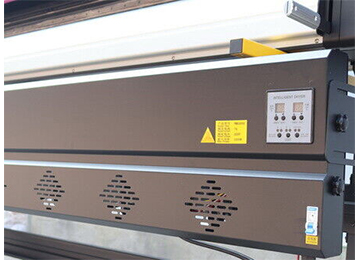

Intelligent drying system with infrared heating tube


Hiwin linear rail with dual sliders

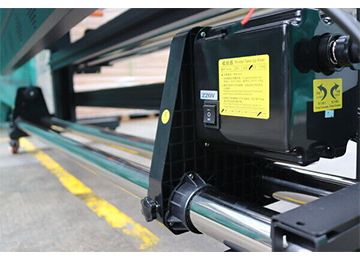

Auto take up system

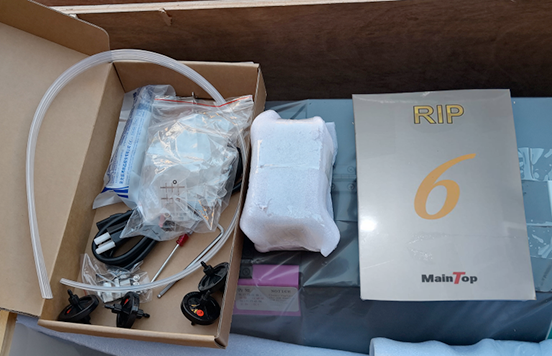

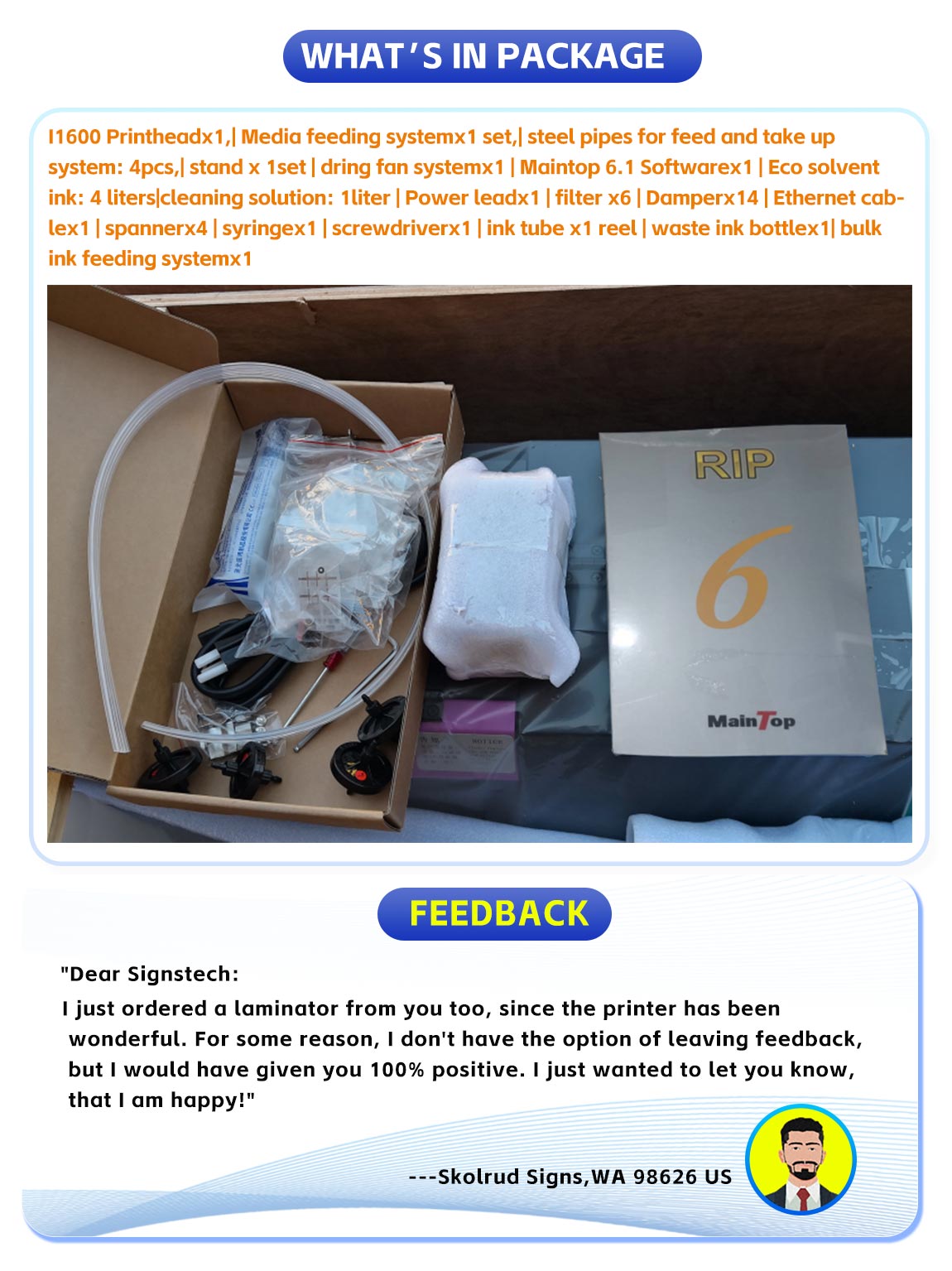

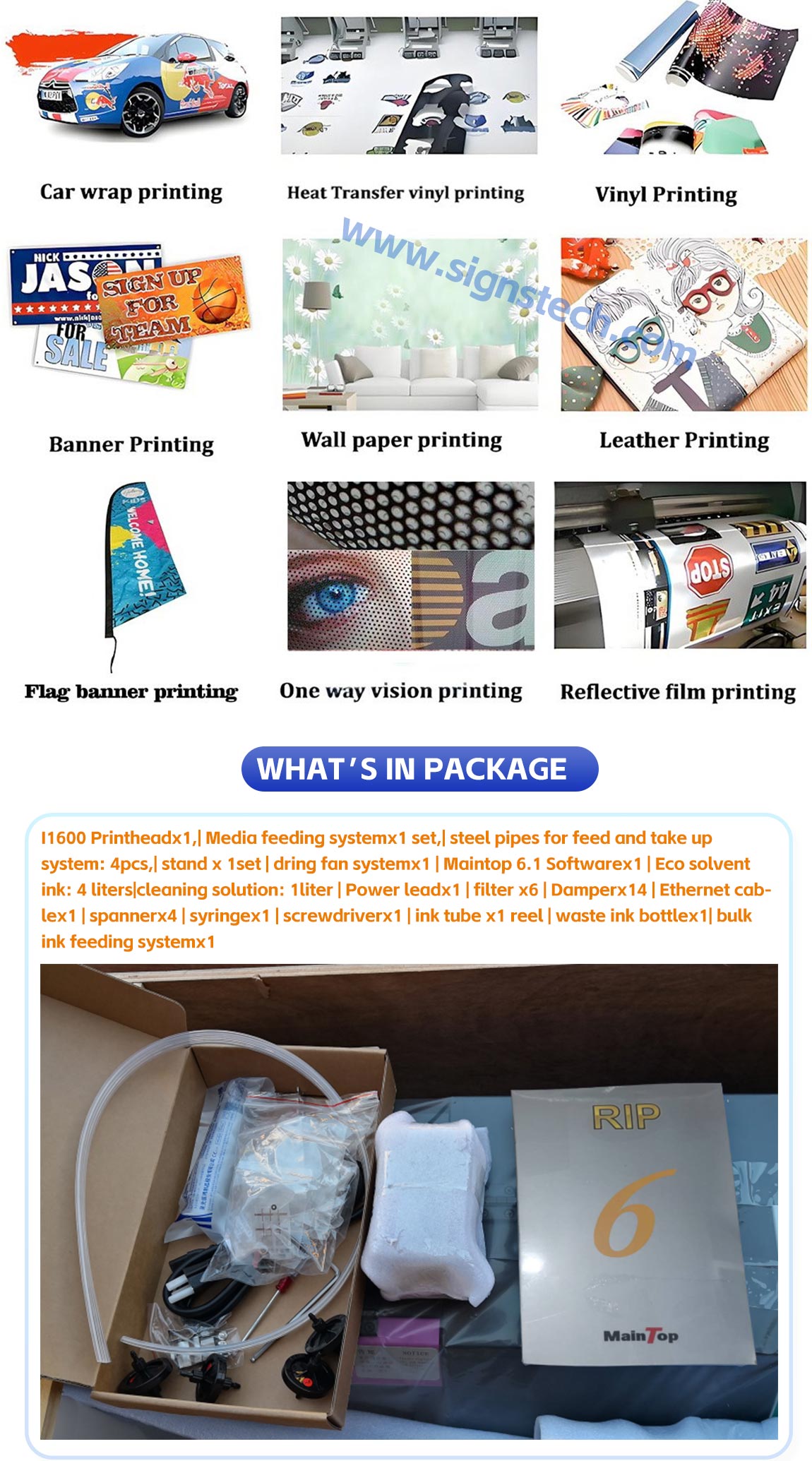

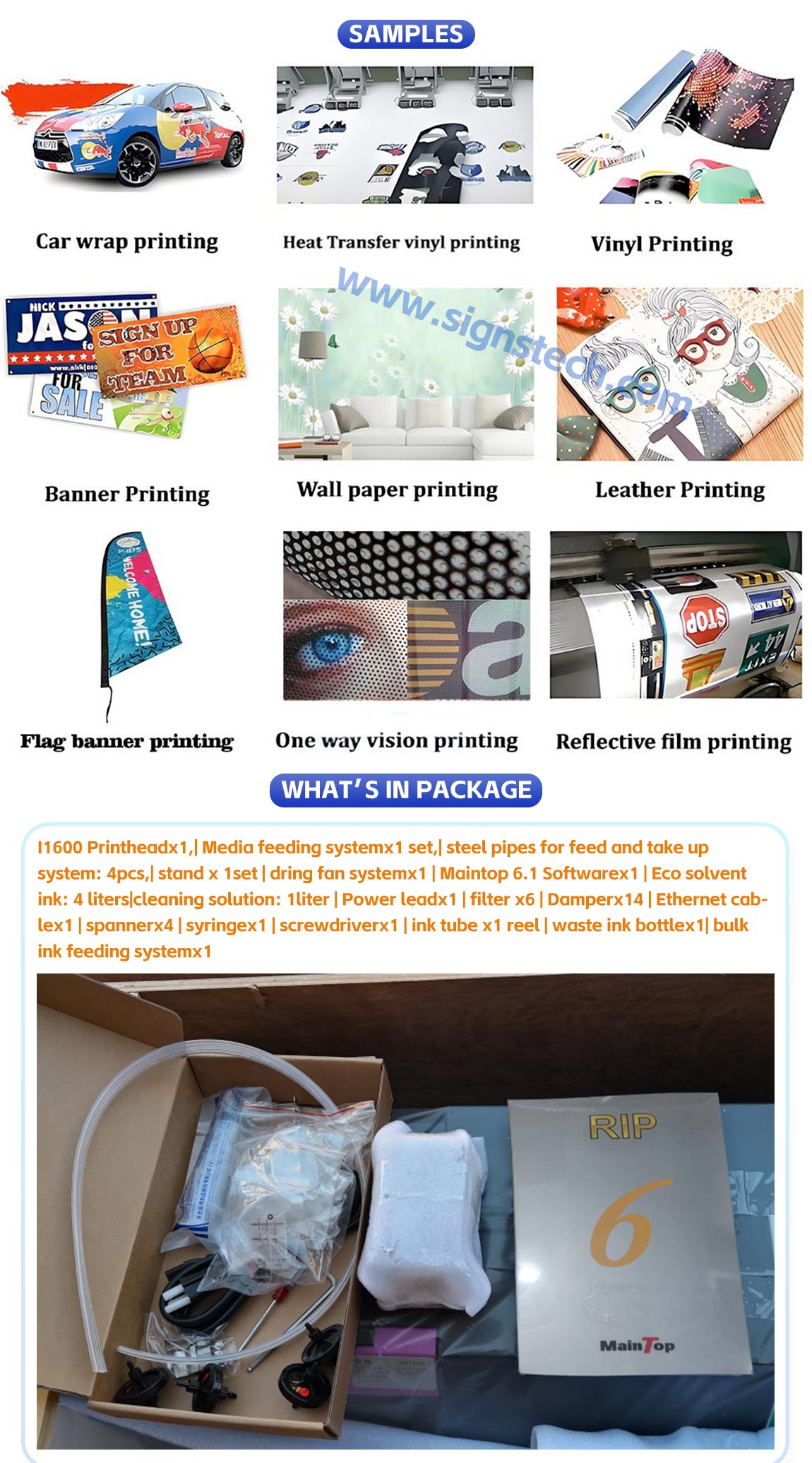

What’s in package
Printheadx1,|Media feeding systemx1 set,|steel pipes for feed and take up system: 4pcs,|standx 1set|dring fan systemx1 |Software Maintopx1 |Eco solvent ink x4 liters|cleaning solution: 1 liter| Power leadx1|filter x4|Damperx7|USB cablex1 |spannerx1|syringex1| screwdriverx1 |ink tube x1 reel| waste ink bottlex1|bulk ink feeding systemx1


Model

VI-1601E6

Max Print Width

1520mm 60”

Print head

Epson I1600

Number of Print head

1

Max Resolution

2400dpi

Color Mode

C M Y K

Speed 4Pass 720x1200dpi

20/h

6Pass 720x1800dpi

15/h

8Pass 720x2400dpi

10/h

Ink Type

Eco solvent ink/water based ink/sublimation ink

Heating system

Middle and post-heating, with temperature controller

Drying Fan system

With infrared heating tubes

Auto take up System

With

Interface

Ethernet

Language

English

Software

Maintop 6 with dongle, optional Flexi

Printer driver

Win7 32/64bit, Win8 ,Win10

Print head Cleaning

Automatic, anti-jam and keep nozzles moisten

Driving System

Leadshine servo and stepper

Print head height

1.8mm-3mm

Power

AC220v,50HZ/60HZ

Power consumption

Idle 32w Max 1500w

Print Material

Vinyl, flex banner, PVC, One Way Vision ,canvas, leather, wall paper,Etc

Media process

Roll to Roll

Machine Dimensions

2362mmLx900mmWx1500mmH
