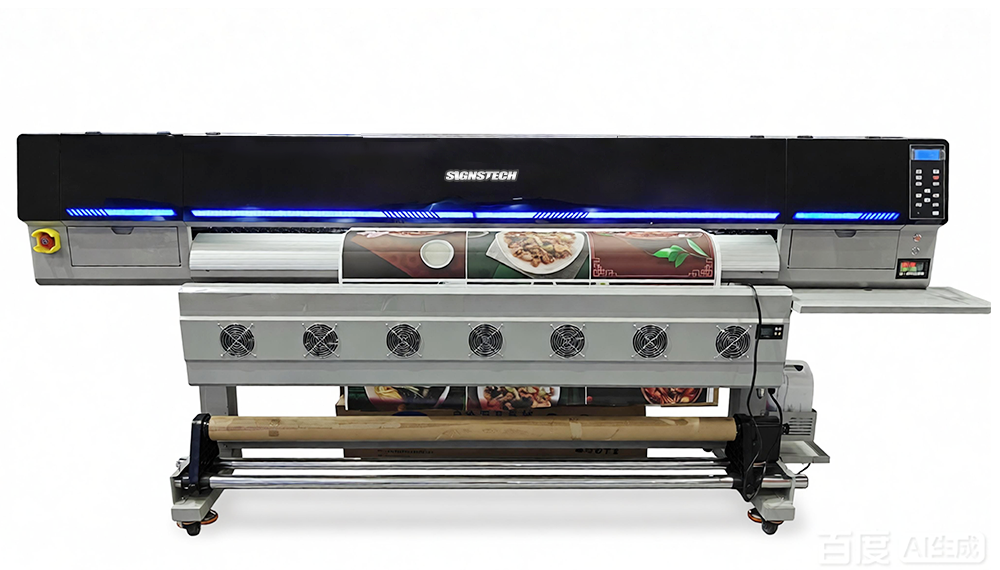

Model |
1602E/ 1902E |
|

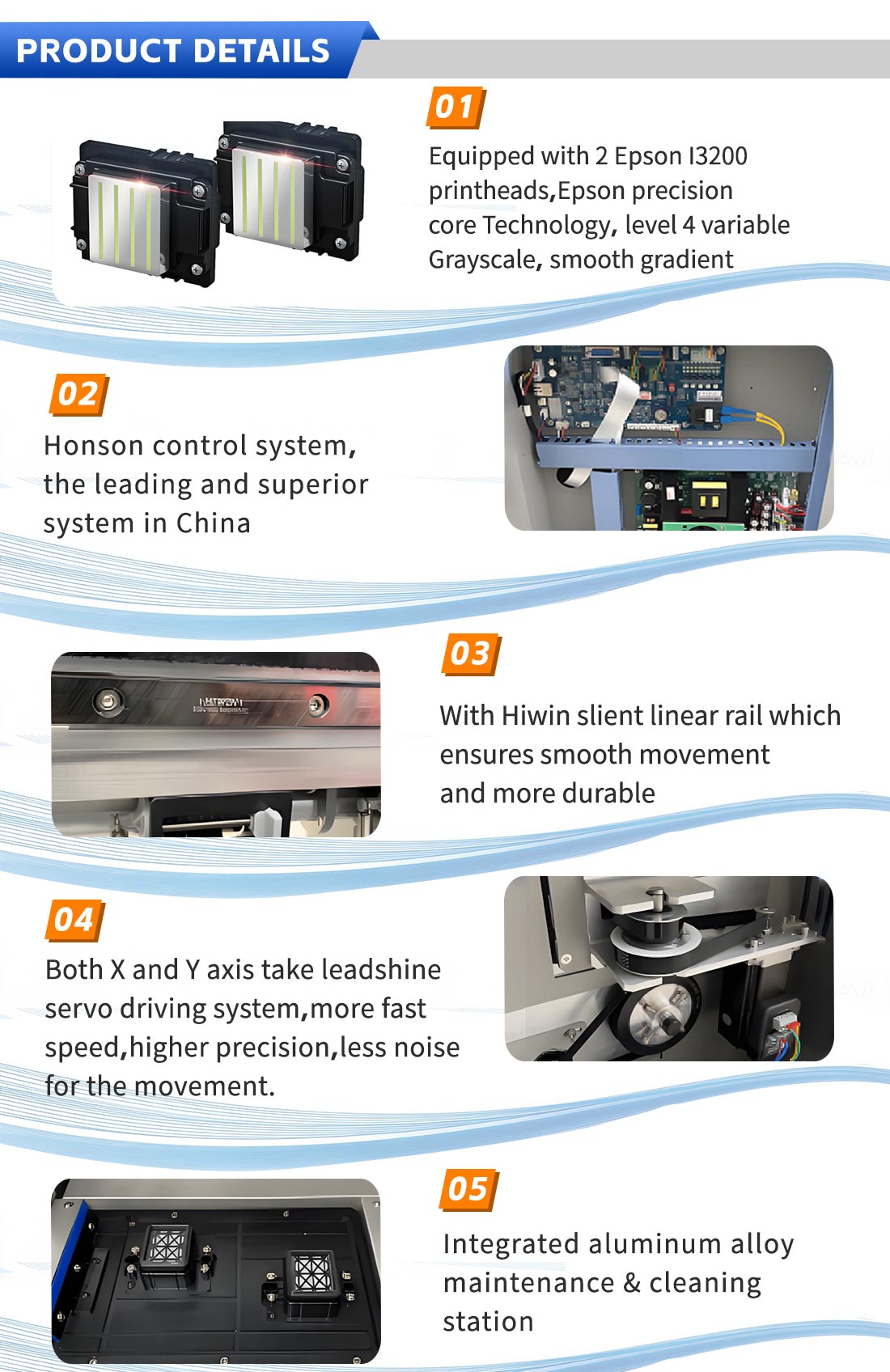

Print Head |
2Pcs - 13200 Epson Printhead 2Pcs -I1600 Epson Printhead |
|
Printing Speed |
2pass 360x1200 dpi 56㎡/h 4pass 360x1200 dpi 28㎡/h 3pass 360x1800 dpi50㎡/h 6pass 360x1800 dpi 25㎡/h 4pass 720x1200 dpi39㎡/h 8pass 720x1200 dpi 20㎡/h 6pass 720x1800 dpi 25㎡/h 12pass 720x1800 dpi 13㎡/h |
|
Color Config. |
CMYK |
|
Printing Width |
1600mm/1900mm |
|
Media Type |
Flex Banner, Coated PP, Vinyl, PVC Film, Ceiling Film, Fabric, One Way Vision, Banner Cloth,Window Film, Mesh Etc |
|
Ink type |
Eco Solvent Ink |
|
Ink Droplet Size |
3.8-5.5-8.7pl |
|
Ink Supply System |
Bulk Ink System With Ink Cartridges |
|
Rip Software |
RlIN / Maintop / Photoprint/(Optional) |
|
Heating System |
Intelligent Front/Rear Control Heating, Optional Modes: Preheating/Printing Heating |
|
Environment |
Temperature 20-28 °C/ Humidity 38-65 C |
|
Feed & Take Up |
Damping Feeding, Constant Tension Take-up System |
|
Drying System |
Infrared Intelligent Heating |
|
Power |
Pre-heating 150W, Platform Heating 400W Post-heating 150W,Equipment 750W,Dryer 4500W |
|
Machine Size & N.W. |
1.6M-2750MM(L)x800MM(W)x1600MM(H)&230kg 1.9M-3050MM(L)x800MM(W)x1620MM(H)&250kg |
|
Package Size & G.W. |
1.6M-2840MM(L)x790MM(W)x740MM(H)&280kg 1.9M-3140MM(L)x790MM(W)x740MM(H)&310kg |
