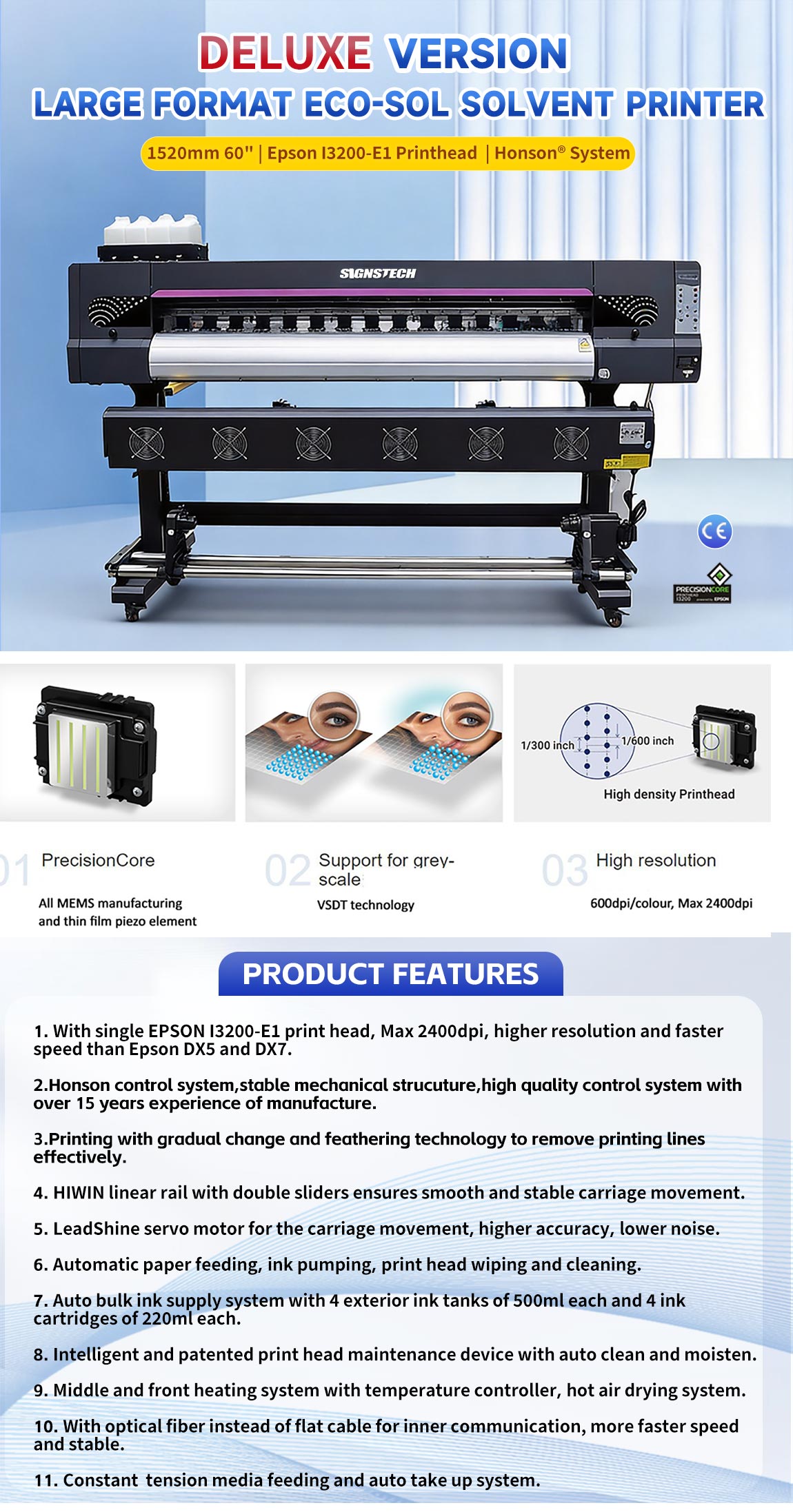

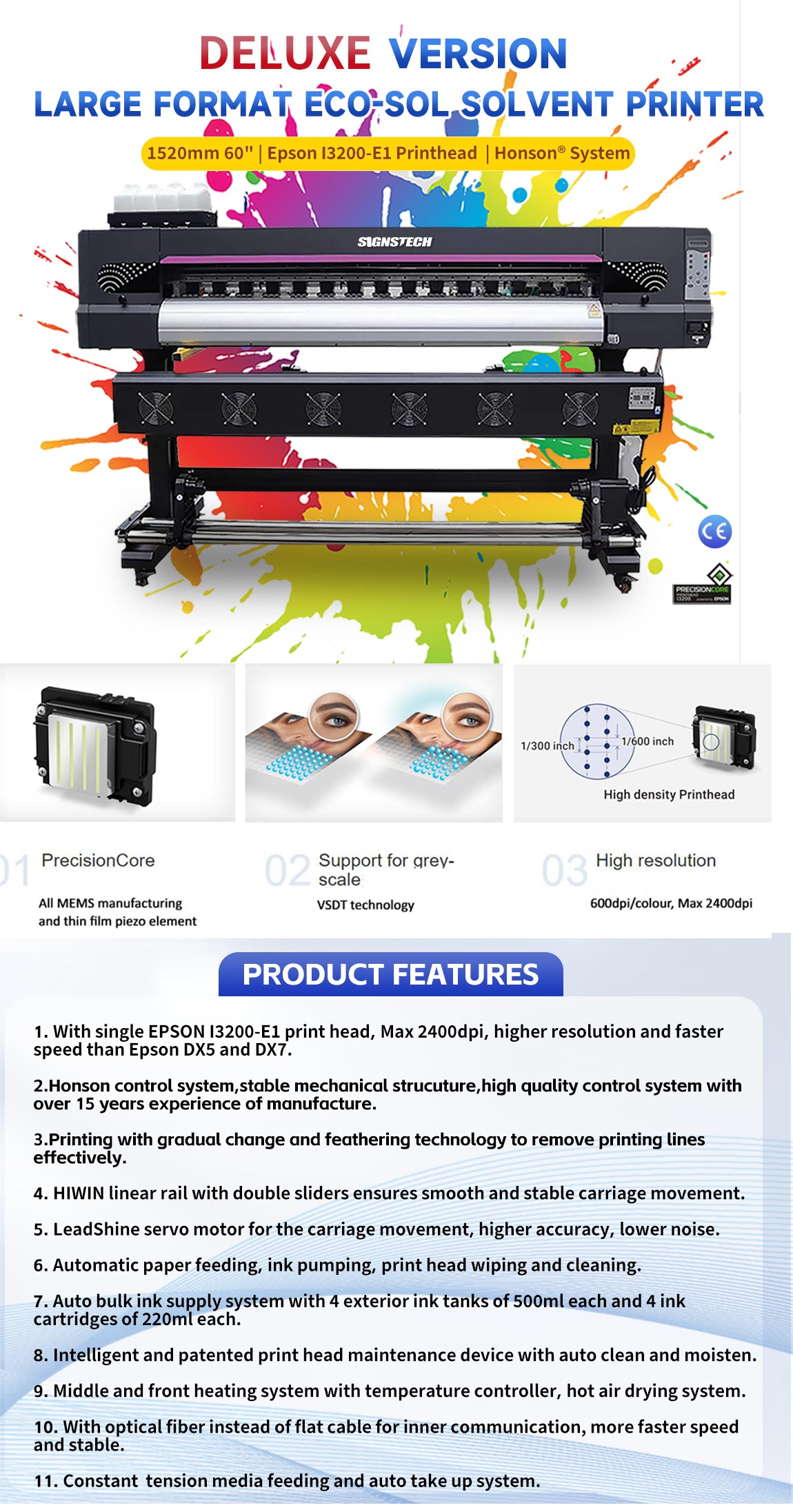

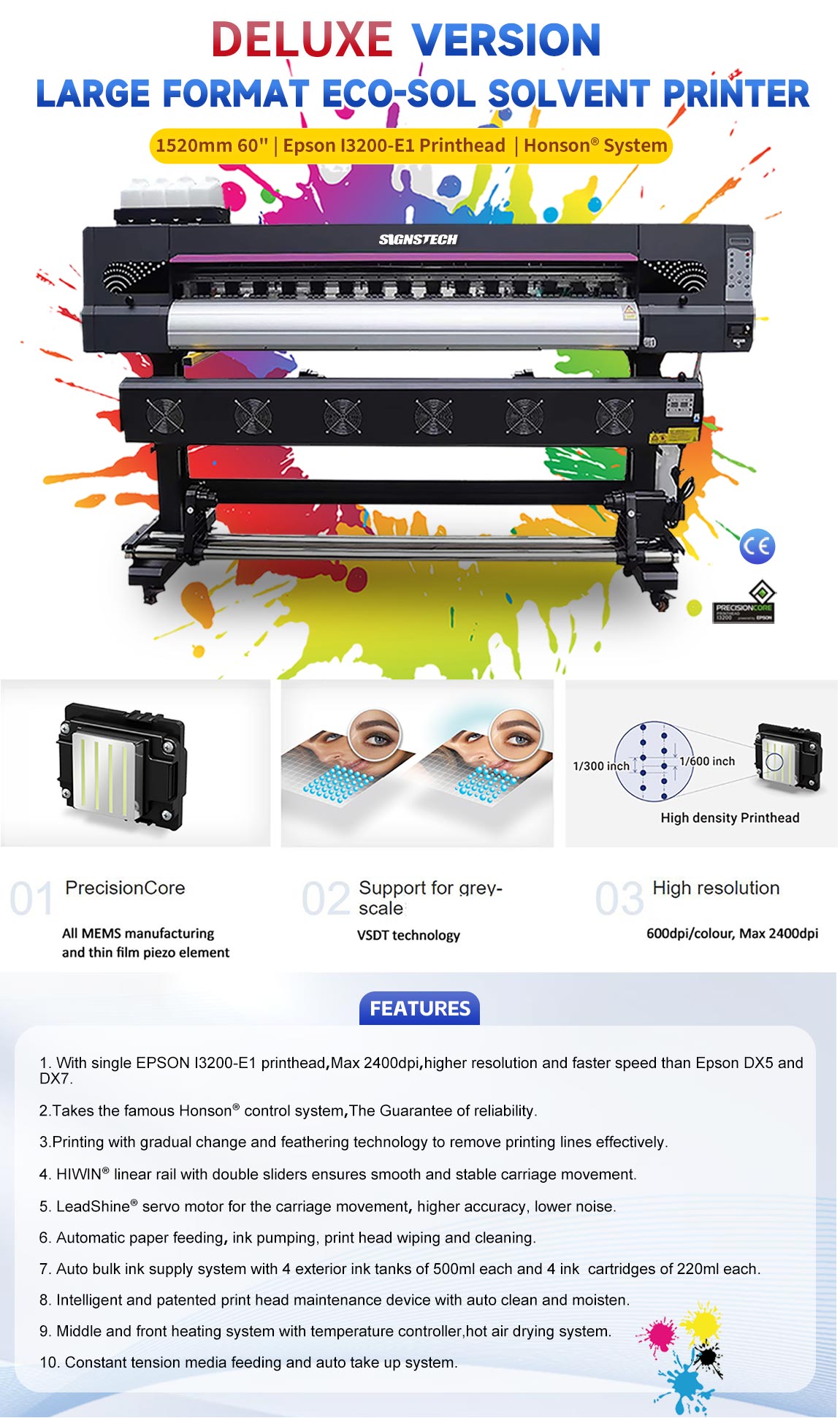

1.With single EPSON I3200-E1 print head, Max 2400dpi,higher resolution and faster speed than Epson DX5 and DX7.
2.Honson control system,stable mechanical strucuture,high quality control system with over 15 years experience of manufacture.
3.Printing with gradual change and feathering technology to remove printing lines effectively.
4.HIWIN linear rail with double sliders ensures smooth and stable carriage movement.
5.LeadShine servo motor for the carriage movement, higher accuracy, lower noise,
6.Automatic paper feeding, ink pumping, print head wiping and cleaning.
7.Auto bulk ink supply system with 4 exterior ink tanks of 500ml each and 4 ink cartridges of 220ml each.
8.Intelligent and patented print head maintenance device with auto clean and moisten
9.Middle and front heating system with temperature controller,hot air drying system.
10.With optical fiber instead of flat cable for inner communication, more faster speed and stable,
11.Constant tension media feeding and auto take up system.

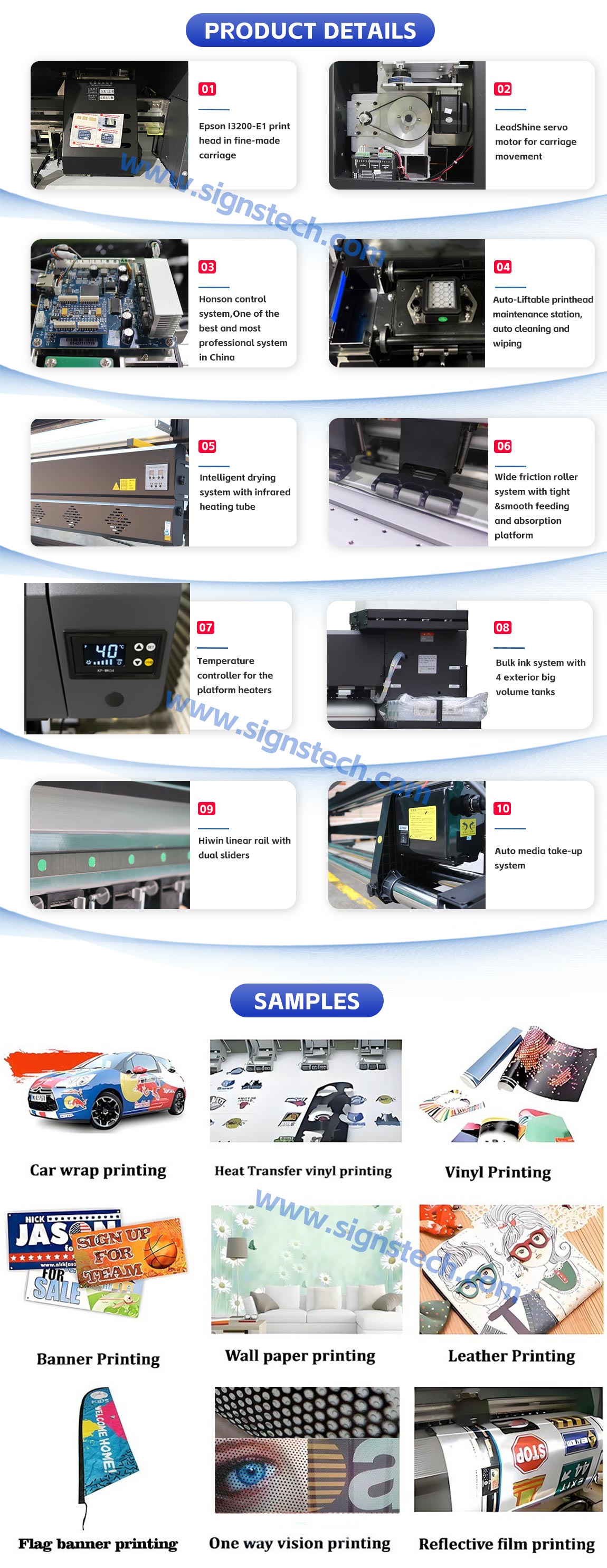

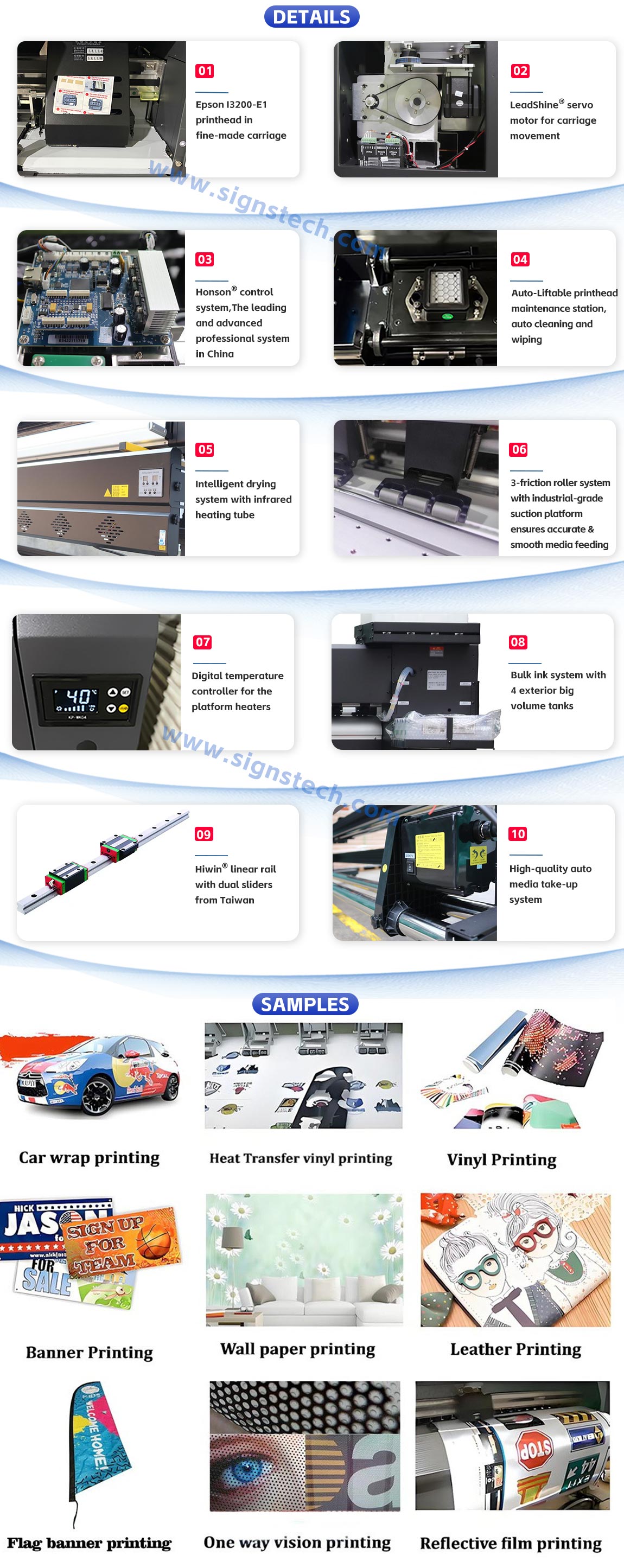

Details:
 |
 |
|
Epson I3200-E1 print head in fine-made carriage
|
Bulk ink system with 4 exterior big volume tanks
|
 |
 |
|
Honson control system,The leading and superior system in China |
Integrated printhead maintenance device,auto cleaning and wiping |
 |
 |
| LeadShine servo motor for carriage movement |

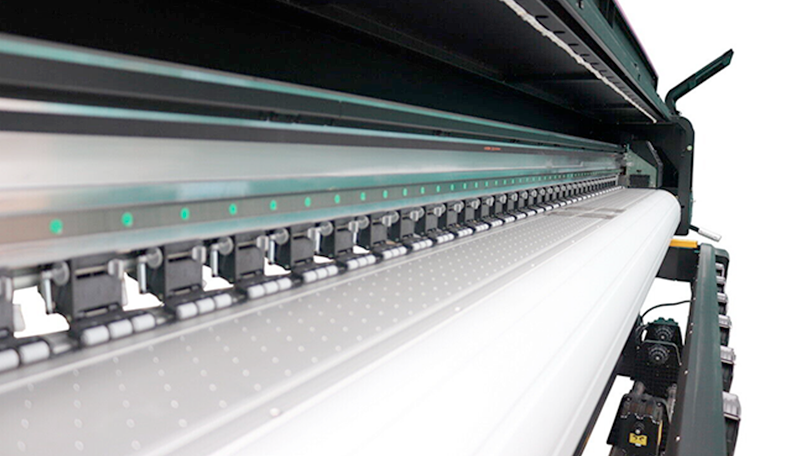

Wide friction roller system with tight &smooth feeding and absorption platform |
 |
 |
|
Temperature controller for the platform heaters
|
Intelligent drying system with infrared heating tube |
 |
 |
|
Hiwin linear rail with dual sliders |
Auto take up system
|
|
Model |
VI-1601E |
|
|
Max Print Width |
1520mm 60” |
|
| Print head |
Epson I3200-E1 |
|
| Number of Print head |
1 |
|
| Max Resolution |
2400dpi |
|
| Color Mode |
C M Y K |
|
| Speed | 3 Pass(Produce mode) |
30㎡/h |
| 4 Pass(Quality mode) |
22㎡/h |
|
| 6 Pass(High resolution) |
15㎡/h |
|
| Ink Type |
Eco solvent ink/water based ink/sublimation ink |
|
| Heating system |
Middle and post-heating, with temperature controller |
|
| Drying Fan system |
With infrared heating tubes |
|
| Auto take up System |
With |
|
|
Interface |
Ethernet |
|
| Language |
English |
|
| Software |
Maintop 6.1 with dongle, Optional Flexi |
|
| Printer driver |
Win7 32/64bit, Win8 ,Win10 |
|
| Print head Cleaning |
Automatic, anti-jam and keep nozzles moisten |
|
|
Driving System |
Leadshine servo and stepper |
|
| Print head height |
1.8mm-3mm |
|
| Power |
AC220v,50HZ/110v,60HZ |
|
| Power consumption |
Machine 800w,External drying: 2400w |
|
| Print Material |
Vinyl, flex banner, PVC, One Way Vision ,canvas, leather, wall paper,Photo paper,film,PP,Etc |
|
| Media process |
Roll to Roll |
|
| Machine Dimensions |
2362mmLx900mmWx1500mmH |
|
