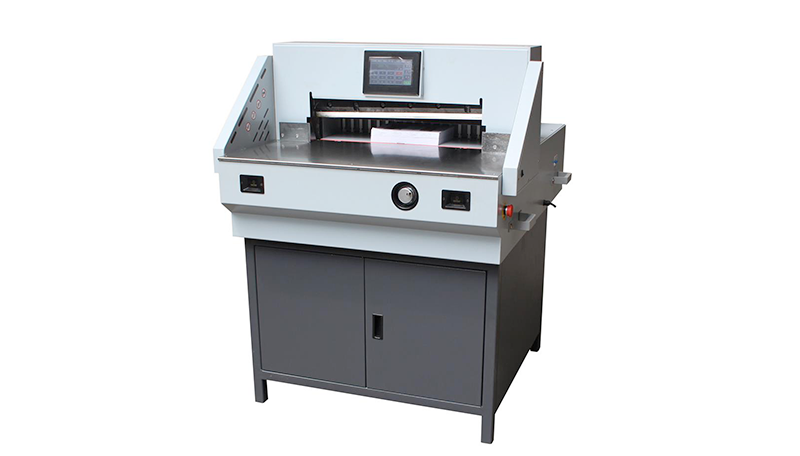

E520T Paper Guillotine Cutter

Model：
E520T
Remarks：
Professional electri cutter, Programmable,7" touch screen， CE certificate.
BROCHURE INQUIRY NOW
Captcha
Submit

Features

Parameters

●Centrifugal paper pressing with driver patent technology
Centrifugal paper pressing with driver structure to prevent paper-presser stuck
●Adjustment gap of blade carrier patented technology
±0.3mm High cutting accuracy
●Pull rod type rotor structure
Paper cutting driver more balanced, in accordance with biomechanics
●PLC control system design
PLC control system is more reliable and stable while machine working

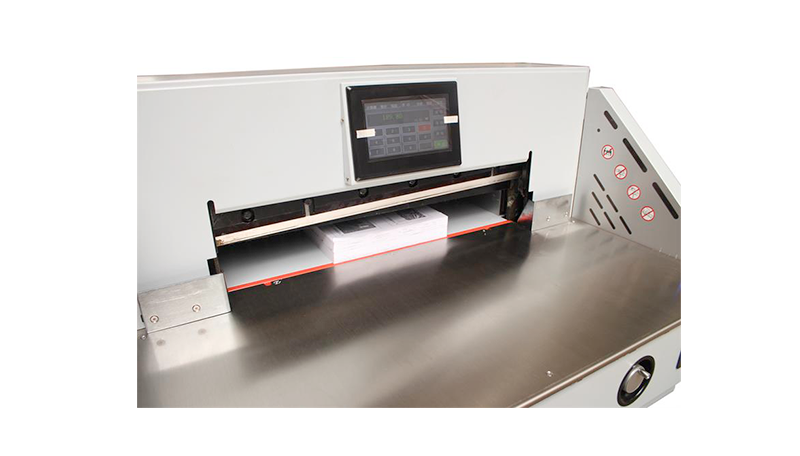

●Intelligent control, 7"PLC
The cutting depth and size calibration can to adjusted by setting the program, 100series programs and 21cutsper machine, add function of the self-detection and code fault display;
●Long front table
460mm length front table, in accordance with new CE standard

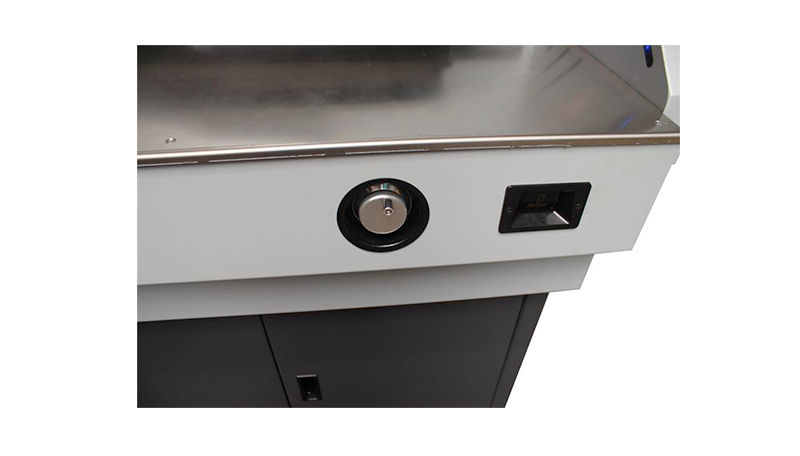

●Electronic handle wheel fine tuning
Precision fine-tuning for pushing of paper size
●Lock safety device
Prevent slide cutting, making sure operating safety.
●Infrared safety protection
Front infrared safety protection design, rear shield safety protection, CE standards,operation safer
●Patent appearance design
New modern and fashion design which is suitable for Digital Express Printing office

Item Model

E520T

Max. Cutting Size：

520mm

Min. Cutting Size：

30mm

Cutting Thickness：

60mm

Cutting Accuracy：

±0.3mm

Clamp Operation：

Electrical

Pushing Paper Mode：

Program-control

Display：

LCD/7” Touch screen

Power Supply：

220v(110v)±10% 50HZ(60HZ)

Net Weight：

250kg

Dimensions(L*W*H)：

1150*810*1250mm

Warranty：

12 months
