Foldable paper pushing platform patented design convenient to remove and pack. |
Inclined blade cutting patented technology, any thick paper can be cut smooth and easily with inclined blade design. |
|
|
 |
|

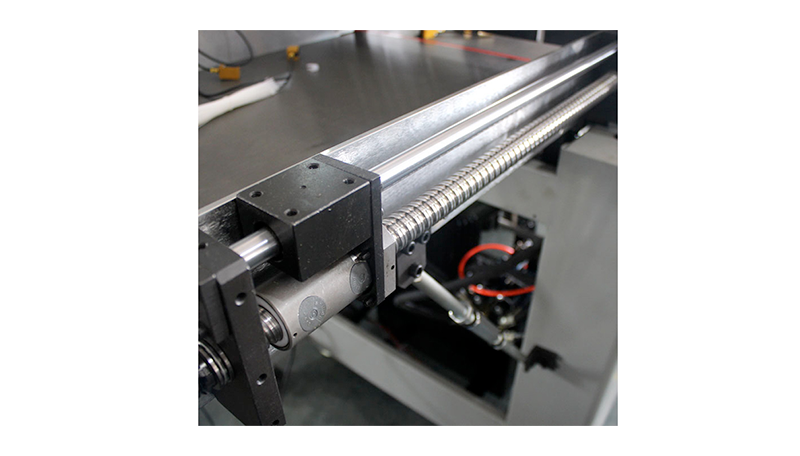

op-suspended ball screw and nut for pushing paper.High speed of pushing and high precision of cutting |
Leak-Proof design, solving the problem of leaking in the cylinder. |
 |
 |
|
Hard chromium plating table design High durability and hard to distortion
|
PLC integrated module control circuit design, stable and reliable working |
 |
 |
|
Mechanical pedal, Pressure paper proofread position, easy and convenient |

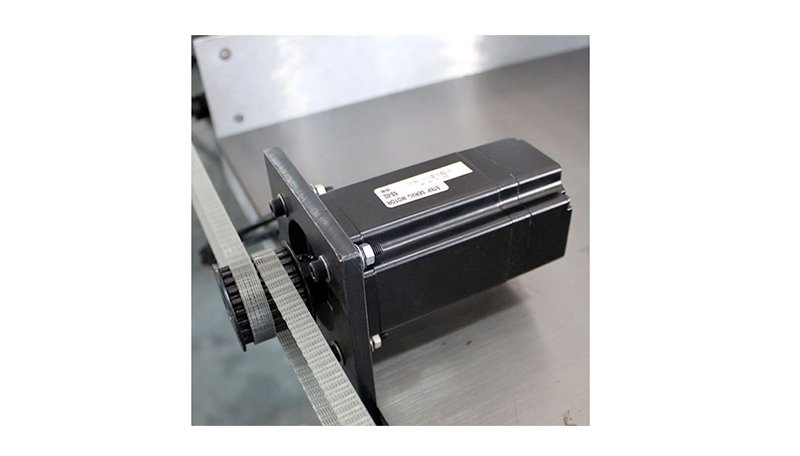

Double Hydraulic with strong power system design, imported servo motor with strong power, imported hydraulic components for ensuring quality, with external knob for adjustment pressure of paper clamp |
 |
 |
|
Swing arm design of blade carrier patented technology Solving the problem that the roller slot easy to wear and tear, adjustment gap of blade carrier , ensuring cutting accuracy |
Intelligent control, 7-inch touch screen,The blade depth adjustable with program, size error compensation, fault self detection, programmable Max 100 group*96 cuts |
 |
 |
|
Safety protection structure of Blade lock Preventing the blade slip , and operation safer |
Echelette grating system ensures operation safety in according to the CE standard
|
 |
 |
|
Aeronautical alloy aluminum material platform, durable and scratch resistant |
Electronic hand wheel for backgauge position with variable s
|
|

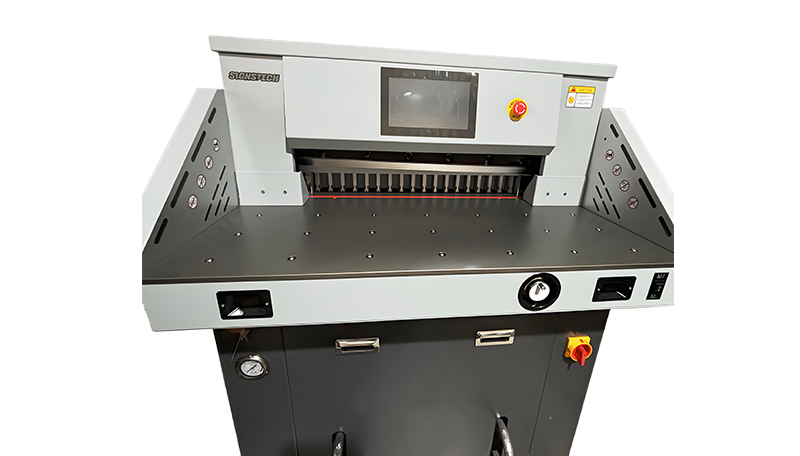

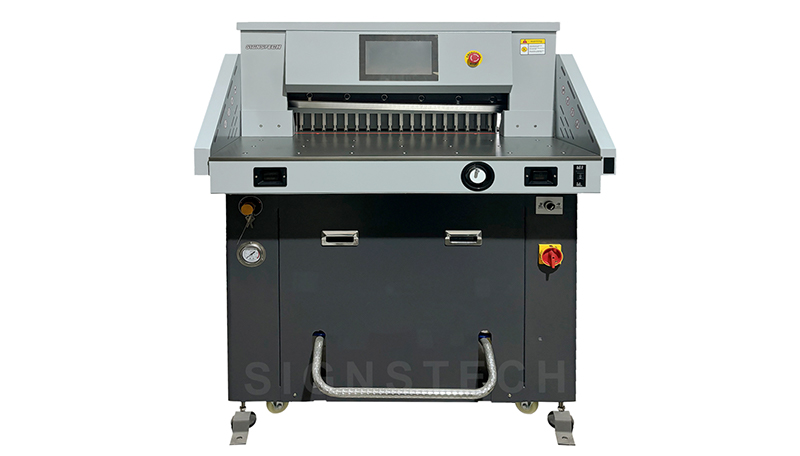

Type |
H670TV7 |
|
Max Cutting Size (mm) |
720*720mm |
|
Min. cutting size |
30mm/1.18” |
|
Cutting thickness |
80mm /3.15” |
|
Cutting accuracy |
±0.2mm |
|
Clamp operation |
Hydraulic+pedal |
|
Pushing paper mode |
Program-control |
|
Cutting paper mode |
Programmable,PLC control board |
|
Display |
7” LCD Touch Screen |
|
Table |
Cast aluminum platform |
|
Power |
220V(110V)±10%
50HZ(60HZ)3.1KW |
|
Net weight |
500KG |
|
Dimensions |
1550*1200*1460mm |
