Infrared safety protection system,rear cover safety protection,Infrared safety protection system,. rear cover safety protection, Match with CE standard
|
Variable frequency hydraulic technology
More accurate control for cutting depth,extend the blade's working life greatly. More stable working with resistance of volatage wave Reduce the breakdown on motors greatly Supper silent technology, no noise in the paper cutting process |
 |
 |
|
7" touch screen,PLC intergrated contorl curcuit,more accuracy and more reliable, longer lifespan,power-off protection, intelligent chips,fast response,fault auto detection 100 groups*99 knife programmable |
Patent for paper pushing mechanism with double guide rods on top
Top-hung double guide rod paper pushing transmission structure,no slot paper pushing platform,high precision
|
 |
 |
|
Oblique knife cutting paper patent, cutting more easily ,suitable for thick paper cutting |
Stainless steel platform with balls,easily to manage stack paper |
 |
 |
|

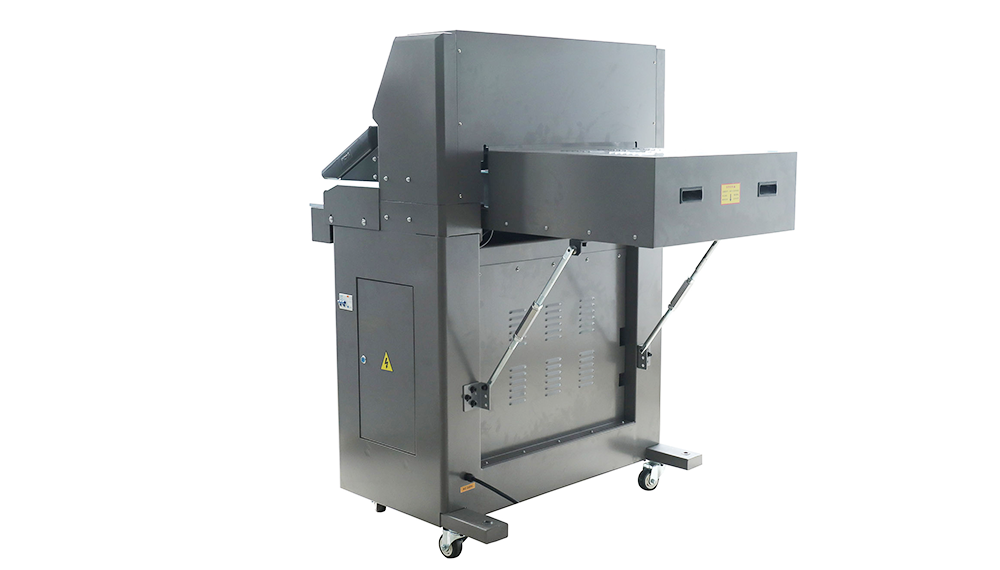

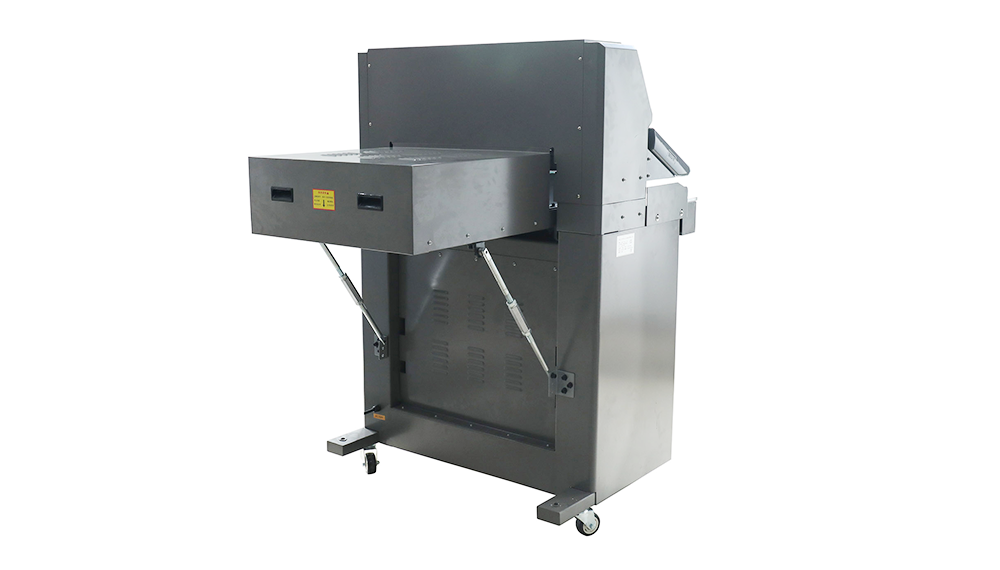

Paper pushing platform turn over structure patent The paper pushing platform can be folded,easily install in the door |
Mute dual hydraulic system mute hydraulic system,two-way hydraulic cylinder, external pressure adjustment |
 |
 |
|
Mechanical pedal for paper clamp ,more convenient for cutting riding nail book, pre-alignment high precision |
The structure design of the thickened tool holder makes it durable and suitable for batch cutting rapid blade replacement device design blade replacement,easy and convenient |
|
Type |
H5010L |
|
Max Cutting Size (mm) |
500*500 |
|
Max Cutting Thickness (mm) |
100 |
|
Min. Cutting Size (mm) |
30 |
|
Cutting Accuracy (mm) |
±0.2 |
|
Ball table |
√ |
|
Press Way |
Hydraulic |
|
+Mechanical Pedal |
|
|
Cutting Way |
Hydraulic |
|
Display |
7" Touch Screen |
|
Program |
√ |
|
Arithmetic |
√ |
|
Push Motor |
High speed step motor |
|
Cutting Motor |
Variable Frequency |
|
Power |
220V(110V)±10%, |
|
50Hz |
|
|
3200W |
|
|
Machine Size (mm) |
930x1165x1440 |
|
N.W: (Kg) |
About 380 |
