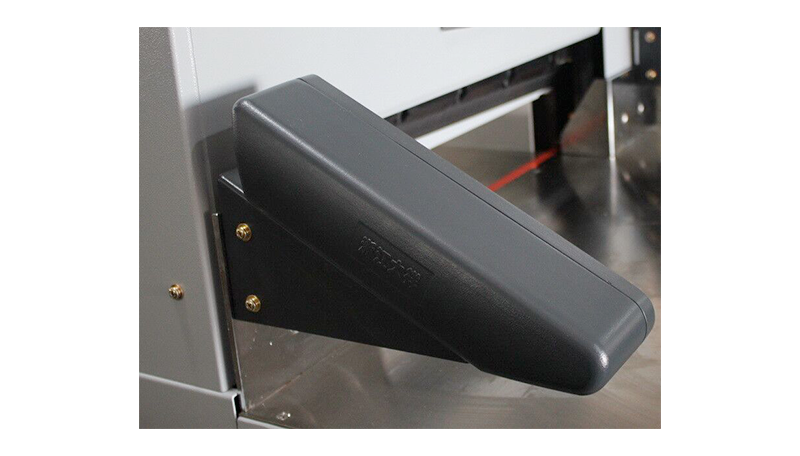

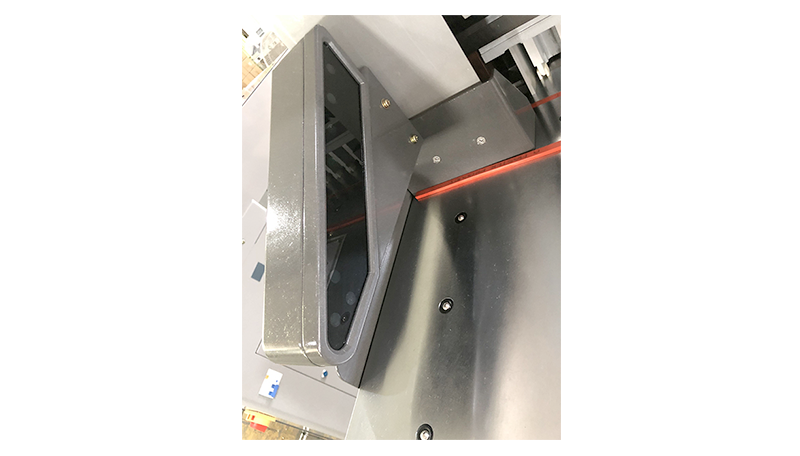

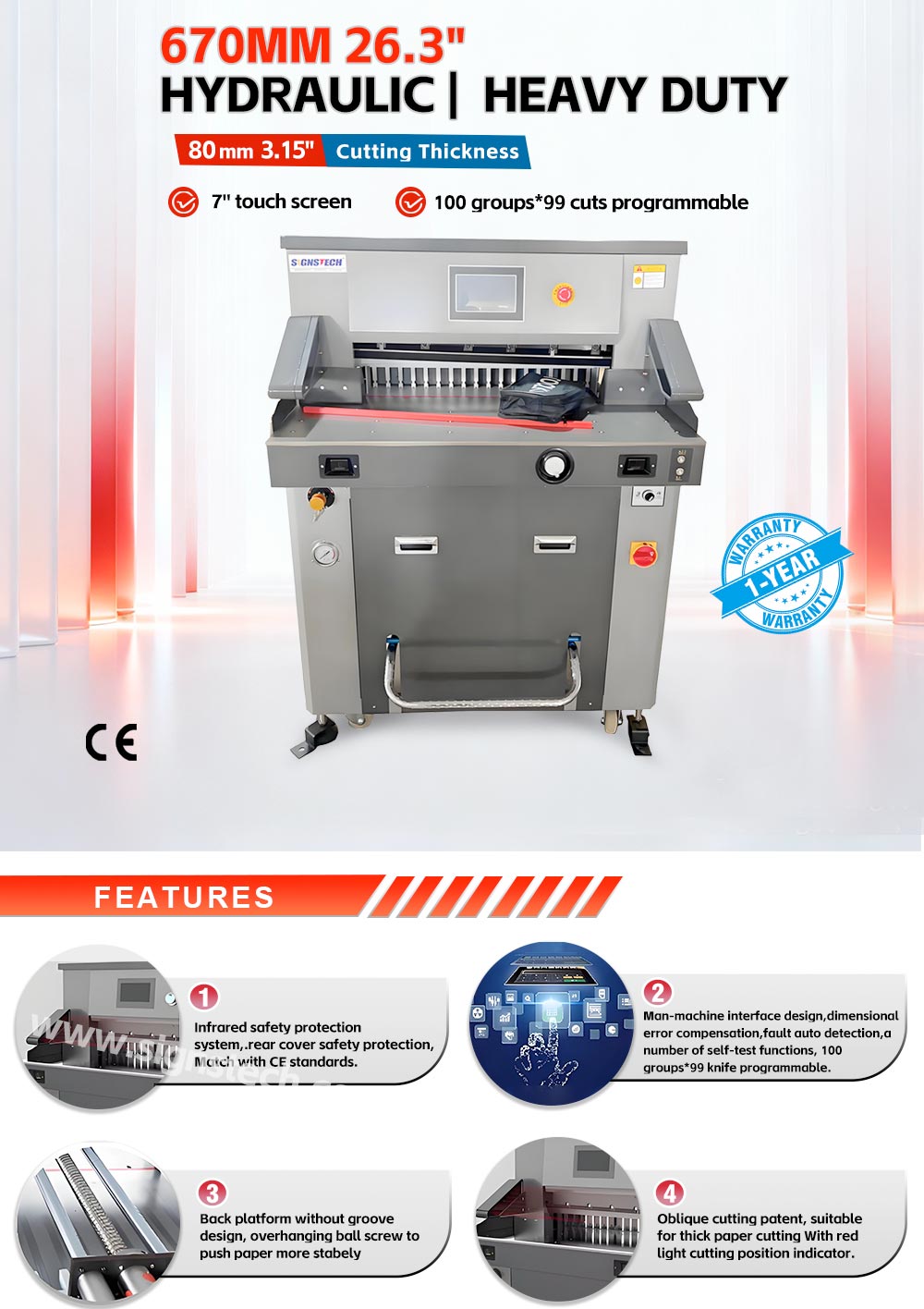

Infrared safety protection system,.rear cover safety protection, Match with CE standard
|
Man-machine interface design,dimensional error compensation,fault auto detection,a number of self-test functions 100 groups*99 knife programmable
|
 |
 |
|
Back platform without groove design, overhanging ballscrew to push paper more stabely |

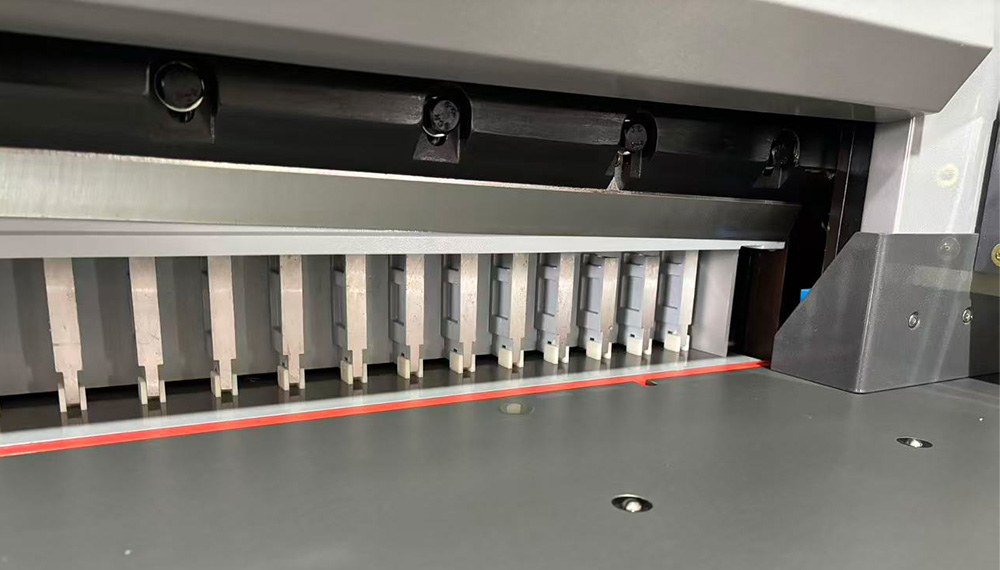

Oblique cutting patent, suitable for thick paper cutting With red light cutting position indicator
|
 |
 |
|
12mm aviation grade aluminum alloy with floating air bead table,special processing,solid and durable,Anti-scratch |

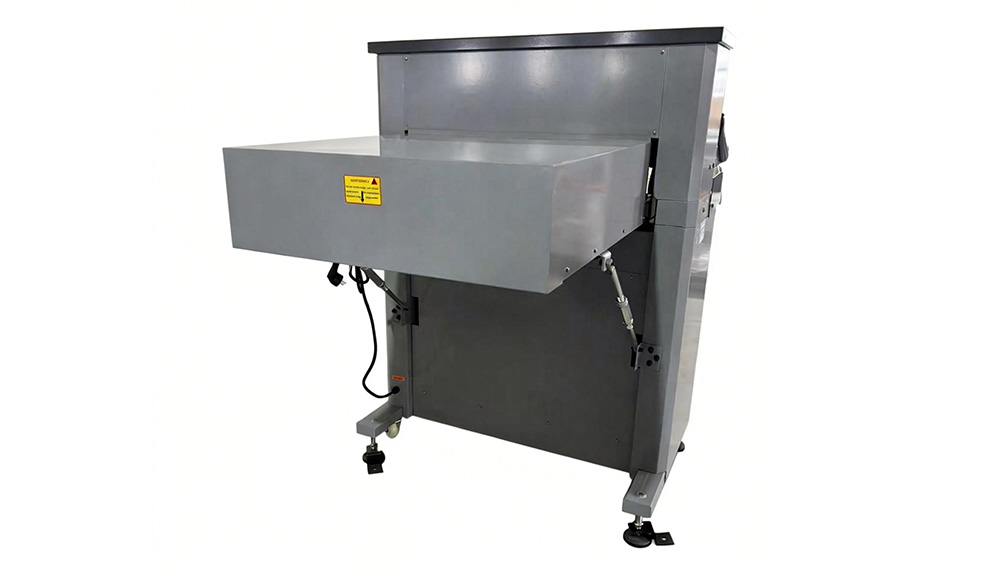

Push book platform can be folded,convenient transportation |
 |
 |
|
Dual hydraulic power control system Taiwan main motor,providing strong power,imported hydraulic valve parts to ensure the quality of the machine,With paper pressure external regulating mechanismWith quiet working design |
Mechanical pedal for paper clamp ,more convenient for cutting riding nail book, pre-alignment high precision |
|

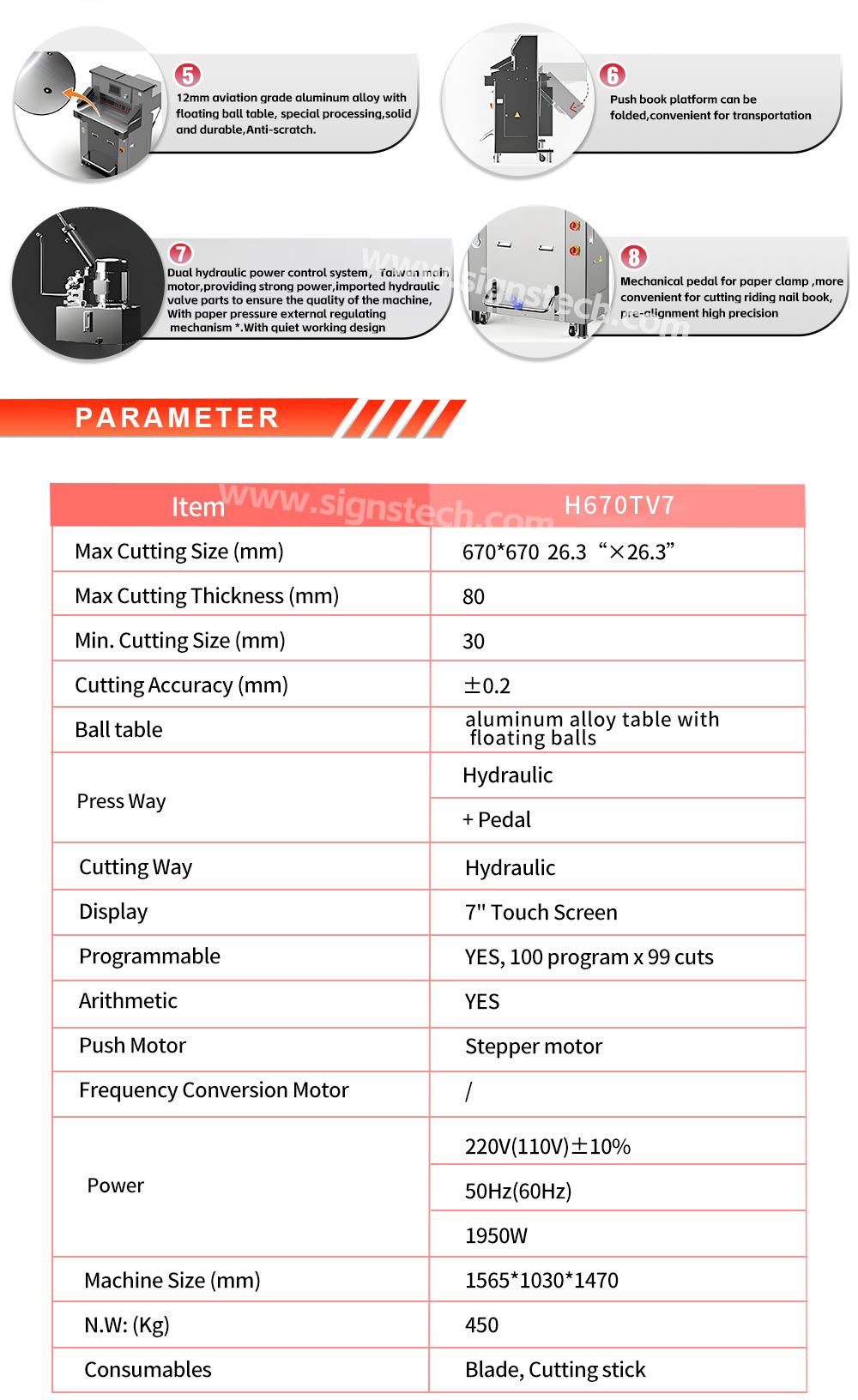

Type |
H670TV7 |
|
Max Cutting Size (mm) |
670*670 |
|
Max Cutting Thickness (mm) |
80 |
|
Min. Cutting Size (mm) |
30 |
|
Cutting Accuracy (mm) |
±0.2 |
|
Ball table |
√ |
|
Press Way |
Hydraulic |
|
+Pedal |
|
|
Cutting Way |
Hydraulic |
|
Display |
7" Touch Screen |
|
Program |
√ |
|
Arithmetic |
√ |
|
Push Motor |
Step motor |
|
Frequency Conversion Motor |
/ |
|
Power |
220V(110V)±10%, |
|
50Hz(60Hz), |
|
|
1950W |
|
|
Side Table |
Optional |
|
Machine Size (mm) |
1420x1015x1397 |
|
N.W: (Kg) |
420 |
