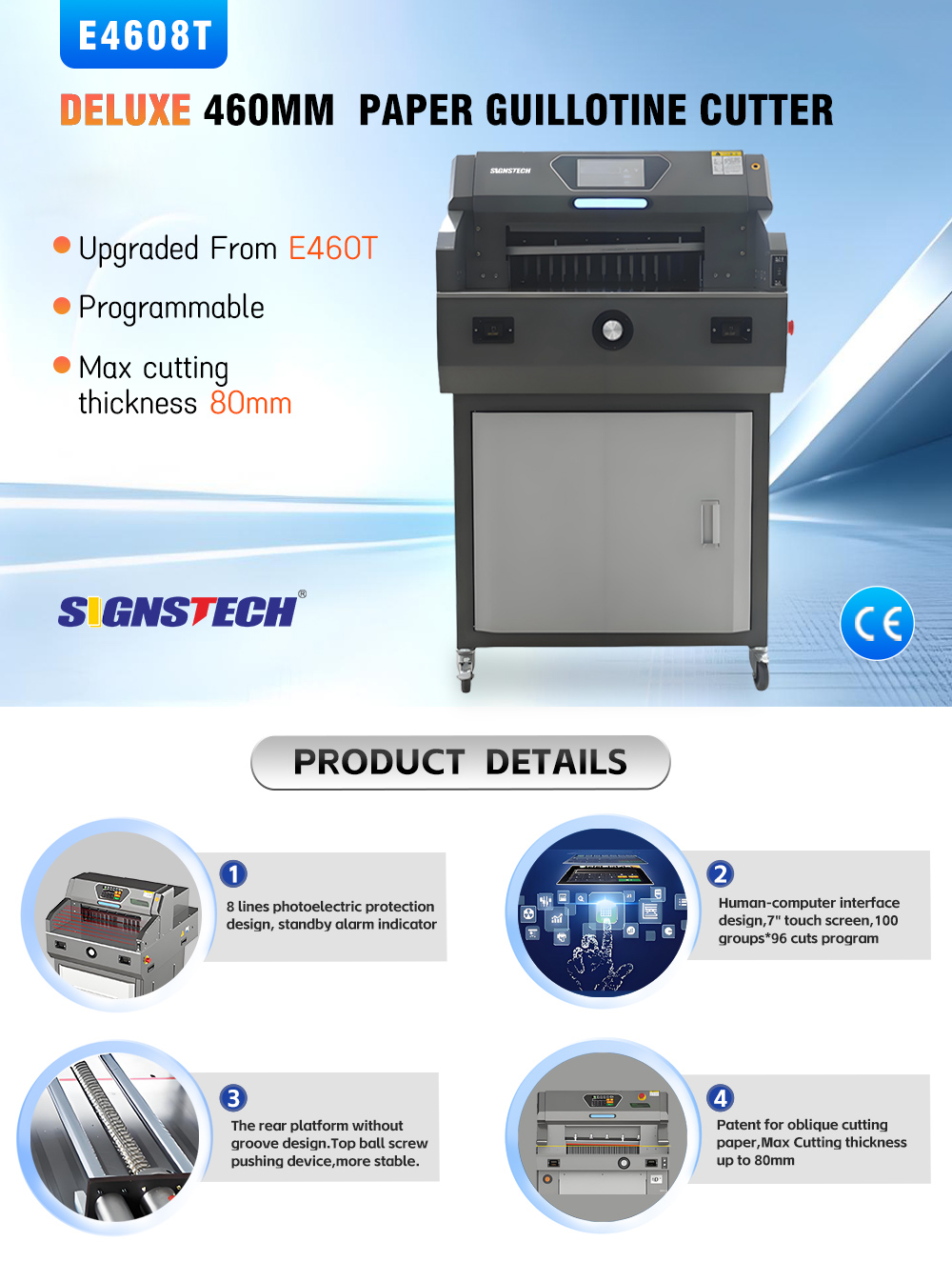

Infrared safety protection design, standby alarm indicator
|
Man-machine interface design,100 groups*96 cuts program |
 |
 |
|
Back platform without groove design,overhanging ball screw push paper more stable. |
Patent for oblique cutting paper,cutting more easliy,,suitable for thick paper cutting |
 |
 |
|

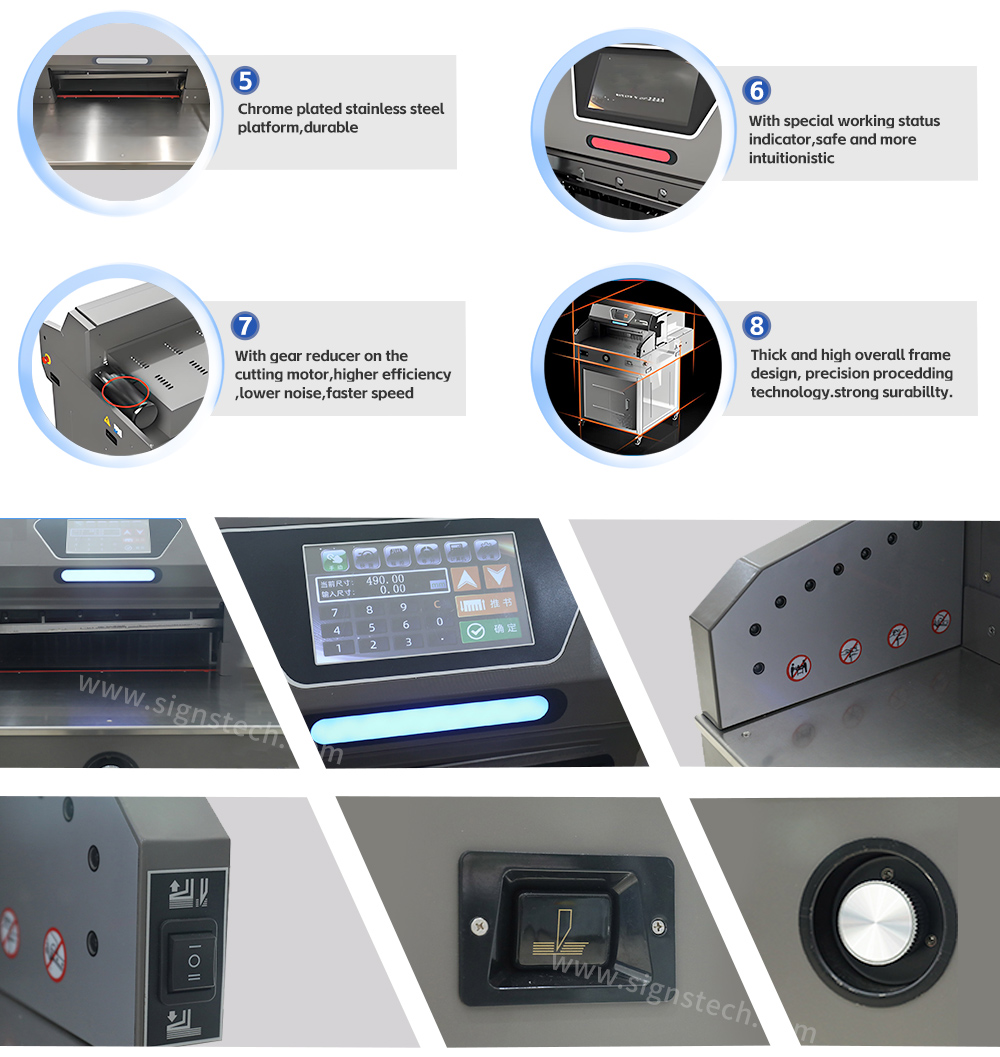

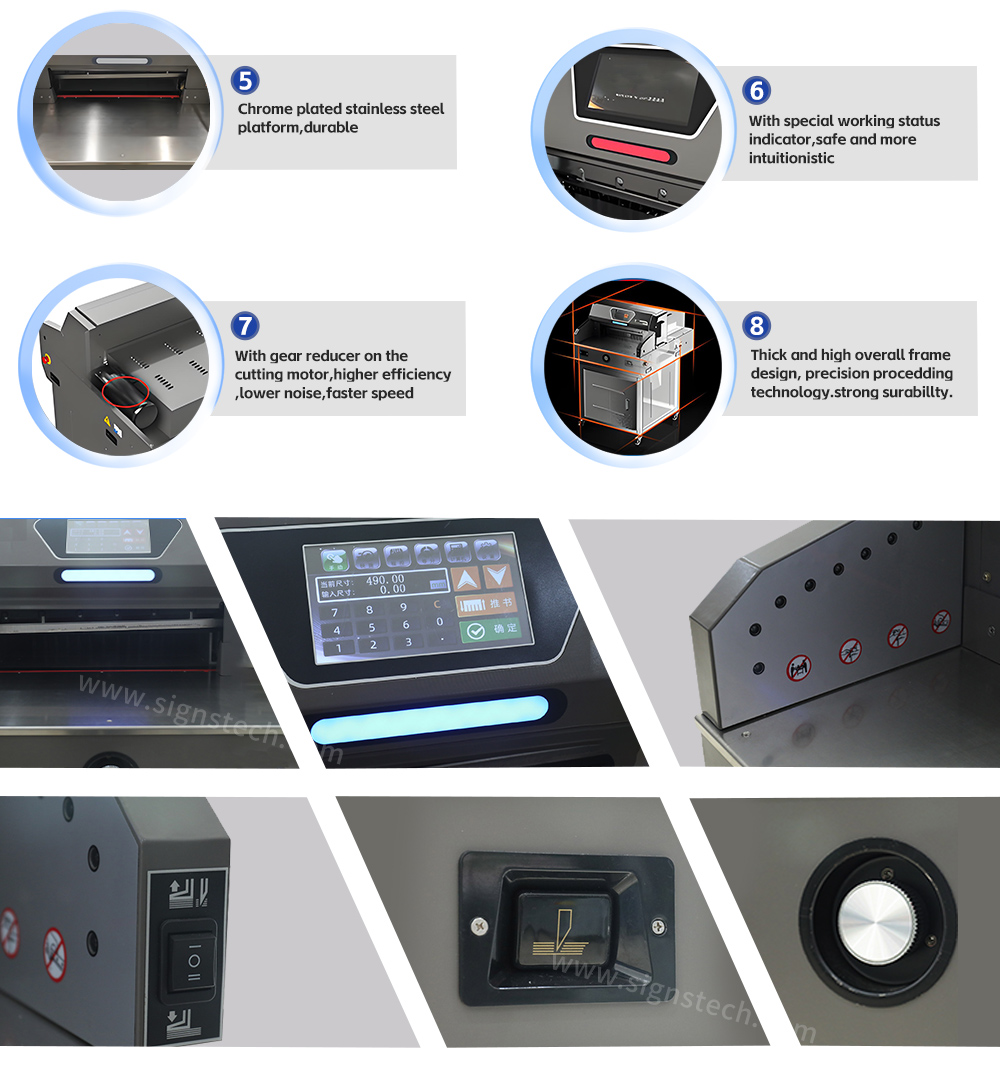

Chrome plated stainless steel platform,durable |
With working status indicator,safe and more intuitive. |
 |
 |
|
Adopt precise gear to rotate the paper cutting motor,higher efficiency ,lower noise,faster speed, |
Thick and high overall frame design, precision procedding technology.strong surabillty. |
|
Model No. |
E4608T |
|
Programmed Control |
√ |
|
Arithmetic |
√ |
|
Max cut size |
460*460mm |
|
Max cut thickness |
80mm |
|
Min Cut size |
30mm |
|
Cut accuracy |
±0.3mm |
|
Touch screen |
7 inch touch screen |
|
Paper pressing way |
Electric |
|
Paper cutting way |
Electric |
|
Power |
220V(110V)±10% 50Hz(60Hz) 1150W |
|
Dimensions |
1020*780*1325mm |
|
Net Weight |
170kg |
