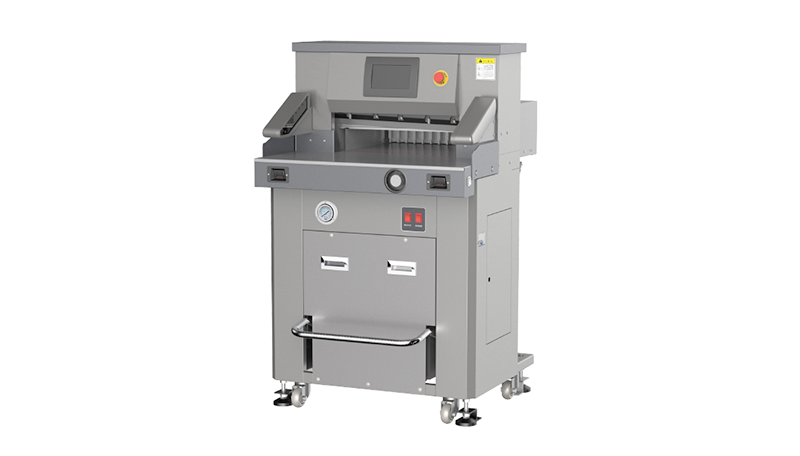

H498T Hydraulic Paper Guillotine

Model:
H498T
Remarks:
Latest product upgraded from H498T,495mm Hydraulic programmable,7" touch screen
BROCHURE INQUIRY NOW
Captcha

Features

Parameters



Infrared safety protection system,.rear cover safety protection,Match with CE standard

Oblique knife cutting patent technology Easier cutting,suitable for thick paper cuttin

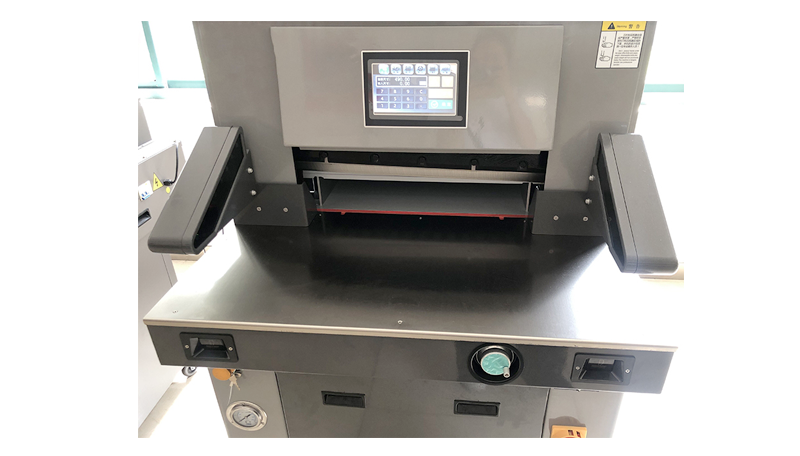

Man-machine interface design,dimensional error compensation,fault auto detection,a number of self-test functions, 100 groups*99 knife programmable.

Patent for paper pushing mechanism with double guide rods on top Top-hung double guide rod paper pushing transmission structure,no slot paper pushing platform,high precision.



Oblique cutting patent, suitable for thick paper cutting With red light cutting position indicator

Stainless steel platform with ball Stainless steel platform with ball,easily manage paper



Push book platform can be folded,convenient for transportation

Mute dual hydraulic system mute hydraulic system,two-way hydraulic cylinder, external pressure adjustment



Mechanical pedal for paper clamp ,more convenient for cutting riding nail book,pre-alignment high precision



Type

H498T

Max Cutting Size (mm)

495*495

Max Cutting Thickness (mm)

83

Min. Cutting Size (mm)

30

Cutting Accuracy (mm)

±0.2

Ball table

Stainless steel table

Press Way

Hydraulic

+Mechanical Pedal

Cutting Way

Hydraulic

Display

7" Touch Screen

Program

Arithmetic

Push Motor

Stepper motor

Frequency Conversion Motor

/

Power

220V(110V)±10%,

50Hz

2300W

Machine Size (mm)

1150*850*1370

N.W: (Kg)

About  285
