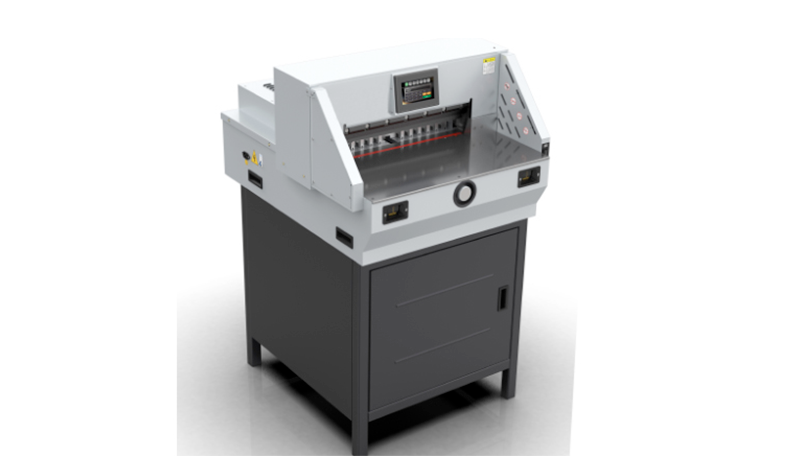

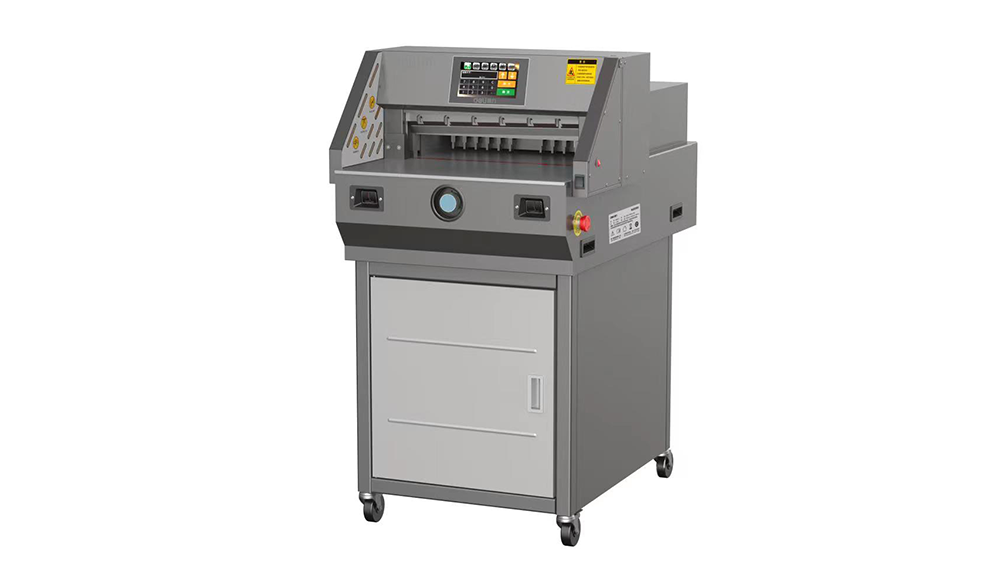

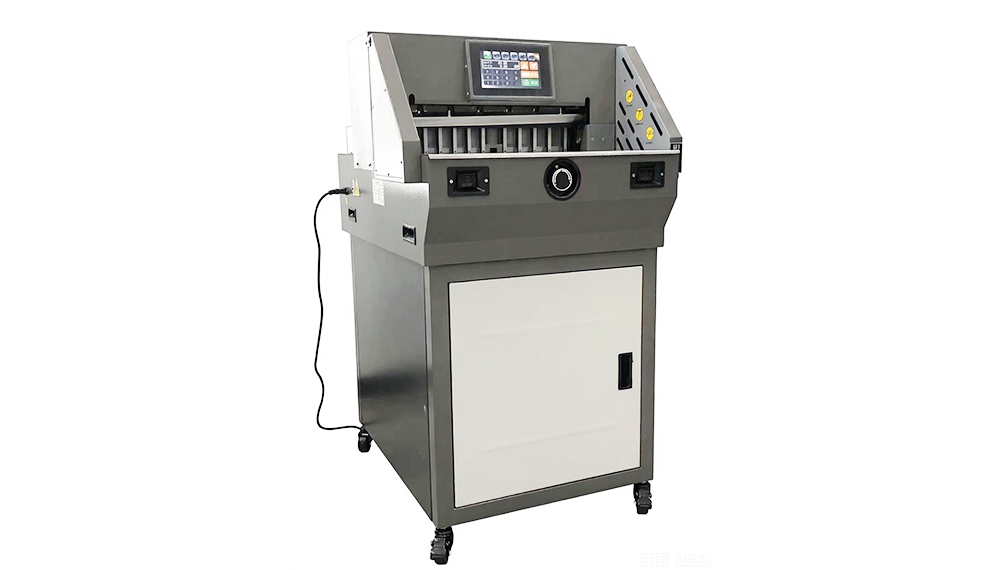

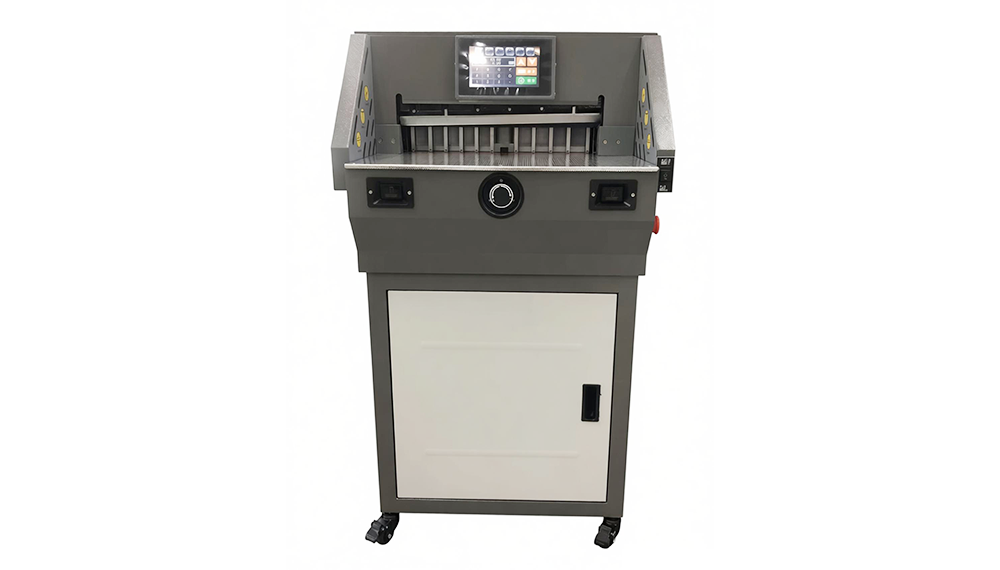

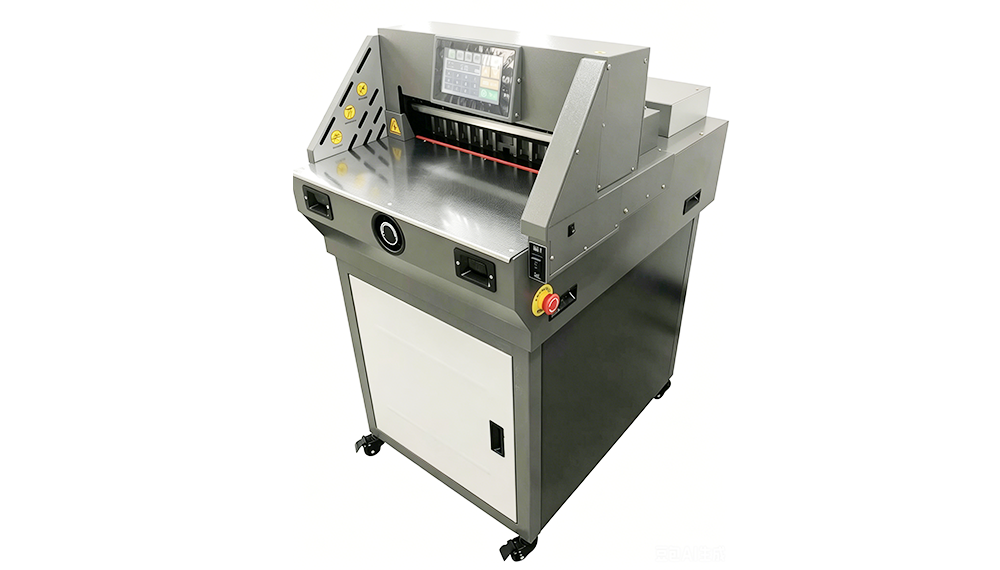

E490T/E460T
|

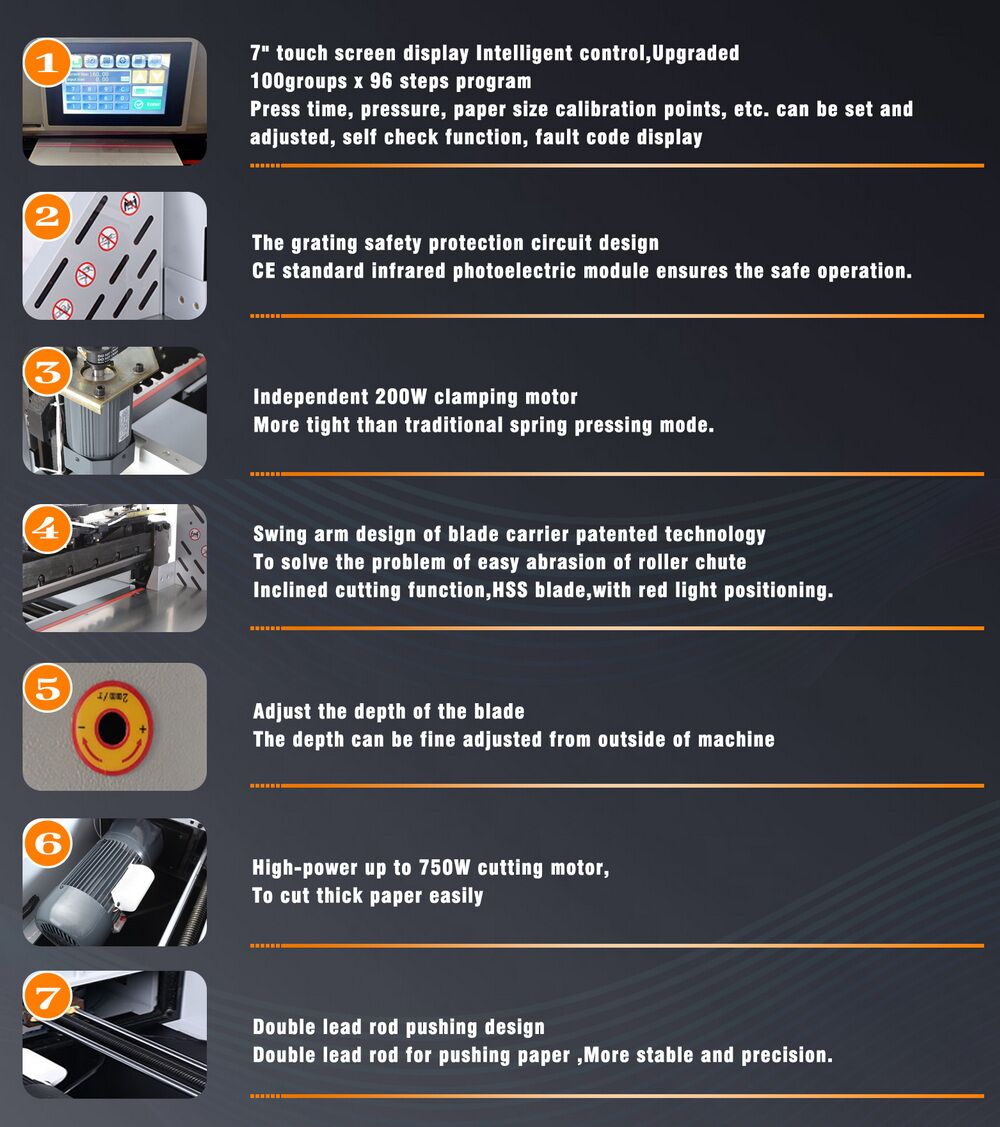

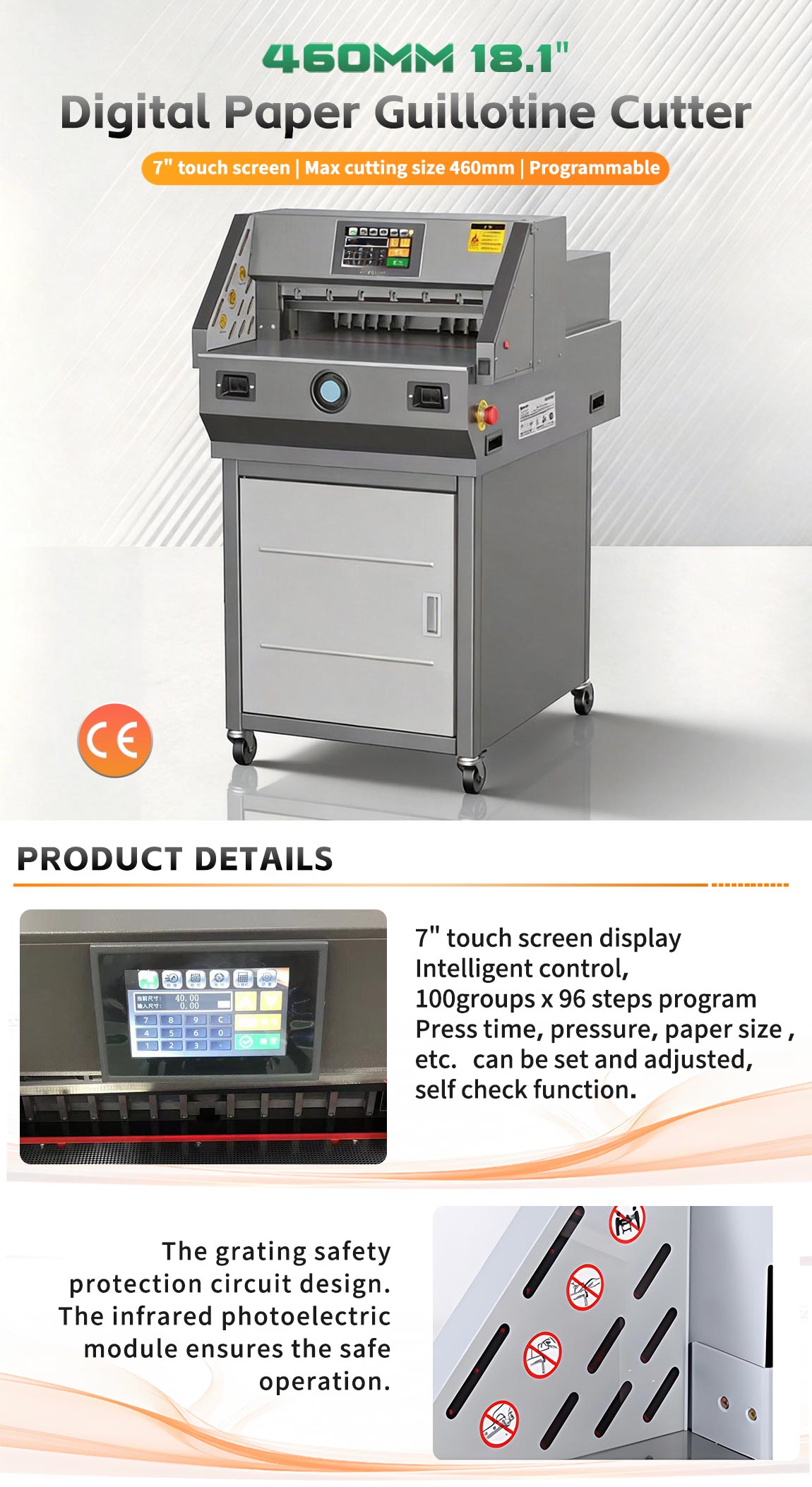

7''touch screen display Intelligent control,100groups*96steps program for touch screen |
 |
 |
|
Infrared photoelectric protection CE infrared photoelectric standard module |

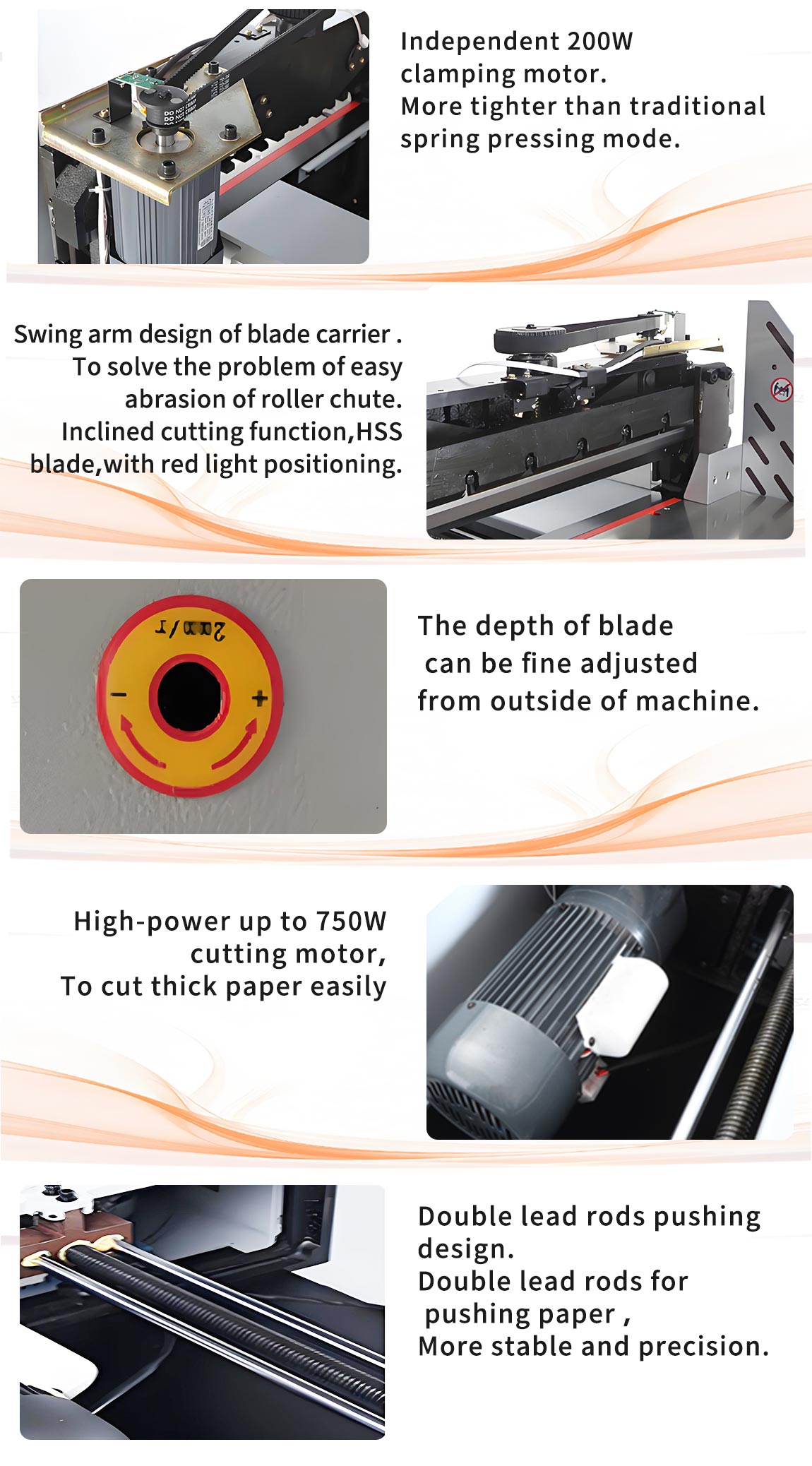

Swing are design of blade carrier patenred technologySolve the problem of easy abrasion of roller chute,Ensure the cutting precision |
 |
 |
|
Adjust the depth of the blade Blade fine-depth can be adjusted from outside of machine |
Independent 200W clamping motor More tight than traditional spring pressing paper |
 |
 |
|
High-power up to 750W cutting motor High precision paper-push system |
Double lead rod pushing design Double lead rod for pushing paper ,More stable and precision.
|
 |
|
|
Inclined blade cuttingpatent.Hss blade,with light positioning. |
|
|
Model |
E460T |
|
Max.Cutting size |
460mm 18.1" |
|
Min.Cutting size |
40mm |
|
Cutting Thickness |
60mm |
|
Precision |
±0.3mm |
|
Pressing Paper Mode |
Automatic |
|
Pushing Paper mode |
Programmable ,saving 100 groups data x 96 cuts |
|
Programmable |
Yes |
|
Display |
Touch Screen |
|
Power Supply |
AC 220V (110V) ± 10% ,50Hz(60Hz)1.3Kw |
|
Weight |
130kg |
|

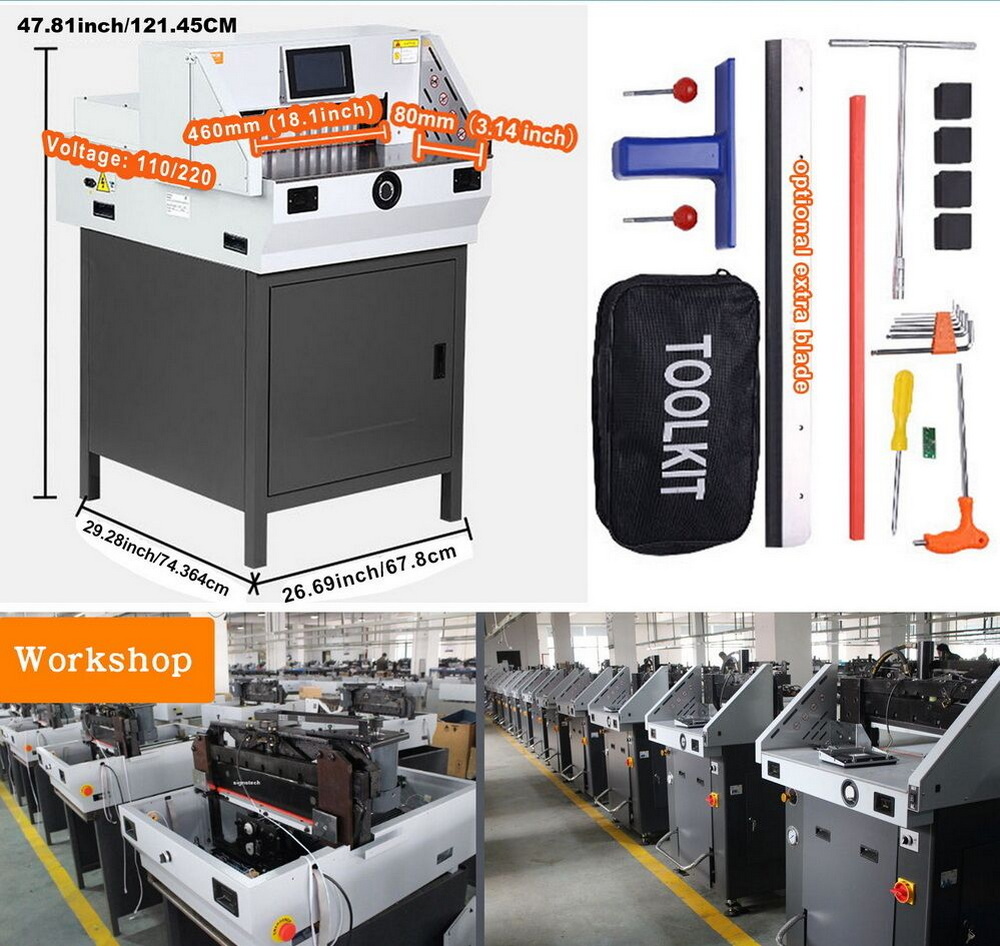

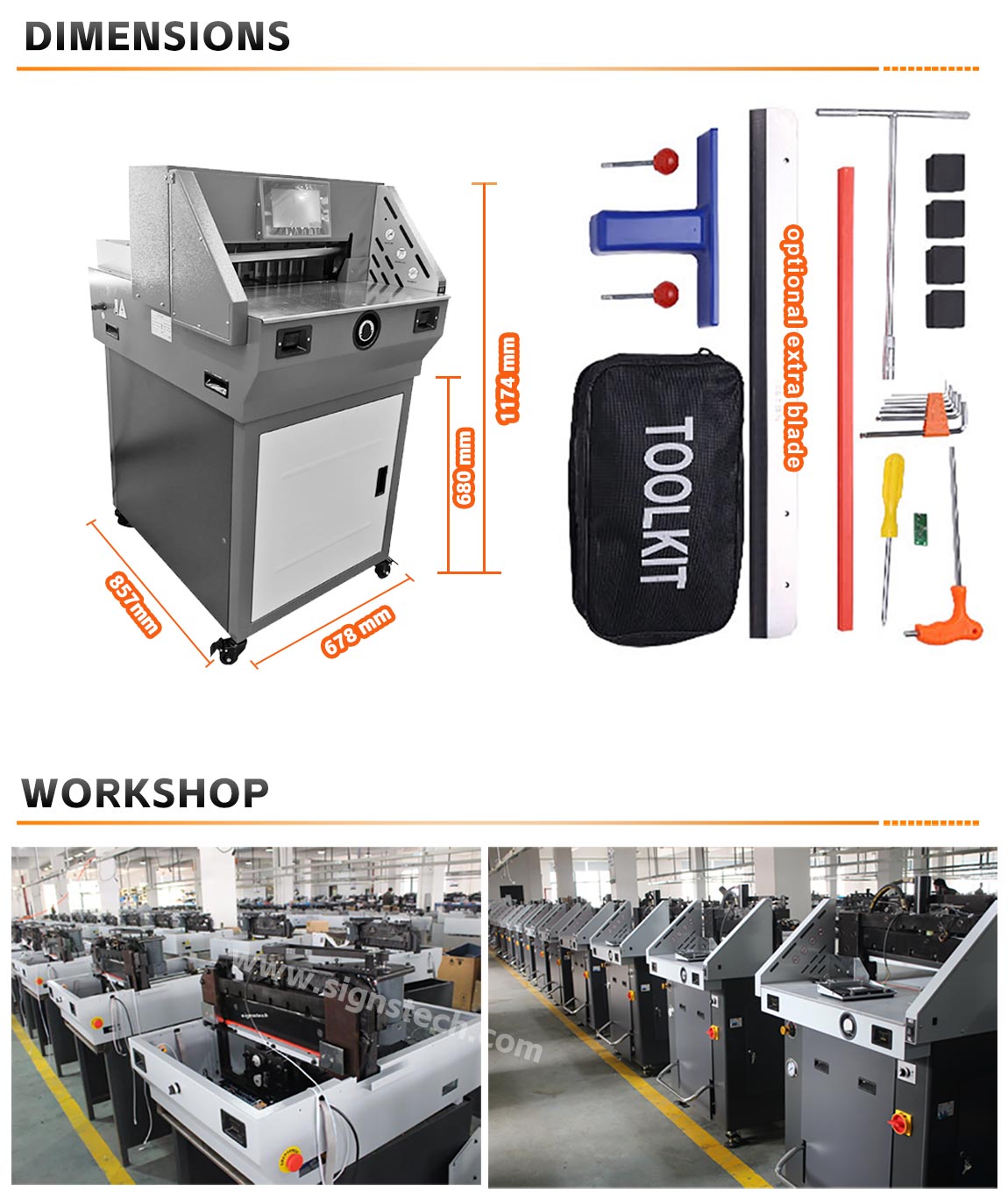

Machine Dimension |
935*620*1235mm |
