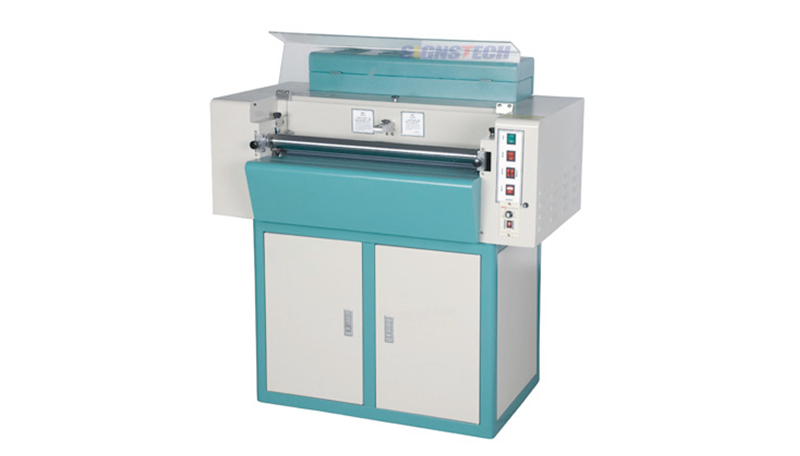

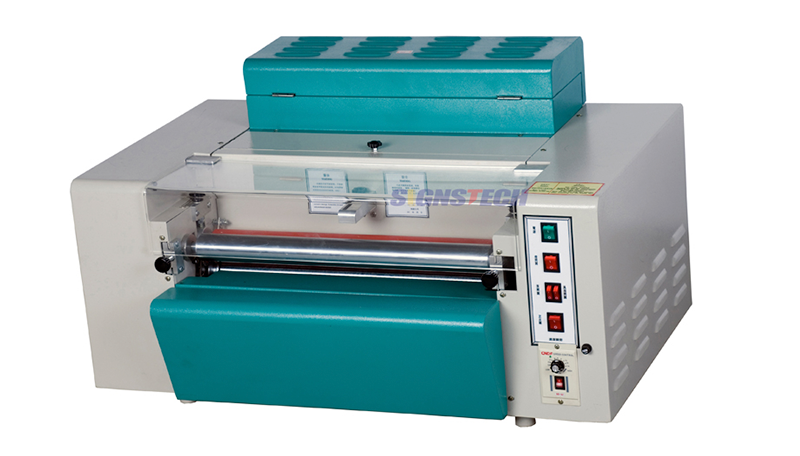

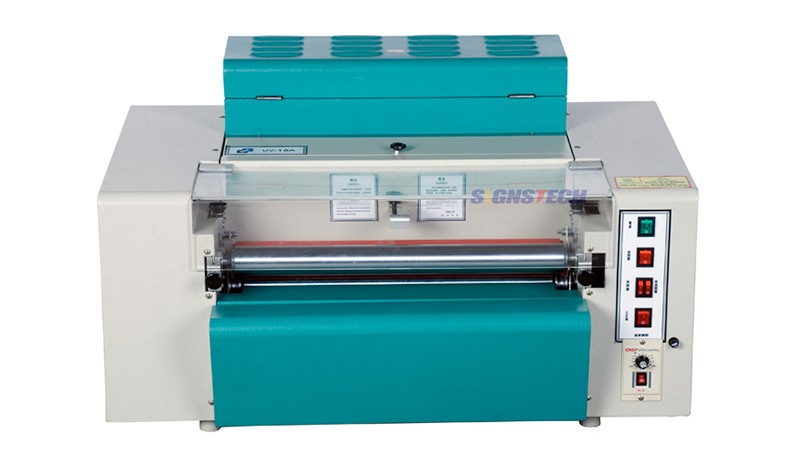

UV Coating Machine Series

Model：
Multiple
Remarks：
Coating Width:350mm/460mm/610mm/920mm, Max 7.7m/min speed
BROCHURE INQUIRY NOW
Captcha
Submit

Features

Parameters

Product introduction;
The brand-new desktop UV coating series machine is useful and necessary for coating and protecting photos, spurt draws and presswork. The machine is small and easy to operate while most of coating machines are cumbersome and difficult to use. Hence this new product takes small room and has better functions.
Main Usages;
At present the products of UV coating machines used for laser print, ink print, Art paper and stick paper are water proof, moisture-proof, durable, ultraviolet-proof .The pictures can be coated many times and won’t be damaged.The UV liquid would stick on the surface of the pictures and it is hard to separate after solidifies under ultraviolet rays. There are two results to coating pictures. One is called light which shows bright, colourful and clear images. Another one is called matte which doesn’t reflect much light hence it shows elegant, beautiful images. These two results of coating are now very popular for photo print, typing, portraits, spurts draws, book covers, Spring Festival pictures, calendars, cards, product samples and boxes.
Advantages;
1.Compares with traditional cold and hot lamination film, UV liquid has the following advantages:
2.Transparency has risen for 50%.No bubbles and scrapes problems.
3.UV liquid can be re-used hence less wastes and it is easy to coat.
4.For Unity Albums, UV liquid has a incomparable advantage as it not only decrease the thickness of pictures but also cause no folds at the pressing step and lamination film can hardly achieve this.

Model Item

UC-350
 UC-460
 UC-610
 UC-920

Coating Width

350mm,14”
 460mm 18”
 610mm,24”
 920mm,36”

Coating Thickness

0. 2~2mm
 0. 2~2mm
 0. 2~2mm
 0. 2~2mm

Average speed

0~7.7m/min
 0~7.7m/min
 0~7.7m/min
 0~7.7m/min

Mode of Operation

Electric
 Electric
 Electric
 Electric

Drying Mode

UV light
 UV light
 UV light
 UV light

Scraper

Stainless blade
 Stainless blade
 Stainless blade
 Stainless blade

Coating Roller

Silica Gel
 Silica Gel
 Silica Gel
 Silica Gel

Reflector

Alloy
 Alloy
 Alloy
 Alloy

Dustproof Cover

Transparent ACRYLIC
 Transparent ACRYLIC
 Transparent ACRYLIC
 Transparent ACRYLIC

Gross weight

94kg
 118kg
 150kg
 260kg

Voltage/Power

220v/2.5kw
 220v/3kw
 220v/5kw
 220v/7.5kw

Machine Size

780x700x580mm
 900x700x580mm
 1030x700x580mm

Packing size

790x730x600mm
 940x730x640mm
 1110x740x640mm
 1450mmx930mmx1220mm

Application

Apply to photo PVC coated paper etc.
