7.The hardware structure of the machine ensures quick and easy to adjust the indentation depth and skew adjustment

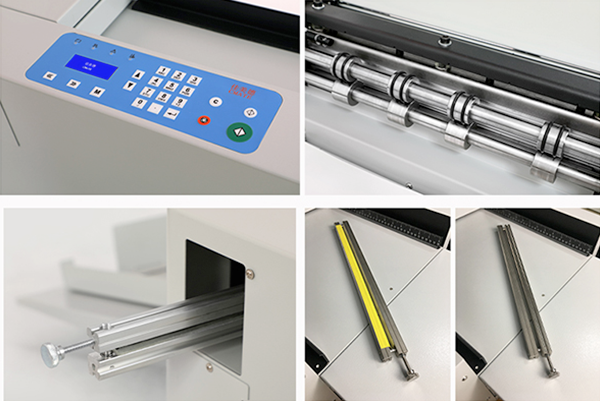

Machine details：
Dotting effect：
Package：
|
Model |
ZFQ330 |
|
Working speed |
2400 sheets/hour (single line on A4 size paper) |
|
Paper length |
100mm-999mm |
|
Paper width |
70mm-330mm |
|
Creasing width |
330mm |
|
Paper thickness |
Creasing line 70~350g, dotted 70~250g |
|
Paper load |
5.5cm-6cm thickness |
|
Creasing Precision |
±0.2mm |
|
Creasing model |
Single-line, dotted line |
|
Min crease gap |
Single line 1mm, dotted line 2mm |
|
First crease minimum distance to head |
Single line 1mm, dotted line 5mm |
|
Paper flatness |
Deformation<3mm |
|
Crease qty in one pass |
0~32 |
|
Max program qty |
32 |
|
Vertical dotted line function |
Optional |
|
Creasing speed |
Fast and slow two-speed adjustment |
|
Power |
125W Standby power consumption 20W |
|
Voltage |
200~240V/50Hz optional 110V/60HZ |
|
Slope adjustment |
Yes |
|
Depth adjustment |
Yes |
|
Gross Power |
145W |
|
Machine size |
1170mm*321mm*322mm |
|
Net weight/Gross Weight |
48.5kg N.W/58.5kg G.W |
