1. Latest technology with both X and Y axis adjustable, is able to cut any size of cards(within the range) or cut different sizes at same time.

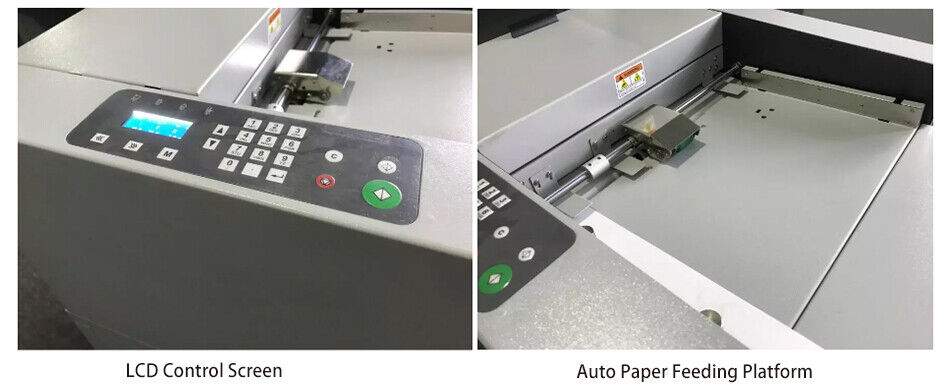

2. Auto feeding system, stable and intelligent.
3. The operation interface is simple and easy to get started，mm and inch switchable.

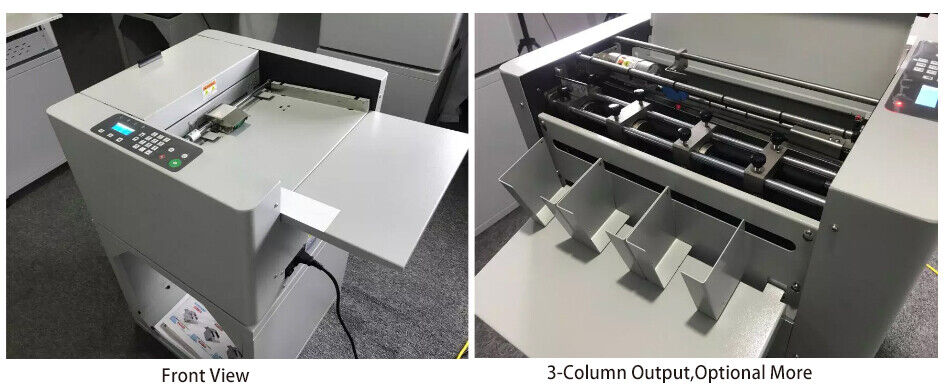

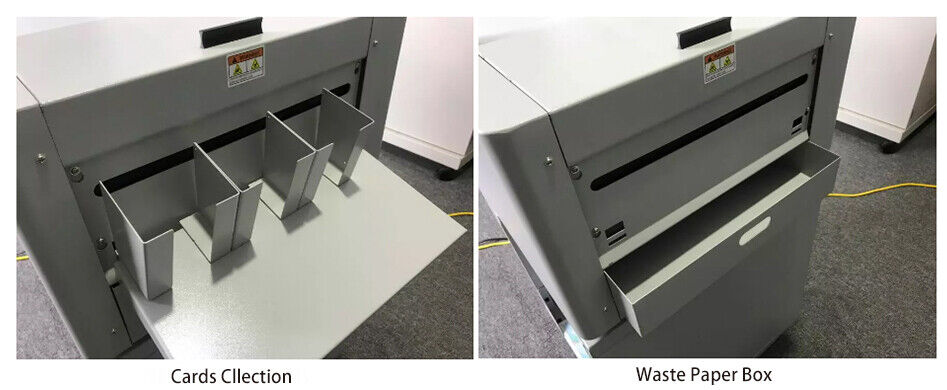

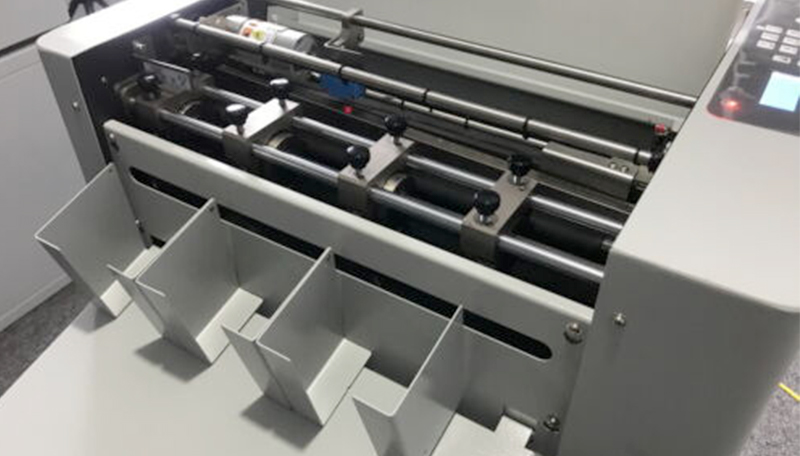

4. Standard 3-column cards output ,can customize more blade & column *
5. The horizontal steel blade working life is up to 1 million times.
6. Digital control High Precision 0.3mm, reasonable structure to ensure the card is cut accurately.
7. Machine applications: Business cards, photos, tags, postcards, flyers, wedding cards and so on
Applications

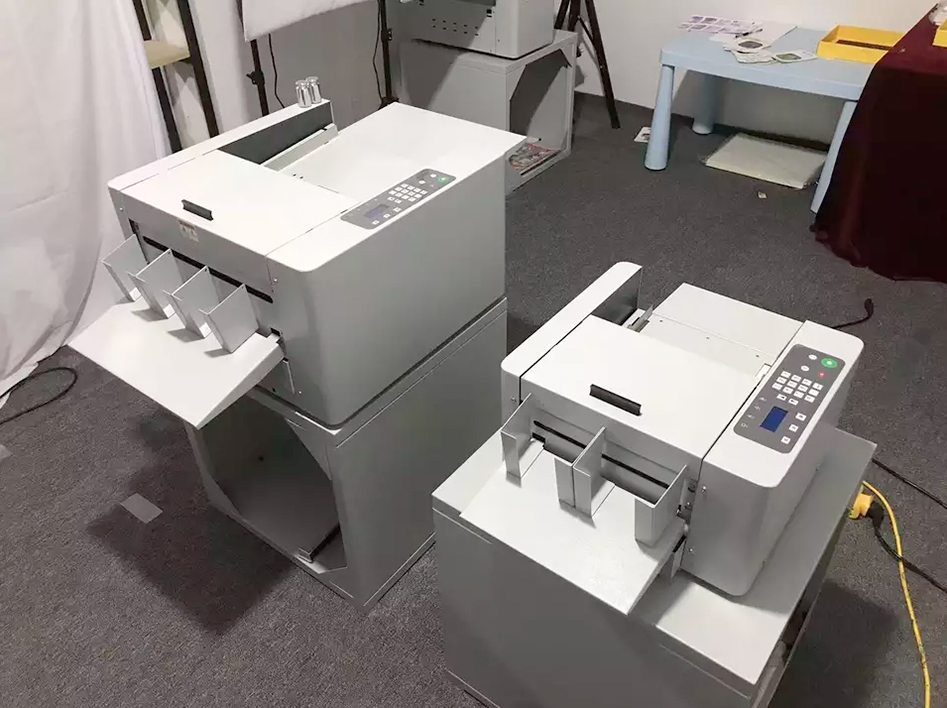

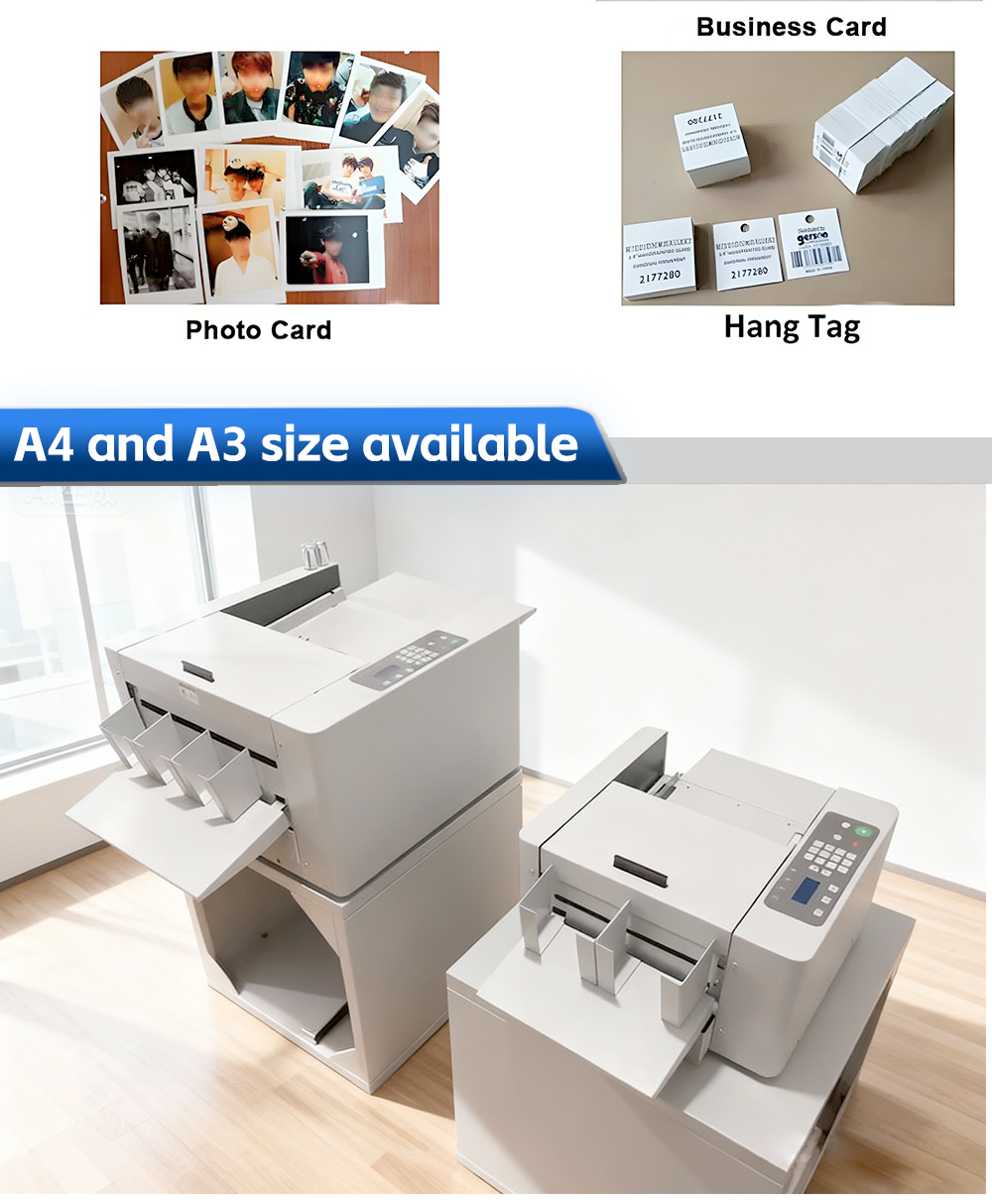

A3 and A4 model
|
Parameters: |
|
|
Model |
CCA3 |
|
Max paper feed size |
330mmx999mm 13"x39" |
|
Min paper feed size |
50mmx100mm |
|
Paper thickness |
180gsm-400gsm |
|
Paper type |
Chrom paper, coated paper, laminated paper |
|
Speed |
bout 150 sheets/minute (89*50mm) |
|
Cutting size |
89mm(optional,90mm,85mm) *45mm,50mm,54mm,95mm,127mm |
|
Paper curl |
≤0.2mm |
|
Slitting |
3 rows, groove width 6mm |
|
Paper loading capacity |
About 9mm height |
|
Cutting accuracy |
±0.3mm (except special paper) |
|
Paper feeding method |
Automatic |
|
Cutting card size range |
minimum 30mm*40mm; maximum 265mm*990mm |
|
Application scope |
all kinds of business cards, photos, tags, postcards, wedding cards, Christmas cards. etc. |
|
Voltage |
220v/50HZ or 110v/60HZ |
|
Power |
125w, standby 20w |
|
Machine Dimensions |
1170mmx503mmx322mm |
|
Package Dimensions |
610mmx610mmx450mm |
|
Net/Gross weight |
42kg/47kg |
