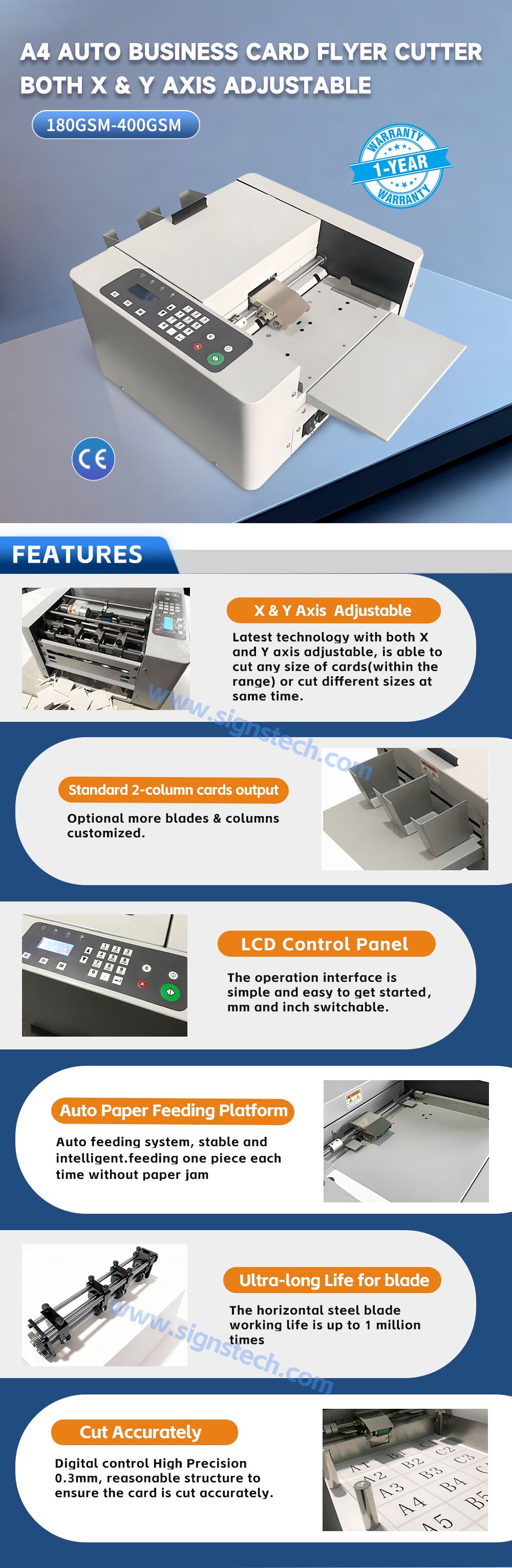

1. Latest technology with both X and Y axis adjustable, is able to cut any size of cards(within the range) or cut different sizes at same time.

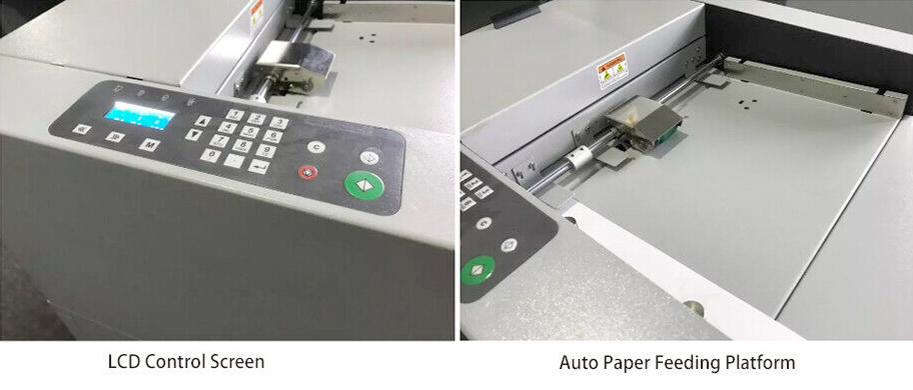

2. Auto feeding system, stable and intelligent.
3. The operation interface is simple and easy to get started，mm and inch switchable.

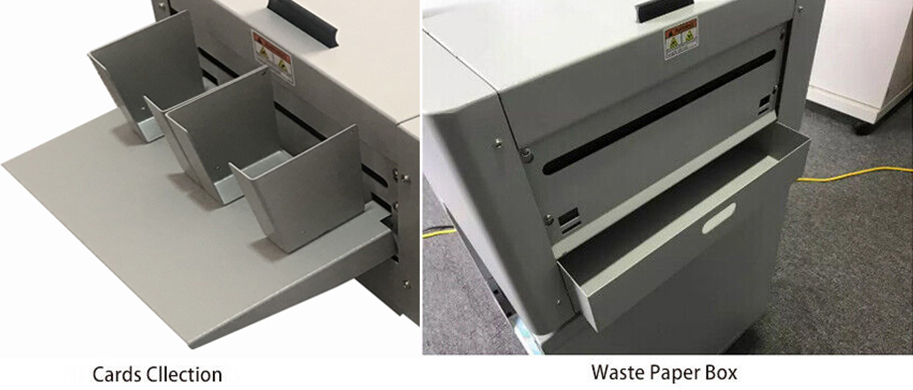

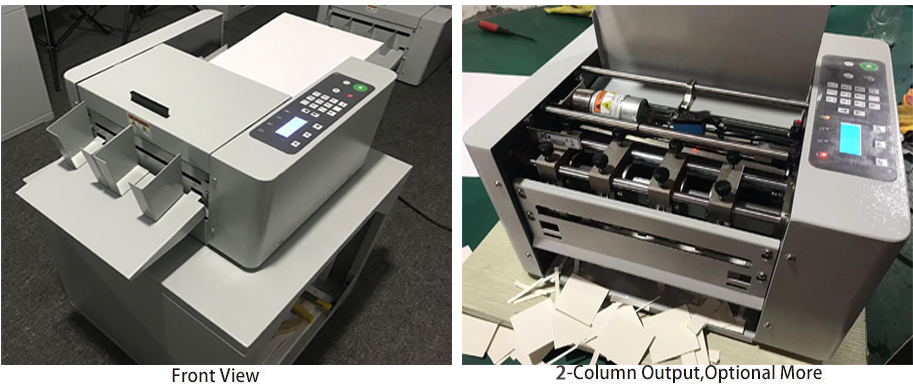

4. Standard 3-column cards output ,can customize more blade & column *
5. The horizontal steel blade working life is up to 1 million times.
6. Digital control High Precision 0.3mm, reasonable structure to ensure the card is cut accurately.
7. Machine applications: Business cards, photos, tags, postcards, flyers, wedding cards and so on
Applications
|
Parameters: |
|
|
Model |
CCA4 |
|
Max paper feed size |
226mmx990mm |
|
Min paper feed size |
160mmx100mm |
|
Cutting card size range |
minimum 35mm*35mm; maximum 160mm*600mm |
|
Paper thickness |
180gsm-400gsm |
|
Paper type |
Chrom paper, coated paper, laminated paper |
|
Speed |
about 100 sheets/minute (89*50mm) |
|
Paper curl |
≤0.2mm |
|
Slitting |
2 rows, groove width 6mm |
|
Paper loading capacity |
About 8mm height |
|
Cutting accuracy |
±0.2mm (except special paper) |
|
Paper feeding method |
Automatic |
|
Application scope |
all kinds of business cards, photos, tags, postcards, wedding cards, Christmas cards. etc. |
|
Voltage |
220v/50HZ or 110v/60HZ |
|
Power |
125w, standby 20w |
|
Machine Dimensions |
614mmx384mmx245mm |
|
Package Dimensions |
Package Dimensions |
|
Net/Gross weight |
19kg/23kg |
