Digital Paper Folding Machine

Model：
8B/2 8B/4 9B/2 9B/4
Remarks：
4 Versions,Easy operation,Smooth feeding.
BROCHURE INQUIRY NOW
Captcha
Submit

Features

Parameters

1.This machine is characterized by easy operation; smooth feeding, steeples speed regulation, compactness and efficiency.
2.The automatic paper folding machine is widely applied in fast printing center, manufacturing enterprise, or be used to fold official documents and business Letter, etc

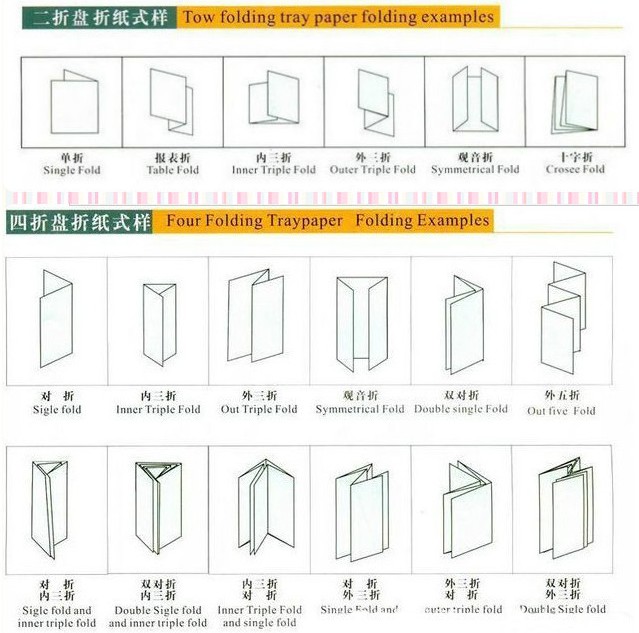

3.Available for folding 2 times like the folding style shows on the following picture.
4.It's usded for foldiing the product manual, business or official letter etc.
5.This is a mini table type of paper folding machine, with reansonably structured, the paper feeding is achieved by big rubber roll, which has the advantage of stable performance, convenient operation and high efficiency.

Model

ZE-8B/2

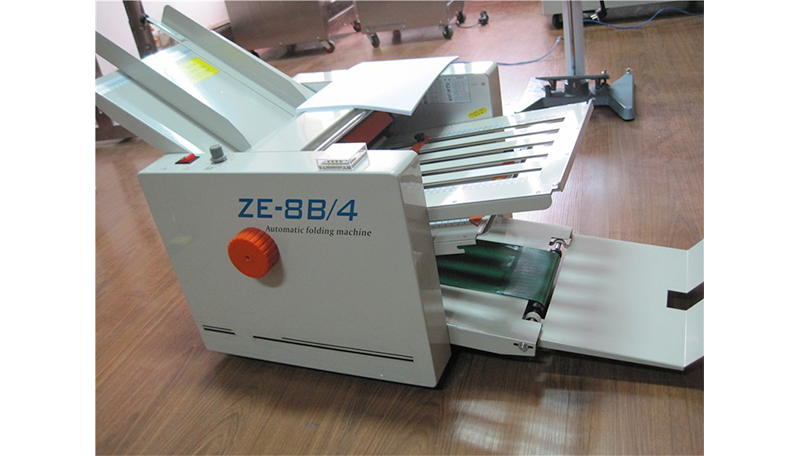

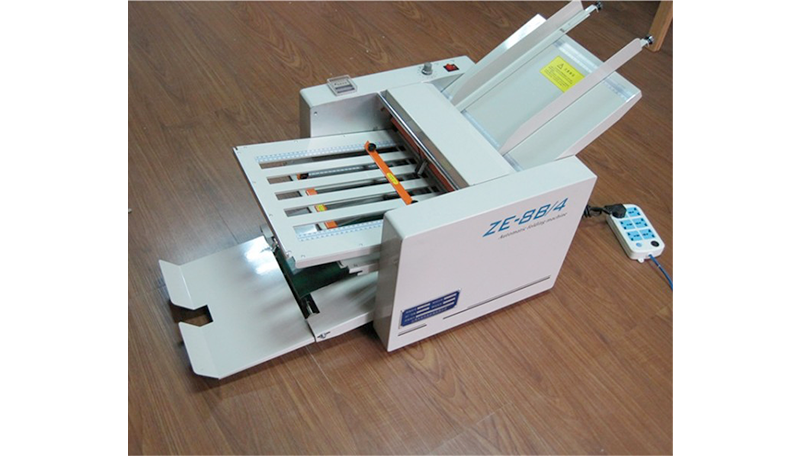

 ZE-8B/4
 ZE-9B/2

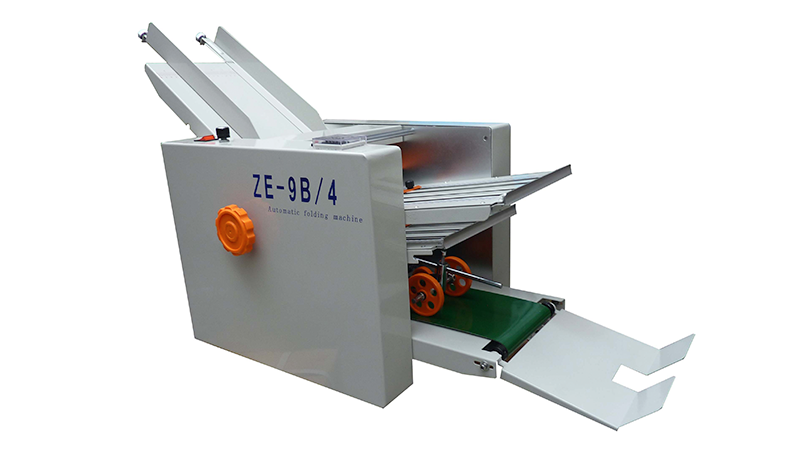

 ZE-9B/4

Power supplier

v/Hz
 AC 220/50  110/60

Power

w
 50

Folding times

2 4 2 4

Max paper sheet

mm
 310×700
 210×420
 210×620

Min paper shee

mm
 50×70

Paper weight

gsm
 20-125

Max speed

m/min
 80

Weight

kg
 35
 48
 30 43.5

Overall dimension

mm
 1050×525×505
 1080×530×580
 1020×425×525
 1020×430×580
