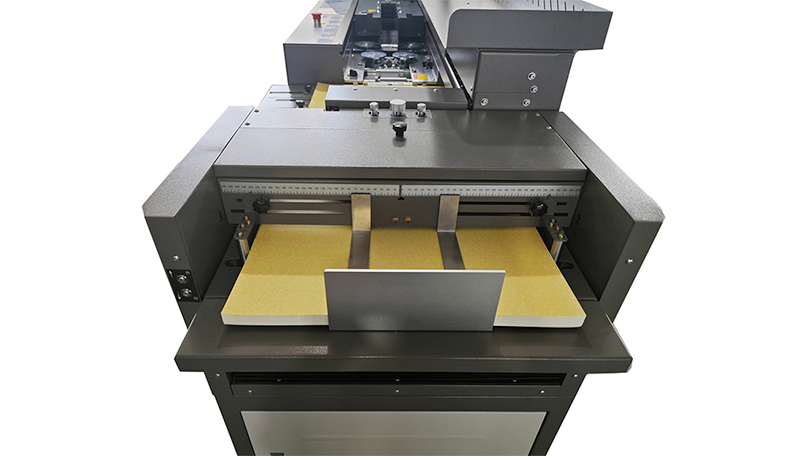

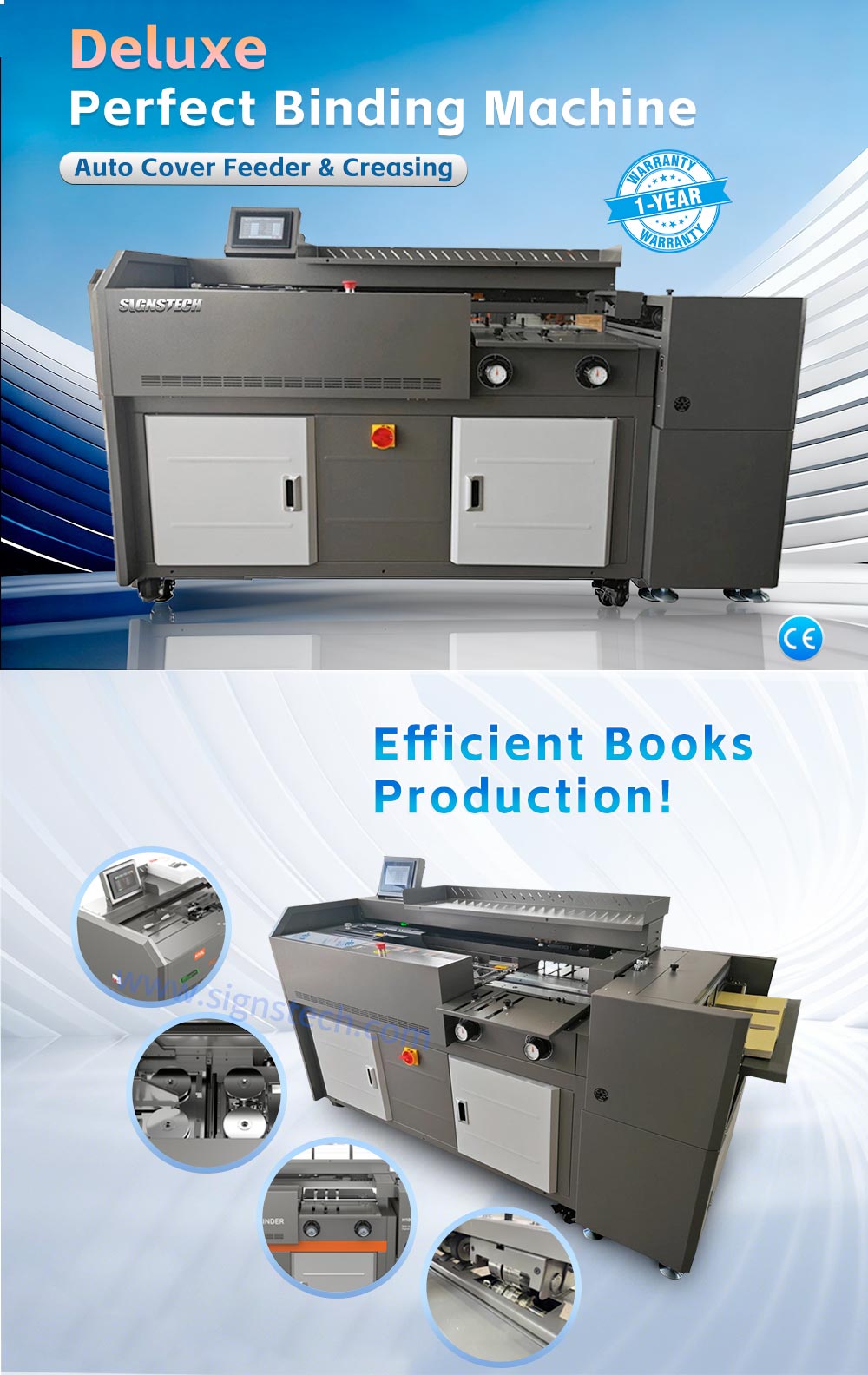

“FEEDER” automatic cover feeding system, easy to operate, saves manpower, and improves working efficiency greatly |

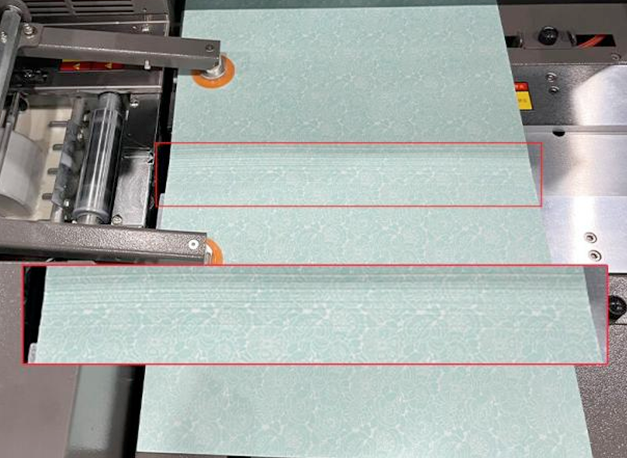

4-indentation on the flip line and spine line in one go while cover feeding. |
 |
 |
|

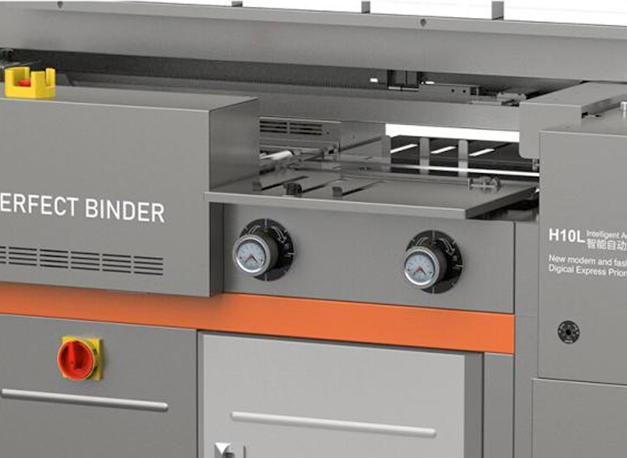

Automatically adjusts the clamping pressure to optimize the binding effect |

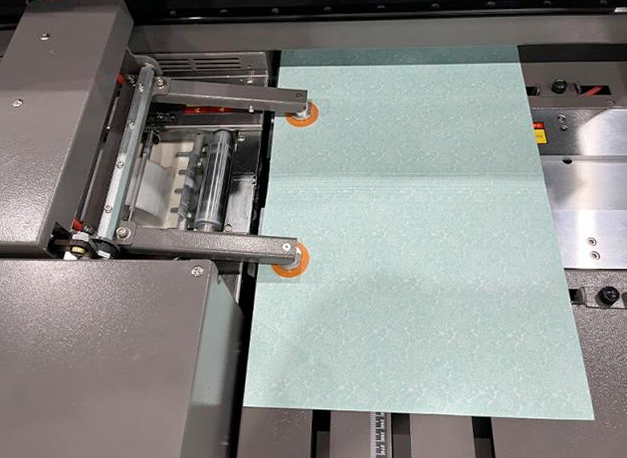

Secondary positioning technique to eliminate the possible deviation of the cover placed. |
 |
 |
|

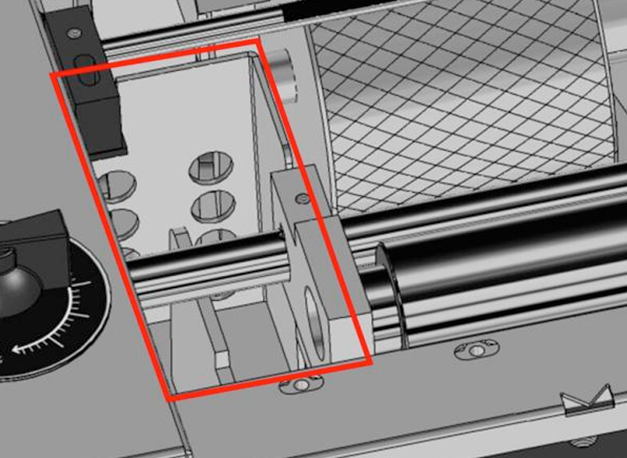

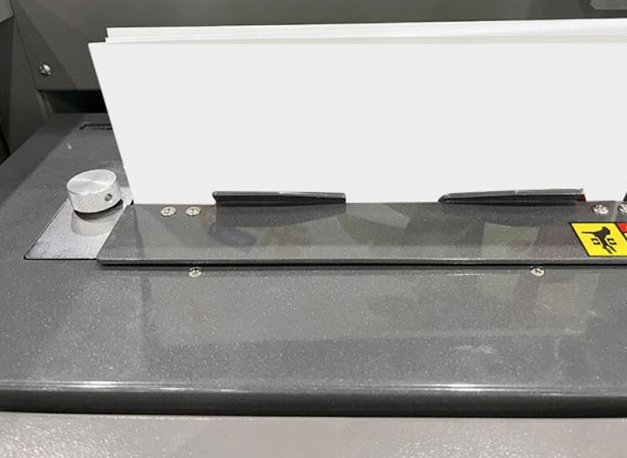

The pre-melt groove structure allows adding glue without stopping the machine, improving the binding efficiency. |

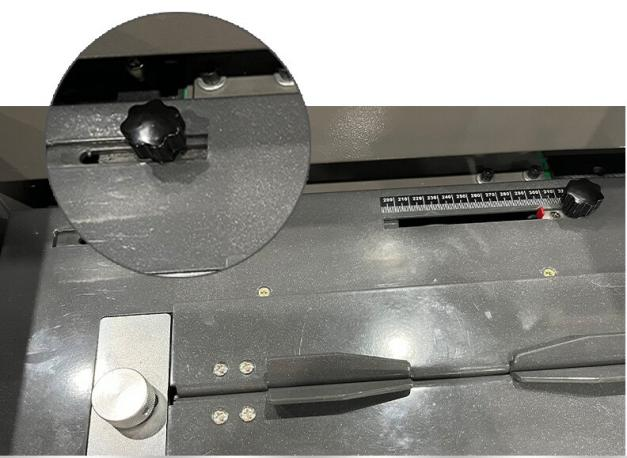

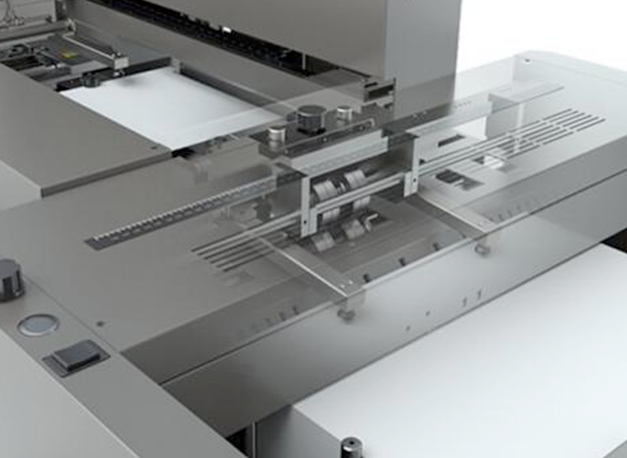

Equipped with anti-skew fine adjustment device for the creasing on cover. |
 |
 |
|

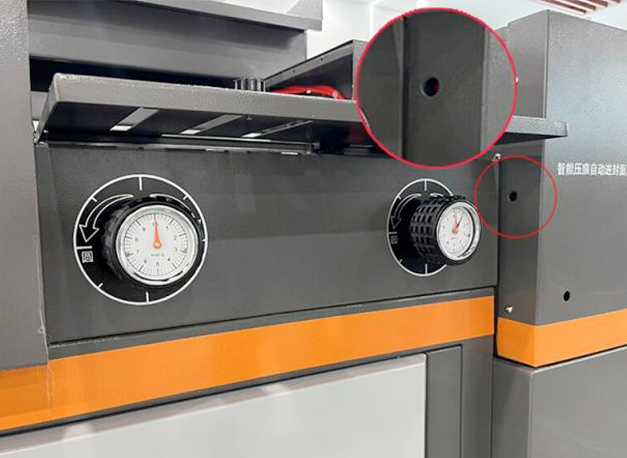

The book forming effect can be adjusted according to the thickness of the book (adaptive sensing of the pressure) |
Automatic finishing glue device to solve the issue of residual glue on the clamping platform |
 |
 |
|

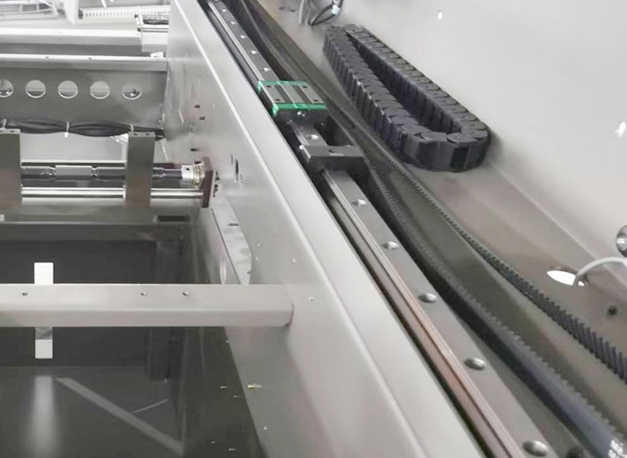

The combination of linear guide rail and industrial belt makes the machine run more smoothly and quietly |
The combination of linear guide rail and industrial belt makes the machine run more smoothly and quietly |
 |
 |
|
PLC integrated control circuit design, faster response, improving reliability greatly, extending 30% longer life. |

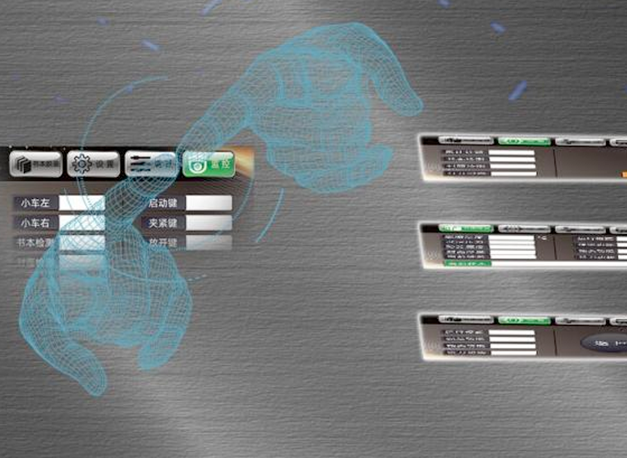

ARM chips,7-inch color touch screen, powerful intelligent control, and has a variety of self-test functions |
|

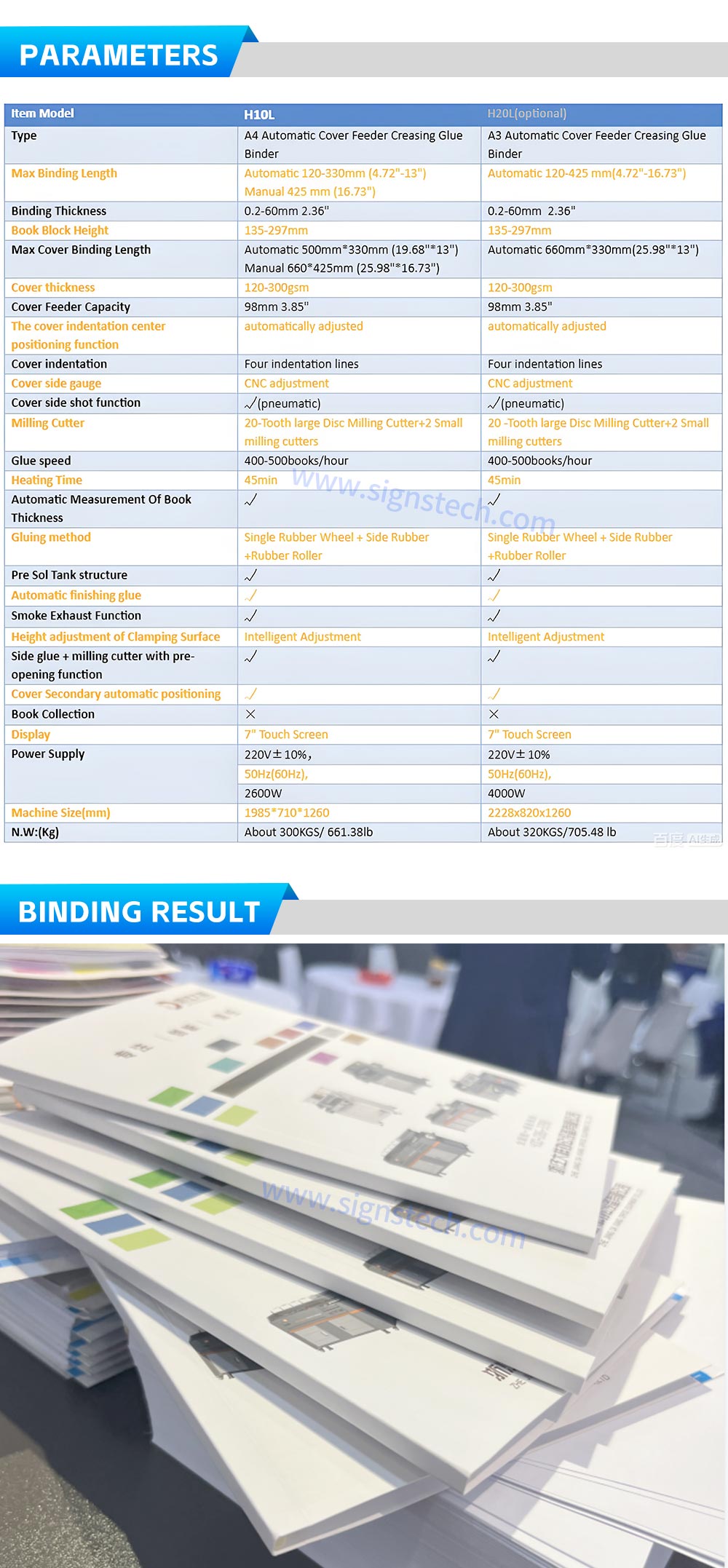

Item Model |
H10L |
H20L |
|
Type |

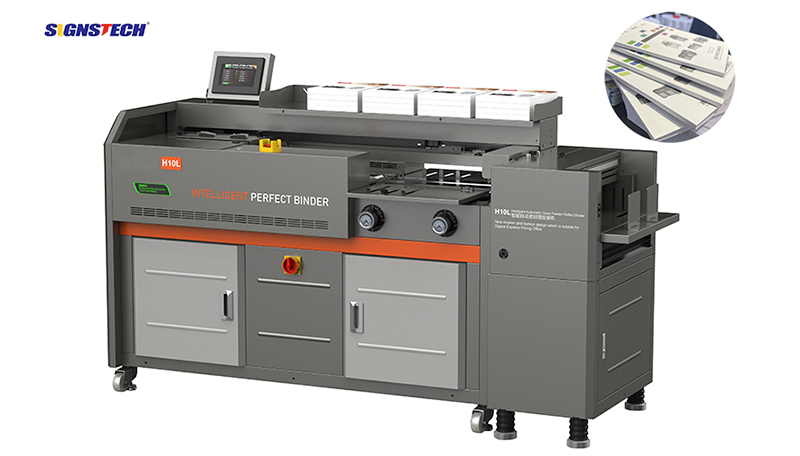

A4 Automatic Cover Feeder Creasing Glue Binder |
A3 Automatic Cover Feeder CreasingGlue Binder |
|
Max Binding Length |
Automatic 120-330mm Manual 425 mm |
Automatic 120-425 mm |
|
Binding Thickness |
0.2-60mm |
0.2-60mm |
|
Book Block Height |
135-297mm |
135-297mm |
|
Max Cover Binding Length |
Automatic 500mm*330mm Manual 660*425mm |
Automatic 660mm*330mm |
|
Cover thickness |
120-300g |
120-300g |
|
Cover Feeder Capacity |
98mm |
98mm |
|
The cover indentation center positioning function |
automatically adjusted |
automatically adjusted |
|
Cover indentation |
Four indentation lines |
Four indentation lines |
|
Cover side gauge |
CNC adjustment |
CNC adjustment |
|
Cover side shot function |
√ |
√ |
|
Milling Cutter |
20 Teeth large Disc Milling Cutter+2 Small milling cutters |
20 Teeth large Disc Milling Cutter+2 Small milling cutters |
|
Glue speed |
400-500books/hour |
400-500books/hour |
|
Heating Time |
45min |
45min |
|
Automatic Measurement Of Book Thickness |
√ |
√ |
|
Gluing method |
Single Rubber Wheel + Side Rubber +Rubber Roller |
Single Rubber Wheel + Side Rubber +Rubber Roller |
|
Pre Sol Tank structure |
√ |
√ |
|
Automatic finishing glue |
√ |
√ |
|
Smoke Exhaust Function |
√ |
√ |
|
Height adjustment of Clamping Surface |
Intelligent Adjustment |
Intelligent Adjustment |
|
Side glue + milling cutter with pre-opening function |
√ |
√ |
|
Cover Secondary automatic positioning |
√ |
√ |
|
Book Collection |
× |
× |
|
Display |
7" Touch Screen |
7" Touch Screen |
|
Power |
220V±10%， |
220V±10% |
|
|
50Hz(60Hz), |
50Hz(60Hz), |
|
|
2600W |
4000W |
|
Machine Size(mm) |
1985*710*1260 |
2228x820x1260 |
|
N.W:(Kg) |
About 300KGS/ 661.38lb |
About 320KGS/705.48 lb |
