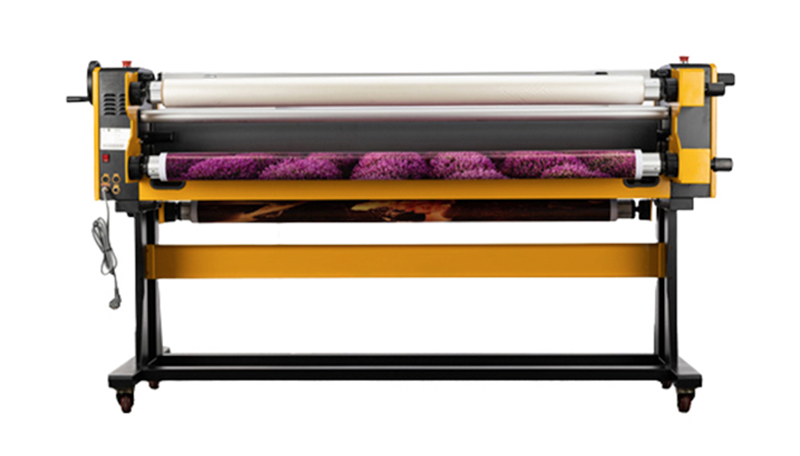

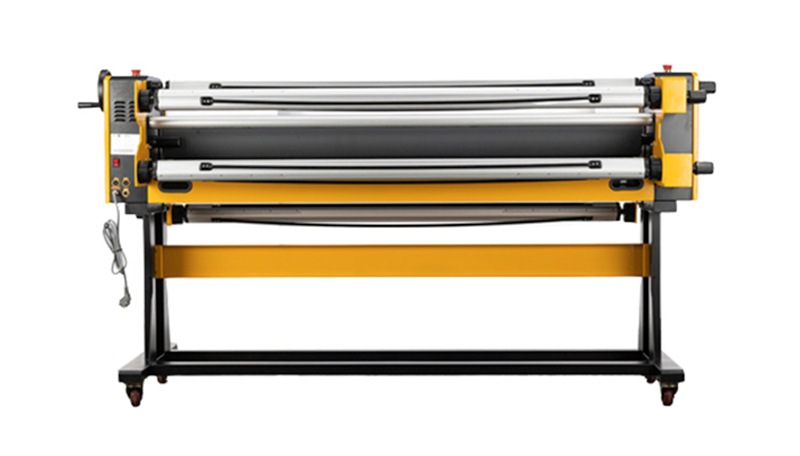

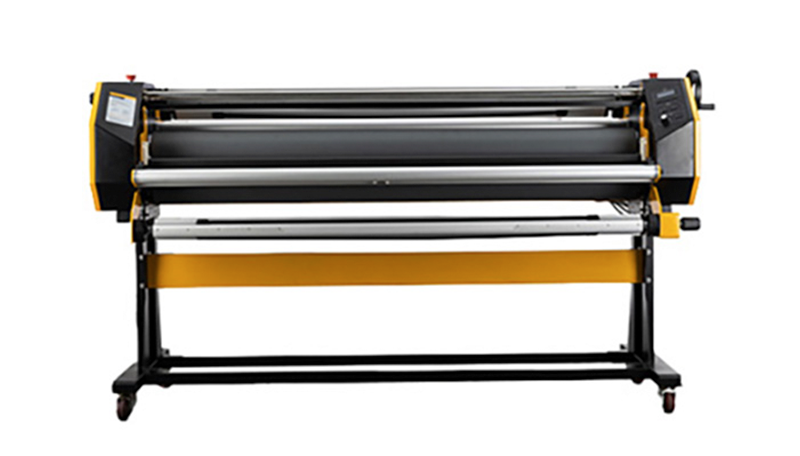

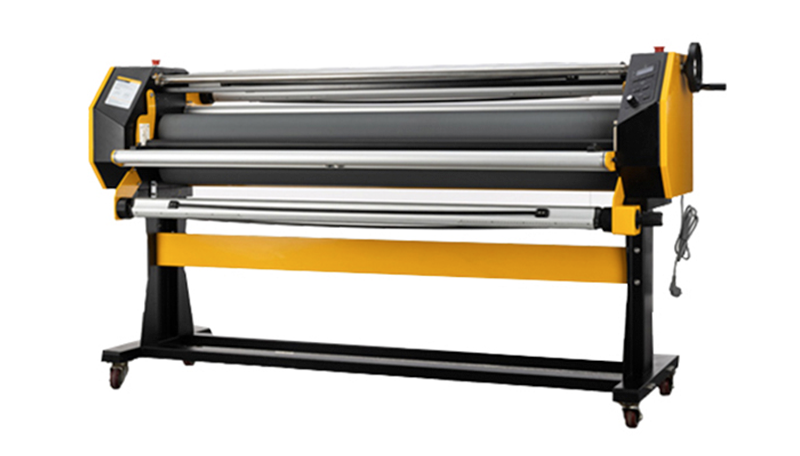

High Temperature Hot Cold Laminator

Model:
F1-1700/1600
Remarks:
Max 120 ℃ hot laminatng.Fast Speed,No tilt and bubbles,25m/min,with slitting
BROCHURE INQUIRY NOW
Captcha

Features

Parameters

Performance

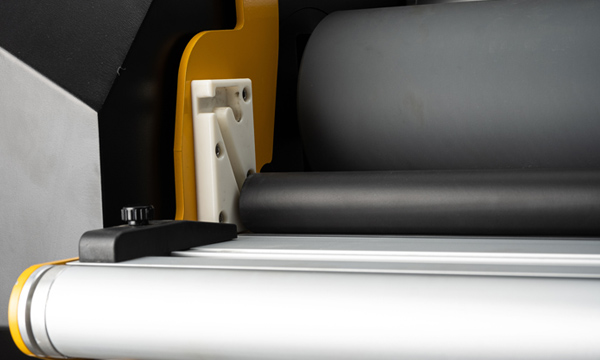

Premium silicon rollers
130mm diameter silicon rollers for heavy duty lamination
Top Heated warm lamination for better melt glue and good finishing
Options for hot laminating, mounting and encapsulating

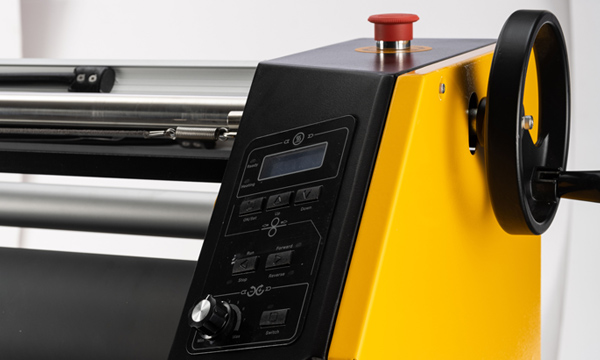

Alloy classic hand crank
Roller up and down for both sides even pressure
Adjusting height for different substrates
Extra pressure can be generated by lift down the crank



Tilted bigger front working table
Easy for loading and unloading materials
Anti-tilted configuration for goodfinishing

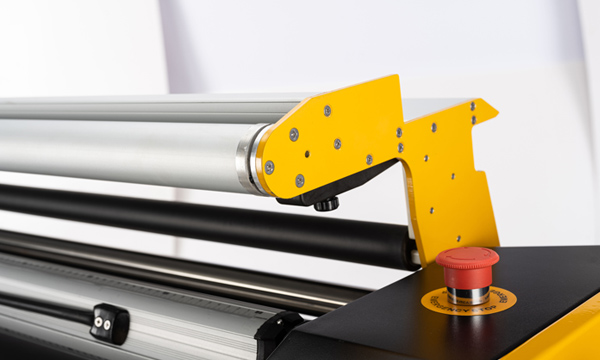

Emergency button for safety operation

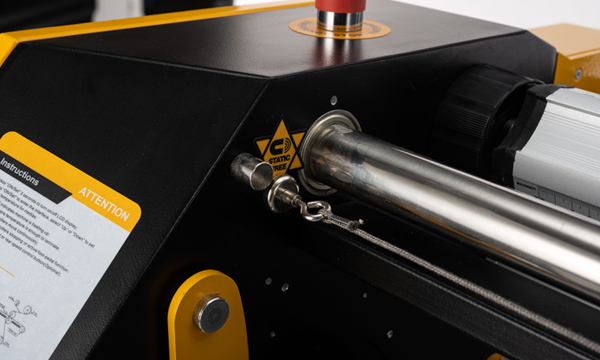

Anti-static string
Anti-static string is efficient way to ease static
Upgraded shaft caps and holders can be easily locked and loaded media


Parameters

Model

F1-1600
F1-1700

Application

Laminating for indoor/outdoor printings

Maximum Working width

1520mm 60"
1630mm 64"

Rollers Dia

130mm ,Silicon

Roller lifting mode

Single side linkage lifting

Max laminating temperature

120℃

Heating mode

Infrared inner heating

Laminating mode

Single side

Laminating speed

0-25m/min

Roller lifting height

23mm

Roller Pre-heating time

15-20 min

Power supply

AC220±10% 50HZ,Optional 110v,60HZ

Heating power

2200 W

Power consumption

0.8-1kw/h

Net Weight

200KG
220KG

Size

1850×1140×680 (mm)
1950×1140×680 (mm)

Pedal

With
