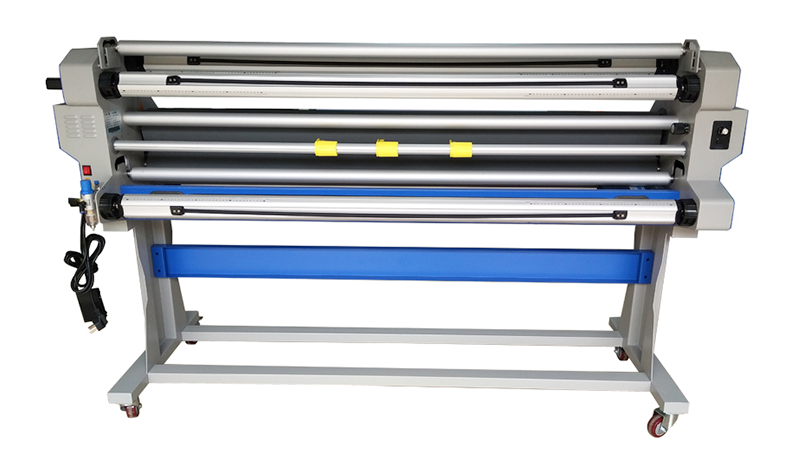

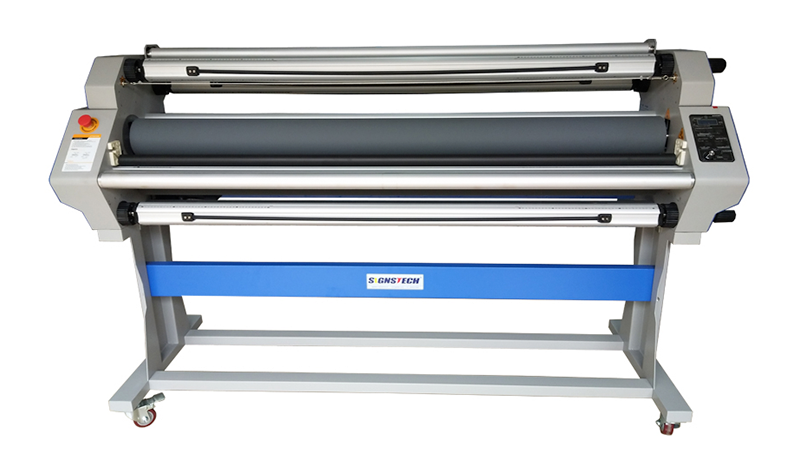

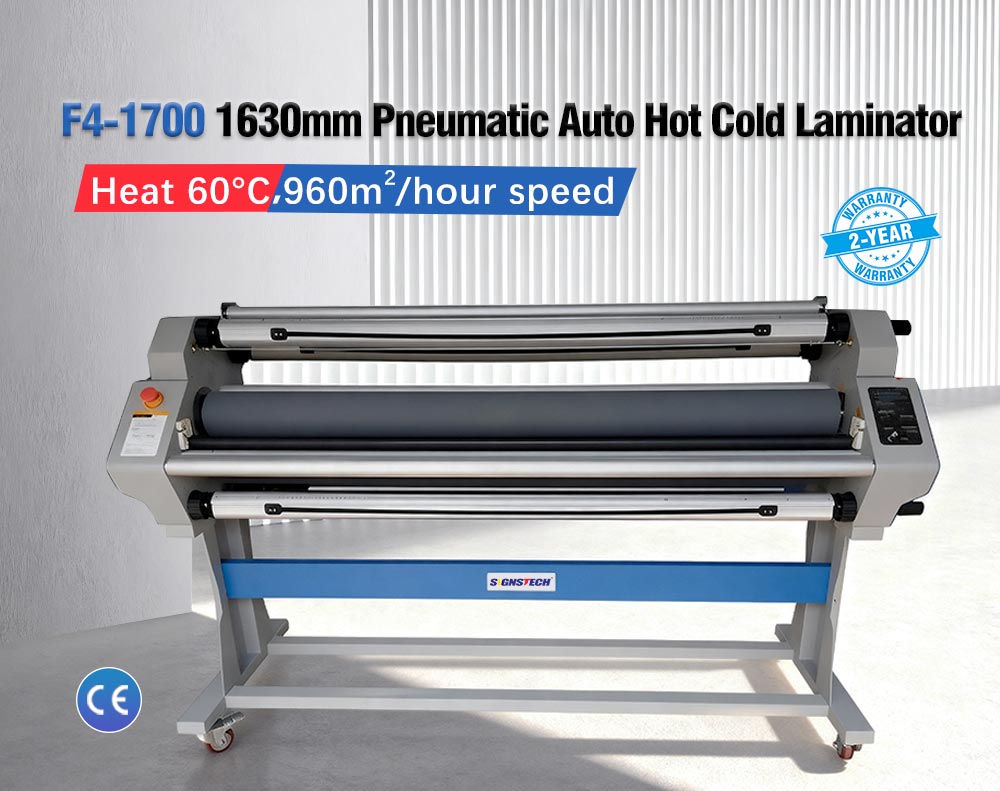

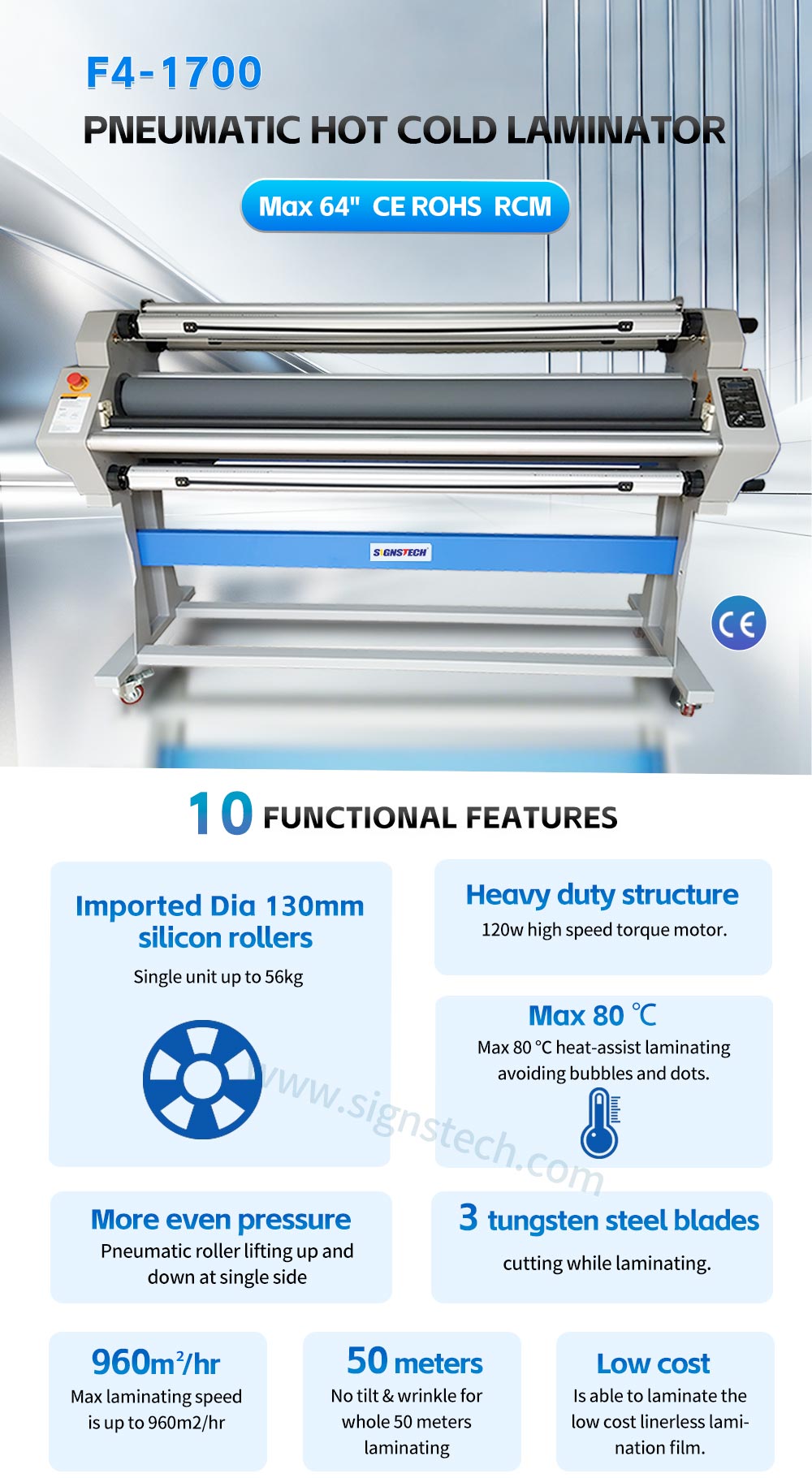

1630mm Pneumatic Auto Hot Cold Laminator

Model:
F4-1700
Remarks:
Automatic,60℃ heat assist,Pneumatic driving roller up and down,for both rolls and boards.
BROCHURE INQUIRY NOW
Captcha

Features

Parameters

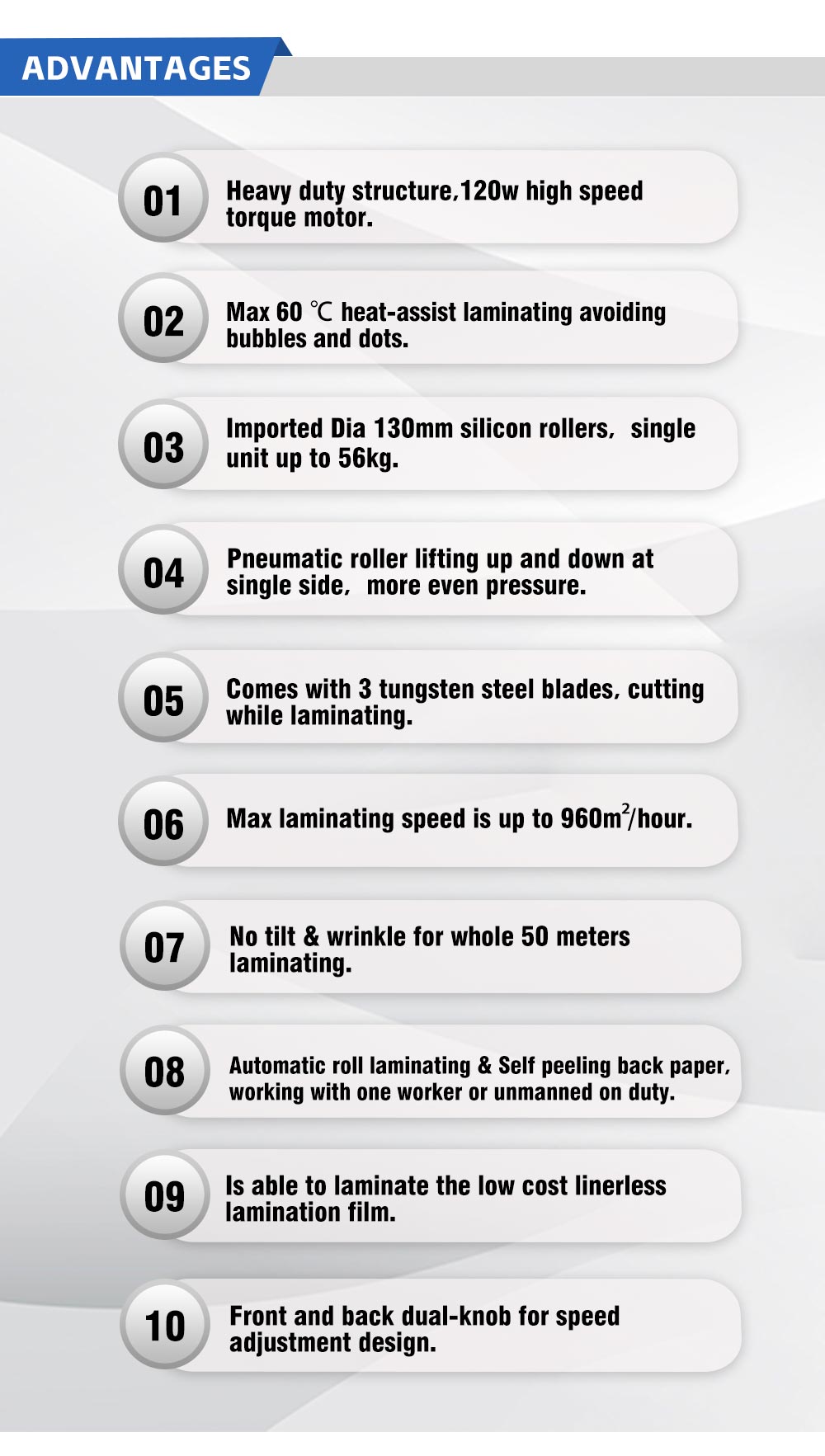

Characters:

1.Heavy duty structure,120w high speed torque motor.
2.Max 60 ℃ heat-assist laminating avoiding bubbles and dots.
3.Imported Dia 130mm silicon rollers, single unit up to 56kg.
4.Pneumatic roller lifting up and down at single side, more even pressure.
5.Comes with 3 tungsten steel blades, cutting while laminating.
6.Max laminating speed is up to 960m2/hour.
7.No tilt & wrinkle for whole 50 meters laminating.
8.Automatic roll laminating & Self peeling back paper, working with one worker or unmanned on duty.
9.Is able to laminate the low cost linerless lamination film.
10.Front and back dual-knob for speed adjustment design.

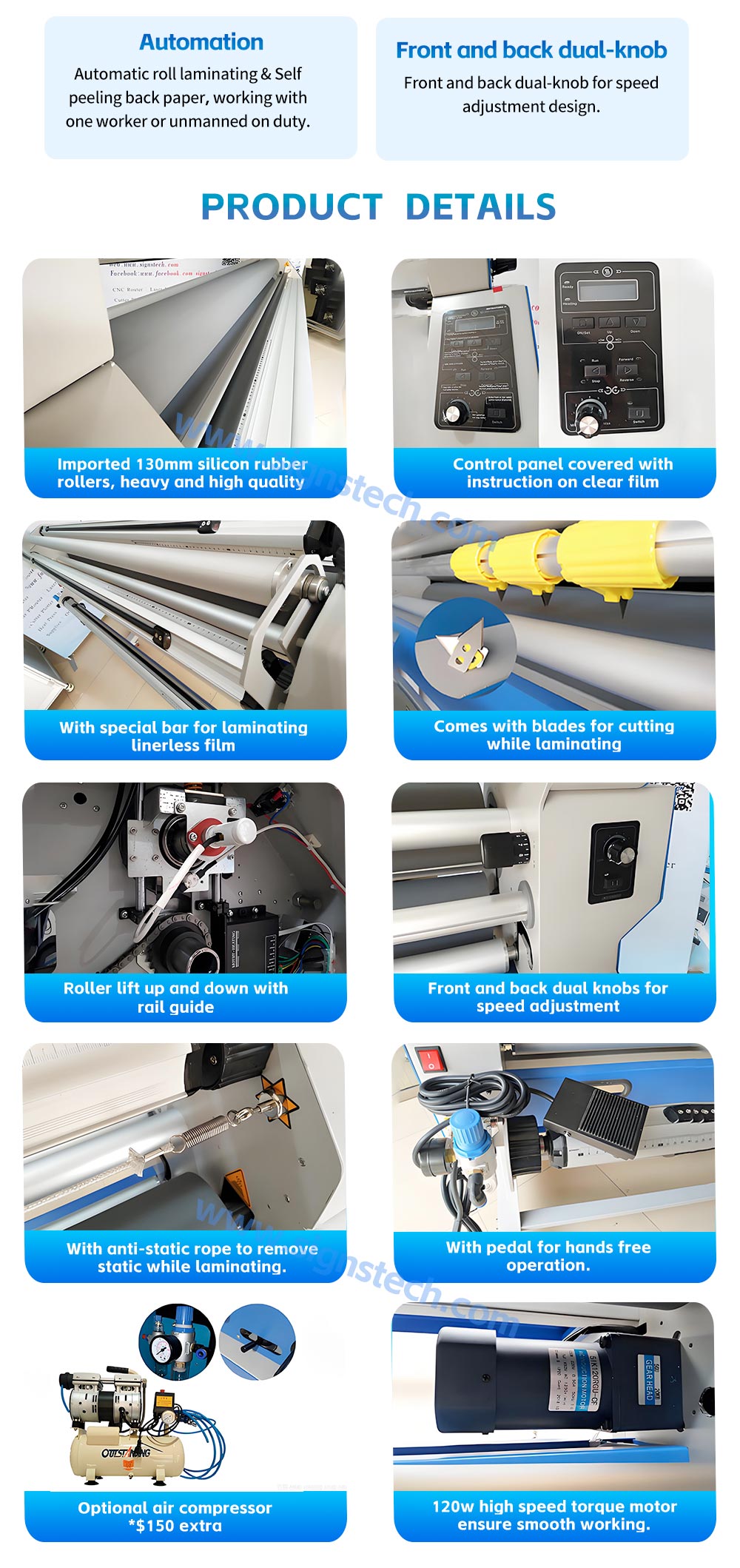

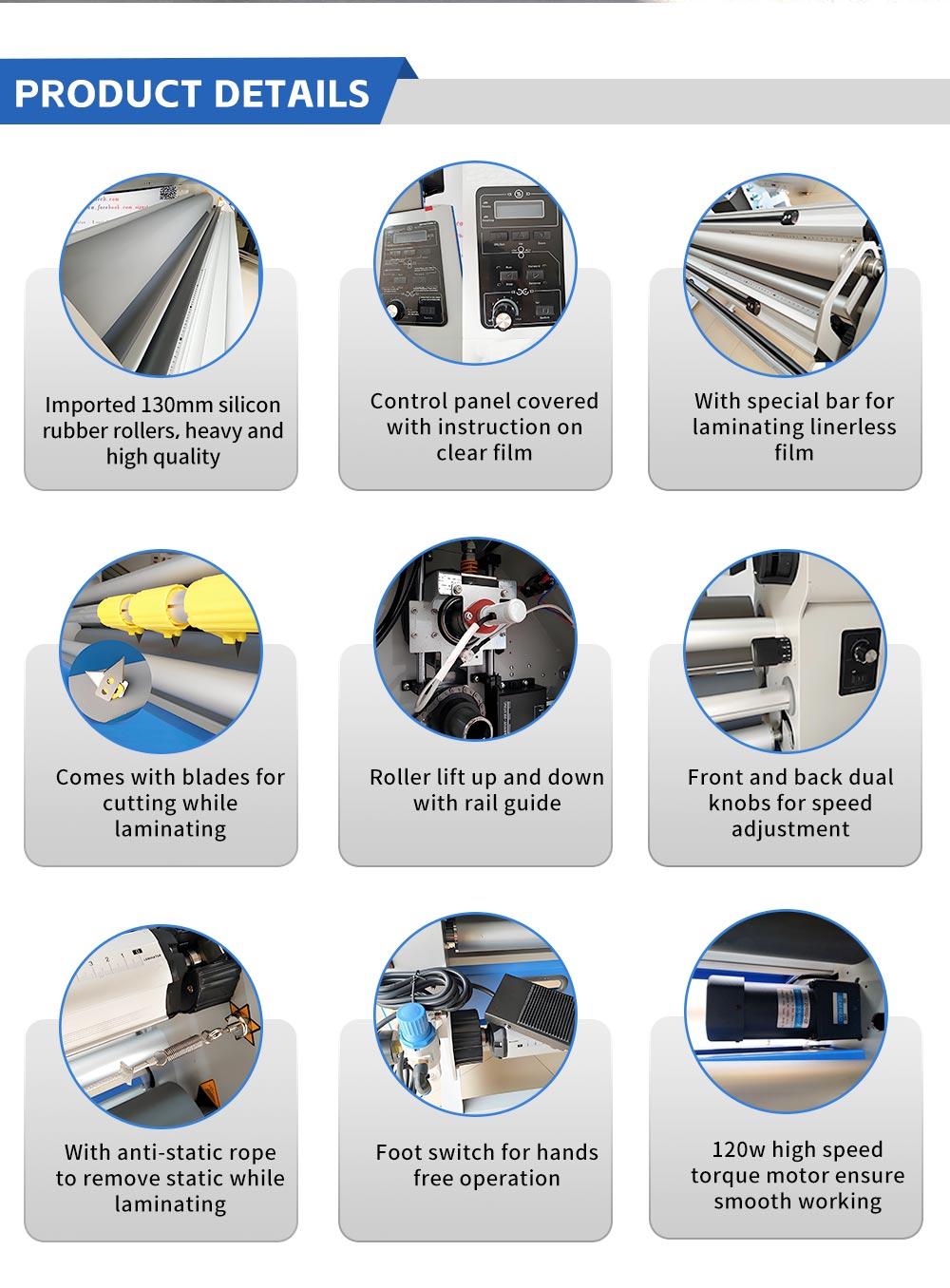

Details:

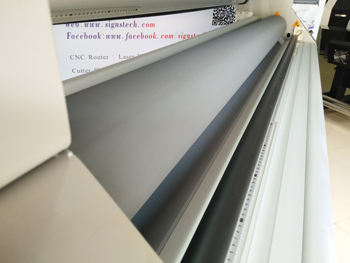

Imported 130mm silicon rubber rollers, heavy and high quality

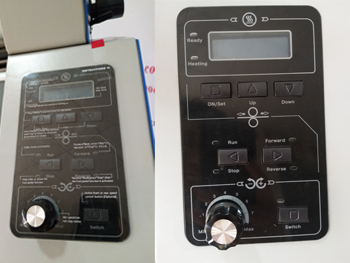

Control panel covered with instruction on clear film

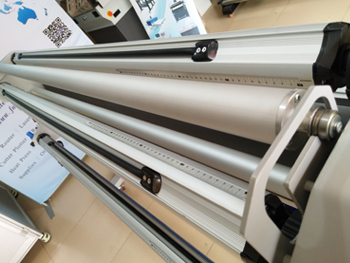

With special bar for laminating linerless film

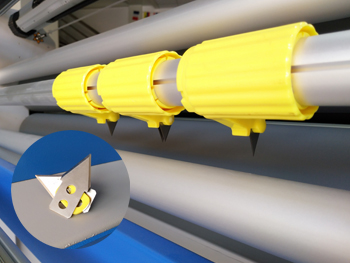

Comes with blades for cutting while laminating.

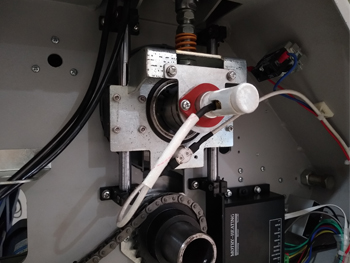

Roller lift up and down with rail guide

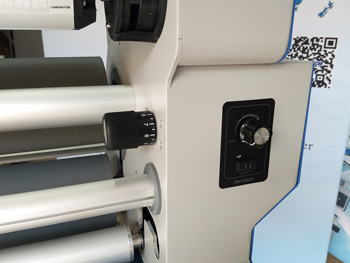

Front and back dual knobs for speed adjustment

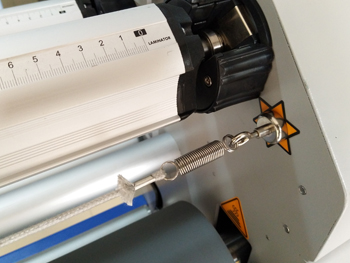

With anti-static rope to remove static while laminating.

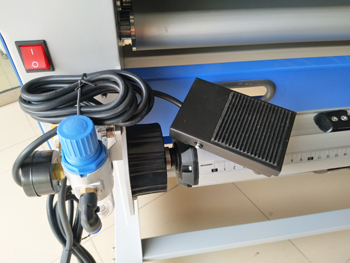

Foot switch for hands free operation

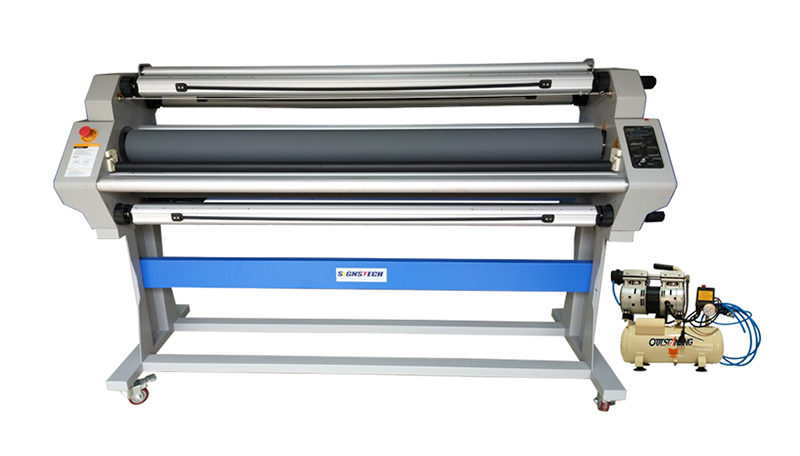

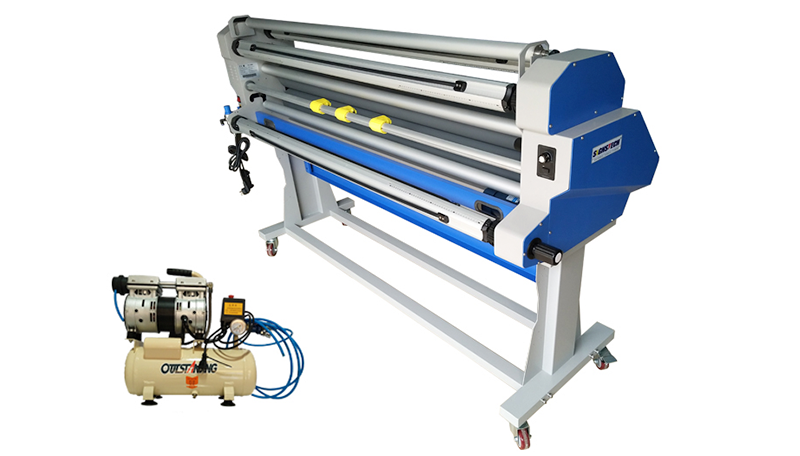

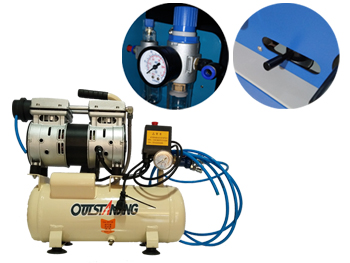

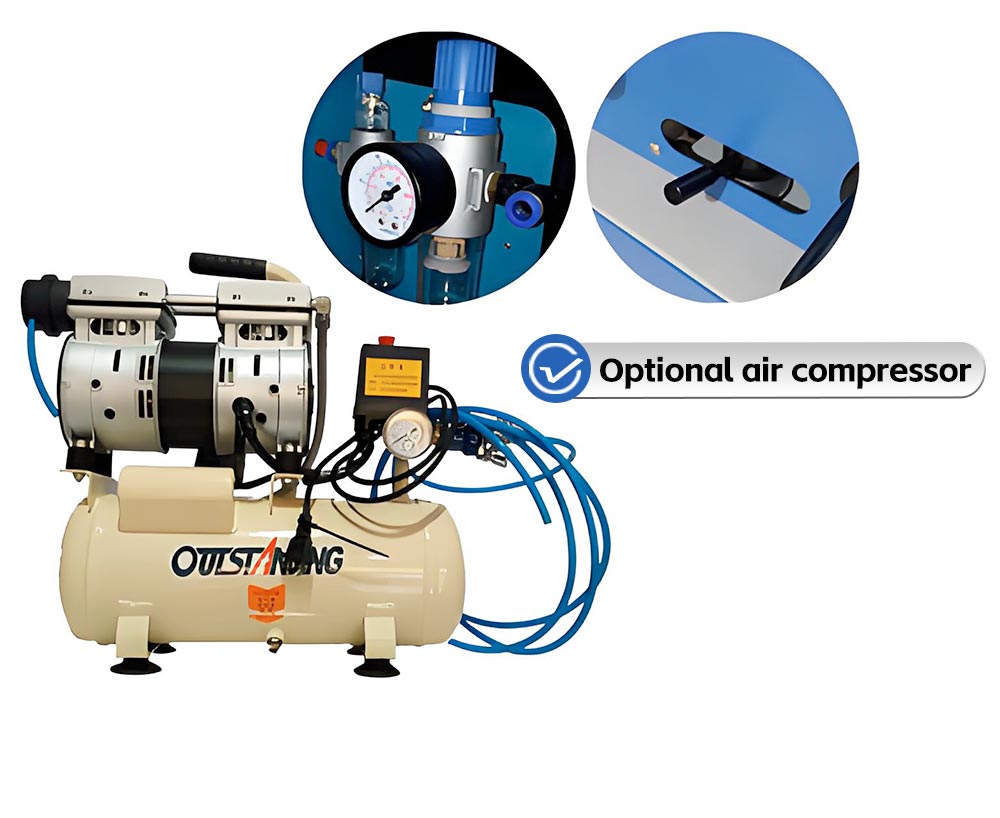

Comes with Free air compressor

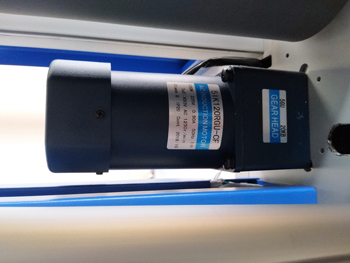

120w high speed torque motor ensure smooth working.

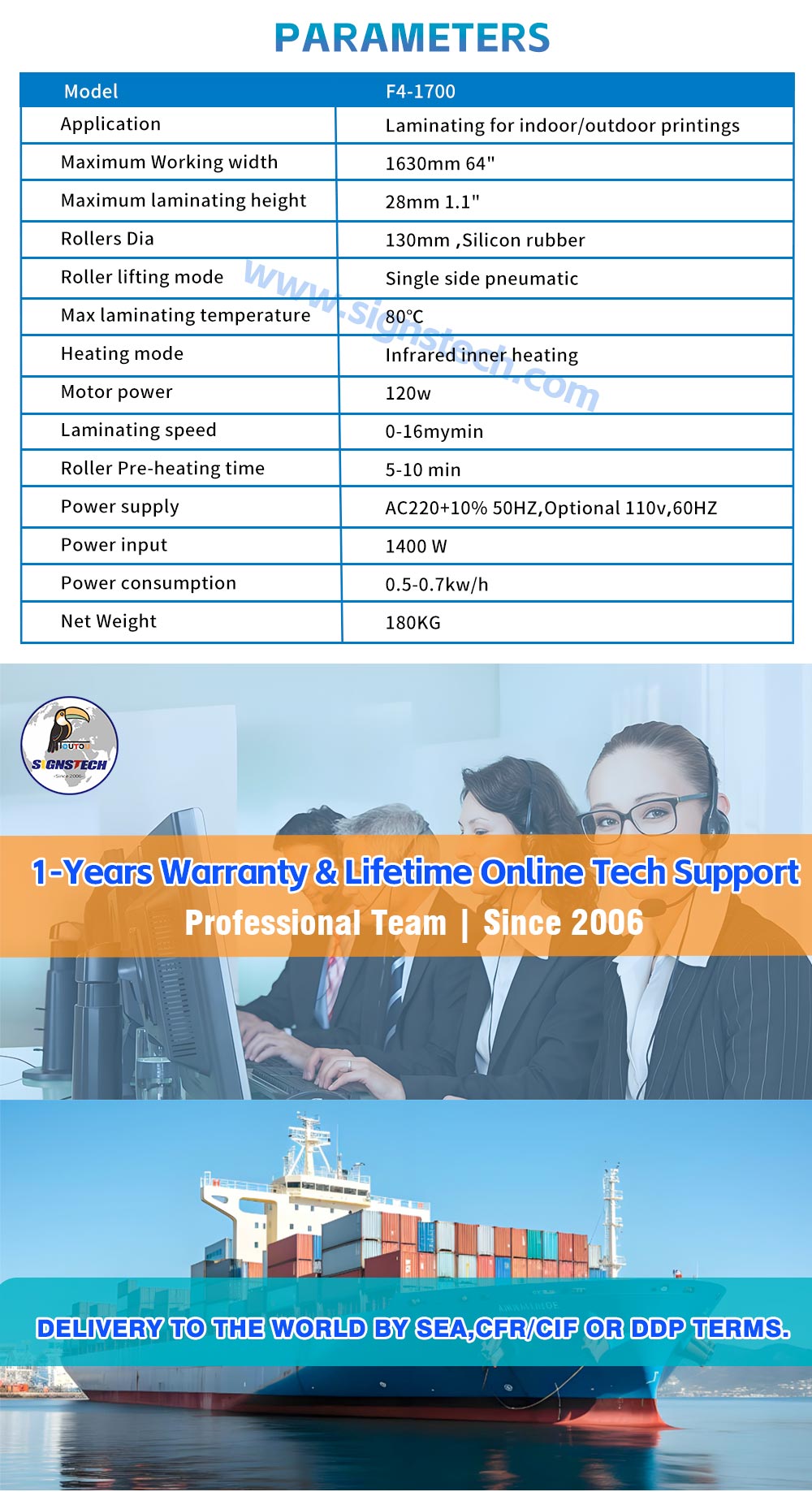

Model

F4-1700

Application

Laminating for indoor/outdoor printings

Maximum Working width

1630mm 64"

Maximum laminating height

28mm 1.1”

Rollers Dia

130mm ,Silicon rubber

Roller lifting mode

Single side pneumatic

Max laminating temperature

60℃

Heating mode

Infrared inner heating

Motor power

120w

Laminating speed

0-16m/min

Roller Pre-heating time

5-10 min

Power supply

AC220±10% 50HZ,Optional 110v,60HZ

Power input

1400 W

Power consumption

0.5-0.7kw/h

Net Weight

180KG
