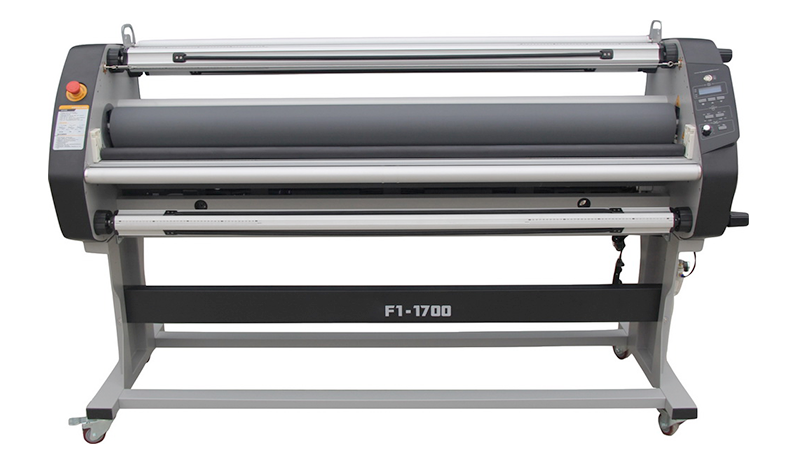

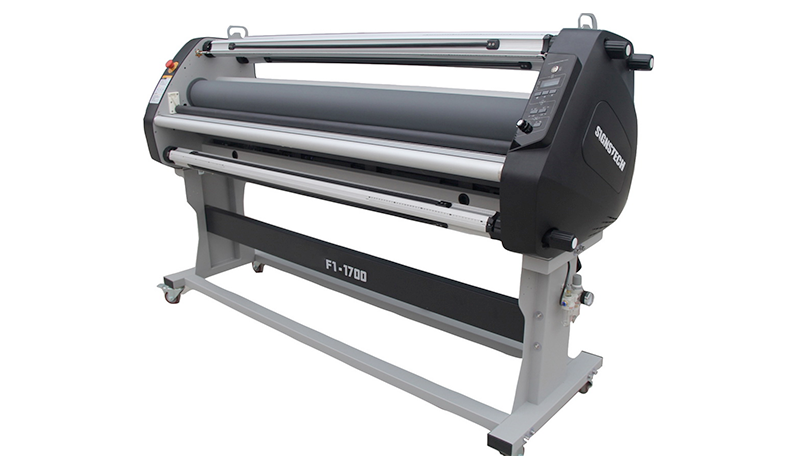

High Temperature Pneumatic Hot Laminator

Model:
F6-1700
Remarks:
Pneumatic driving roller up and down, Max 120℃ heating temperature,With slitting function
BROCHURE INQUIRY NOW
Captcha

Features

Parameters

Optimum performance

• High quality top-heated silicon rubber roller ensures heavy-duty work

• Adjustable settings for increased capacity and versatility

• Fast processing with a speed up to 25m/min

• Unique anti-tilt and anti-fold system ensures clear output

• Fully adjustable nip-gap and pressure for precise application

Ease of use

• Automatic Fully adjustable nip-gap and pressure

• Simple film tension adjustment

• Light weight drop-in supply shafts with auto-grip for easy loading

• Roll-to-roll operation capacity

• Foot pedal switch for pieces accurate application

Safety

• Foot switch for hands free operation

• 2 emergency stops,Optional Laser safety eyes

• CE,ROHS,RCM

Model

F4-1700

Max lamination width

1630mm  64"

Max lamination thickness

28mm

Speed

25m/min

Max temperature

120

Rollers

Silicon

Roller lifting

Pneumatic

Heated method

Infrared

Preheating time

15-20mins

Power consumption

0.5-0.7kw/h

Power input

1500w

Volt input

110v 60HZ/220v 50HZ

Packing size

2300x900x800mm

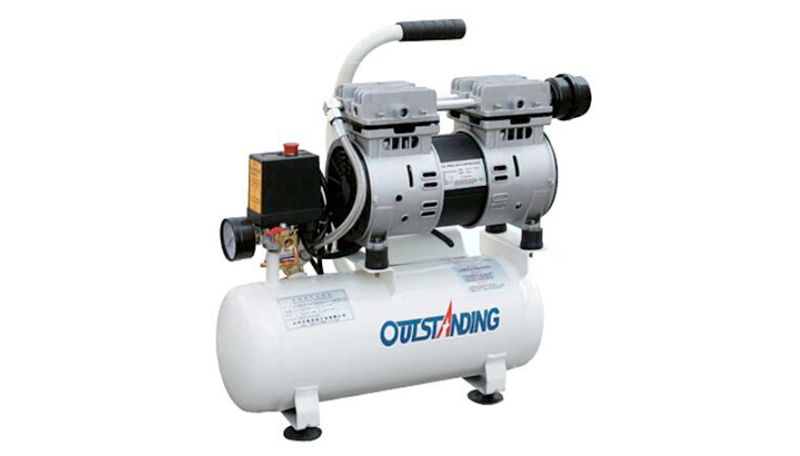

Silent compressor

Included

Slitting Blade

With, 3pcs

N.W.

220kg
