Features: |
|
|

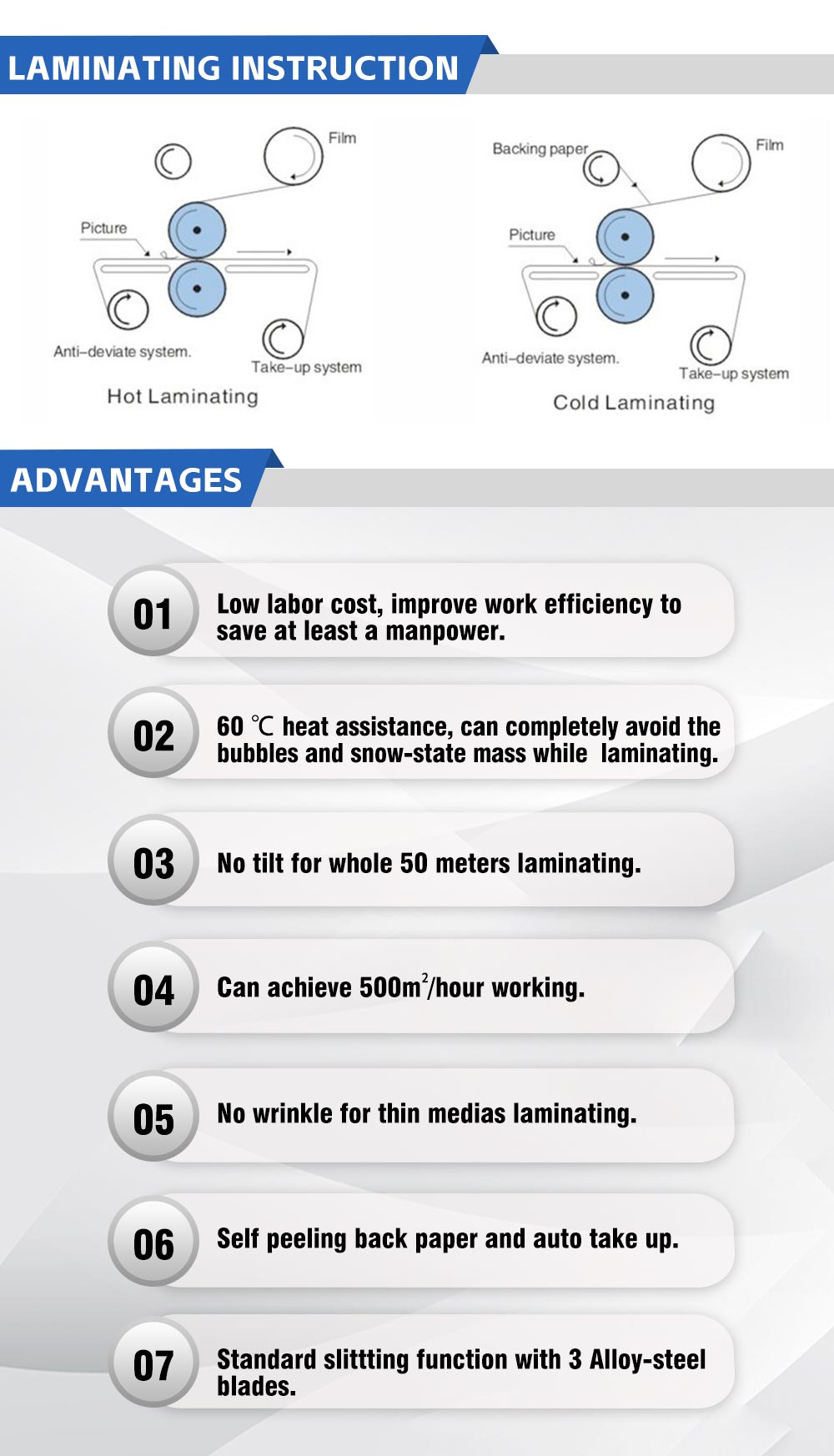

Low labor cost, improve quality to save at least a manpower. Max 60℃ heat assistance, can completely avoid the bubbles and snow-state mass while laminating. No tilt for whole 50 meters laminating. Can achieve 500 square/hour working! No wrinkle for thin medias laminating.
Self peeling back paper and auto take up.
With 3 Japanese Alloy-steel blades for cutting. *With foot-pedal, easy operation |
|
|

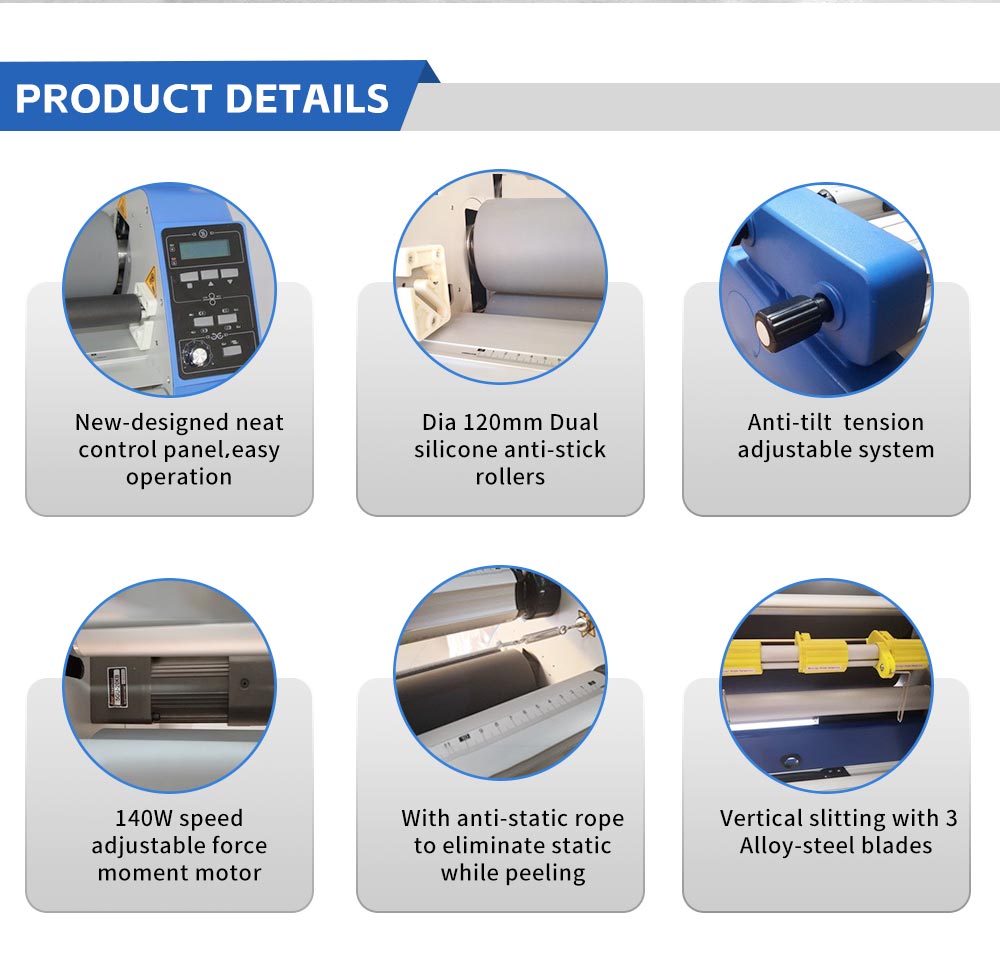

Details: |
|
 |
 |
|

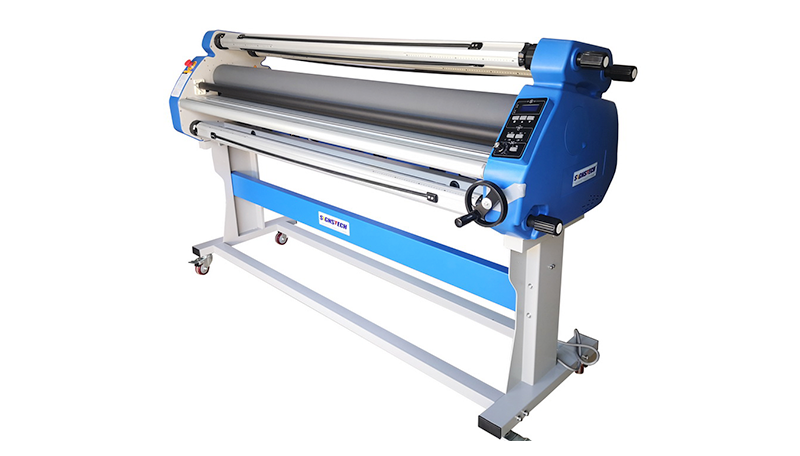

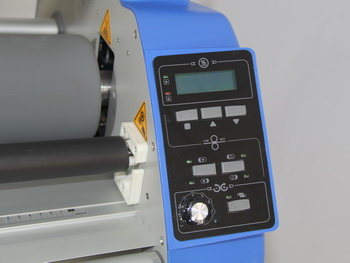

New-designed neat control panel,easy operation |

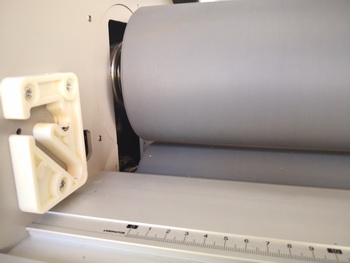

Dia 120mm high quality Sliicon rollers anti-stick |
 |
 |
|

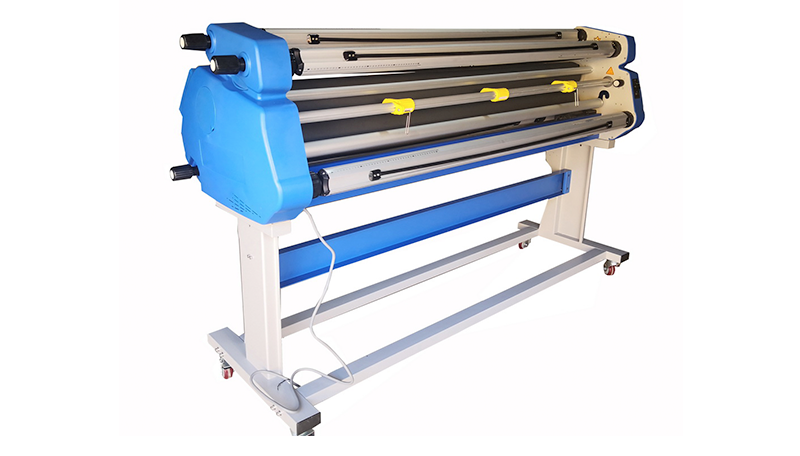

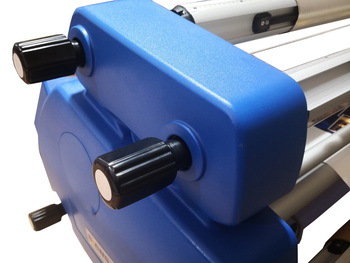

Anti-tilt tension adjustable system |
140W speed adjustable force moment motor |
 |
 |
|

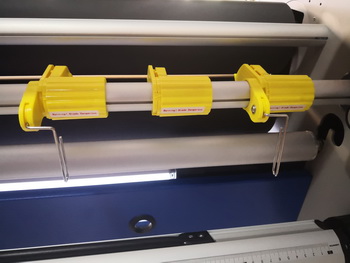

Standard slitting function with 3 Alloy-steel blades |

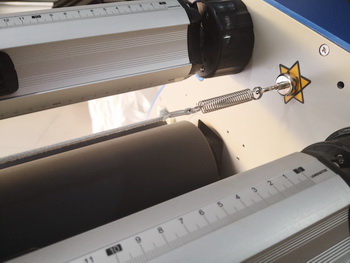

With anti-static rope to eliminate static while peeling |
|

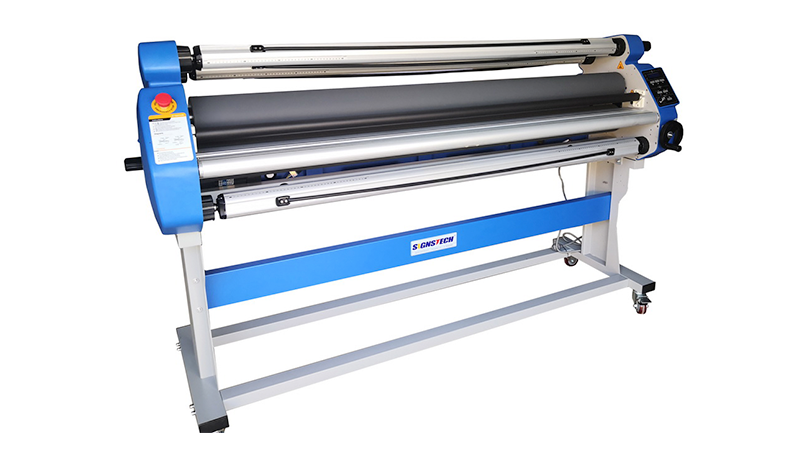

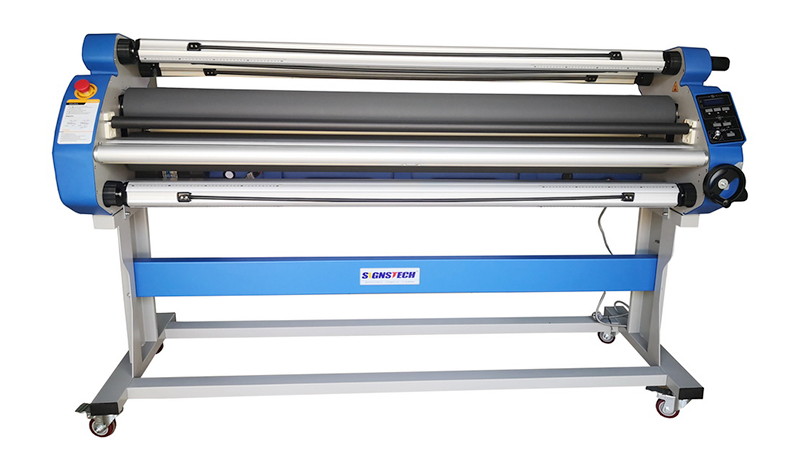

Model |
F4-1700 |
|
Application |
Laminating for indoor/outdoor printings |
|
Maximum Working width |
1630mm 64” |
|
Silicon Rollers Dia |
120mm |
|
Roller lifting mode |
Single side linkage lifting |
|
Max laminating temperature |
60℃ |
|
Heating mode |

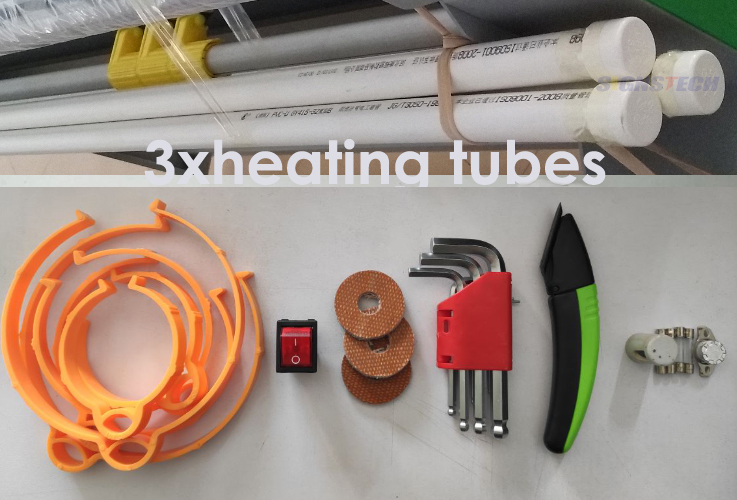

Infrared inner heating |
|

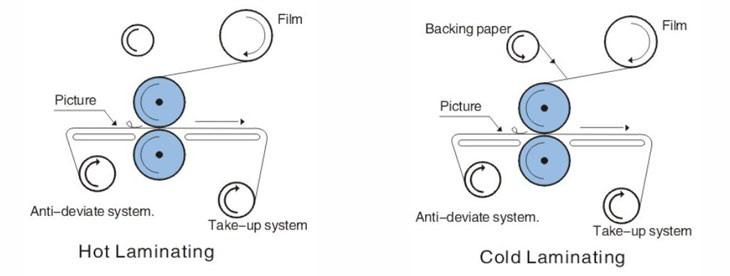

Laminating mode |
Single side |
|
Laminating speed |
12m/min MAX |
|
Roller lifting height |
28mm,0.9" |
|
Roller pre-heating time |
5-10min |
|
Power supply |
AC220±10% 50HZ, Optional 110v, 60HZ |
|
Heating Power |
1400W |
|
Power consumption |
0.8-1KW/hour |
|
Net weight |
180KG |
|
Size |
1860×680x1140(mm) |
|
Pedal |
With |
