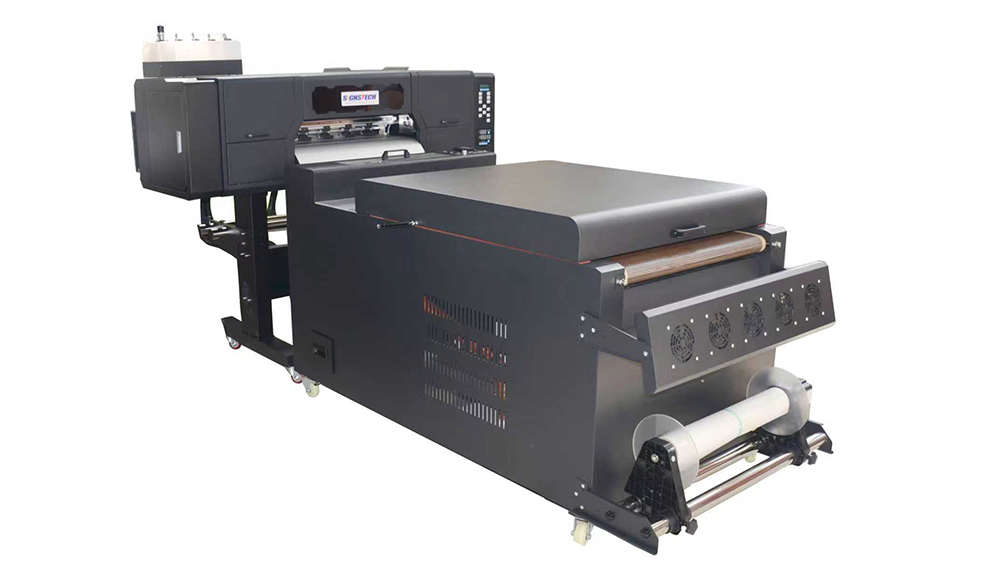

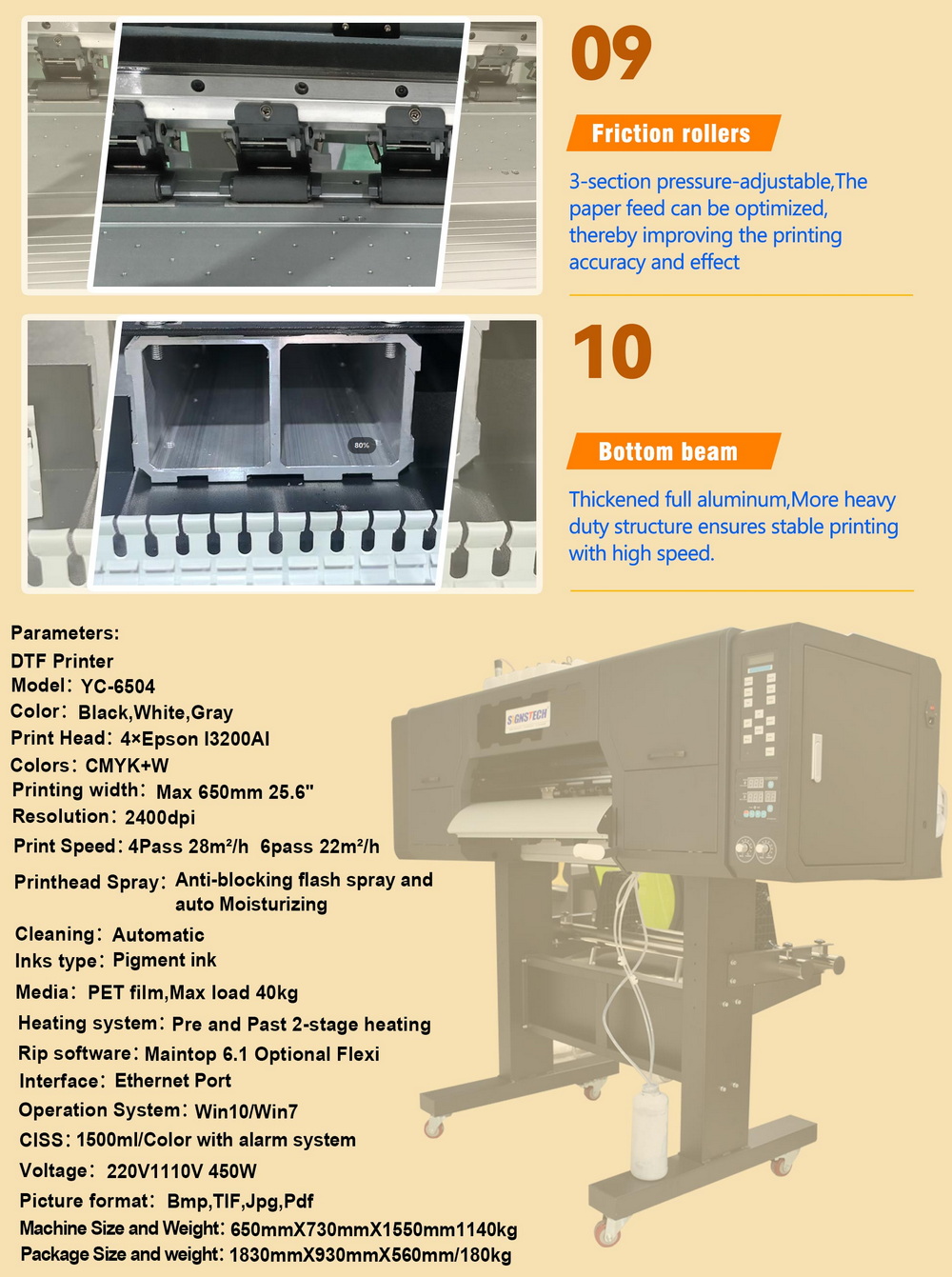

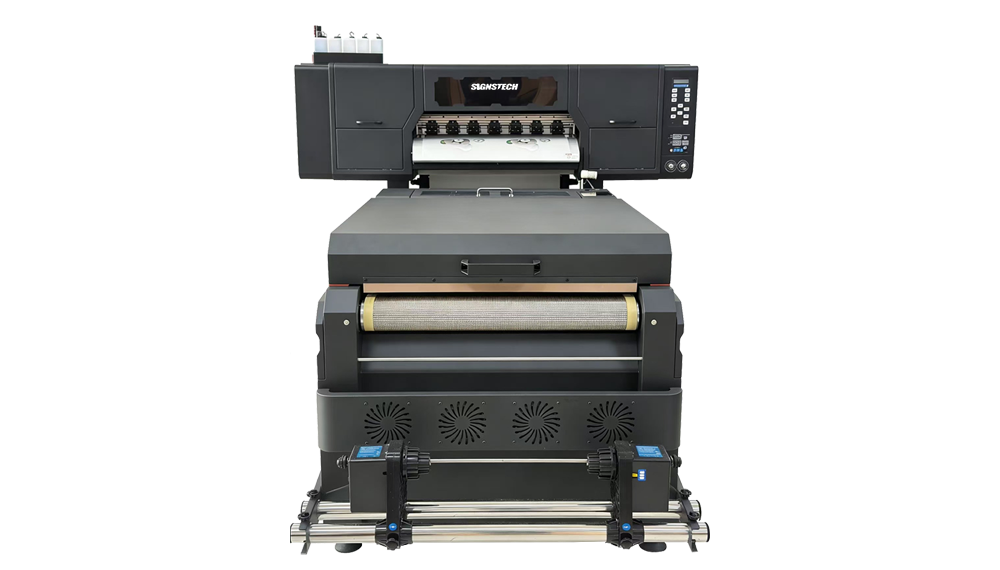

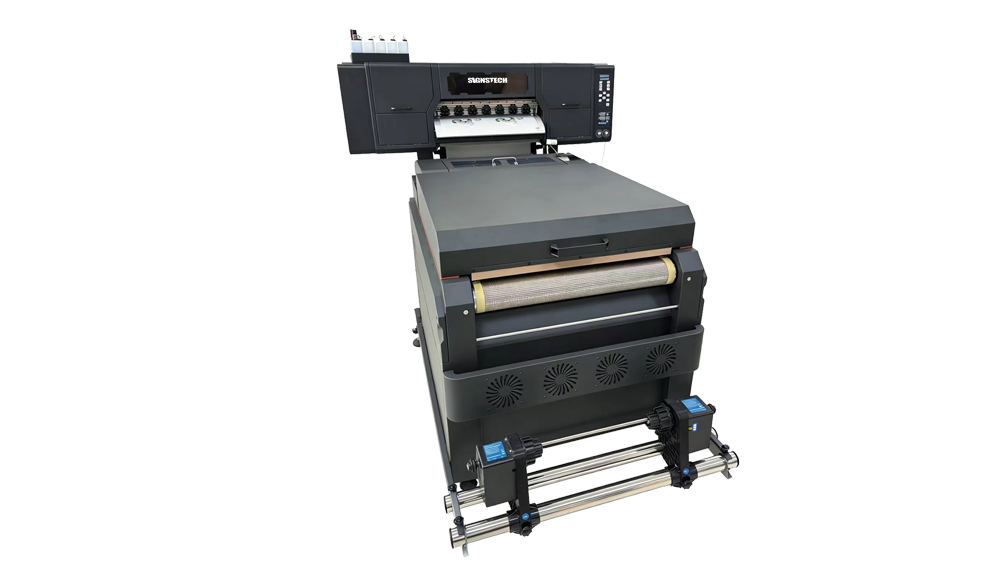

Model |
YC-6504 |
|
Color |
Black,White,Gray |
|
Print Head |

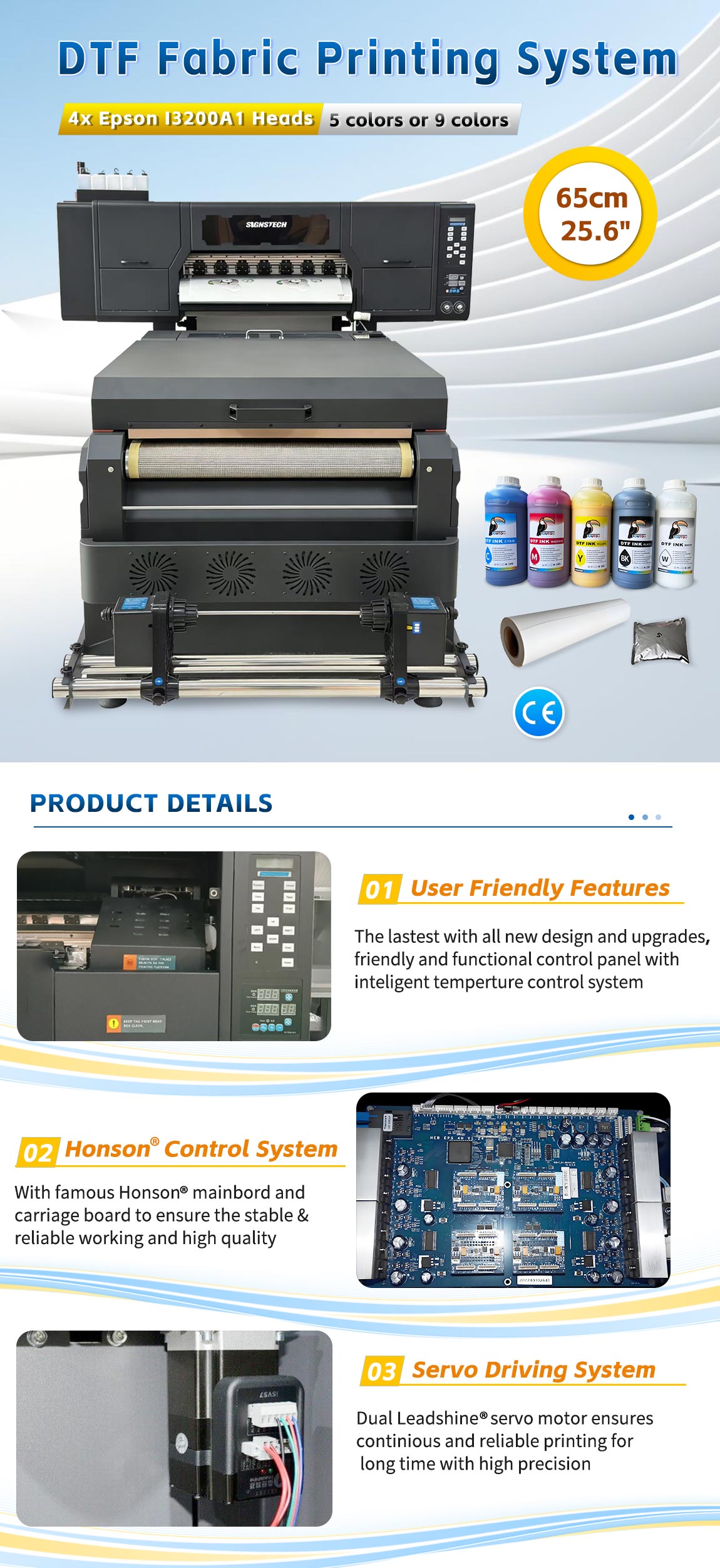

4xEpson I3200A1 optional Epson I1600A1 |
|
Colors |

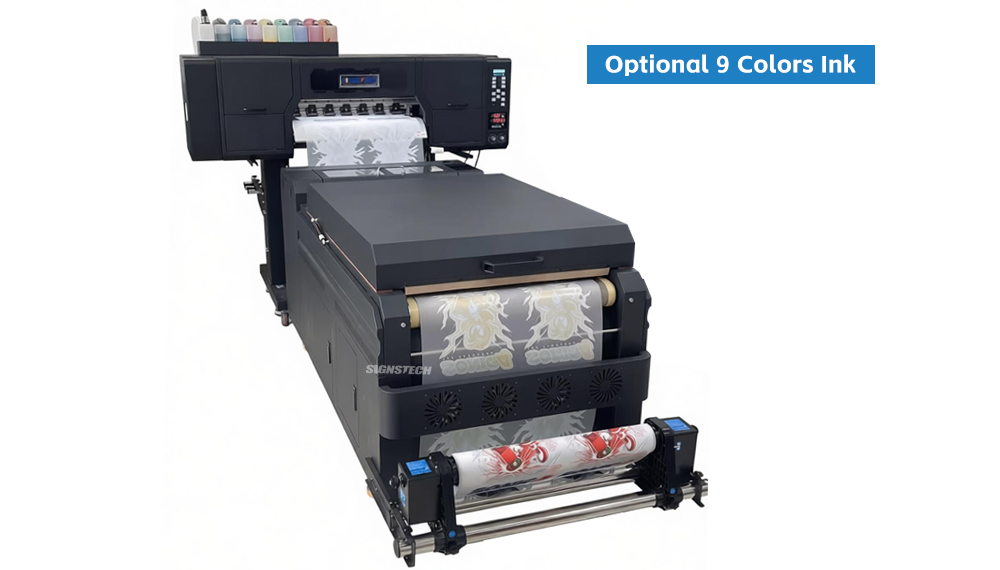

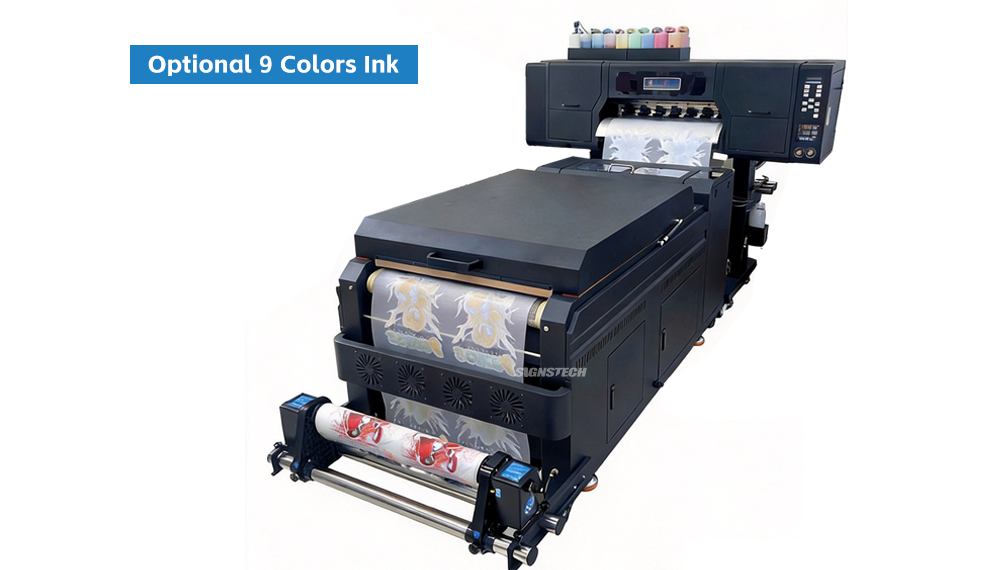

CMYK+W, optional more 4x neon colors |
|
Printing width |
Max 650mm 25.6" |
|
Resolution |
2400dpi |
|
Print Speed |
4Pass 28㎡/h 6pass 22㎡/h |
|
Printhead Spray |
Anti-blocking flash spray and auto Moisturizing |
|
Cleaning |
Automatic |
|
Inks type |
Pigment ink |
|
Media |
PET film,Max load 40kg |
|
Heating system |
Pre and Past 2-stage heating |
|
Rip software |
Maintop 6.1 Optional Flexi |
|
Interface |
Ethernet Port |
|
Operation System |
Win10/Win7 |
|
CISS |
1500ml/Color with alarm system |
|
Voltage |
220V1110V 450W |
|
Picture format |
Bmp,TIF,Jpg,Pdf |
|
Machine Size and Weight |
650mmX730mmX1550mm1140kg |
|
Package Size and weight |
1830mmX930mmX560mm/180kg |

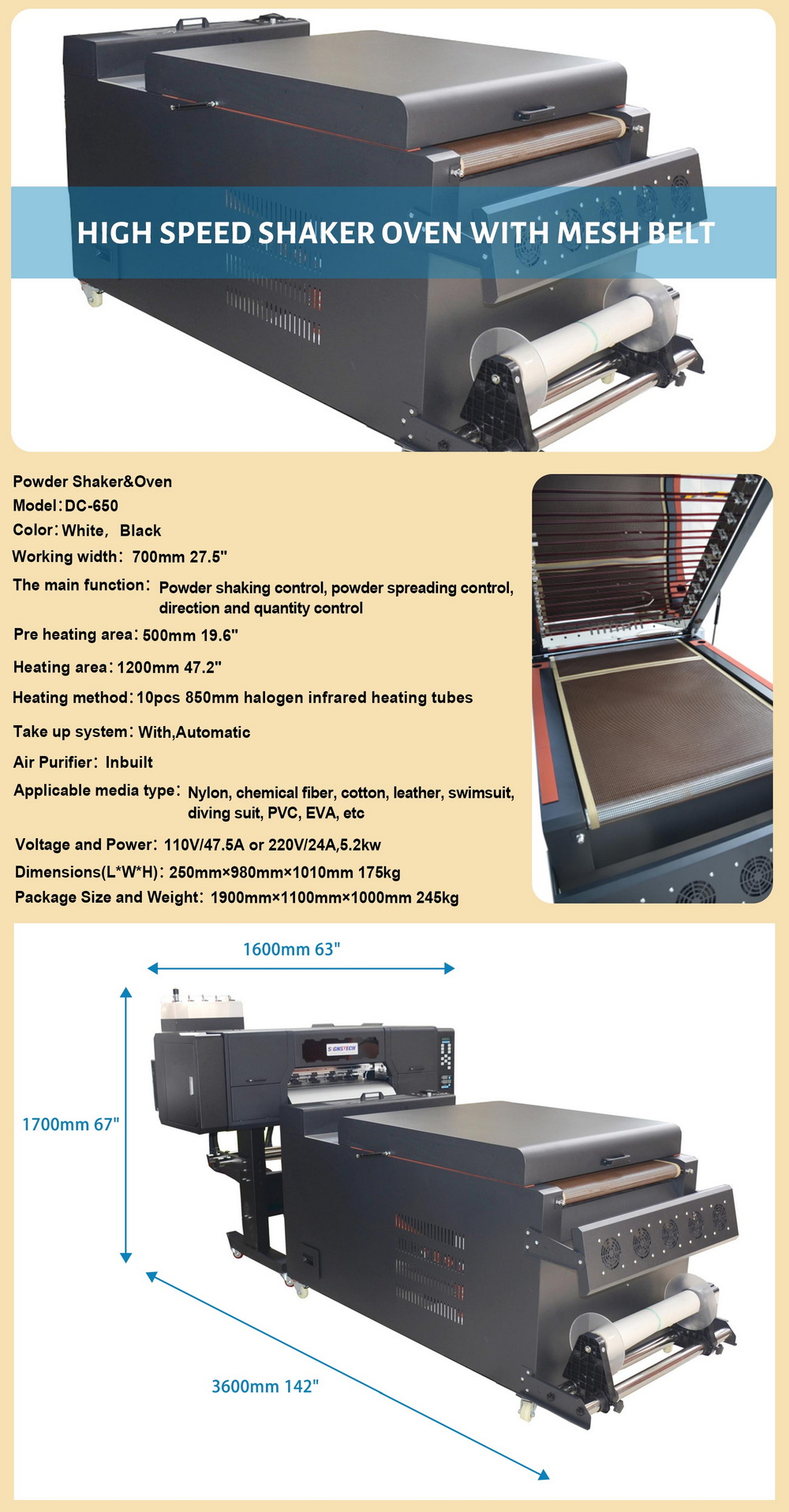

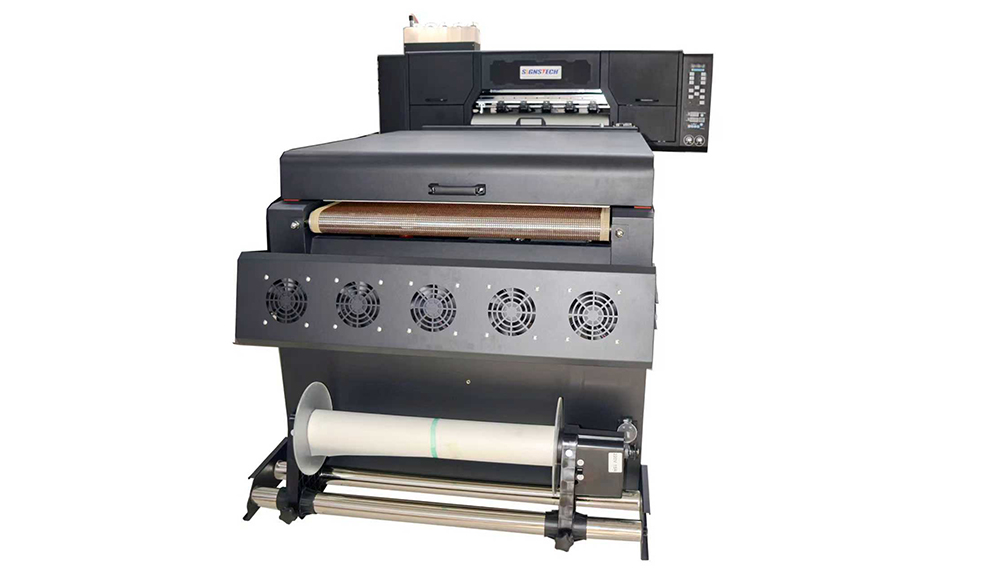

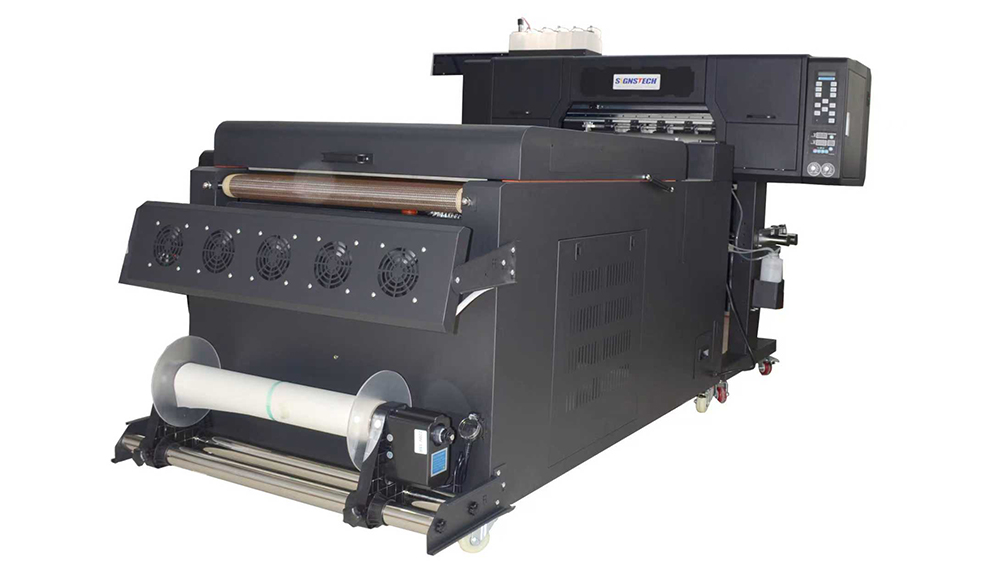

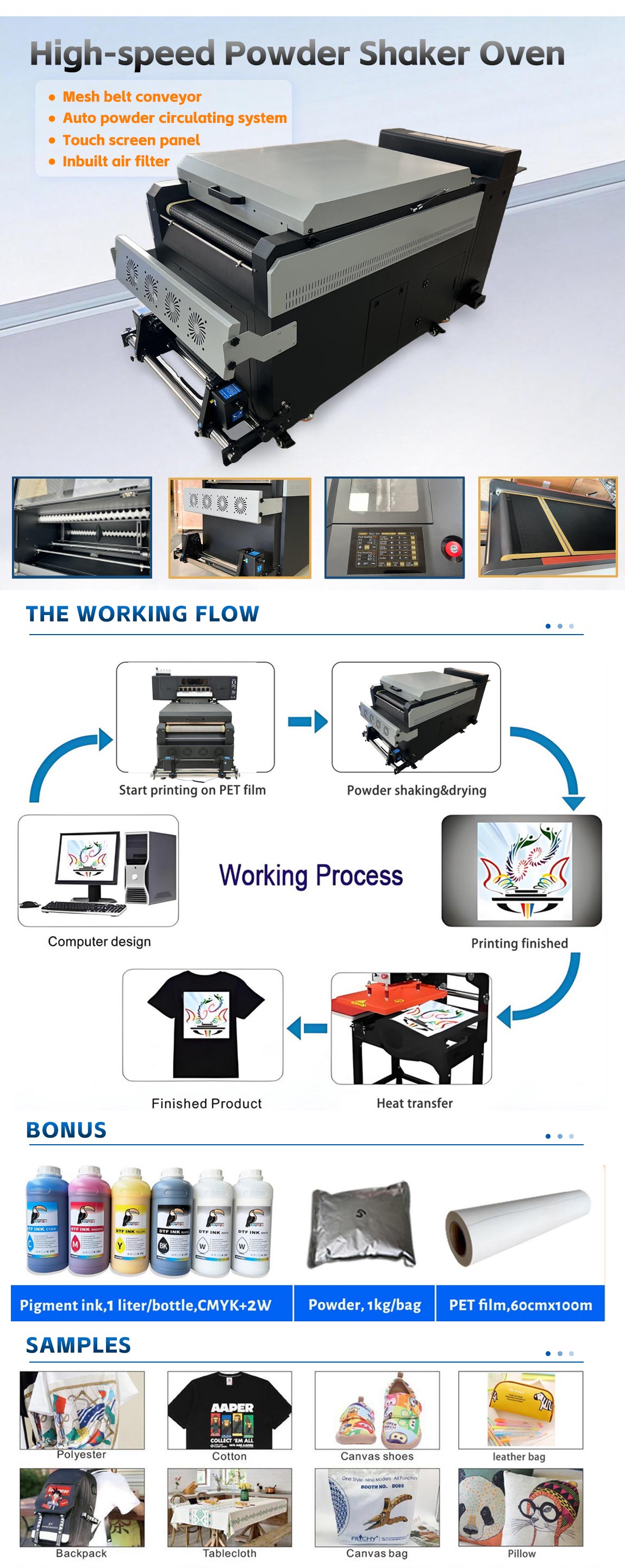

High-Speed powder shaker Oven for 4-Head Printer
Printing width
0-600mm
Air filter
Built-in purifier, saving space,easy filter element replacement
Rewinding function
Film take-up automatically
Control system
Touch screen intelligent control
Powder auto circulation
Manual/Automatic mode,One-click activation

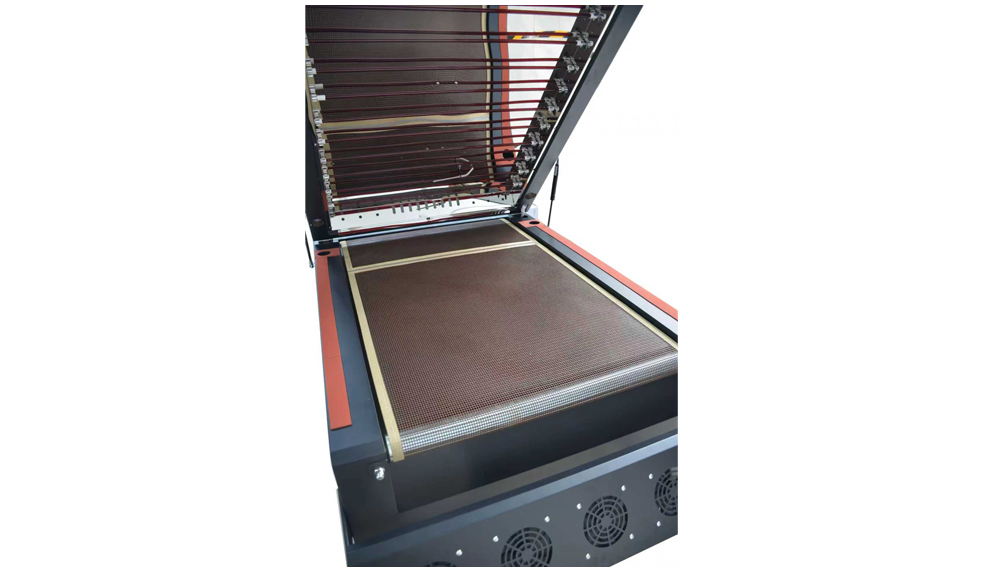

Mesh belt
With adsorption function,inductive type adaptive rotation as the printing speed
Power Voltage/Rated power
110V/220V, 6500w
Machine size
1880*910*1100mm/230KG
Packing Size/Weight
2000*1030*1220mm/350kg
