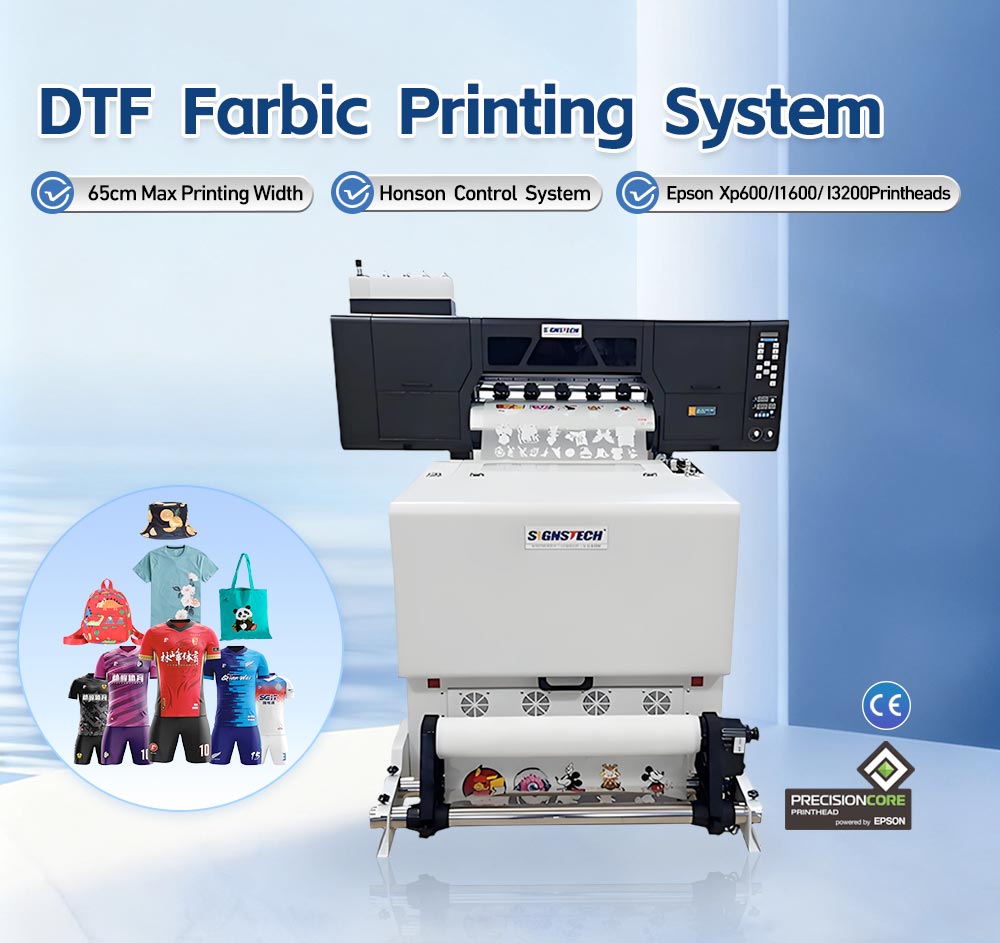

65cm 25.6 DTF Fabric Printing System

Model:
E6502
Remarks:
Max 65cm printing width,Optional Epson Xp600/I1600/ I3200 heads,With vertical powder shakder inbuilt air purifier
BROCHURE INQUIRY NOW
Captcha

Features

Parameters

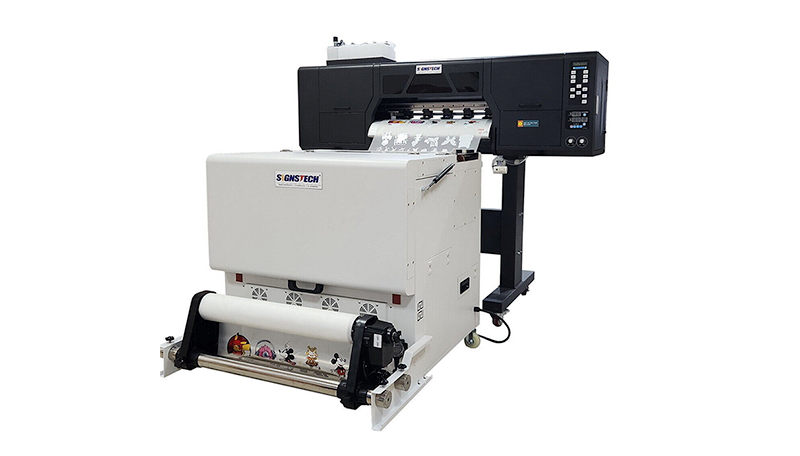

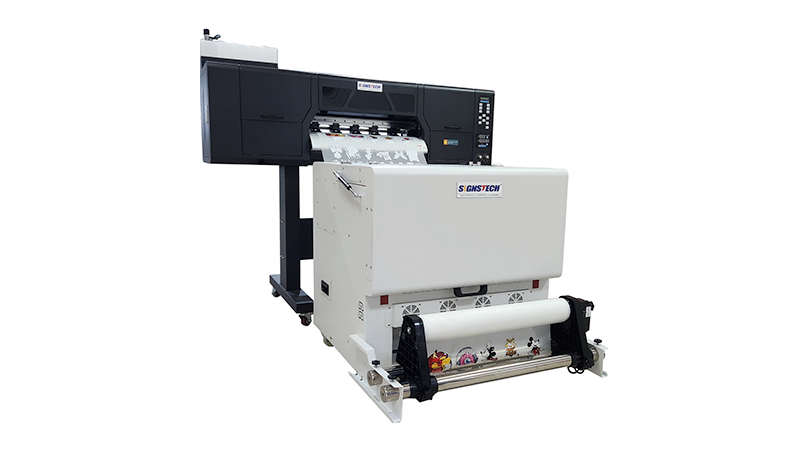

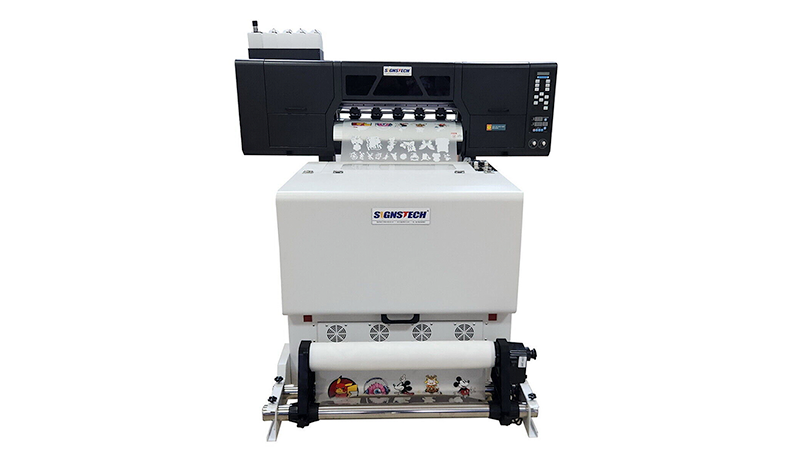

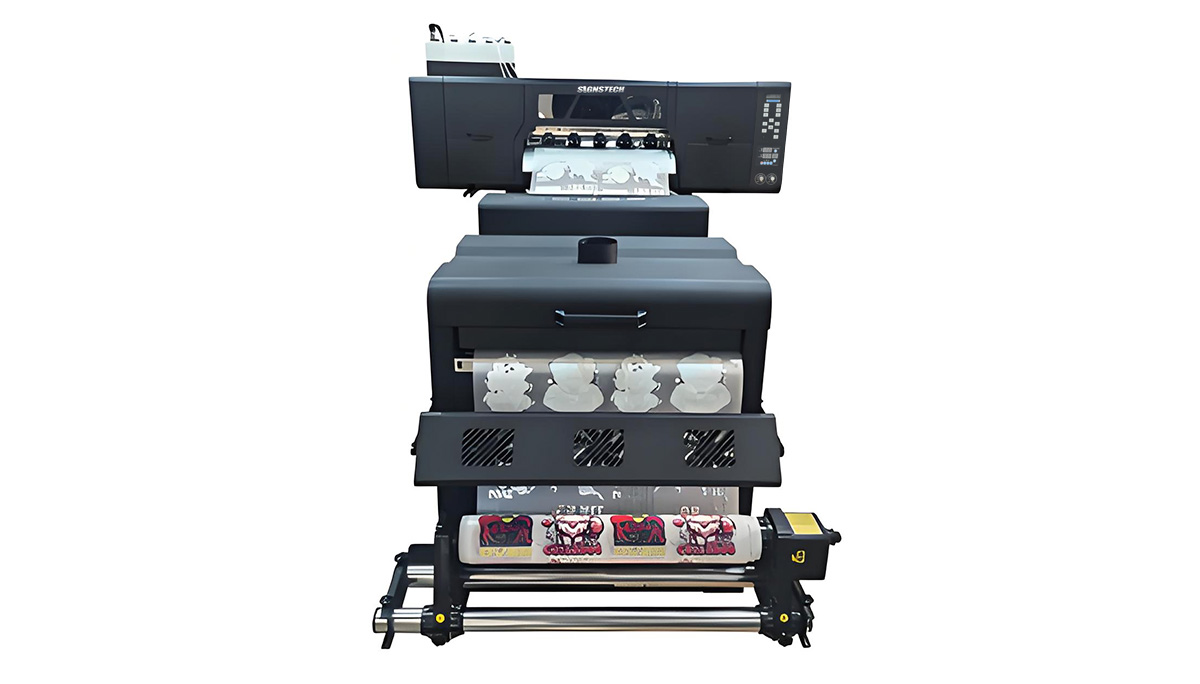

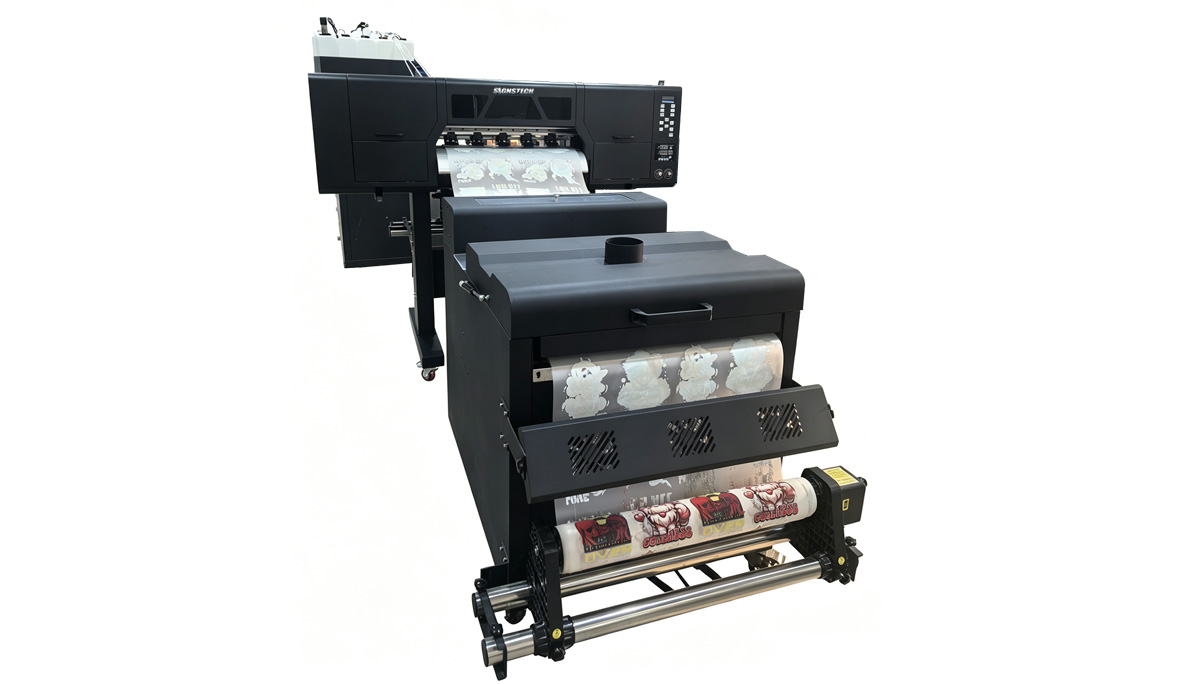

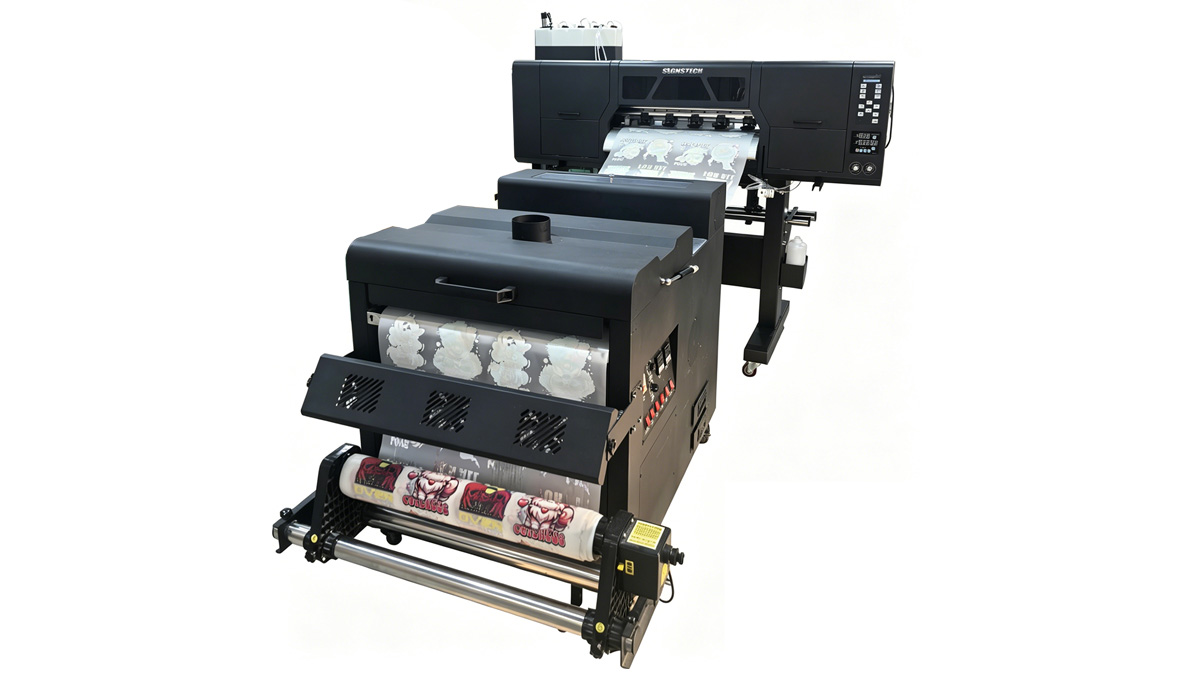

A system for all fabrics printing with very wide application including a 65cm DTF printer and a powder shaker as a kit.

The advantages:

  • Suit for almost all kinds of fabrics and any color and any fabric type T-shirts;
  • One time molding, no engraving, no hollowing, no waste discharge, no white edge, environmental protection.
  • The average production cost is low and the output is better than common sublimation printing;
  • Auto printing,powder shaking and drying,suitable for mass production;

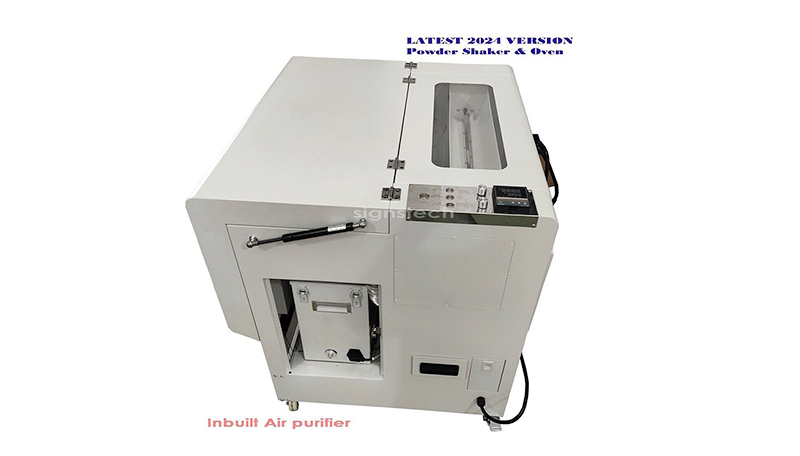

  • The powder shaker & oven is inbuilt air purifier as standard, upgraded!

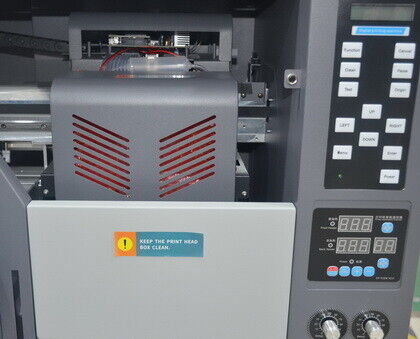

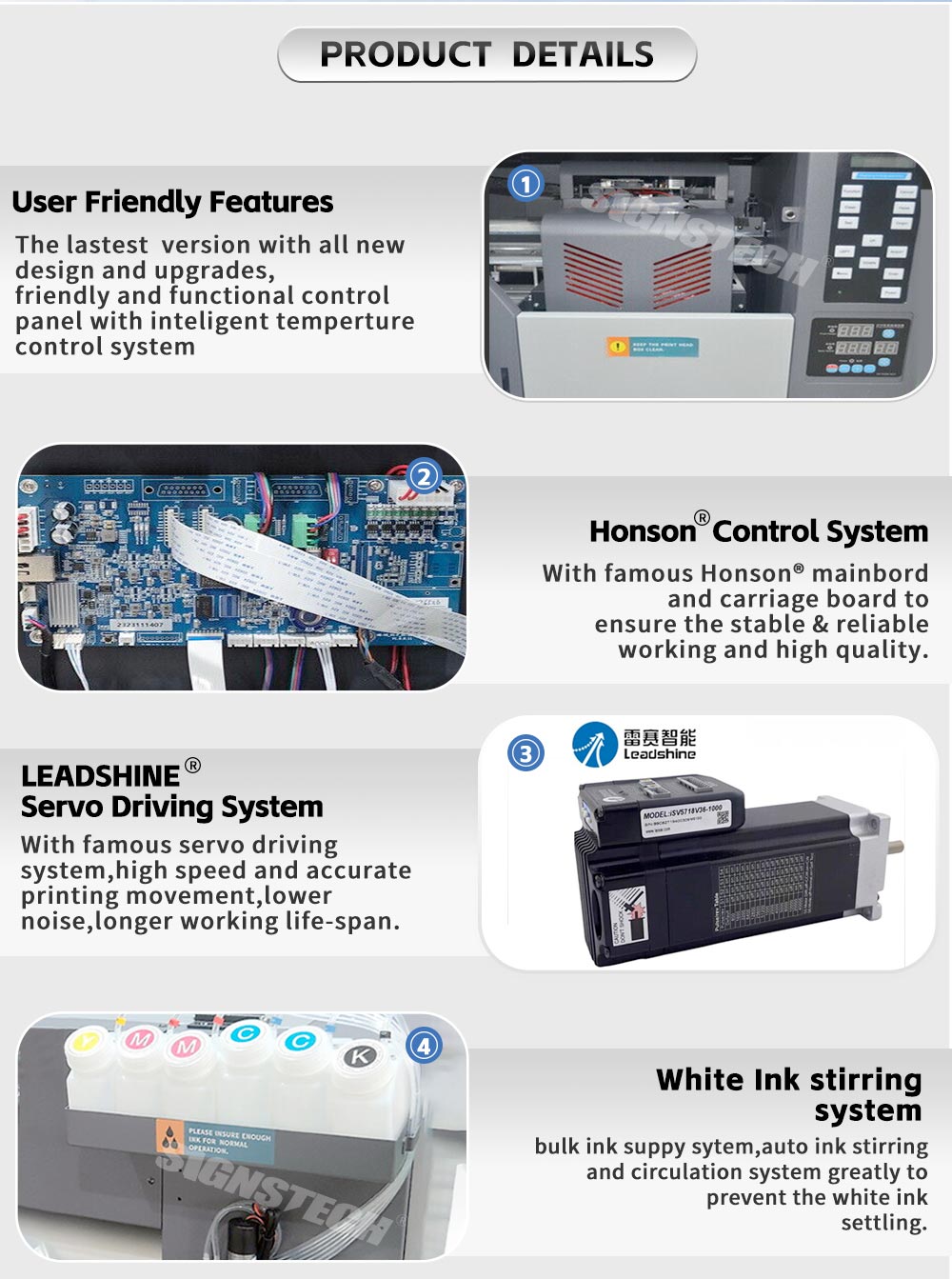

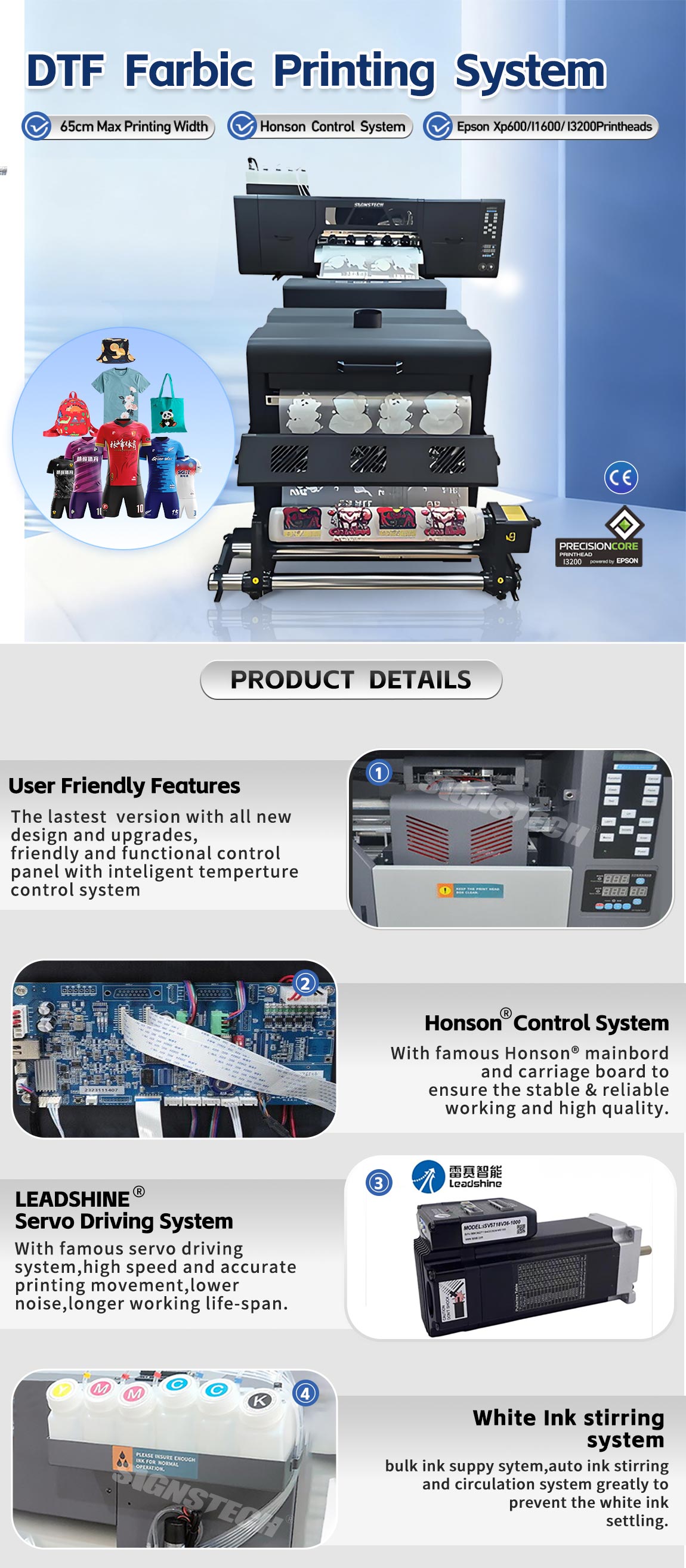

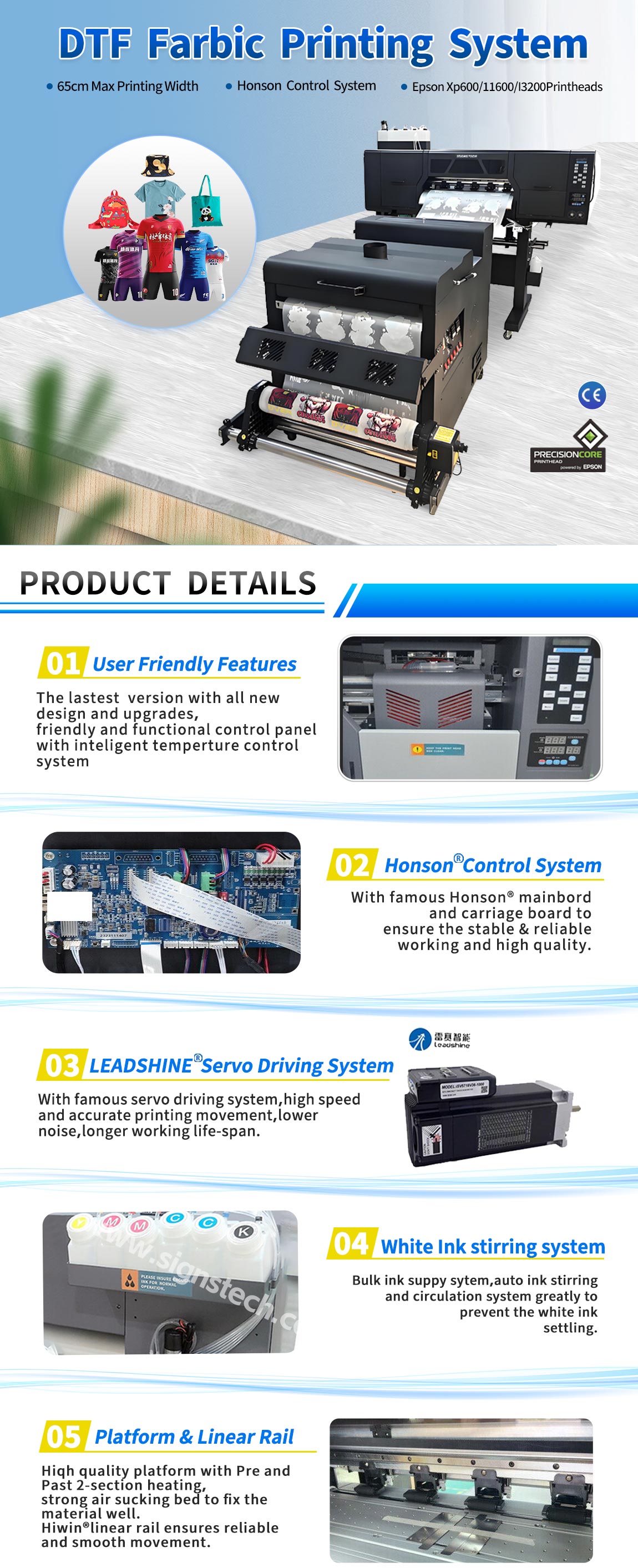

  • User Friendly Features

    The lastest version with all new design and upgrades,friendly and functional control panel with inteligent temperture control system

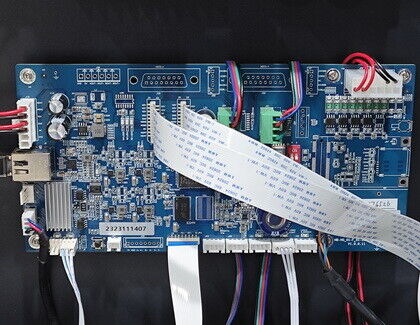

    Honson® Control System

    With famous Honson® mainbord and carriage board to ensure the stable & reliable working and hiqh quality.

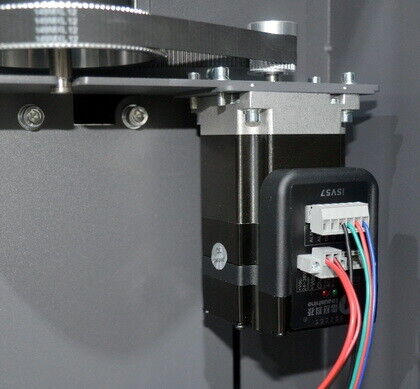

    Servo Driving System

    The Leadshine® servo motor ensures continious and reliable printing for long time with high precision.

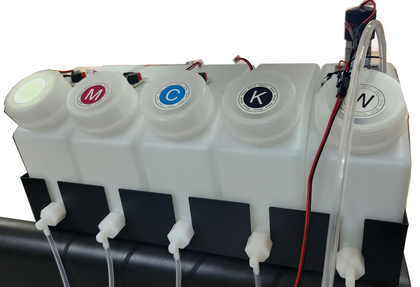

    White Ink stirring & circulation system

    With 1.5L ink box bulk ink suppy sytem for each color,auto ink stirring and circulation system greatly to prevent the white ink settling.

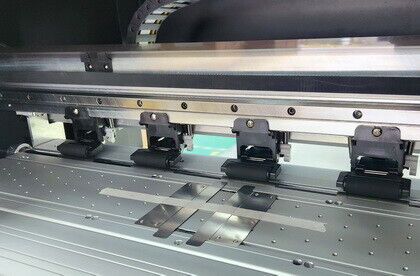

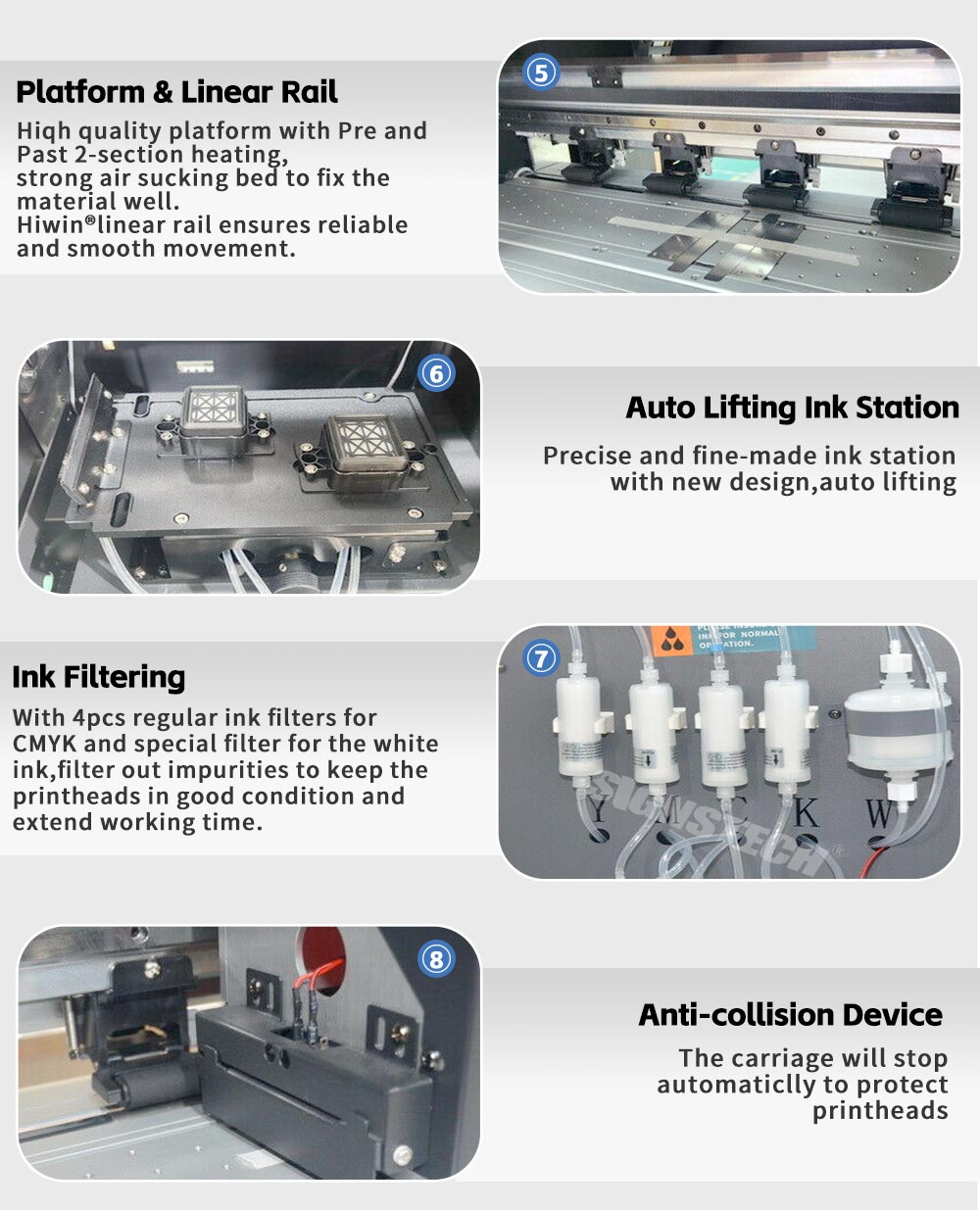

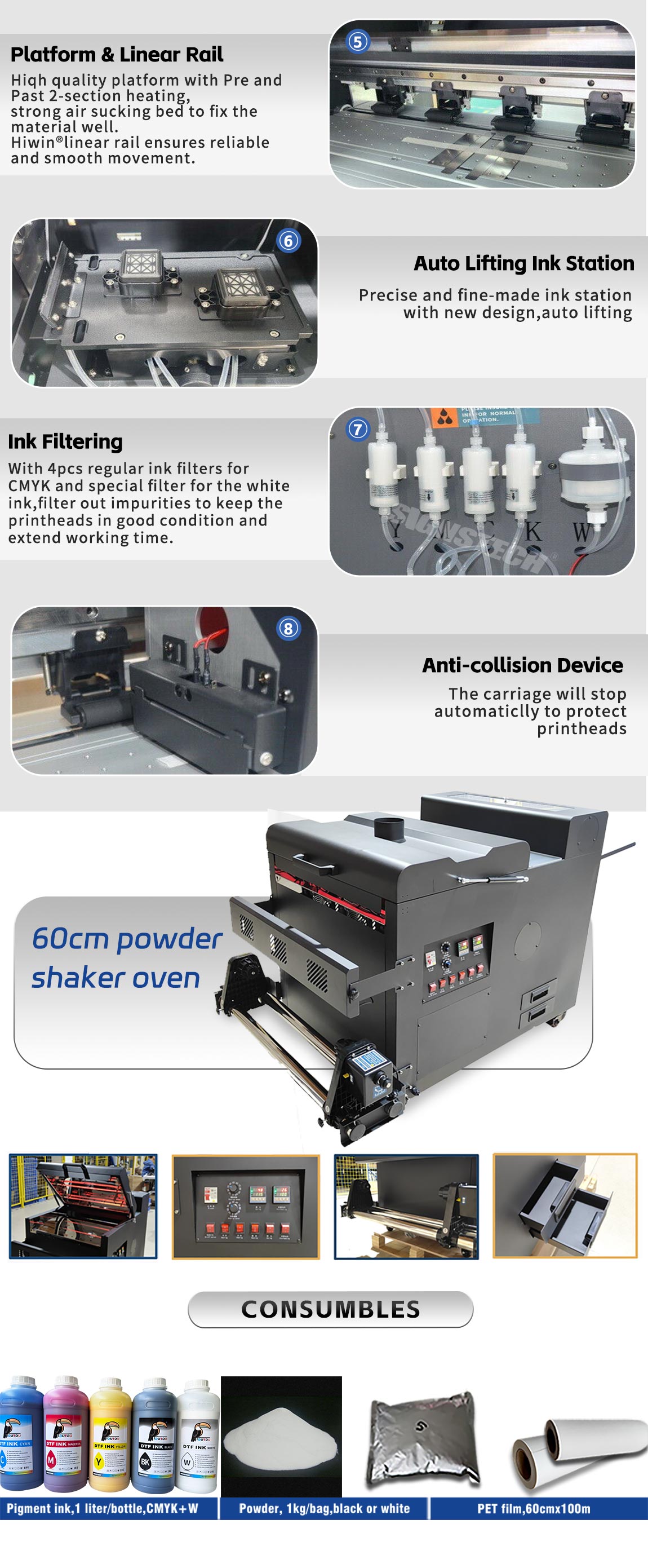

    Platform & Linear Rail

    Hiqh quality platform with Pre and Past 2-section heating,strong air sucking bed to fix the material well.Hiwin®linear rail ensures reliable and smooth movement.

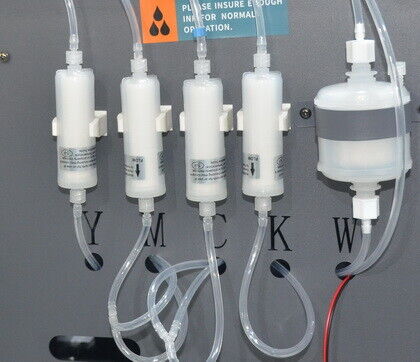

    Ink Filtering

    With 4pcs regular ink filters for CMYK and special filter for the white ink,filter out impurities to keep the printheads in good condition and extend working time.

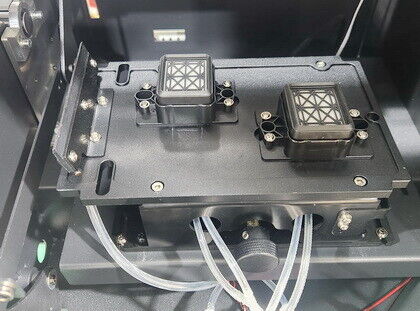

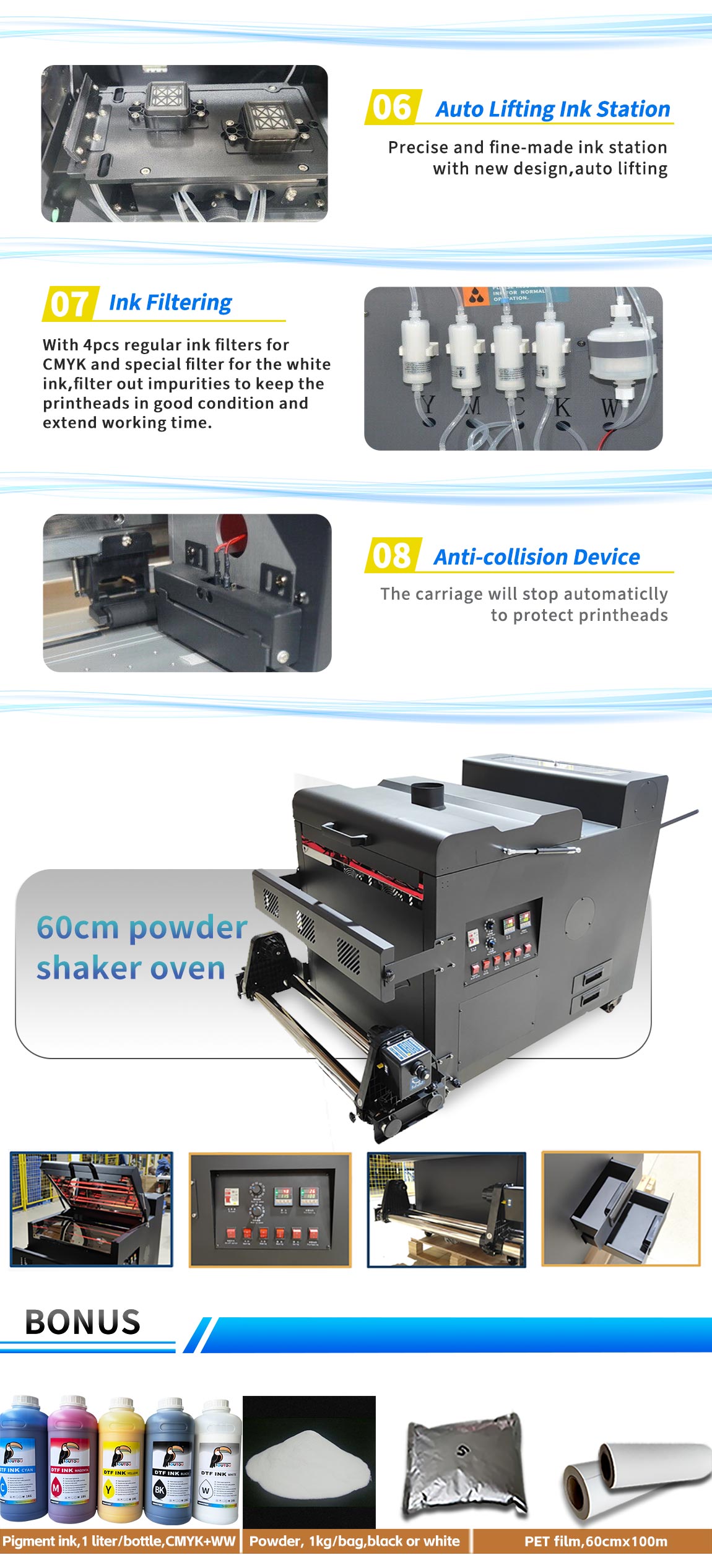

    Auto Lifting Ink Station

    Precise and fine-made ink station with new design,auto lifting

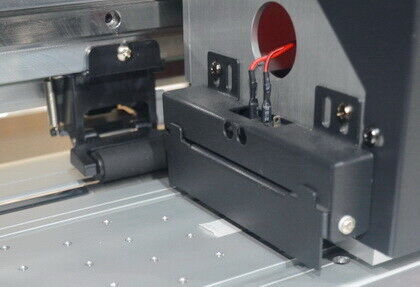

    Anti-collision Device

    The carriage will stop automaticlly to protect printhead

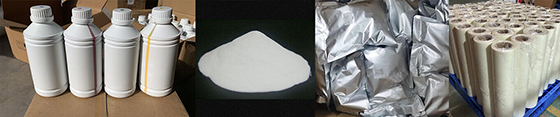

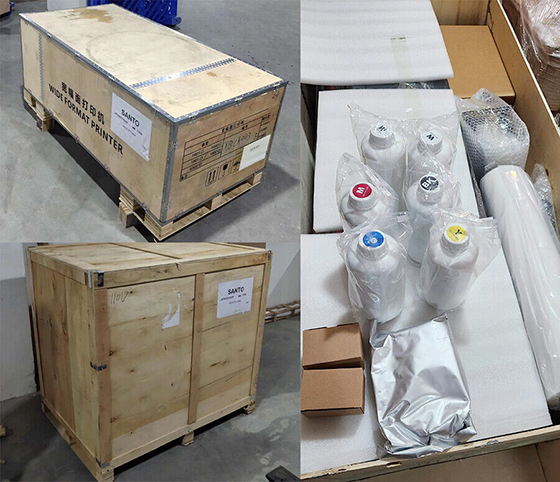

    Consumbles:


  • Pigment ink,1 liter/bottle,CMYK+W

    Powder, 1kg/bag
    PET film,60cmx100m

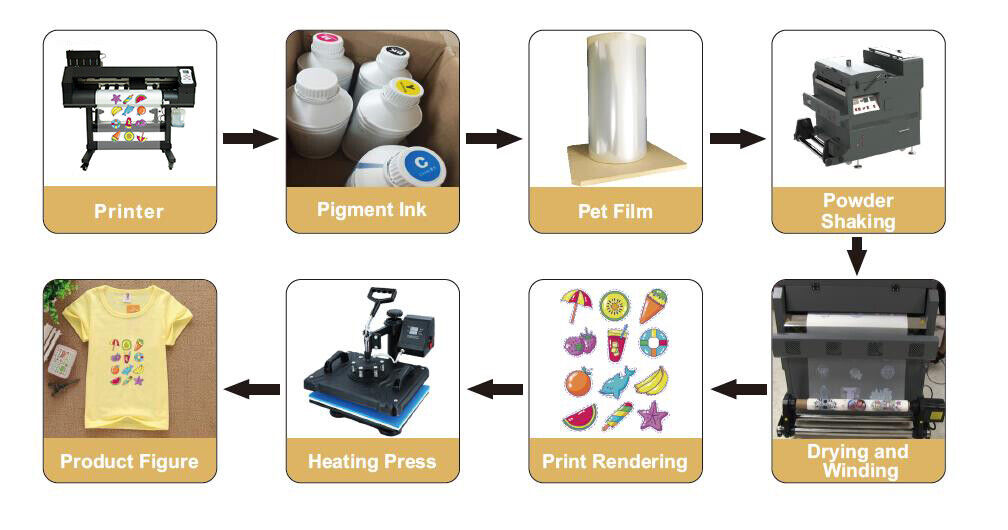

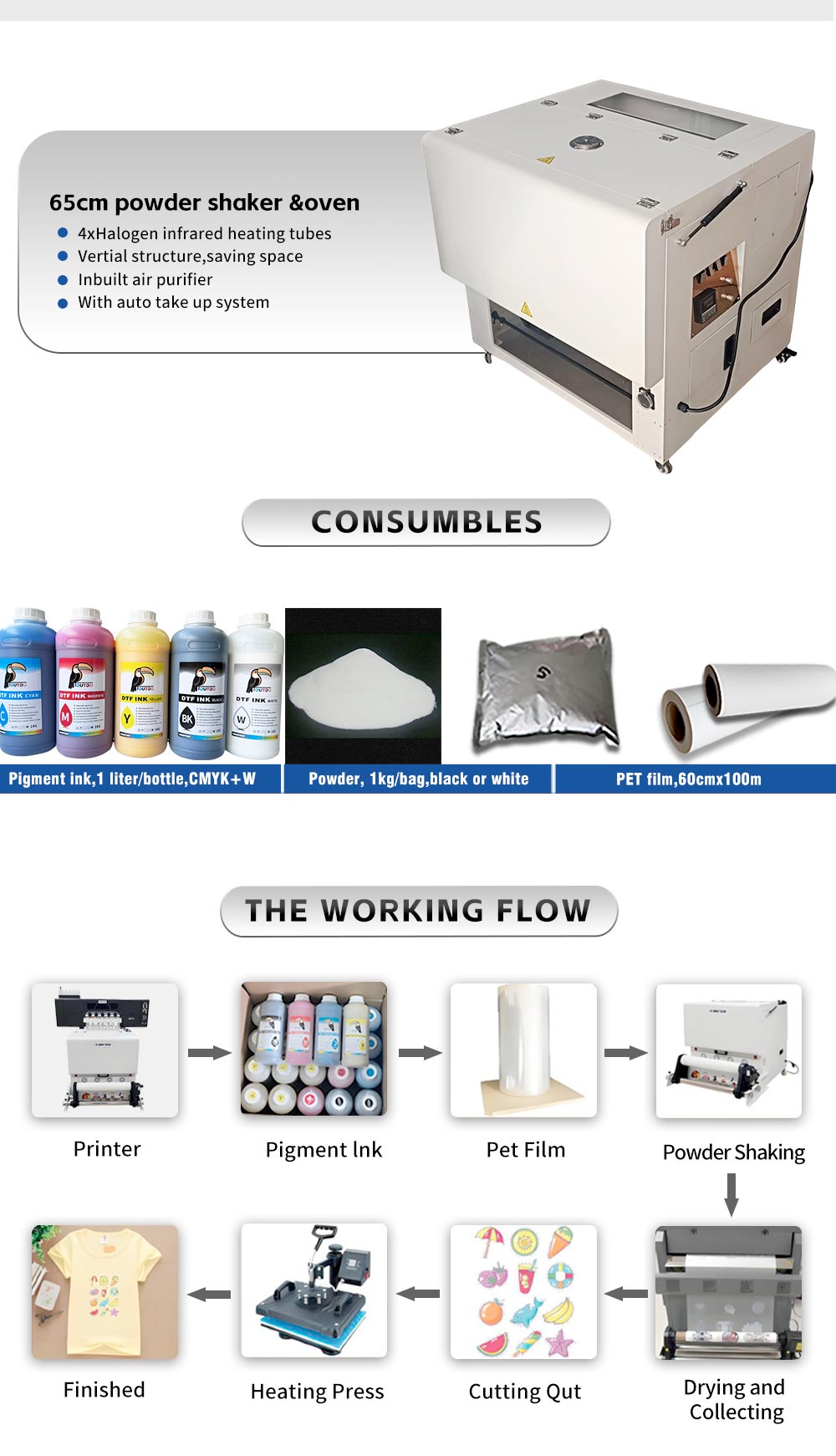

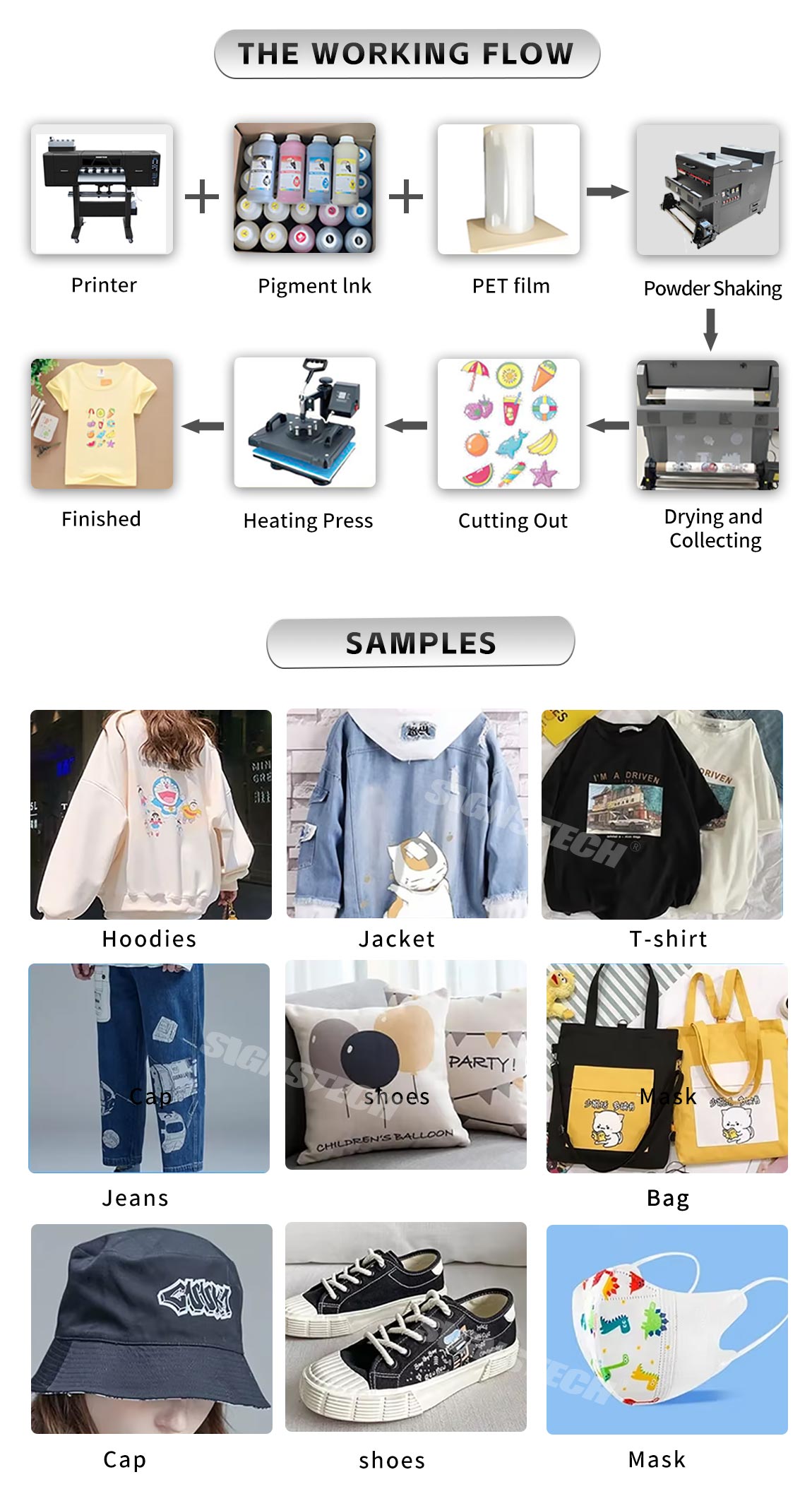

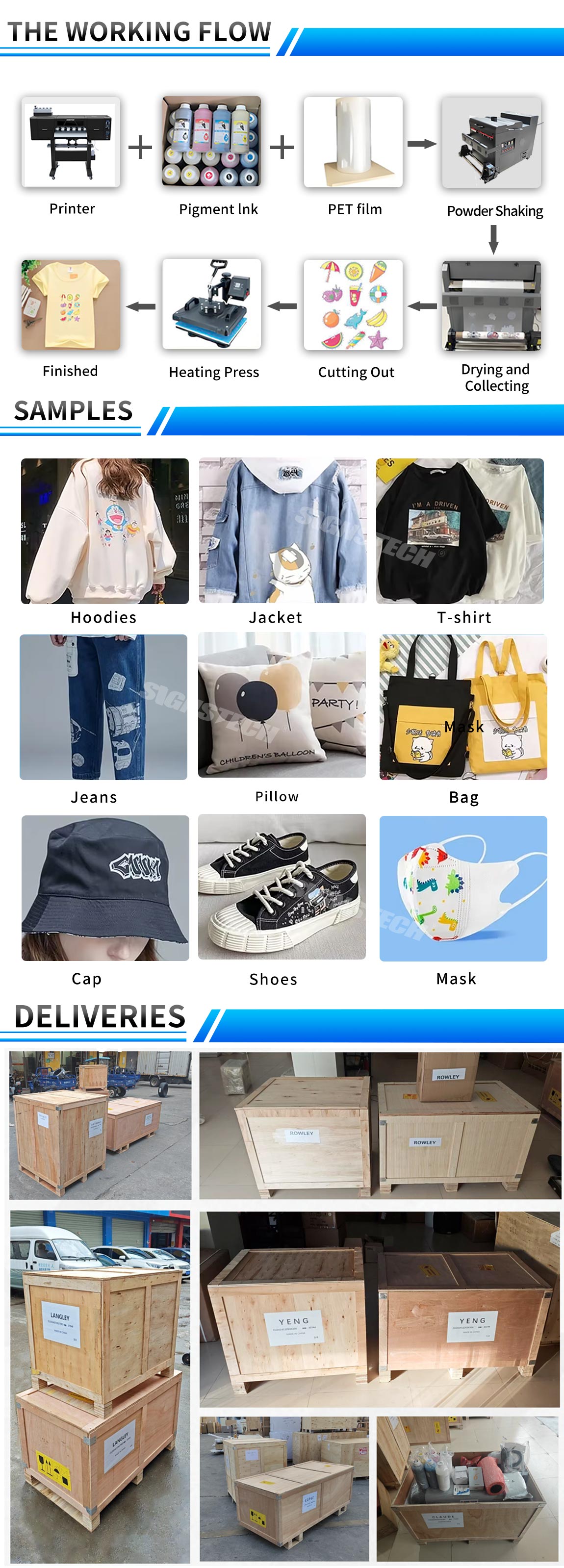

  • The working flow:
  • *We supply different sizes & types heat press

Finished with nice reslut



Samples:

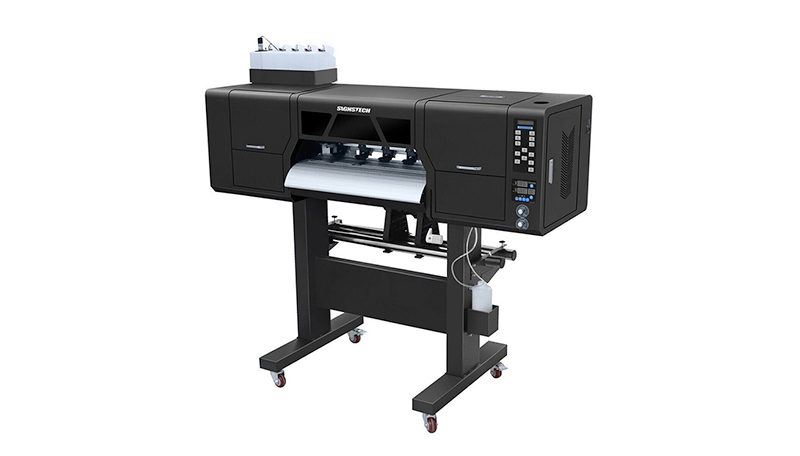

DTF Printer

Model

YC-6502

Color

Black,White,Gray

Print Head

Double Epson XP600 heads Optional I1600| I3200 heads

Colors

CMYK+W

Printing width

Max 650mm 25.6"

Resolution

Max 1080dpi | 2400dpi

Print Speed (Xp600 heads)

Production mode 10m2/hr; High quality mode: 7m2/hr

Printhead Spray

Anti-blocking flash spray and auto Moisturizing

Cleaning

Automatic

Printhead height

Adjustable 0-12mm

Inks type

Pigment ink

Media

PET film,Max load 40kg

Heating system

Pre and Past 2-stage heating

Rip software

Maintop 6.1 *Optional Photoprint

Interface

Ethernet Port

Operation System

Win10/Win7

CISS

1500ml/Color with alarm system

Voltage

AC 220 V/110V ± 10 % 60Hz  Max 1200w

Picture format

Bmp,TIF,Jpg,Pdf

Machine Size and Weight

1655mmx750mmx1550mm 138kg

Package Size and Weight

1730mmx830mmx670mm 163kg
