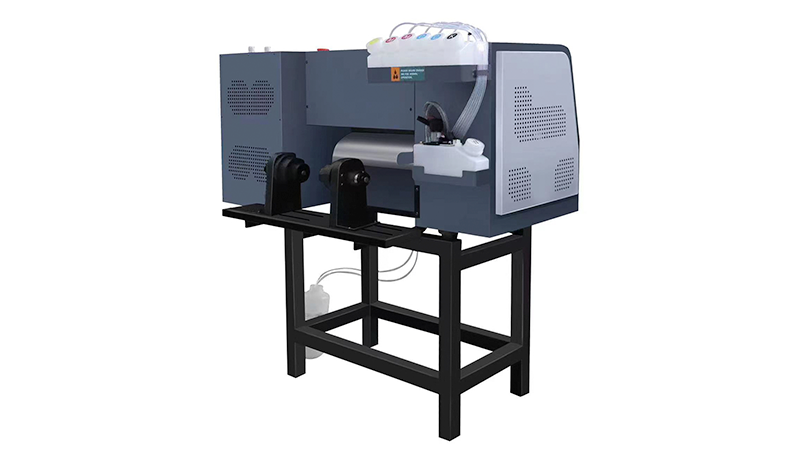

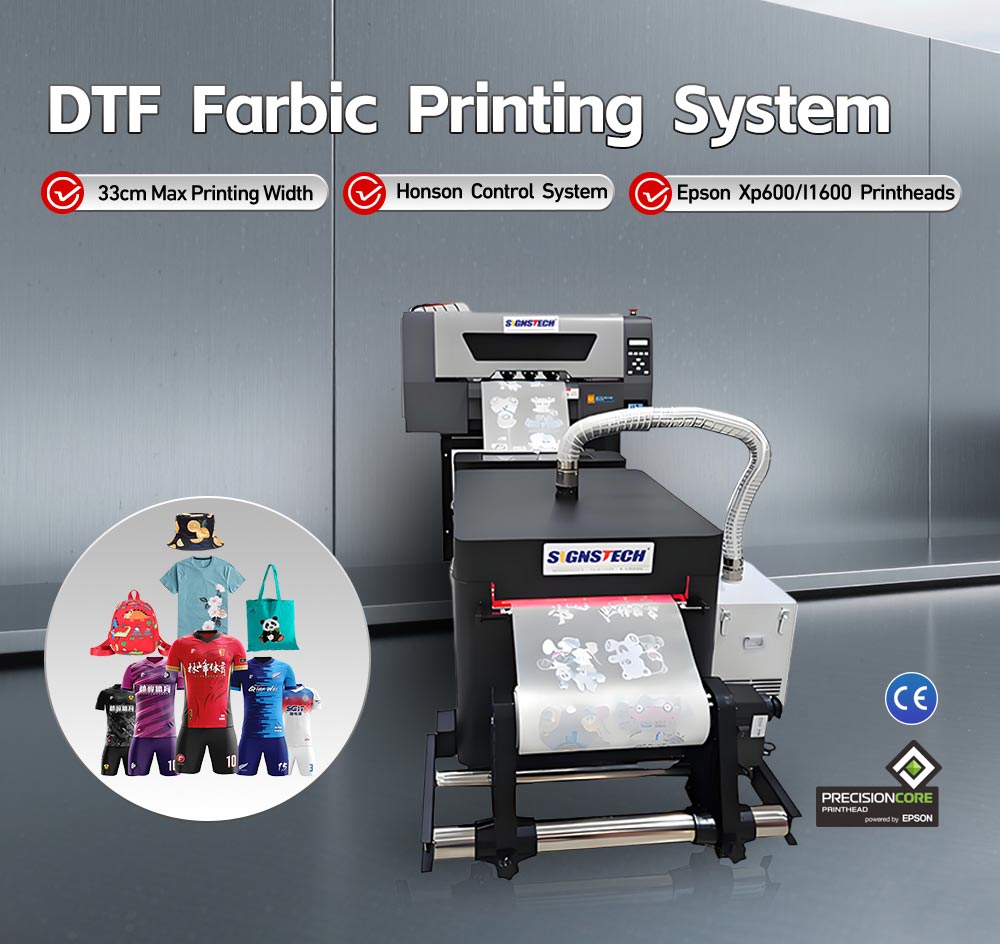

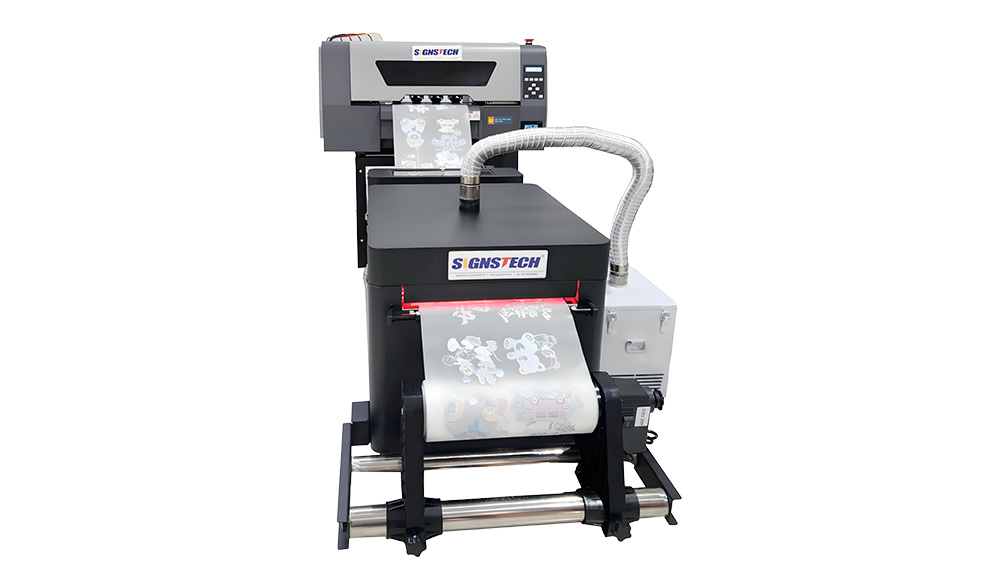

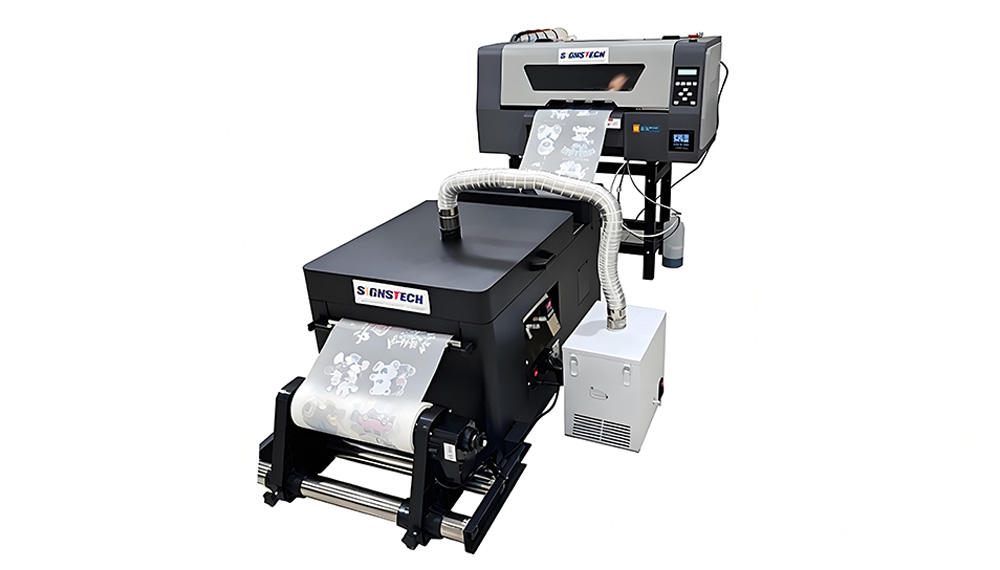

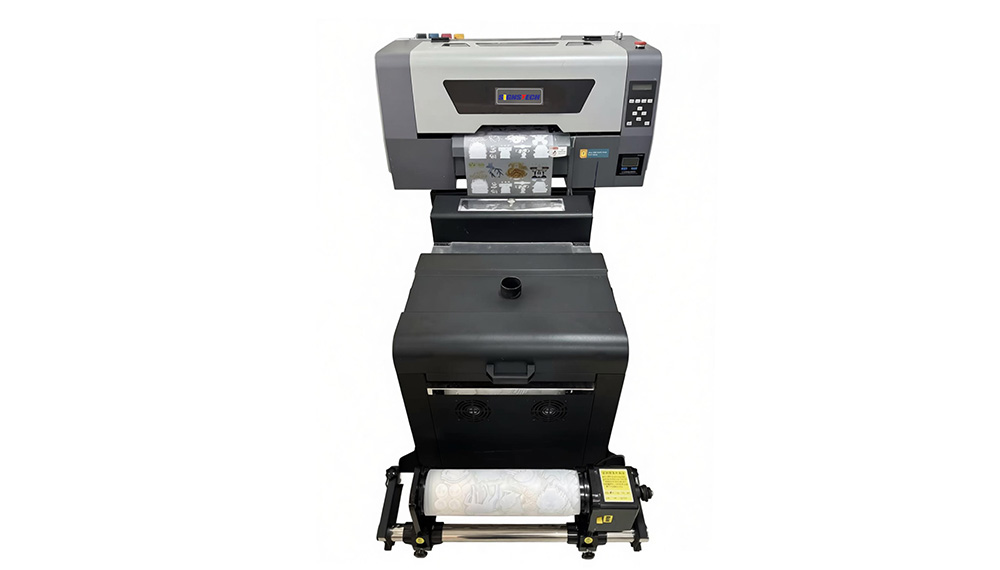

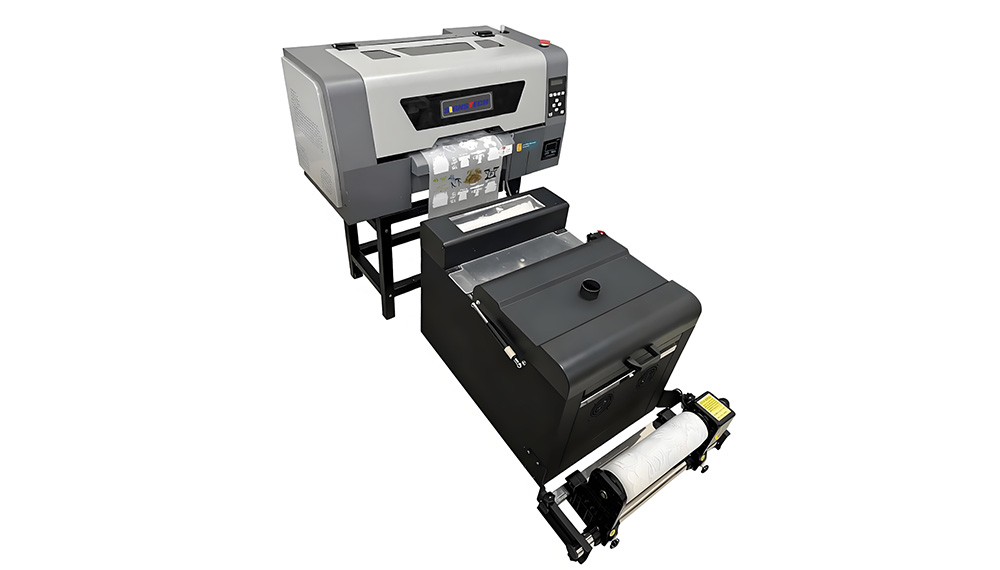

A3 33cm DTF Farbic Printing System

Model:
YC-30
Remarks:
A3+ 33cm,Double Epson Xp600 heads,Optional Epson I1600 heads.Honson Control system
BROCHURE INQUIRY NOW
Captcha

Features

Parameters

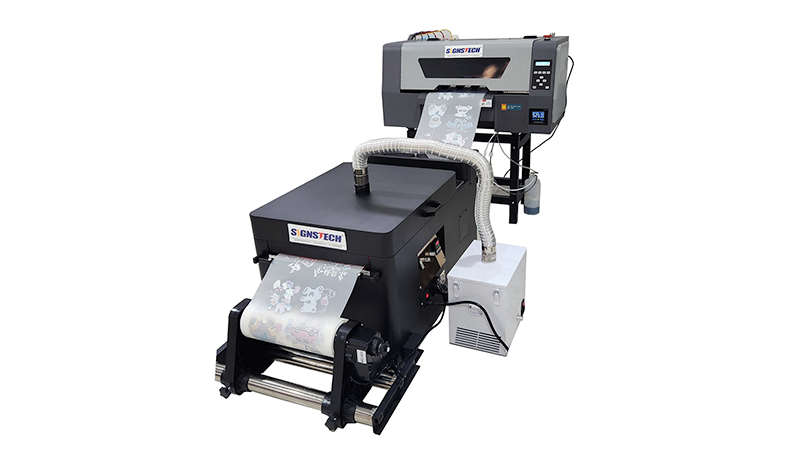

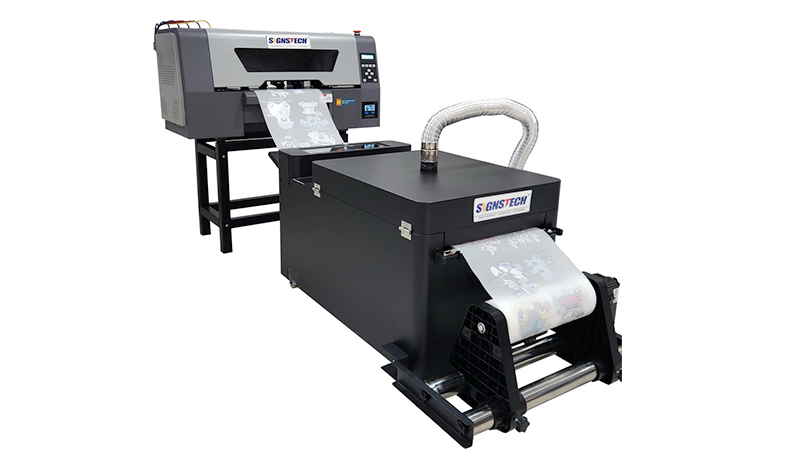

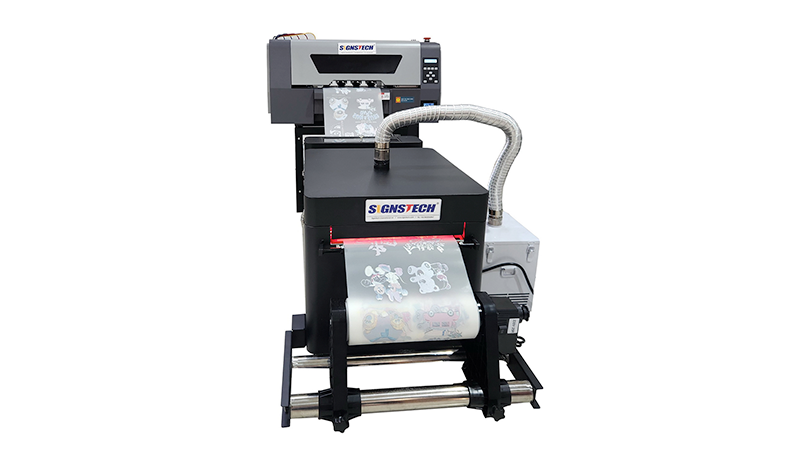

Asmart system for all fabrics printing with very wide application including a DTF printer and a powder shaker as a kit,2024 version upgraded

  • Suit for almost all kinds of fabrics and any color and any fabric type T-shirts;
  • No contour cutting needed after printing,save time and labor;
  • The average production cost is low and the output is better than common sublimation printing;
  • Auto printing,powder shaking and drying,suitable for mass production;
  • It comes with stand,consumables(ink,film,powder) for free;

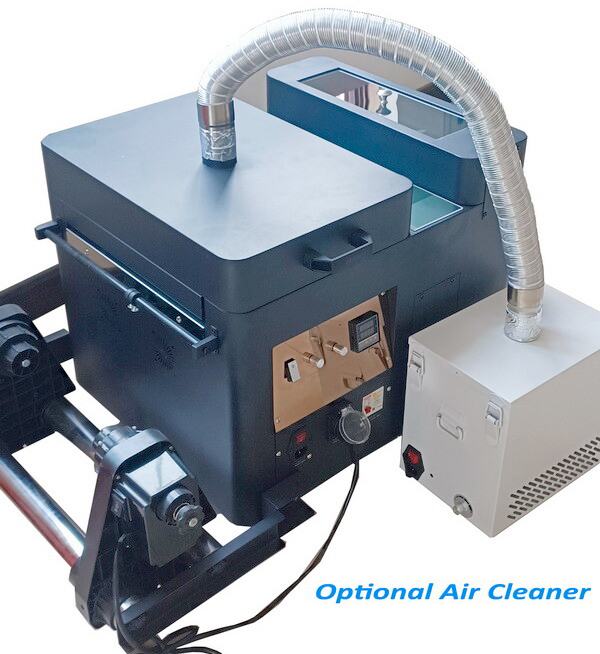

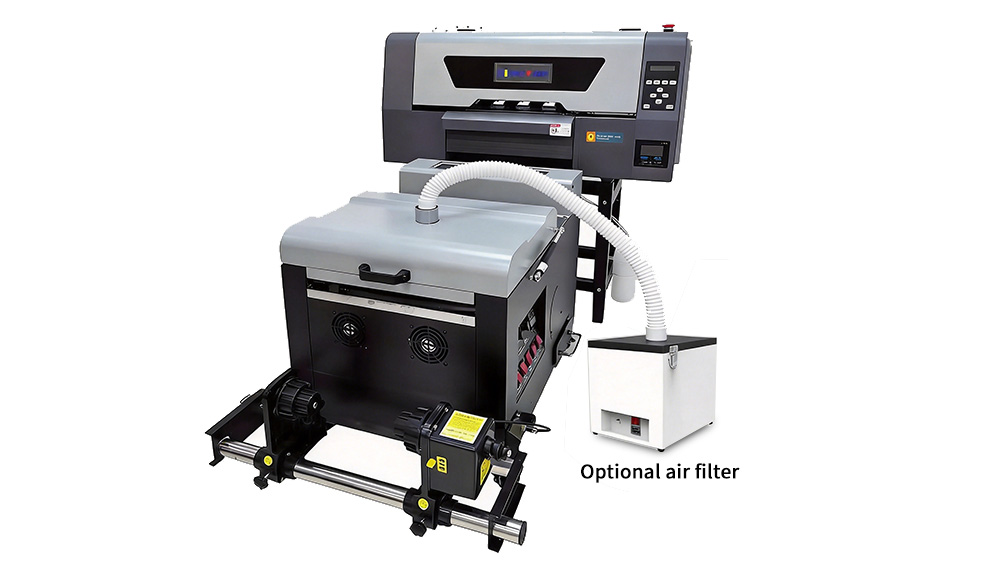

  • Optional air purifier for the powder shaker;

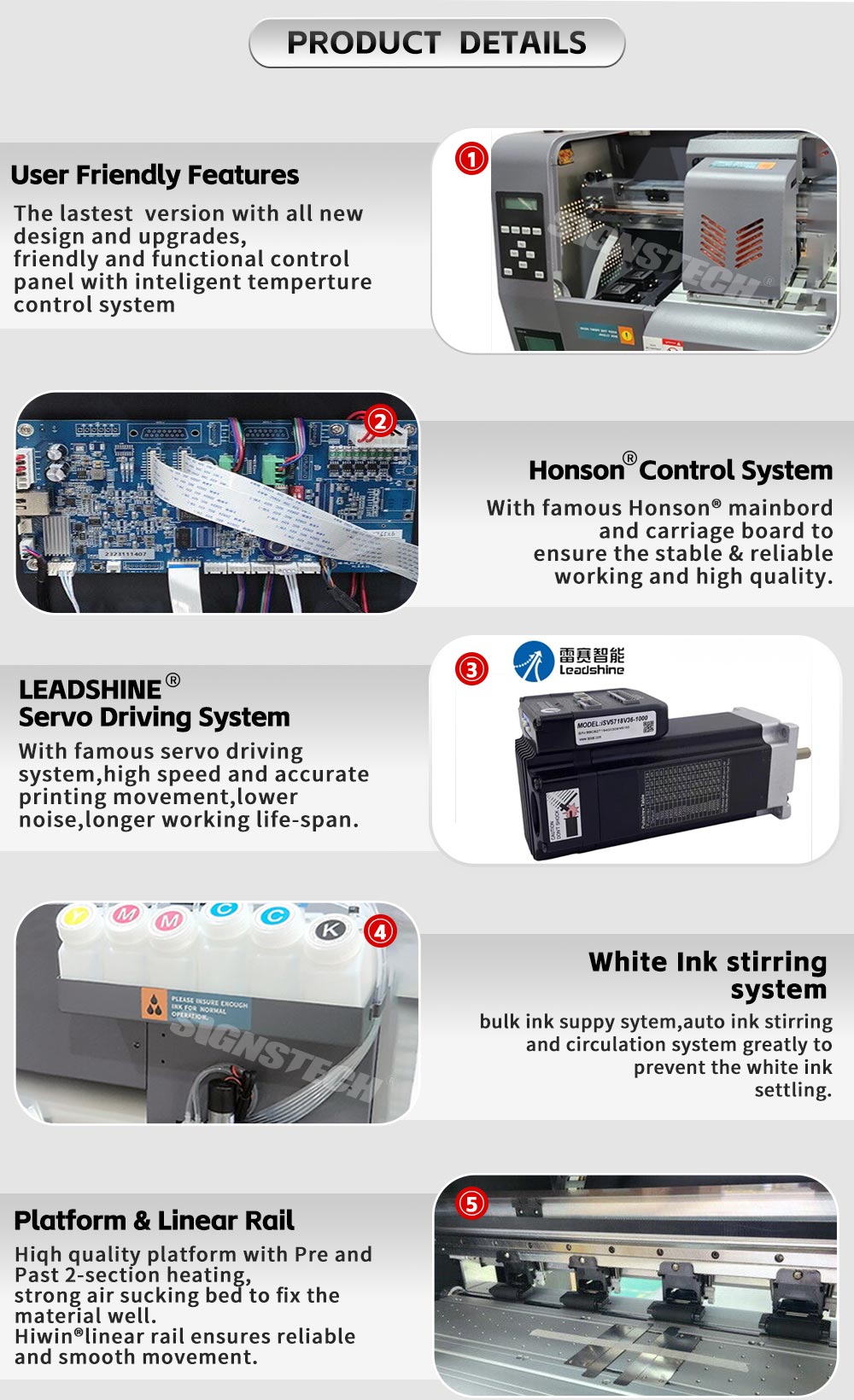

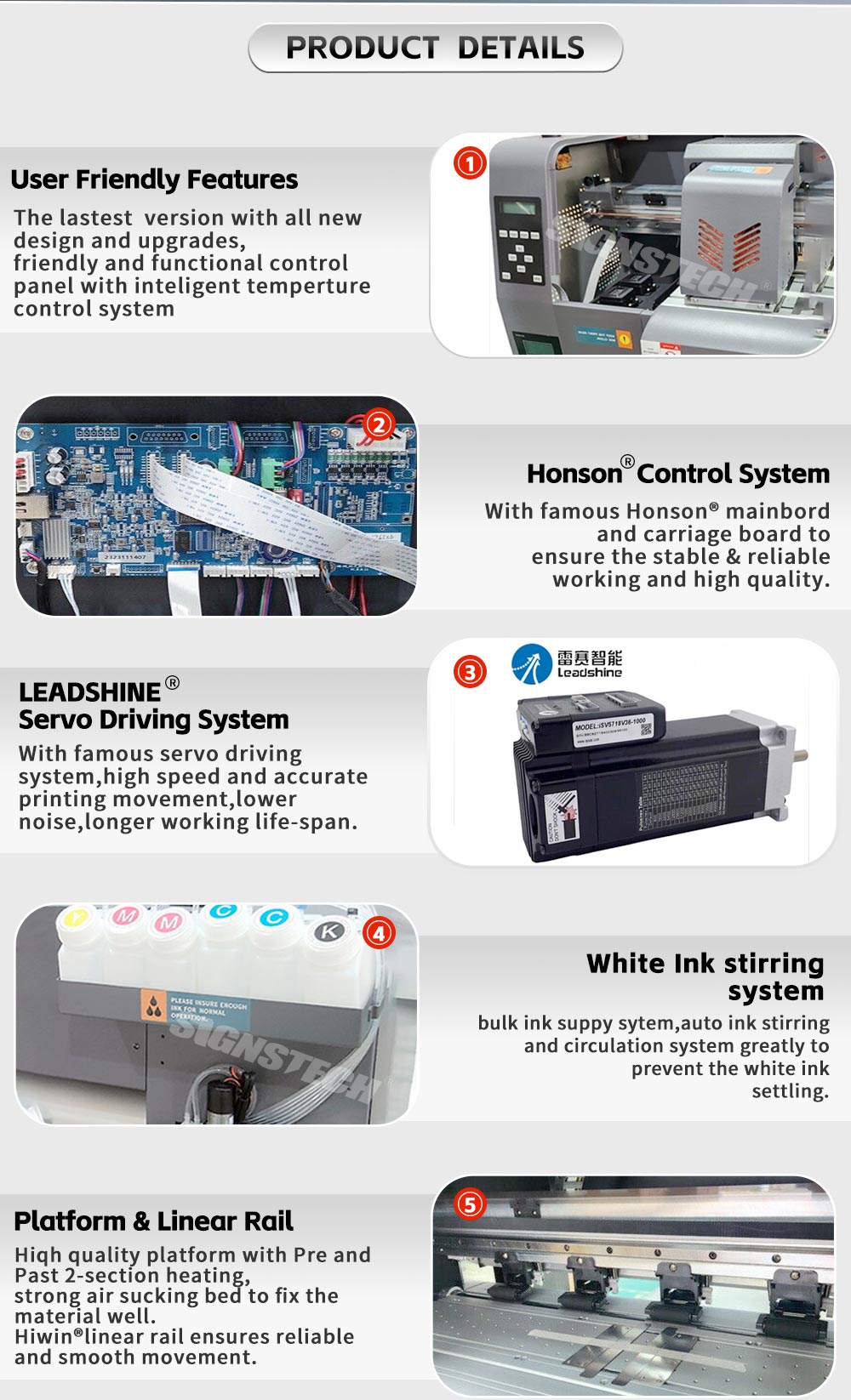

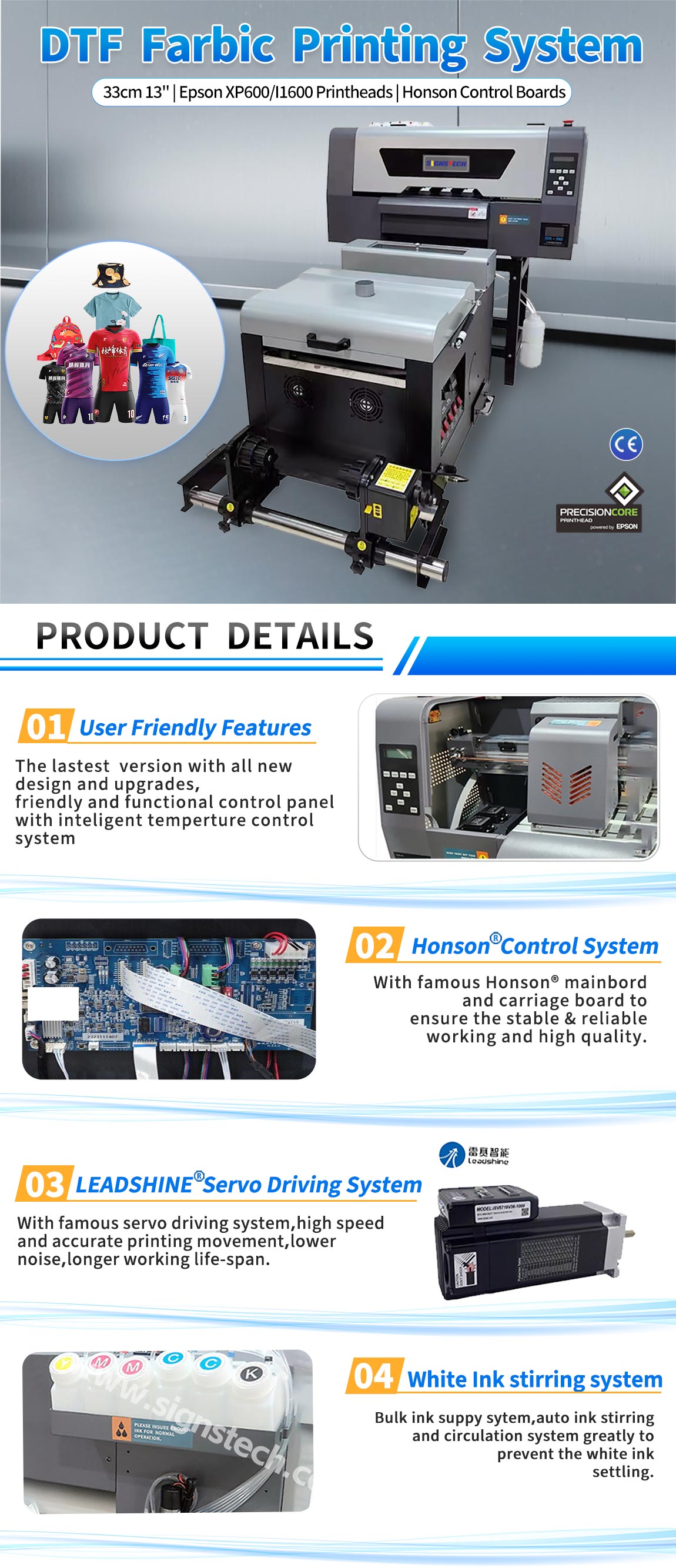

  • User Friendly Features

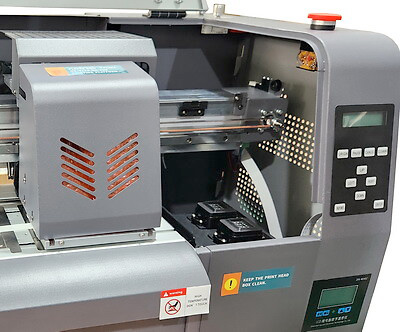

    The lastest 2024 version with all new design and upgrades,friendly and functional control panel with inteligent temperture control system

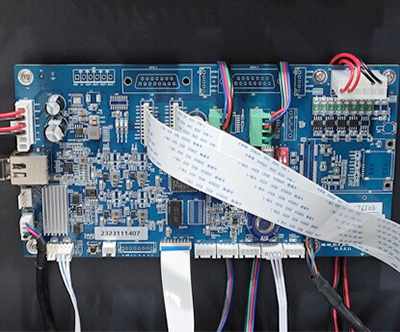

    Honson® Control System

    With famous Honson® mainbord and carriage board to ensure the stable & reliable working and hiqh quality.

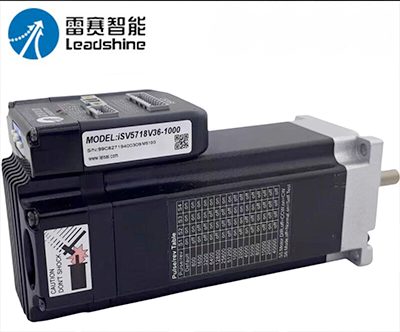

    LEADSHINE® Servo Driving System

    With famous servo driving system,high speed and accurate printing movement,lower noise,longer working life-span.

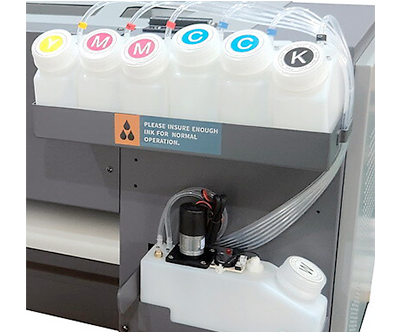

    White Ink stirrering system

    bulk ink suppy sytem,auto ink stirring and circulation system greatly to prevent the white ink settling.

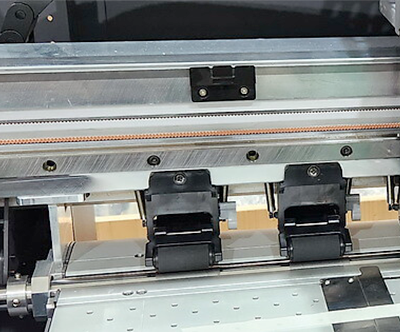

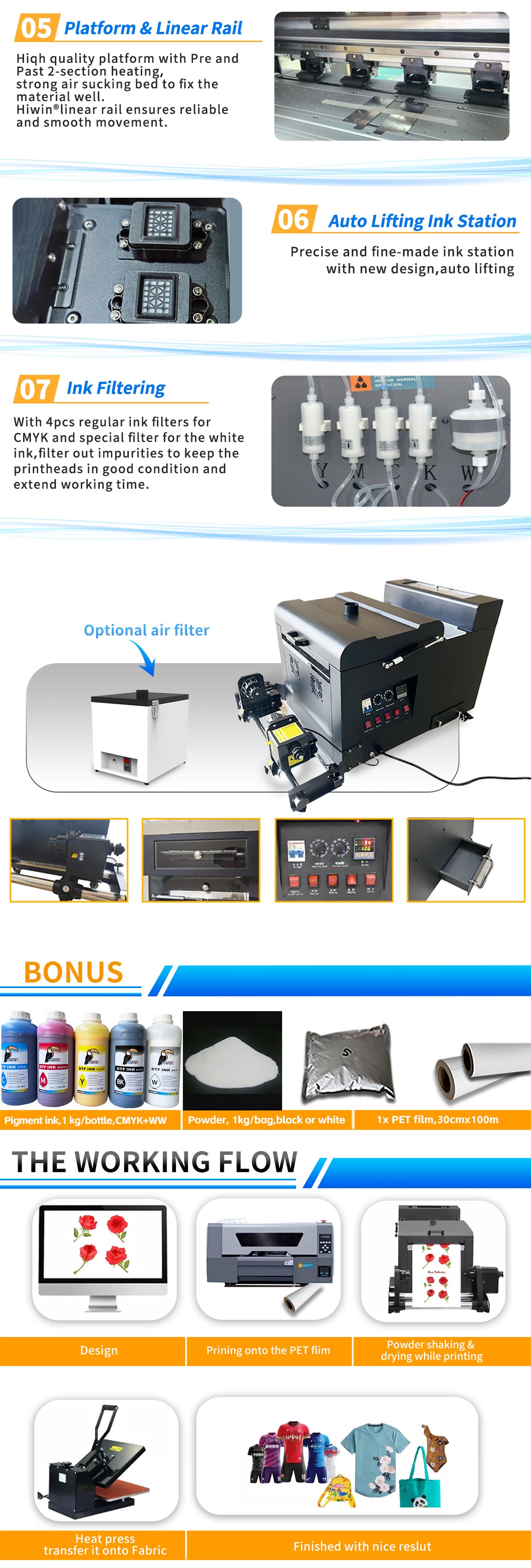

    Platform & Linear Rail

  • Hiqh quality platform with Pre and Past 2-section heating,strong air sucking bed to fix the material well.Hiwin® linear rail ensures reliable and smooth movement.

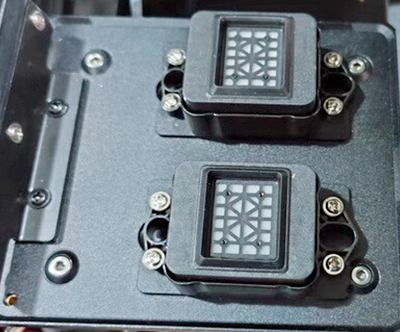

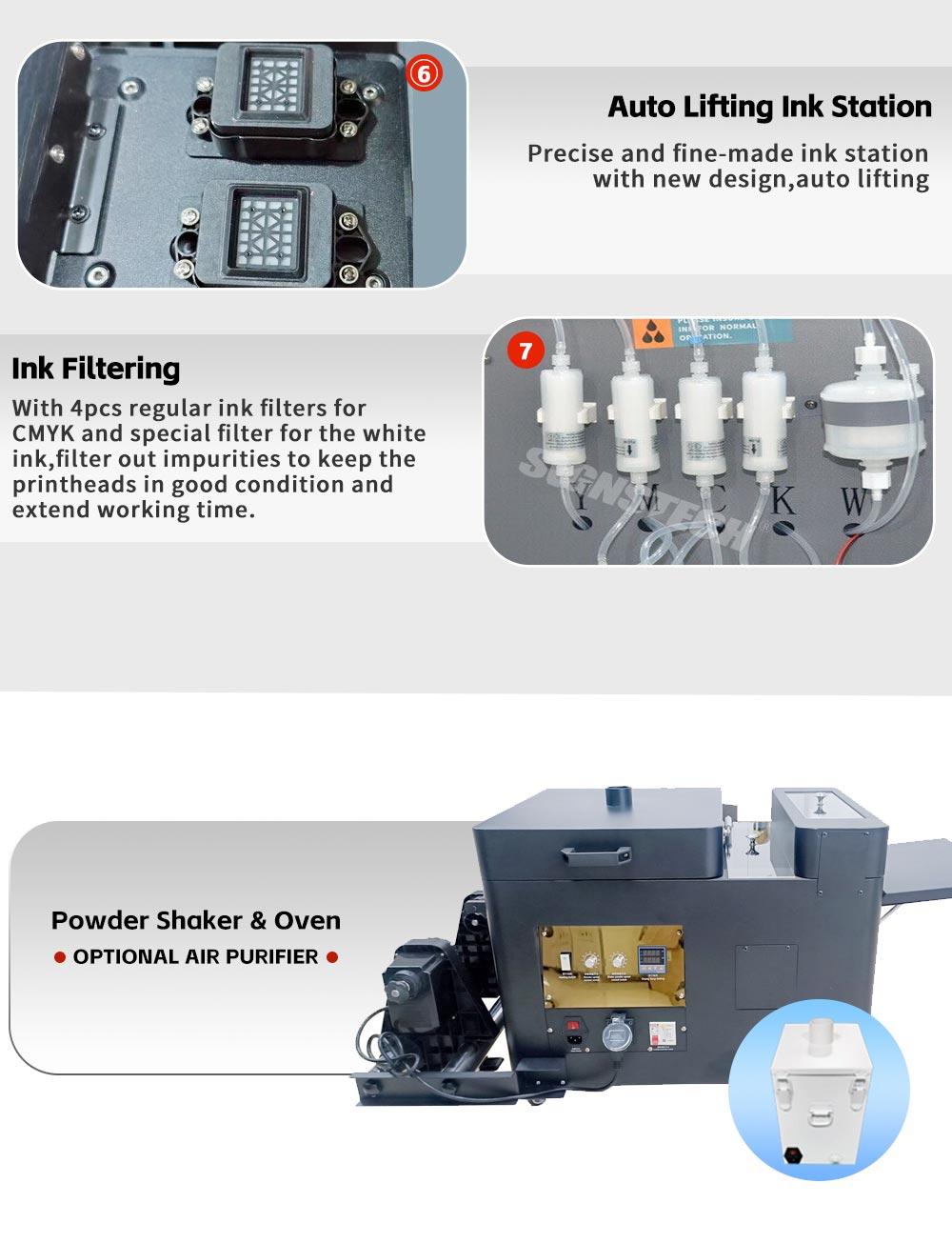

  • Auto Lifting Ink Station

    Precise and fine-made ink station with new design,auto lifting

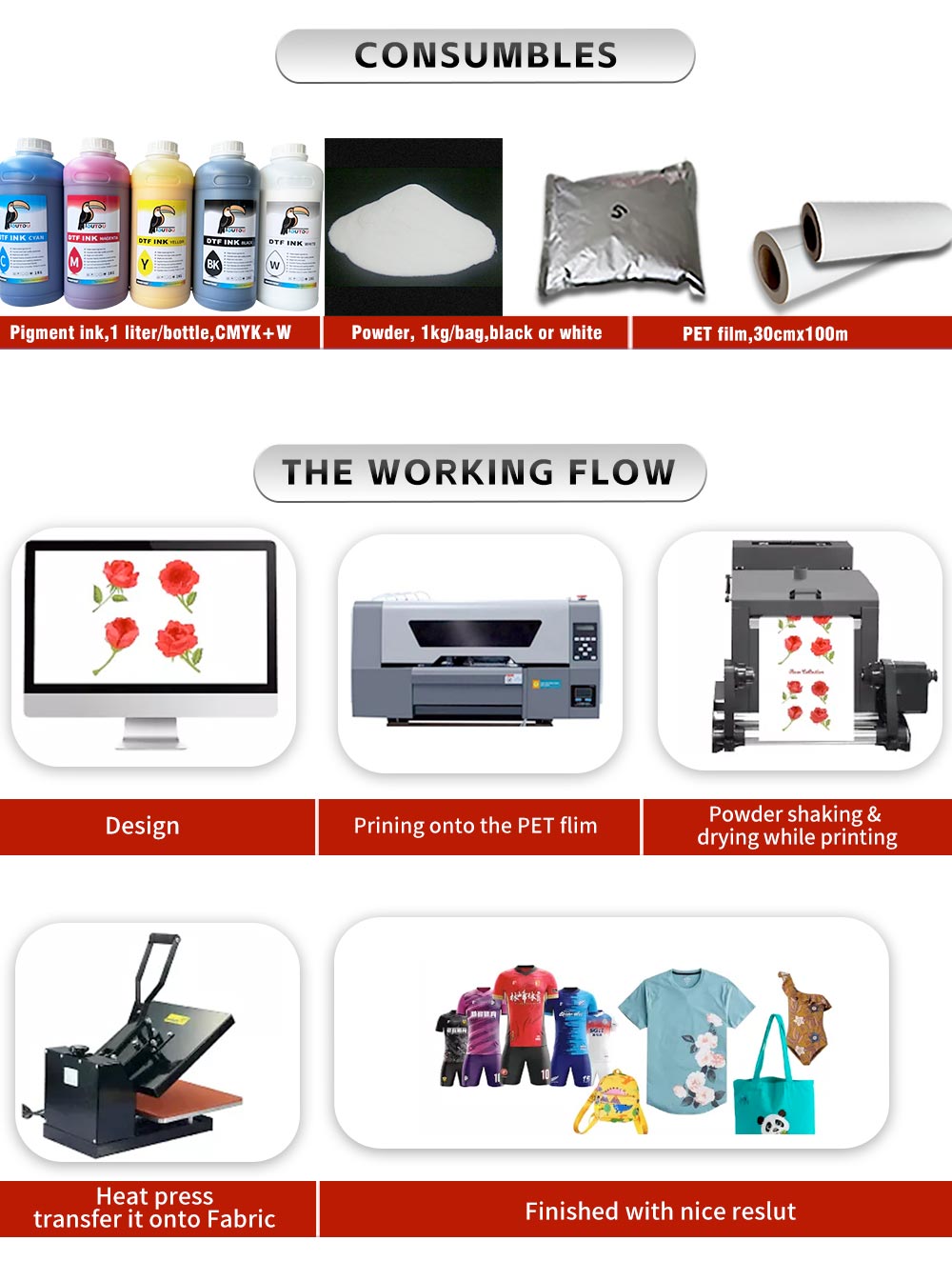

    Consumbles:



  • Pigment ink,1 liter/bottle,CMYK+W

    Powder, 1kg/bag
    PET film,60cmx100m

  • The working flow:



Design

Prining onto the PET flim
Powder shaking & drying while printing


Heat press,transfer it onto Fabric

Finished with nice reslut



Parameters:

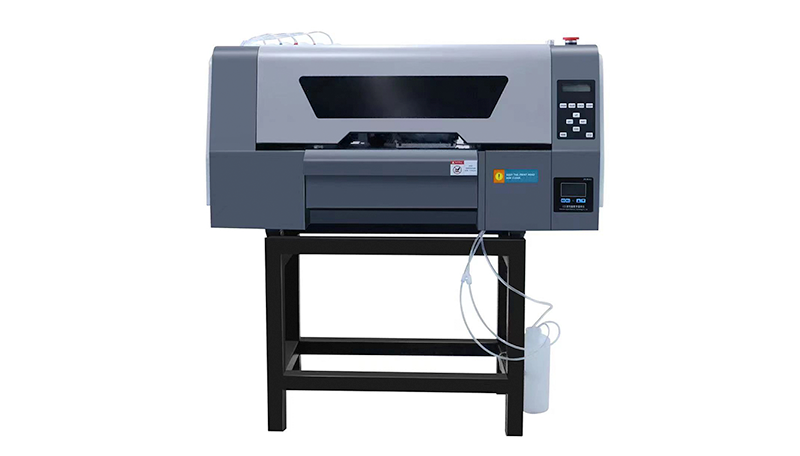

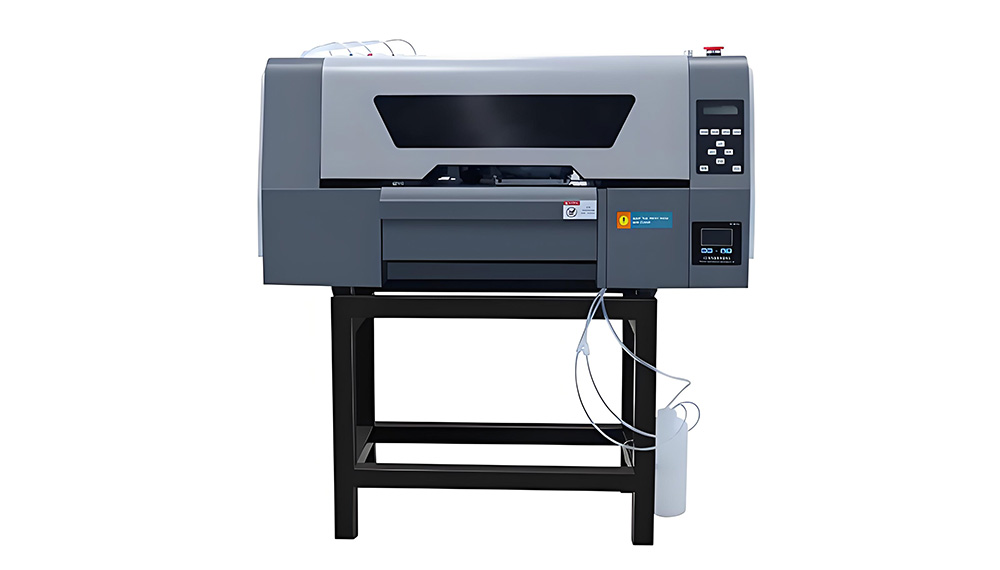

DTF Printer

Model

YC-330

Print Head

Double Epson xp600 heads,*Optional Epson I1600 Heads

Colors

CMYK+W

Printing width

Max 330mm 13"

Resolution

Max 1080dpi

Print Speed

Production mode 6m2/hr; High quality mode: 4m2/hr

Printhead Spray

Anti-blocking flash spray and auto Moisturizing

Cleaning

Automatic

Inks type

Pigment ink

Heating system

Pre and Past 2-stage heating

Rip software

Maintop 6.1uv  *Optional Photoprint

Interface

Ethernet Port

Operation System

Win10/Win7

Cartridge Capacity

500ml/Color

Voltague

AC 220 V /110V ± 10 % 60Hz  Max 1200w

Picture format

Bmp,TIF,Jpg,Pdf

Machine Size and Weight

95*50*50cm  43kg

Package Size and Weight

102*61*64cm  80kg

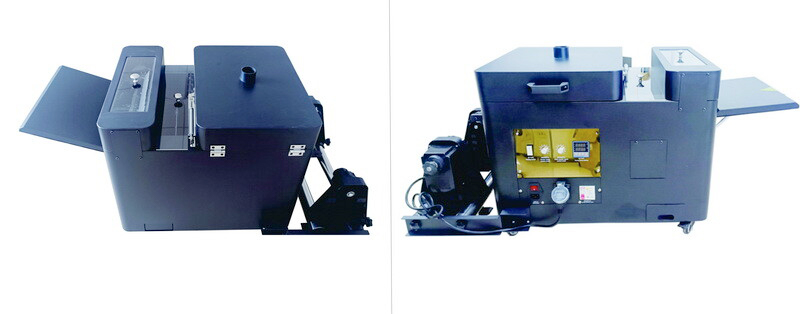

A3  Powder Shaker & Oven


Model

360L

Heating width

360mm 14.1"

The main function

Powder shaking control, dusting control, curing temperature PID setting

Heating method

4pcs 400mm halogen infrared heating pipes

Take up system

With,Automatic

Pre-Heating length

25.5cm

Roasting length

40cm

Voltage and Current

220V 8A or 110v 15.5A

Dimensions(L*W*H)

70*54*57cm  35kg

Package Size and Weight

78*61*70cm ,50kg


Optional air purifier 120$*
