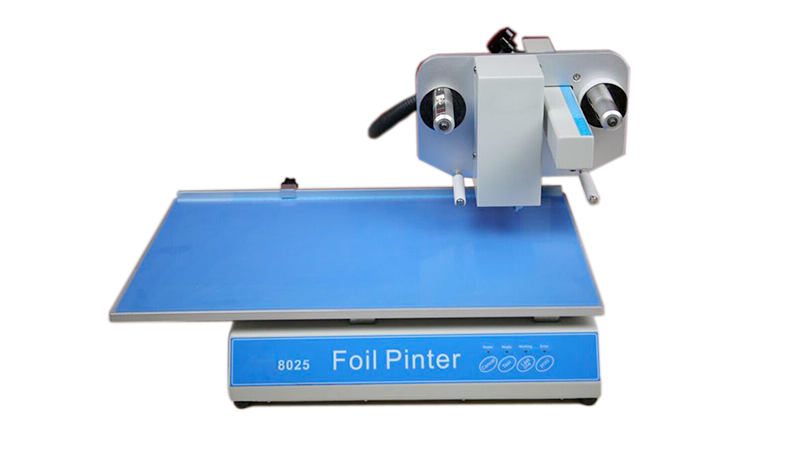

Flatbed Hot Foil Stamping Machine

Model:
FP-8025
Remarks:
Economic version,Printing size: 250mmx57mm,High resolution, 300dpi
BROCHURE INQUIRY NOW
Captcha

Features

Parameters

The most newly design, completely replaced the traditional foil press machine.

With Japanese original ROHM print head, long printing life (150000M)

Can work off PC,No need to make dies& plates, cost-efficient and time-saving.

High resolution 300dpi, Can print any complex pattern, words, photos and so on.

Figure small and save space, light weight and convenient to move.

Maximum thickness admit is up to 50mm, the usage range is very wide.

Foil printing any artworks and words on unsmooth cardboard and leather.

The foil printing speed can be adjusted according to the different materials and processing spots.

  1. Simple to operate and easy to understand.
  2. Low power and electricity saving.
  3. Multi-color are available, such as gold, sliver and the other full colors.

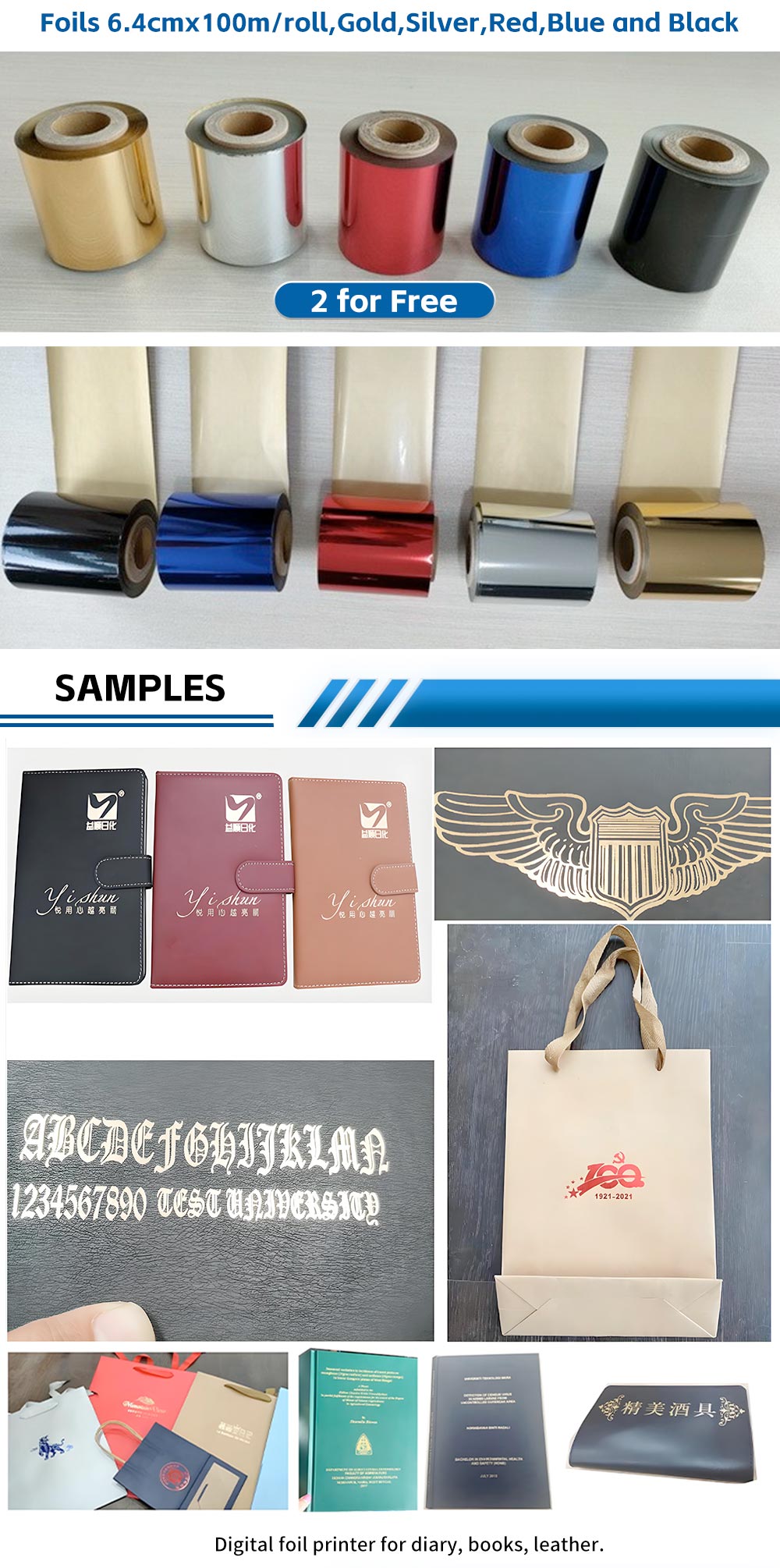

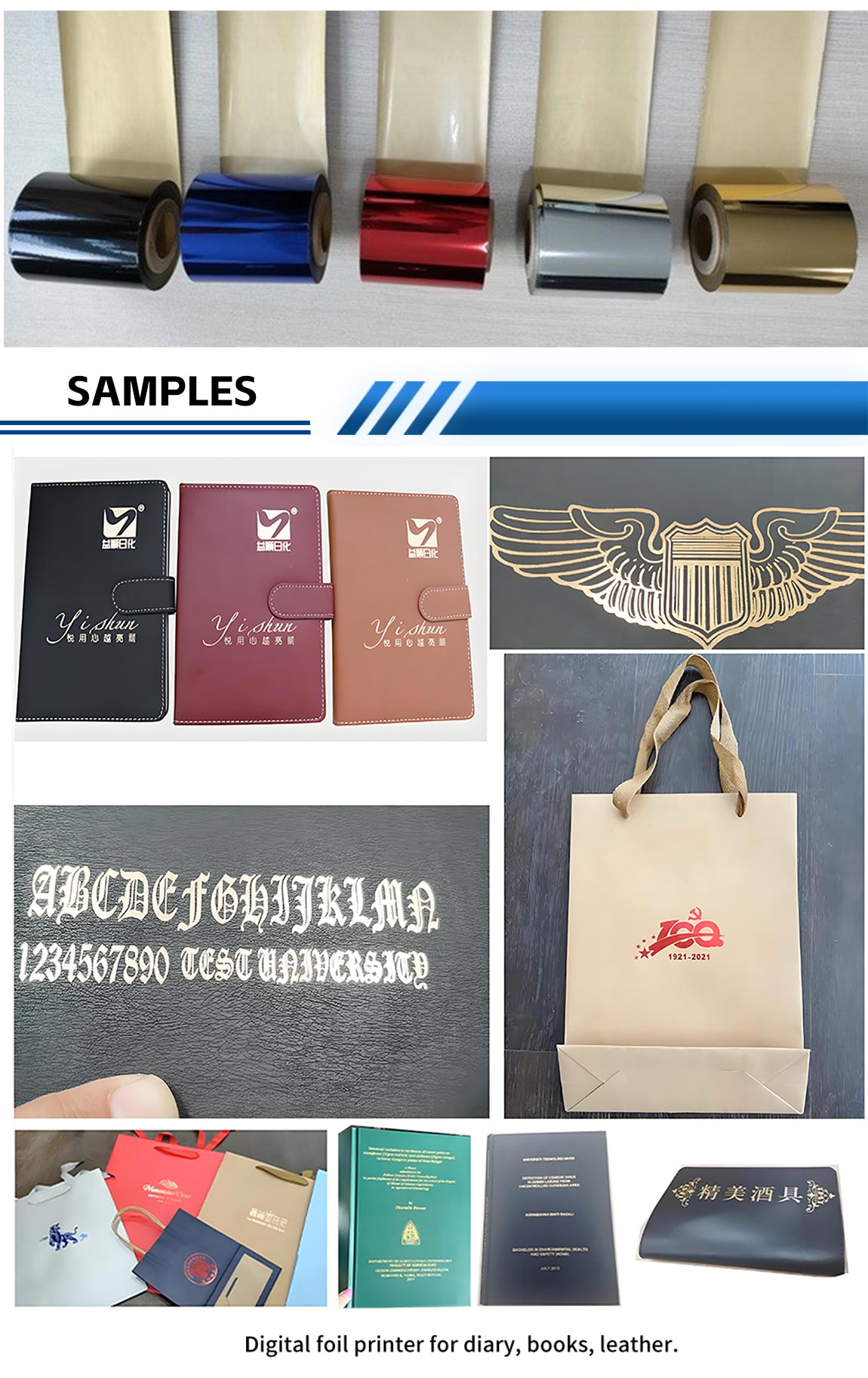

Print Effect and Samples



rint Effect and Samples:





Model

FP-8025

Interface

USB 2.0, offline printing

Max printing length

250mm

Max printing width

57mm

Max thickness admits

30mm

Max feeding width

400mm

Foil

64mmx100m/roll,Gold,Silver,Blue,Red,Black colors

Speed

20-50mm/s

Print head span

150000m

Operation system

WinXP,Win7,Win8,Win10

Resolution

300dpi

Power

150W

Power source specification

AC 110-240V   50/60HZ

Machine size

620mm x 530mm x 330mm

Packaging size

640mm x 630mm x 410mm

GW/NW

35KG/24KG

Medium types

Paper, pvc, pu, leather, adhensive paper, Cardboard, fabric, plastic, rbbon, film, vinyl, Pet, etc
