Handheld Fiber Laser Welding Machine

Model：
A120/A150/A200
Remarks：
1200W/1500W/2000W fiber laser with auto wire feeding,able to weld almost all kinds of metallic materials
BROCHURE INQUIRY NOW
Captcha
Submit

Features

Parameters


The Signstech Handle Fiber Laser Welding Machine is a flexible welding machine. It is able to weld almost all kinds of metallic materials such as

brass, copper, aluminum, stainless steel. is widely applied to the welding of kitchen ovens, sheet metal industry, hardware , channel letters welding.



Advantages：

1.Easy to learn and run, taking small place,no need professional welding technician.

2.Low maintenance cost,No computer ,No consumable auxiliary material or gas.

3.It is is 5~10 times faster than the traditional welding, one machine is equal to 2 labors at least.
4.The welding joint is smooth and precise, small heat-affected zone
5.Flexible multi-angle welding.


Features:

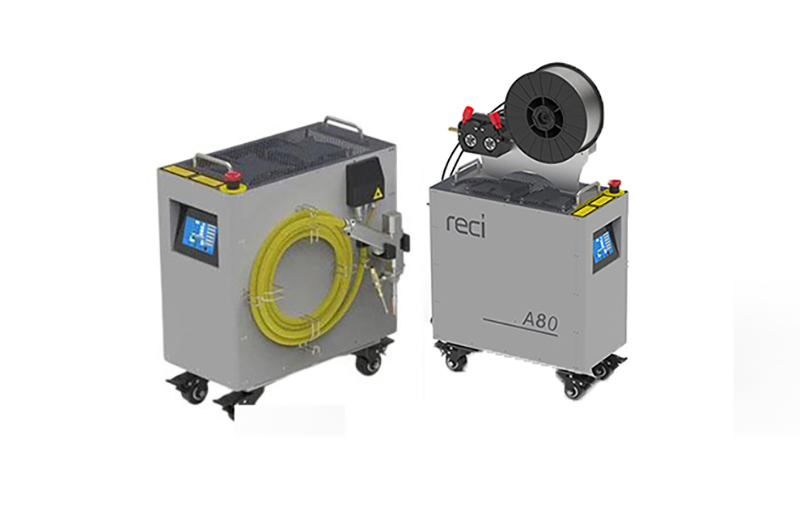

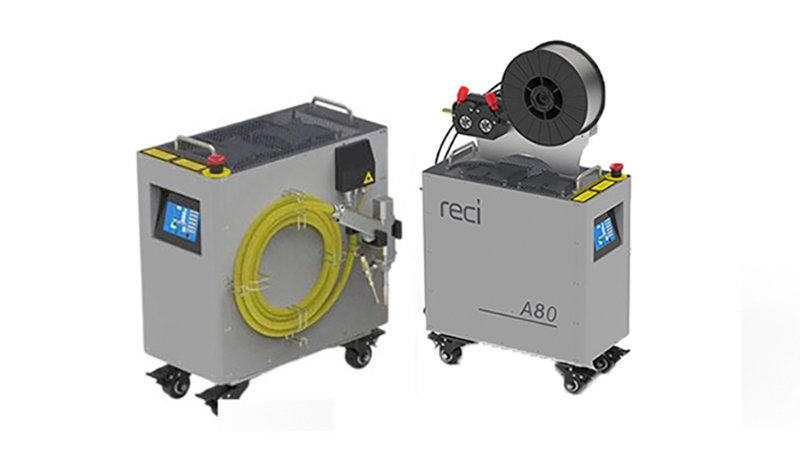

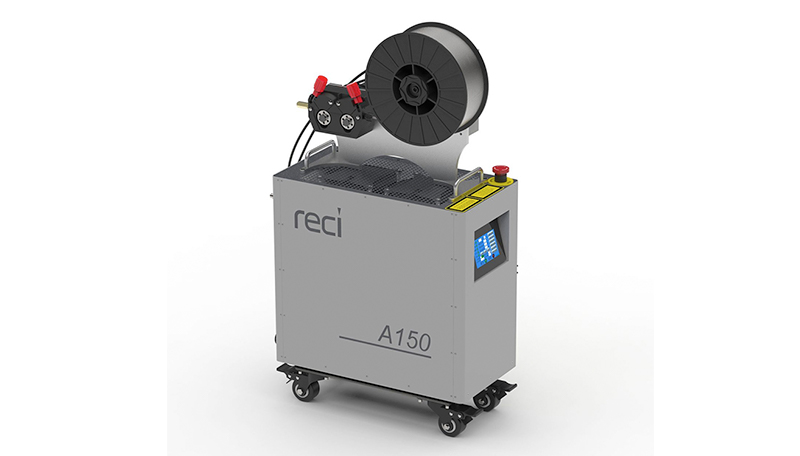

Integrated Cabinet
1. Integrated design to save work space
2. Convinient to operate it and change welding parameters
3. Easy to move the complete machine to any where in workshop

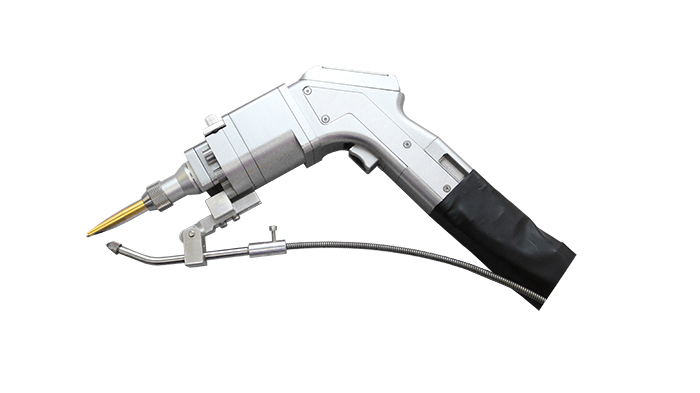

Standard Welding gun
1. Galvanometer width adjustable, beam width 0.5-6mm
2. Dedicated welding tip for welding at anyposition and angle
3. Infrared positioning, more accurate welding position

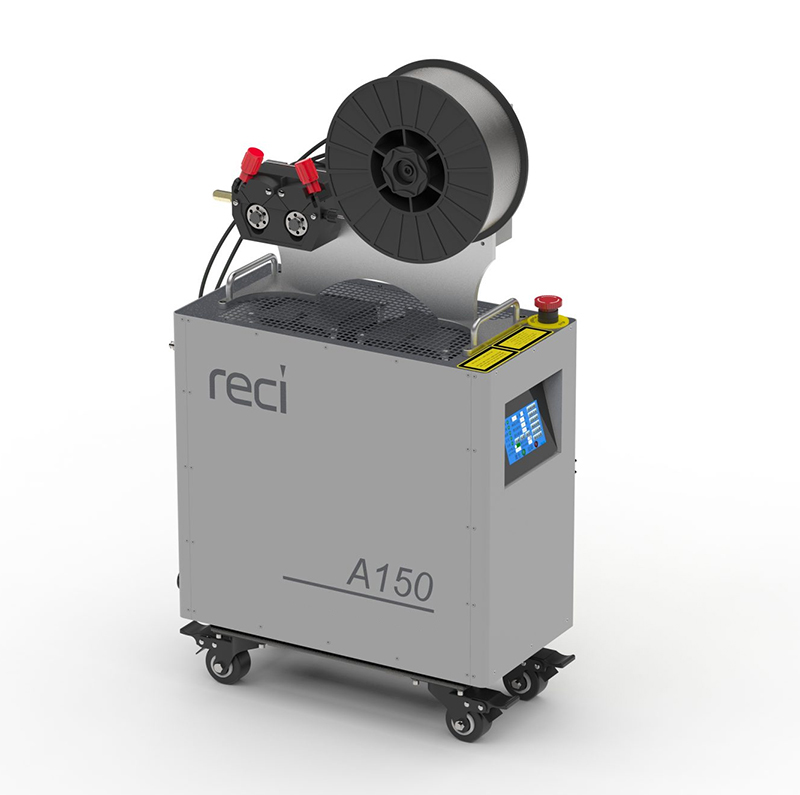

Free wire feeding device
1. Auto feeding welding wire when the welding head is working.
2. Get stronger welding
3. Total free,with one roll welding wire

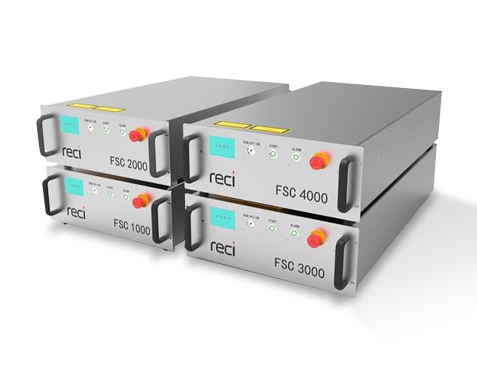

Laser source
1. 1000W, 1500W, 2000W Reci laser source, Famous brand, high performance
2. 50um fiber core diameter, higher electro-optical coversion dfficiency
3. High beam quality and strong system stability

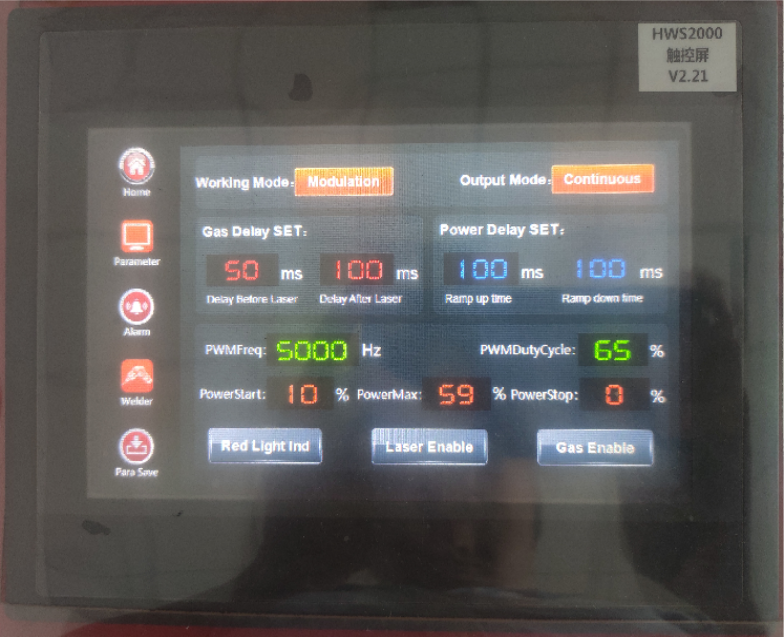

Control system
LCD touch screen, good interactive control system
Preset multiple process modes to meet different processing
Preset multiple security alarms, more secure and reliable

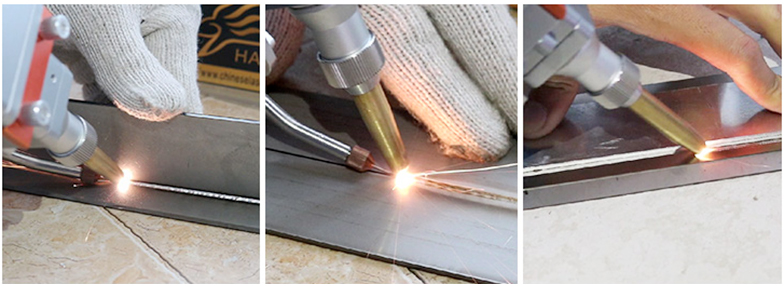

Work Processing for reference

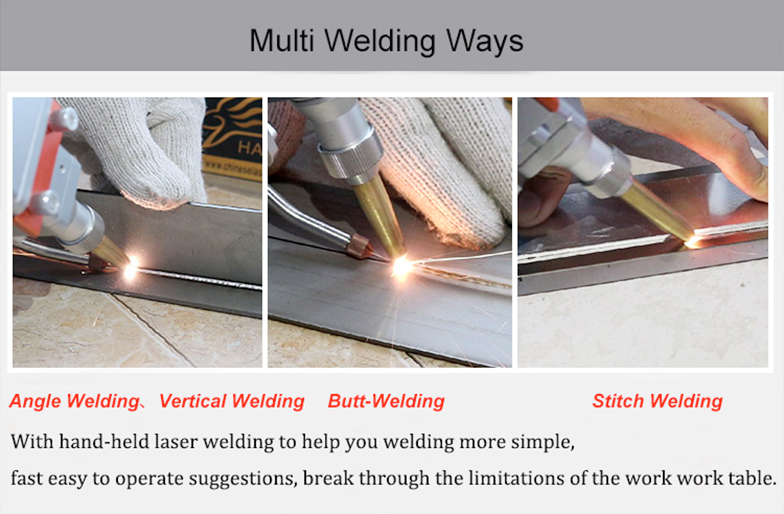

With hand-held laser welding to help you welding more simple, fast, easy to operate Suggestions, break through the

limitations of the work table.




Used for welding joint position checking and welding position verifcation, welding position is more accurate,simple operation, two hours

training can be on duty, no old master can also weld beautiful products.

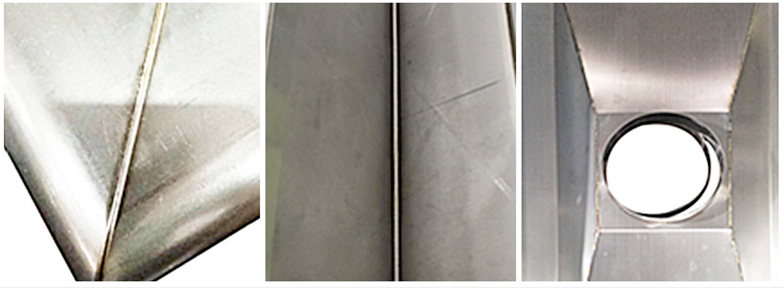

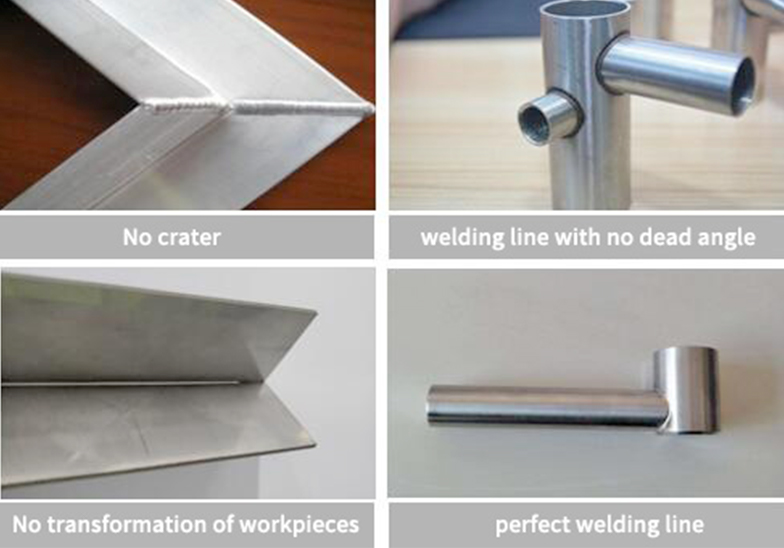

Welding samples:


Model

A120
 A150
 A200

Limit Power

1000W
 1300W
 1800W

Maximum Power

1200W
 1500W
 2000W

Operating Mode

Continuous Welding & Spot Welding

Polarization Direction

Random

Output Power Adjustment Range

10~100%

Central Wavelength

1080±3nm

Power attenuation after 1 hour of continuous operation

<2%

Maximum Modulation Frequency

5Khz

Indicating Red Light Power

≥0.2mW

Output Fiber Core Diameter

20μm

Output Armored Cable Length

Default 5m

Operating Voltage

AC 220v/110v, 50/60Hz

Maximum Power Consumption (W)

<3100W
 <4100W
 <6000W

Control Method

Touch Screen

Dimension (Wx Hx D) mm

273*64.9×527.7
 273*634.1×527.7
 323x684.2x629

Weight

41kg
 43kg
 58kg

Operating Temperature

-30~40°℃

Operating humidity

≤90%

Cooling

Air

Storage Temperature

-10~60°℃

Input Gas Pressure

≤0.7MPa

Gas assistance

Nitrogen, Argon, Composite Gas

Welding Gun

With

Wire Feeder

With

Welding Wire

One Coil for Free



Items

Fusion of depth

Power options

Stainless steel
 Carbon steel
 Aluminum

1000W

1mm
 1.5mm
 0.5mm

1500W

2mm
 2mm
 1mm

2000W

3mm
 3mm
 2mm
