1.Digital slotting adjusting system instead of adjusting the slotting depth by manual.
2.Origin Leetro control system, Fast bending speed ,one time forming.7.With high quality encoder, high reliability, long lifetime and strong anti-interference performance.
|
Features: |
|
|
|
 |
|

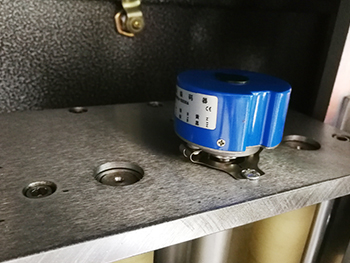

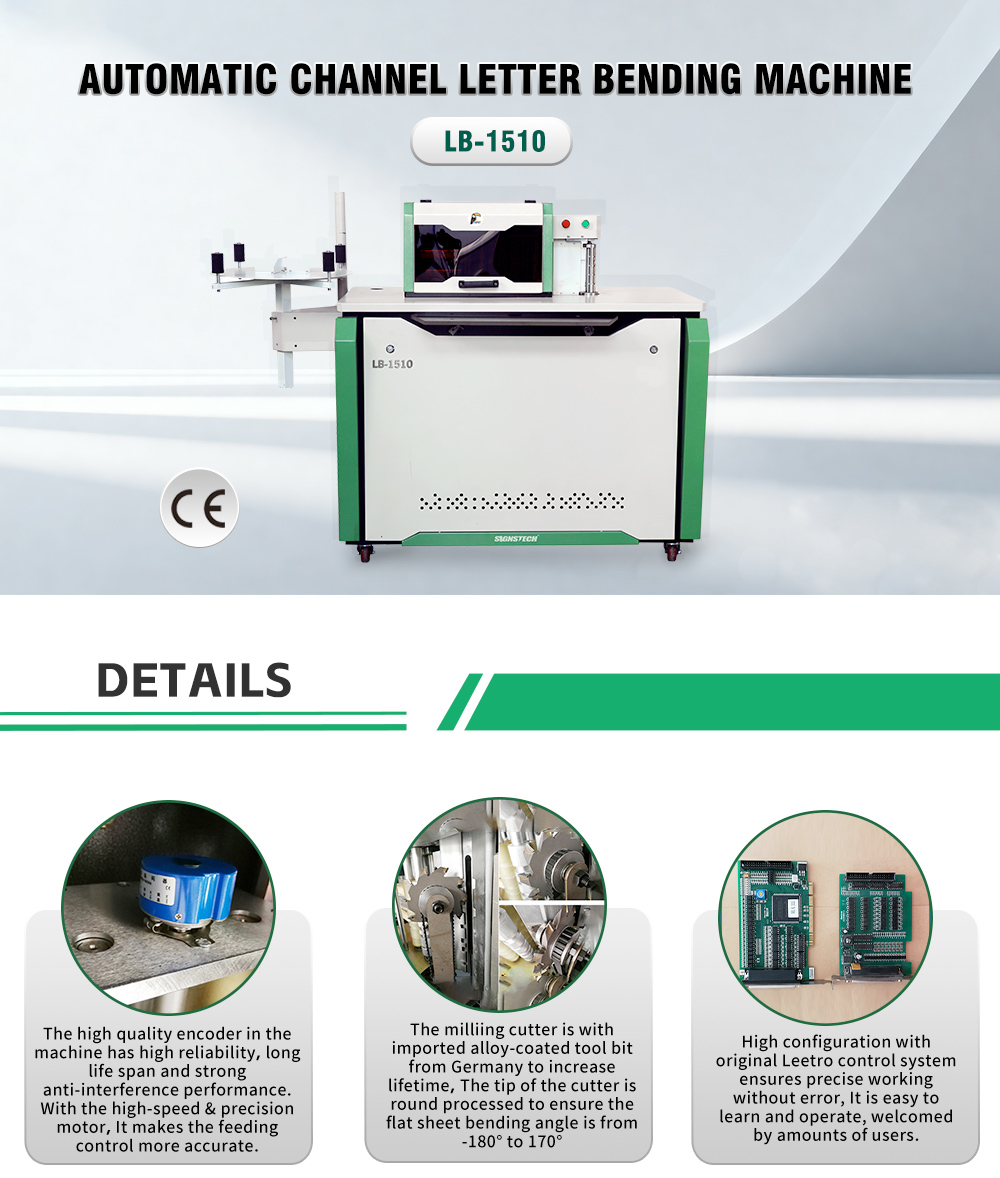

The high quality encoder in the machine has high reliability, long life span and strong anti-interference performance. With the high-speed & precision motor, It makes the feeding control more accurate. |

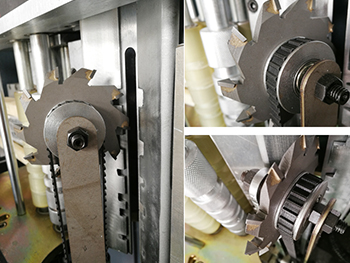

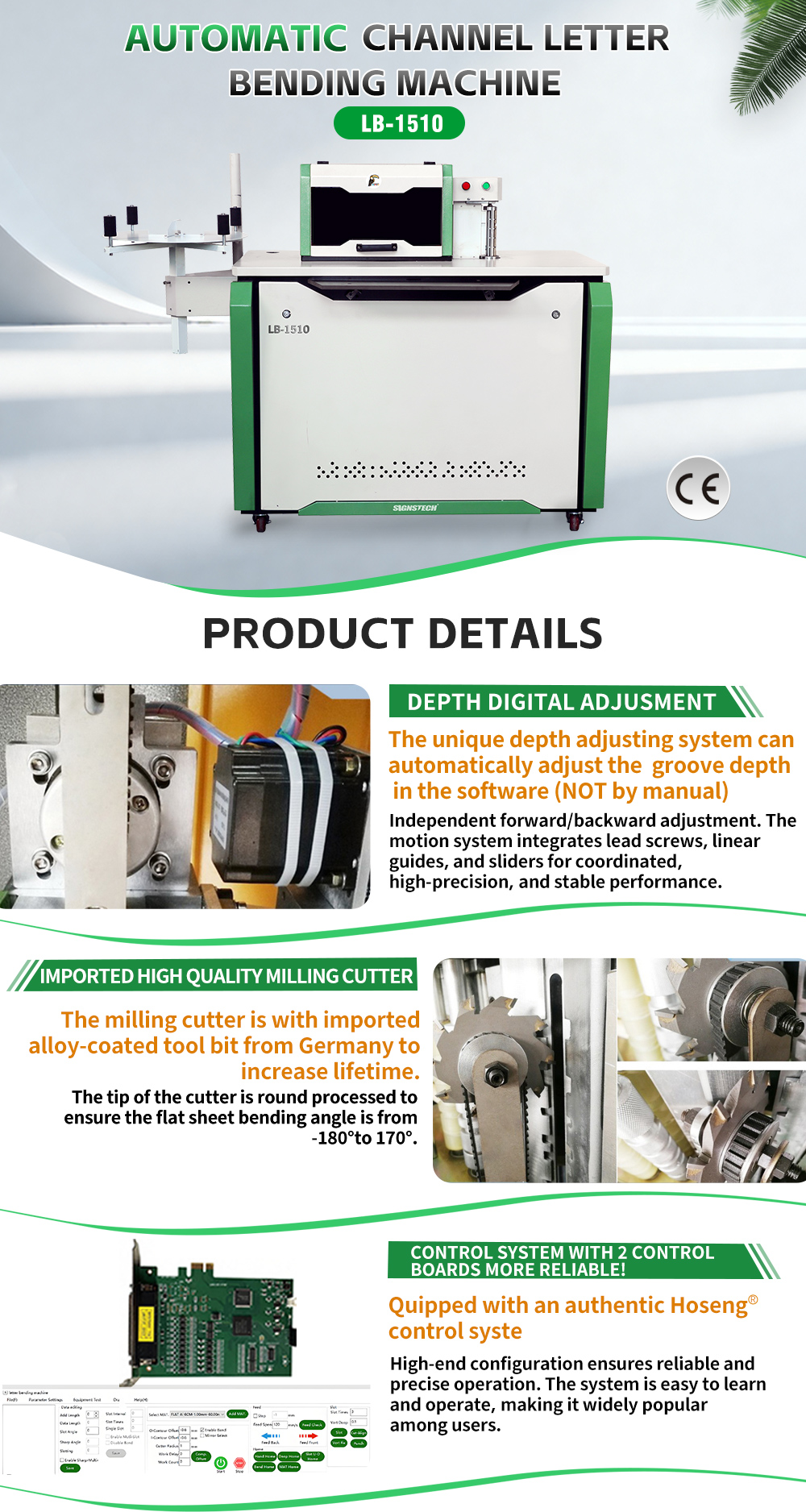

The milliing cutter is with imported alloy-coated tool bit from Germany to increase lifetime, The tip of the cutter is round processed to ensure the flat sheet bending angle is from -180° to 170° |
|
|
 |
|

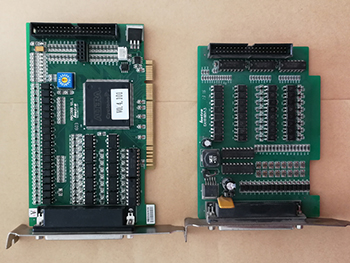

High configuration with original Leetro control system ensures precise working without error, It is easy to learn and operate, welcomed by amounts of users. |

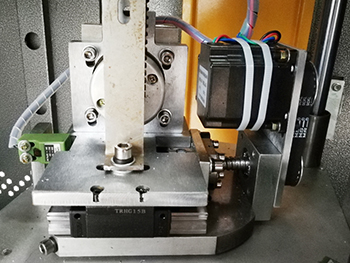

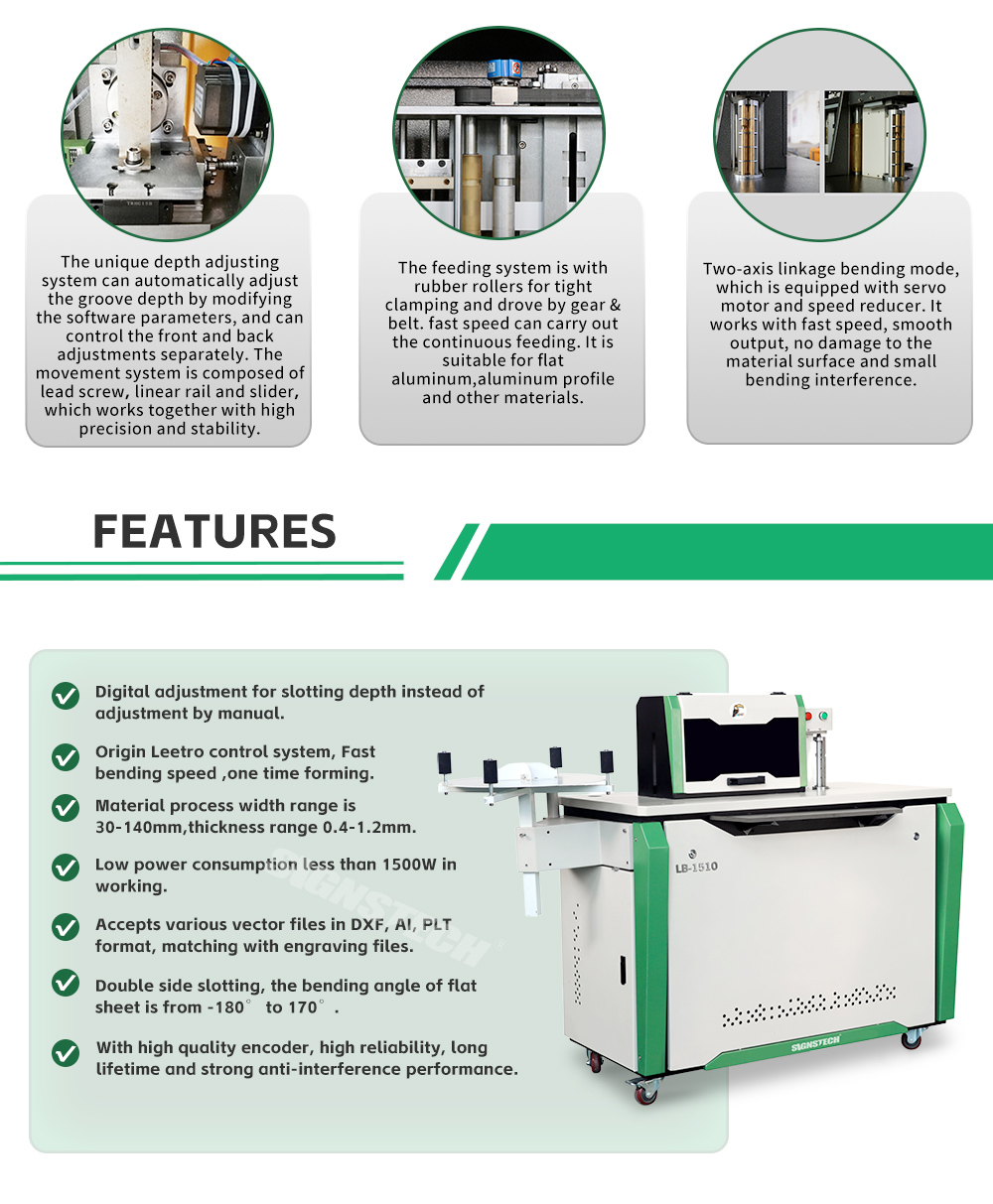

The unique depth adjusting system can automatically adjust the groove depth by modifying the software parameters, and can control the front and back adjustments separately. The movement system is composed of lead screw, linear rail and slider, which works together with high precision and stability. |
|
|
 |
|

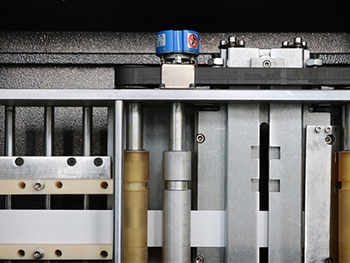

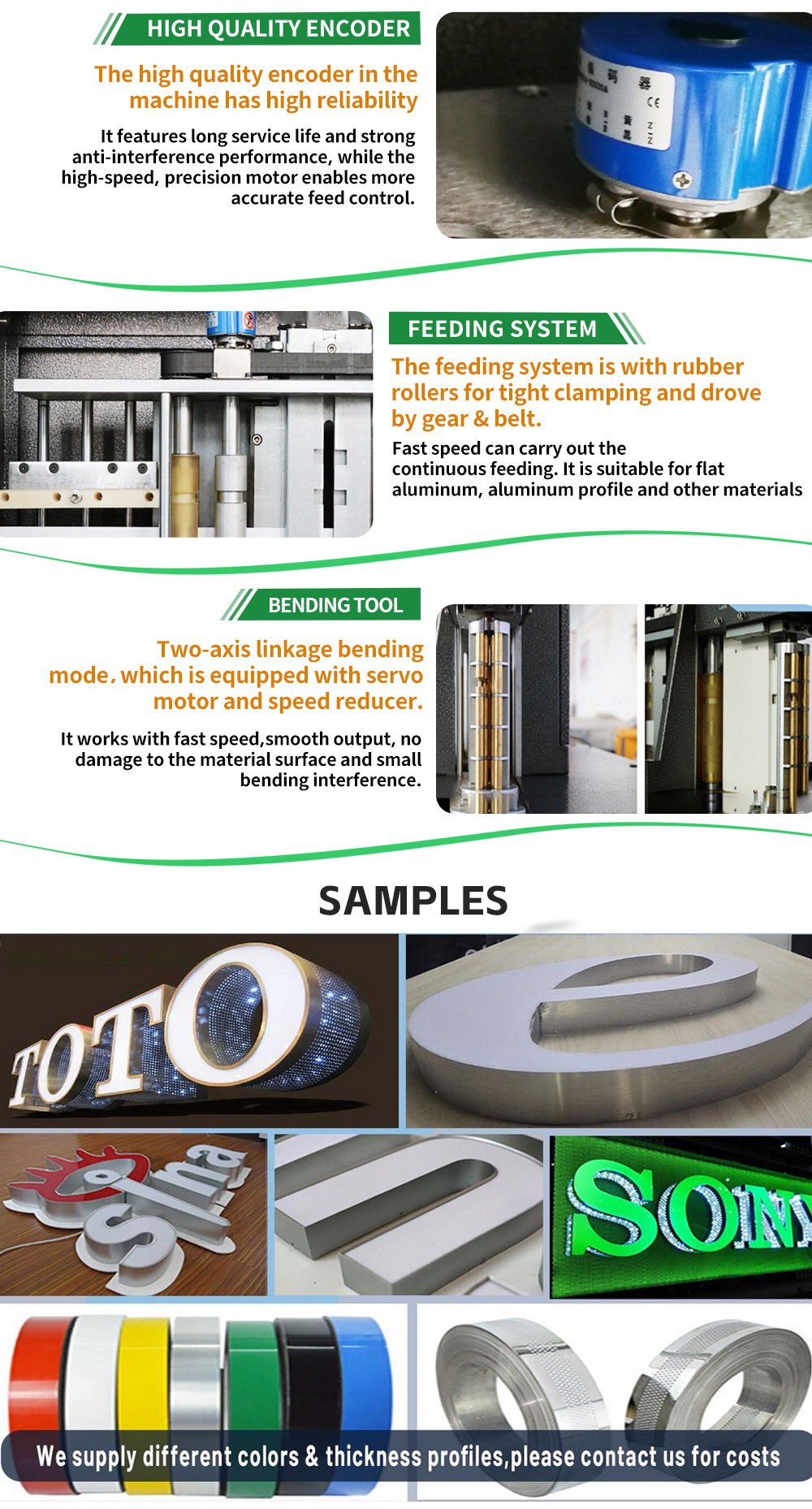

The feeding system is with rubber rollers for tight clamping and drove by gear & belt. fast speed can carry out the continuous feeding. It is suitable for flat aluminum,aluminum profile and other materials. |

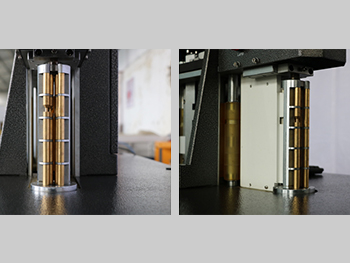

Two-axis linkage bending mode, which is equipped with servo motor and speed reducer. It works with fast speed, smooth output, no damage to the material surface and small bending interference. |
|
Applications： |
|
|
|
 |
|

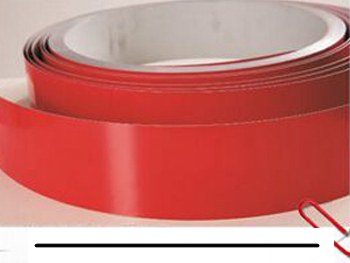

Flat Aluminum Coils |

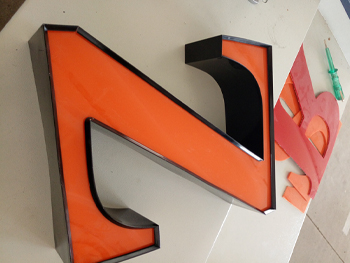

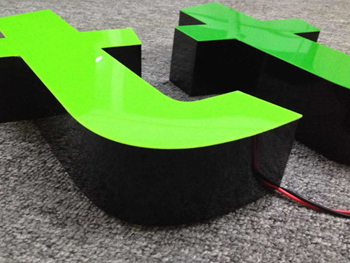

For trimless letter,super letter,resin letter fabrication |
|
|
 |
|

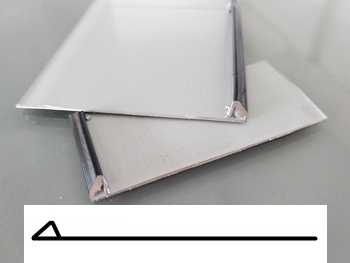

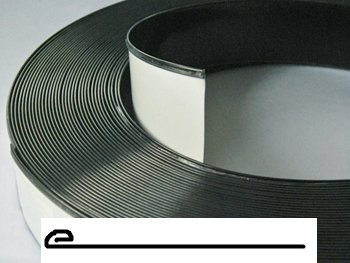

Double-folded Aluminum Coils |

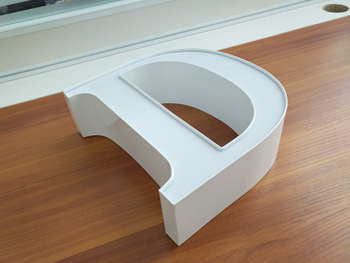

For letter with trim cap, usually used for outdoor signage |
|
|
 |
|
Arrow Aluminum Coils |
Another profile type for outdoor signage |
|
Parameters: |
|
|
Model |

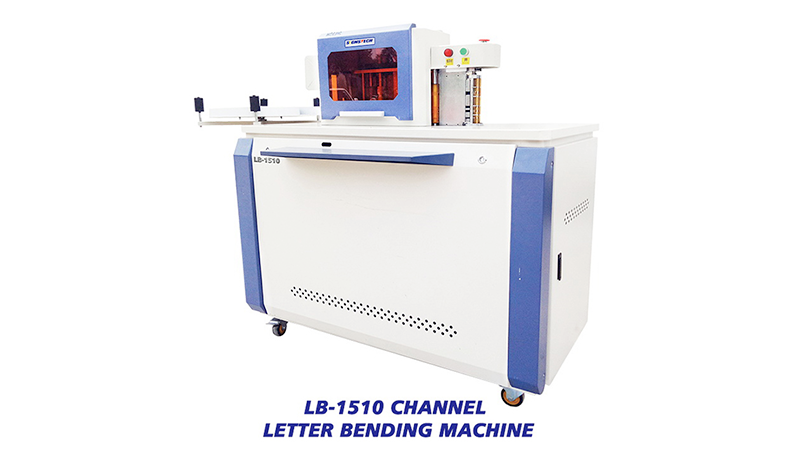

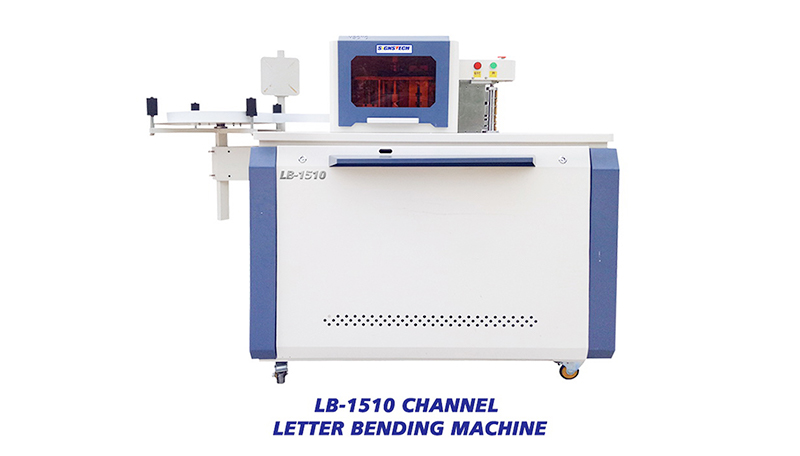

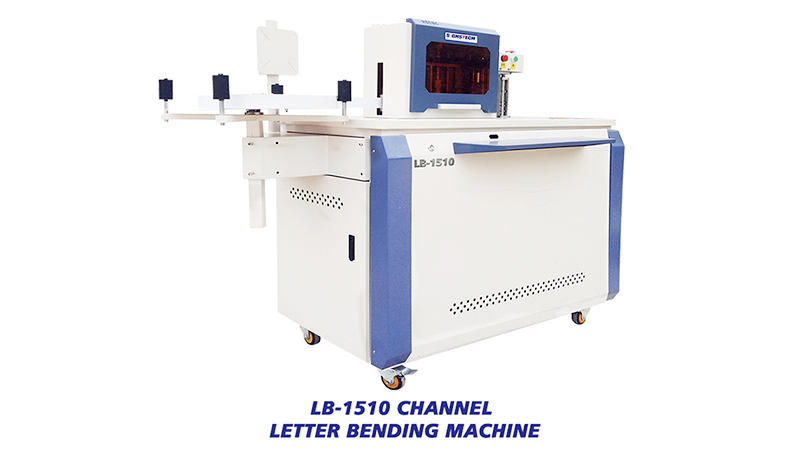

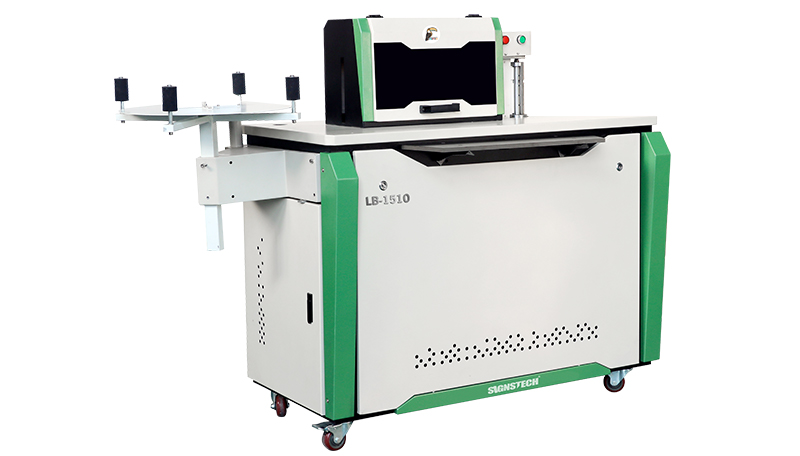

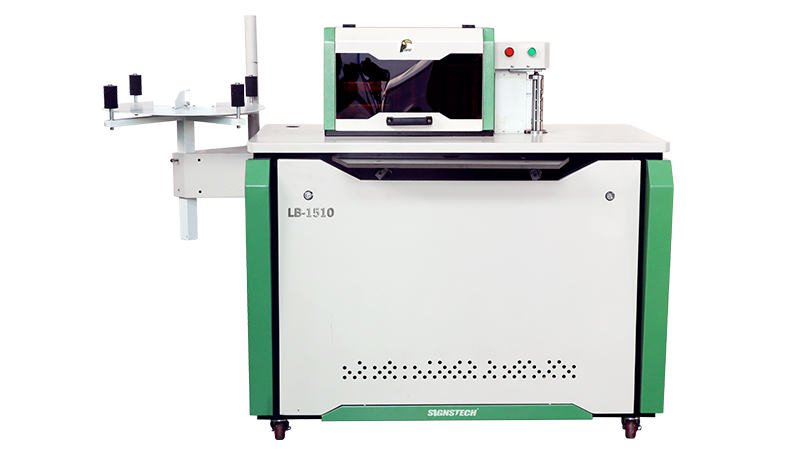

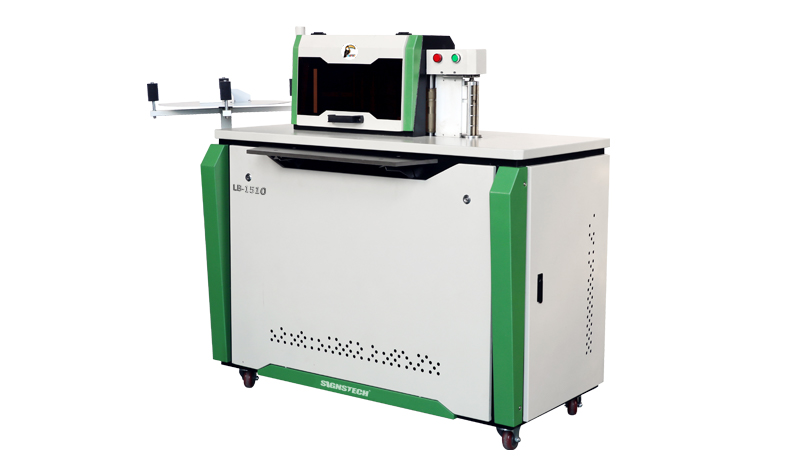

LB-1510 |
|
Bending Radius |
≥10mm |
|
Applicable Material |
Flat aluminum, Aluminum profile ,Aluminum coil |
|
Material Width |
≤150mm |
|
Material thickness |
0.3mm-1.5mm |
|
Machine power |
≤1500W |
|
Gas pressure |
0.6Mpa |
|
Voltage |
220V/50HZ 1P Optional 110V |
|
File format |
DXF、AI、PLT |
|
Supporting software |
Leetro software CBS4 |
|
Weight |
Net 220kg, Gross 270kg |
|
Machine dimensions |
135cmx70cmx130cm |
|
Package dimensions |
140cm L x80cm Wx153cm H |
|
Packing List of Standard Accessories: |
|||
|
No. |
Item Name |
Quantity |
Remark |
|
1 |
Control Card |
1 |
|
|
2 |
#236 Belt |
1 |
|
|
3 |
13-16 Wrench |
1 |
|
|
4 |
8-10 Wrench |
1 |
|
|
5 |
Screwdrive |
2 |
|
|
6 |
Limit Switch |
1 |
spare |
|
7 |
Tool box |
1 |
|
|
8 |
Nipper Pilier |
2 |
|
|
9 |
17-19 Wrench |
1 |
|
|
10 |
M3, M4,M5,M6 Wrench |
1/per |
|
|
11 |
Power Lead |
1 |
|
|
12 |
Relay |
1 |
spare |
|
13 |
USB flash disk |
1 |
software ,dirver etc |
