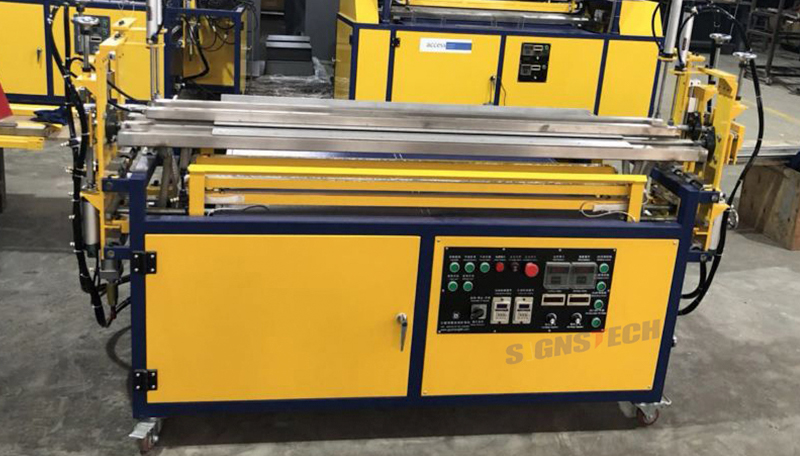

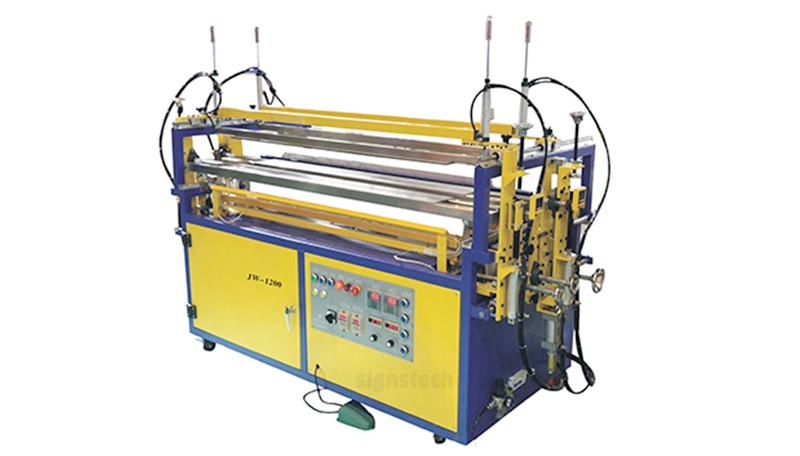

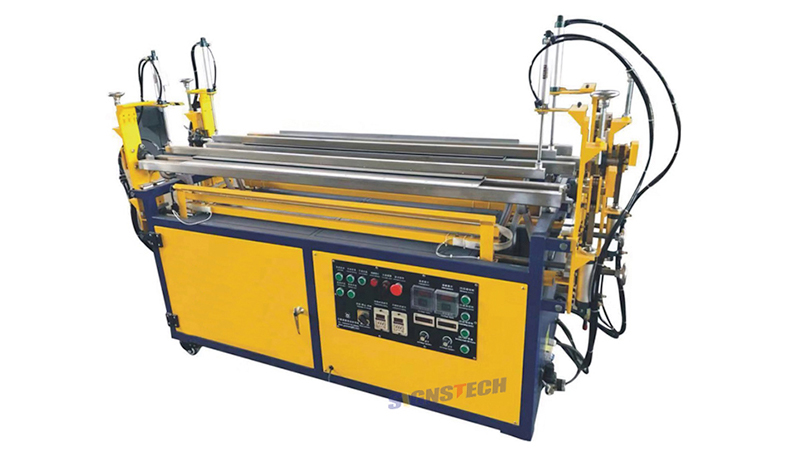

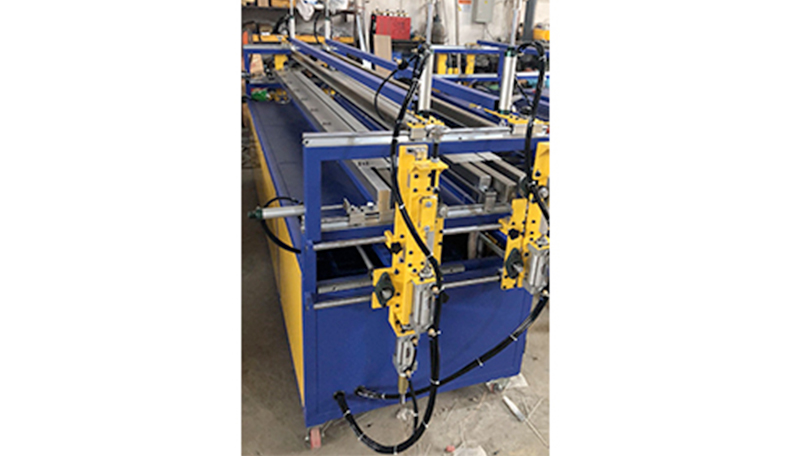

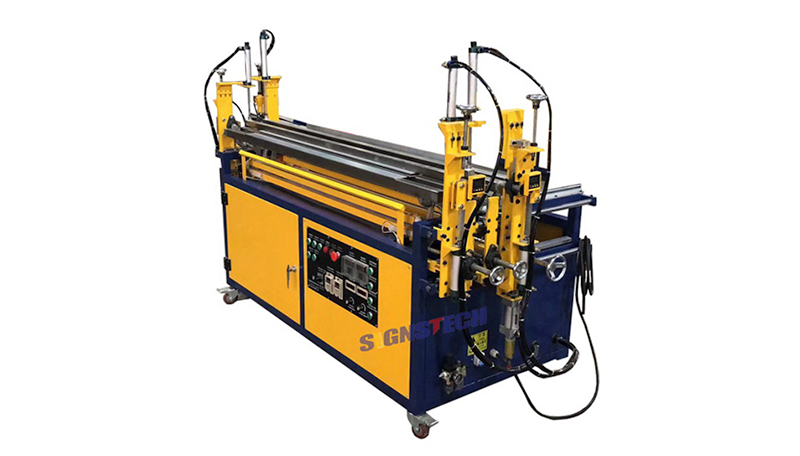

Automatic Acrylic bending machine

Model:
JW-1200/1500/1800
Remarks:
Automatic,Acrylic ,bending, double pipes,watercooling,air cooling,Angle 0-180 degree adjustable
BROCHURE INQUIRY NOW
Captcha

Features

Parameters

Features:

1.The automatic bending machine is widely used in the hot bending process of plexiglass, acrylic, plastic board, PC,PVC,PP and other materials.

2.The whole machine is welded with high temperature paint processing.

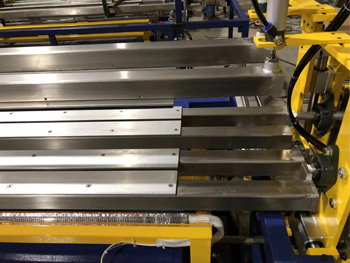

3.This machine adopts infrared quartz tube heating method, and make sure the workpiece is heated evenly.

4.Folding angle 0-180 degree adjustable . It can fold two corners at the same time, more production efficiency.

5.Equipped with water circulating cooling system and air cooling system.

6.The heating temperature can be adjusted according to the different materials and the thickness.

7.With accurate temperature regulator and digital angle display & adjustment.

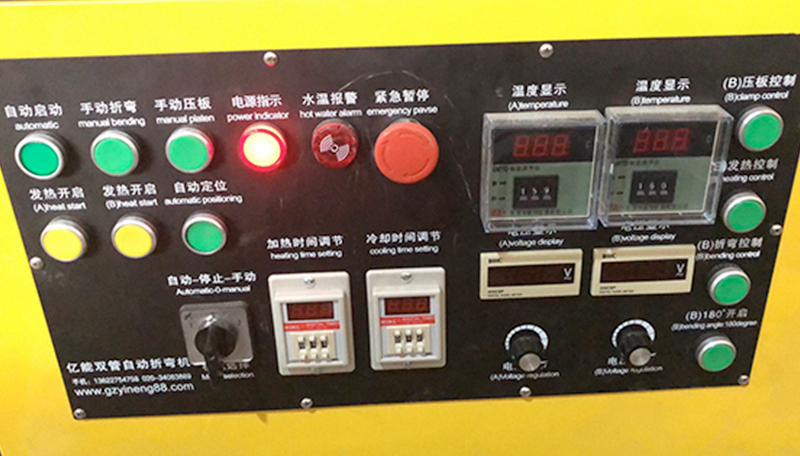

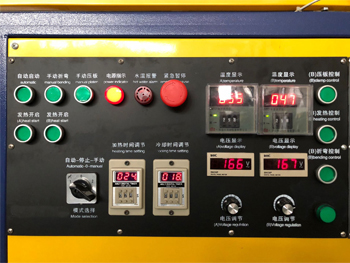

Button panel operation control, manual/automatic two state optional, easy to learn and operation

Constant temperature and energy saving heating system, the temperature can be adjusted

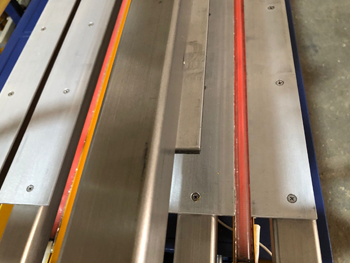

The working table is equipped with 4MM thick pure aluminum plate. The cooling speed is fast.

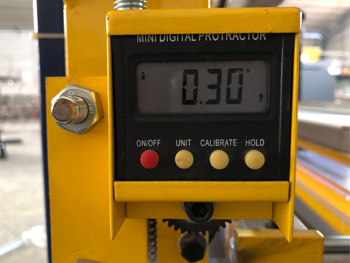

Angle electronic display, adjust more accurately.


The air cooling system is made of 304# stainless steel,strong and durable.

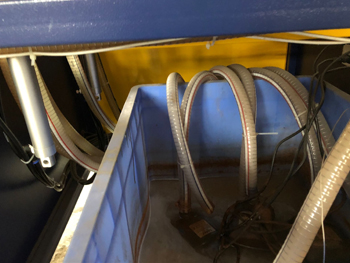

Fast water circulation cooling system, with automatic water temperature alarm device.

Model

JW1200
JW1500
JW1800
JW2400

Max working length

1200mm
1500mm
1800mm
2400mm

Max Process thickness

6mm

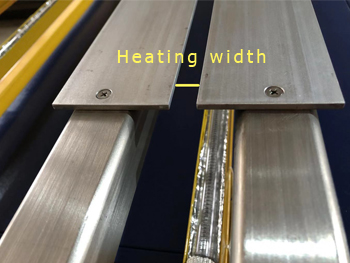

Heating width

0-30mm

Heating pipe space

150-550mm adjustable

Bending angle

A worktable (30-179 degree adjustable)
B worktable (0-180 degree adjustable)

Cooling mode

water circulation cooling and air cooling system

Power

2400W
3000W
3600W
4800W

Power supply

AC110V/220V±10%,50/60HZ

Machine dimension(mm)

1600x1100x1200
2000x1100x1200
2400x1100x1200
2900x1100x1200

Weight

220KG
280KG
350KG
380KG
