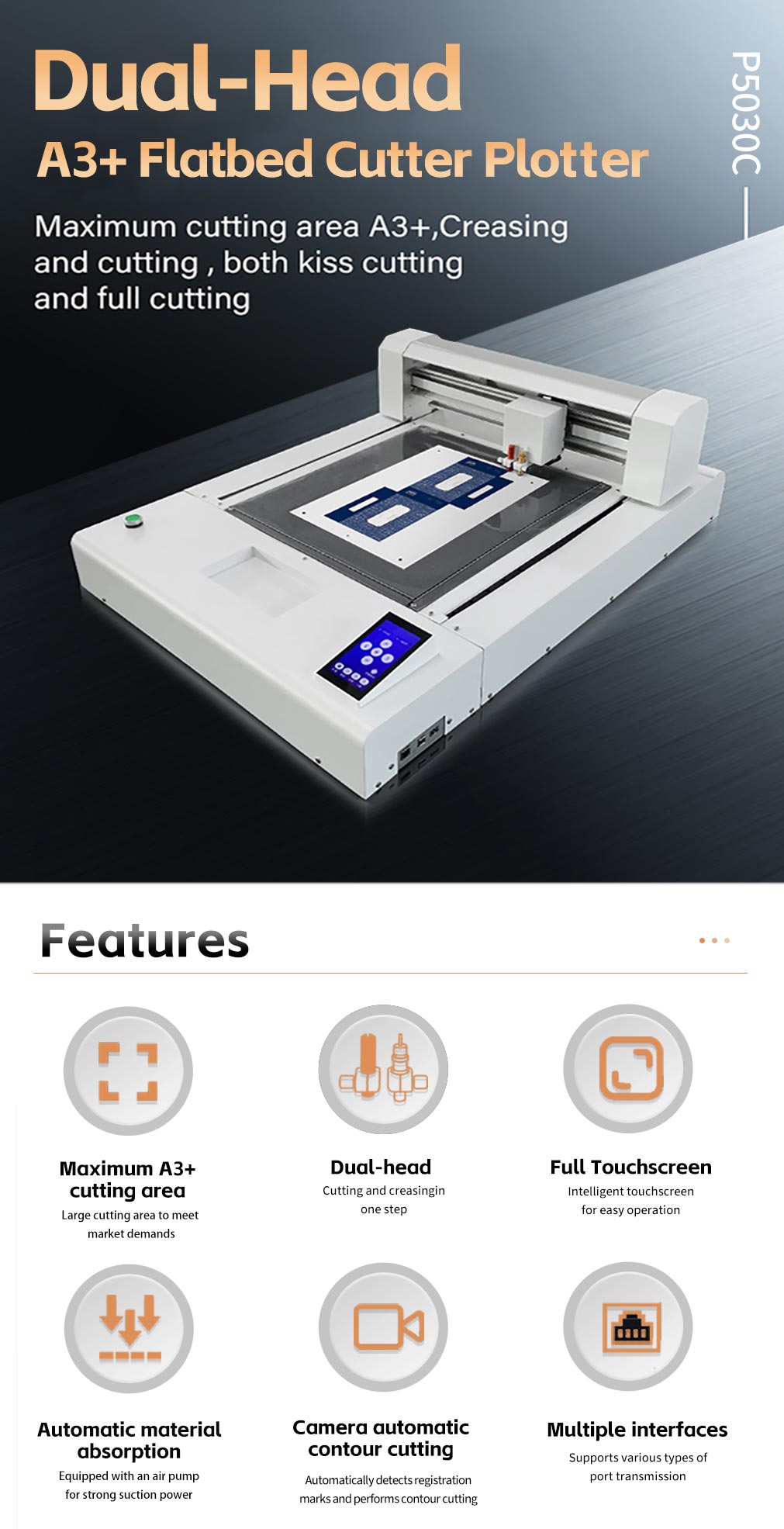

1：Full Touchscreen Intelligent touchscreen for easy operation
2：Automatic materia absorption Equipped with an air pump for strong suction power
3：Dual-headCutting and creasing in one step

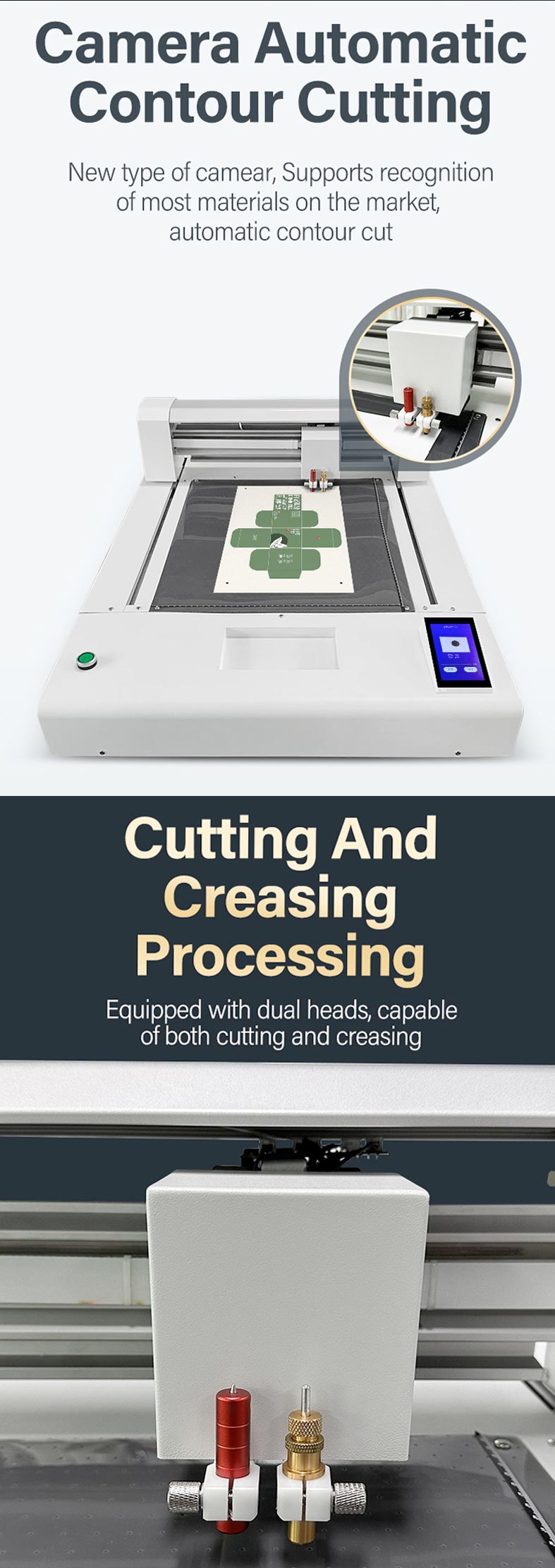

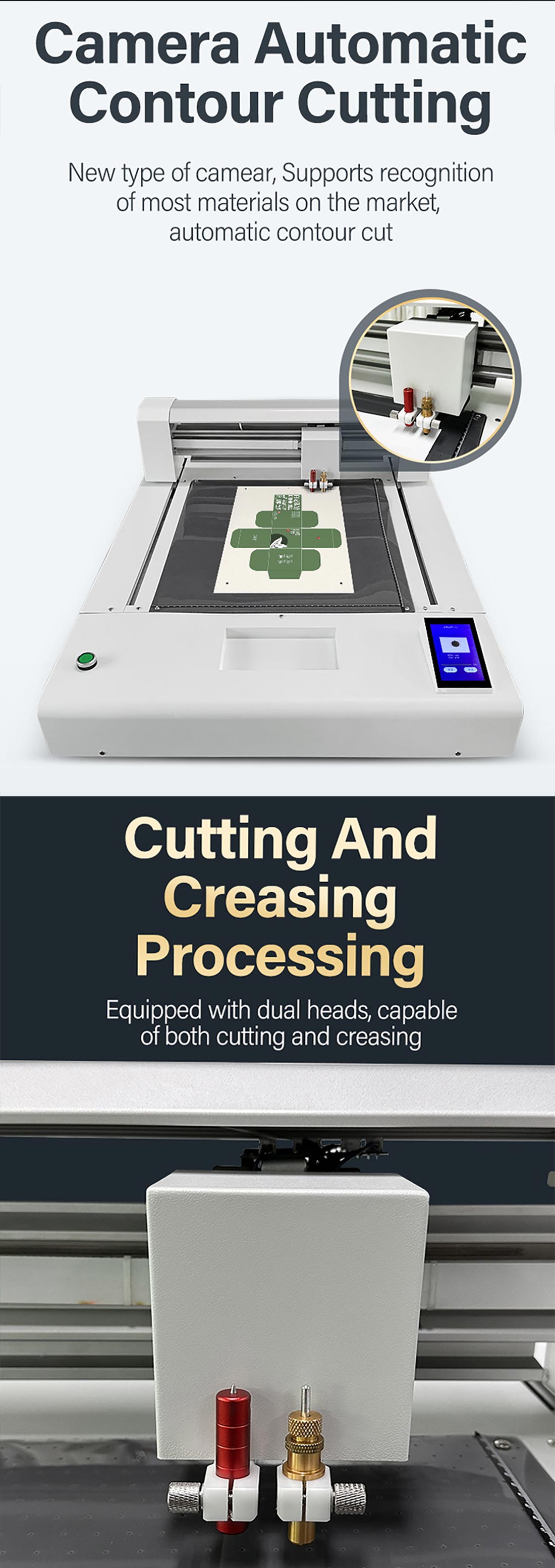

4：Camera automatic contour cutting Automatically detects registration marks and performs contour cutting
5：Multiple interfaces Supports various types of port transmission

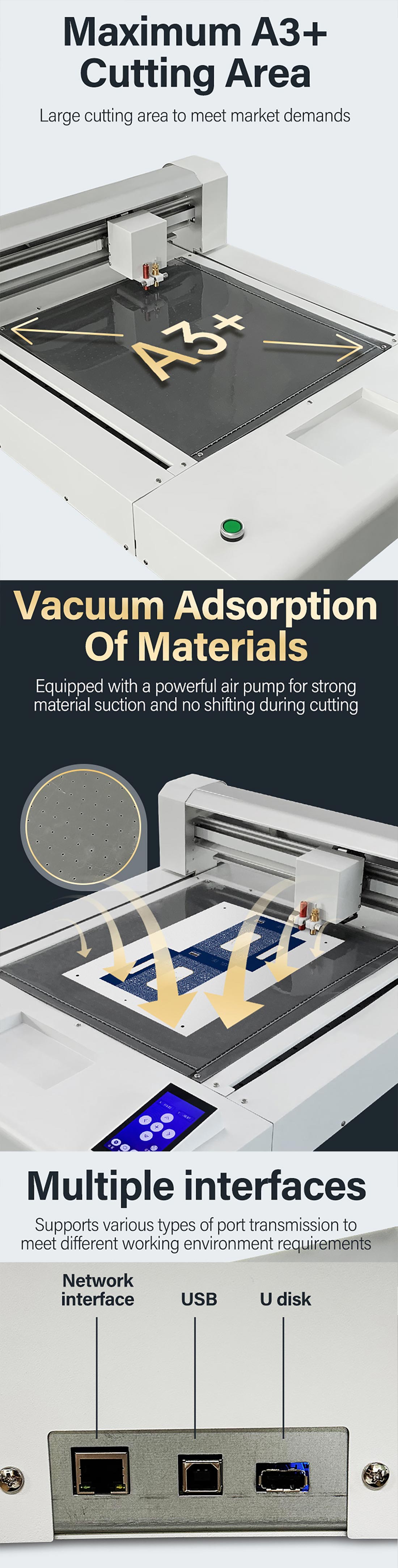

6：Maximum A3+ cutting area Large cutting area to meet market demands
|
Model No. |
P5035 |
|
Cutting area |
500mm * 350mm |
|
Cutting speed |
1mm/s ~800mm /s |
|
Cutting thickness |
Max 1.2mm |
|
Cutting pressure |
1000g |
|
Cutting material |
Can cut PET,PVC,cardboard, sticker, film, fiber Composite material, fabric, PU, plastic board, etc |
|
Blade |
Dual blade |
|
Scan mark way |
Camera scan position system |
|
Material fixing way |
700W Vacuum adsorption |
|
Operation Method |
Flatbed |
|
Driver |
Stepper motor |
|
Cutting precision |
士0.15mm |
|
Repeatable Precision |
≦0.05mm |
|
Cutting circle diameter |
≧1mm |
|

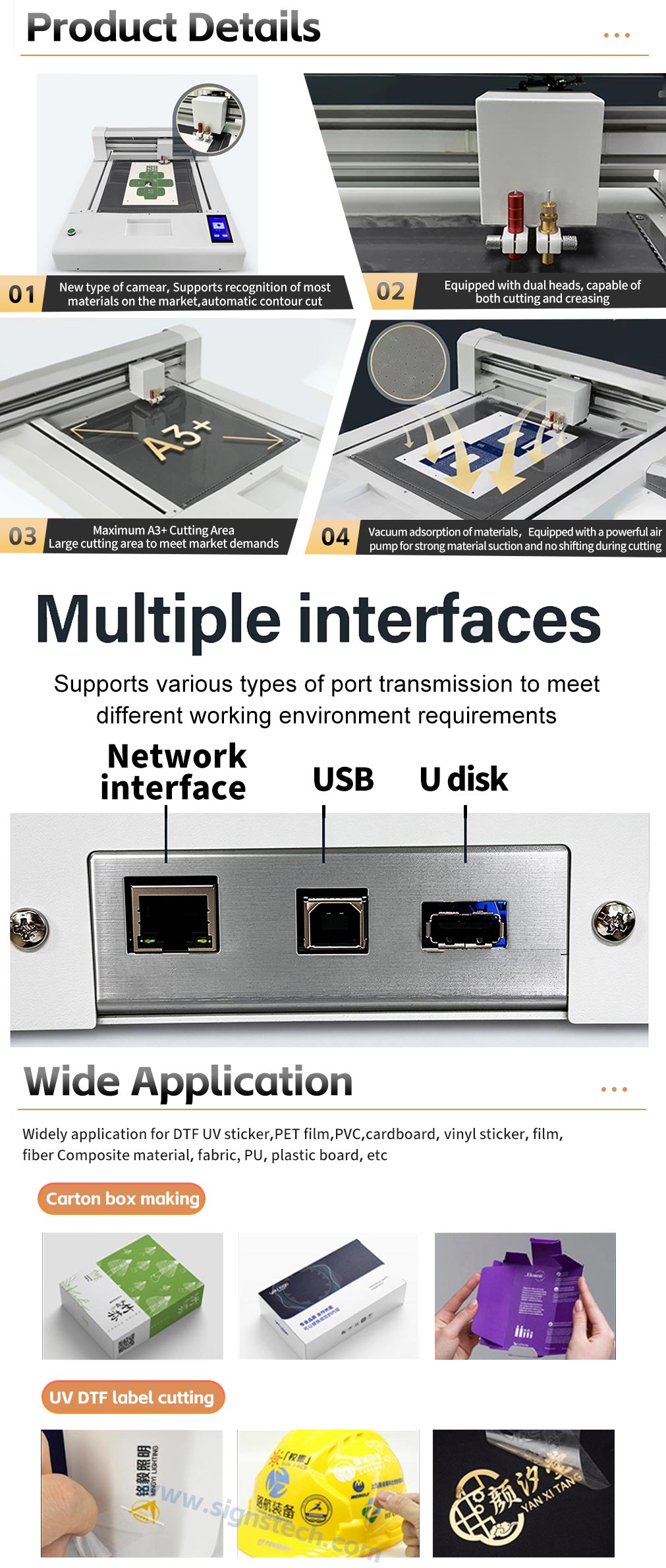

Interface |
USB/U-Disc port/Ethernet port |
|
Compatible software |
Signmaster, Al, Autocad, Coreldraw etc |
|
Instructor of the plotter |
HPGL compatible format |
|
CNC panel |
Multi-language LCD touch panel |
|
Transmission material |
Imported belt |
|
0perating voltage and power |
DC220V/110V 士10%, 50HZ/60HZ |
|

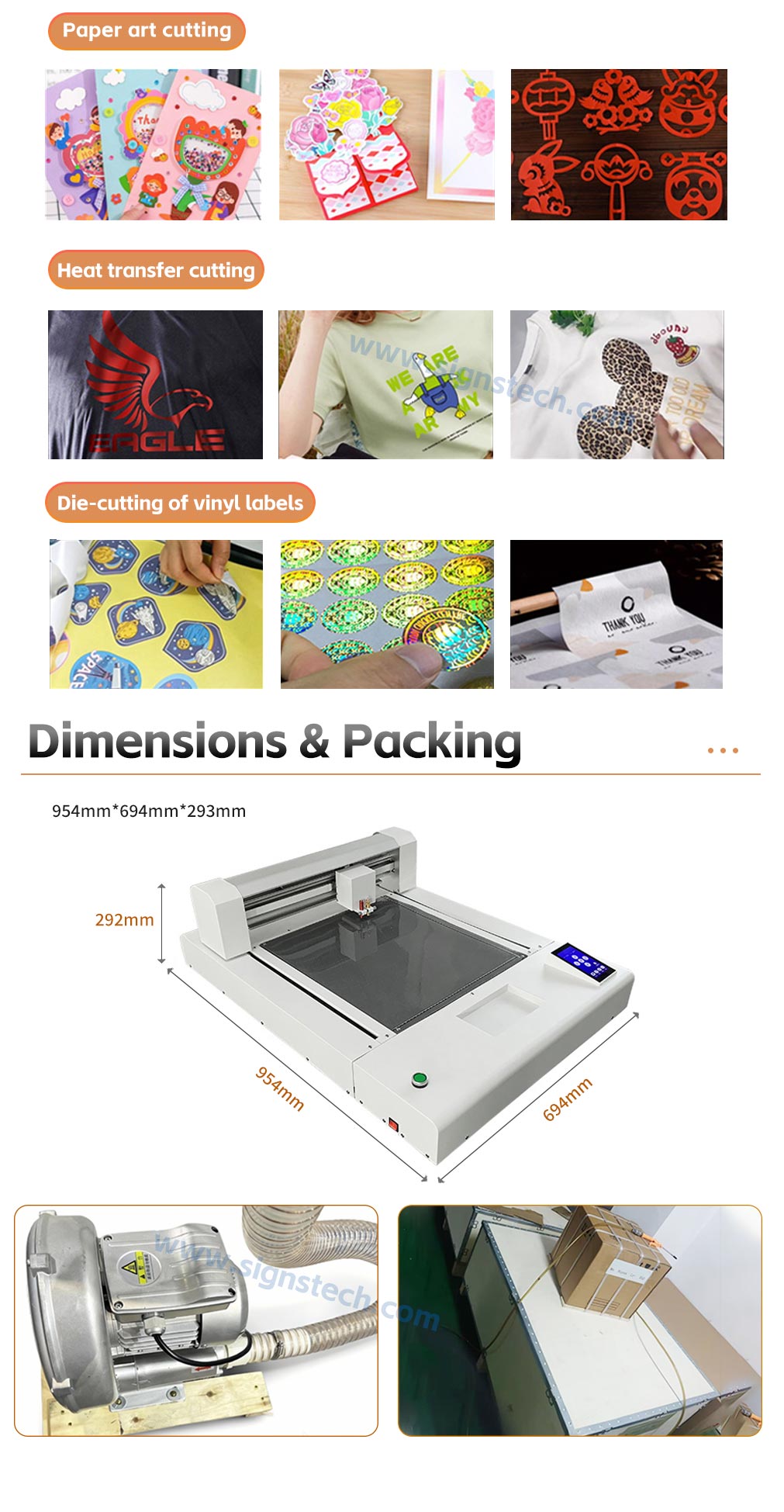

Machine size |
954*292*694mm |
