Features:
1.With KONICA KM512i print head/30pl, faster speed, enrich the saturability, bright color with the picture.
2.Having the particular precision control technology for the ink smudge, made the image more smoothness.

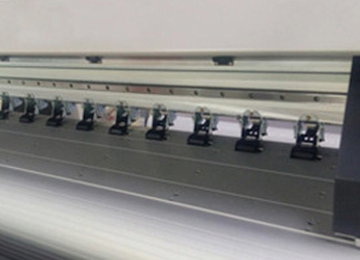

3.One piece grinder, stronger beam for the carriage, improving the printing carriage’s stability and precision.
4.Industrial winding and putting system, confirm the high precision, without crimping, printing with good quality.
5.Using high power Panasonic servo motor and three-level cartridge, made the high-speed printing more stability.
Details:
 |
 |
|

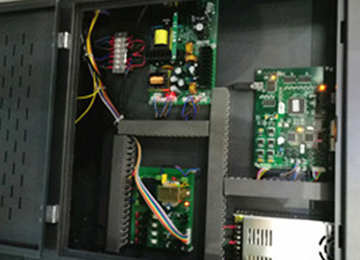

Main boards,keep stability and printing quality |

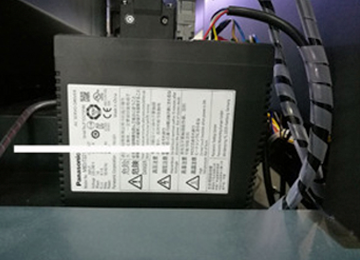

Panasonic motor,keep transmission stability and safety
|
 |
 |
|

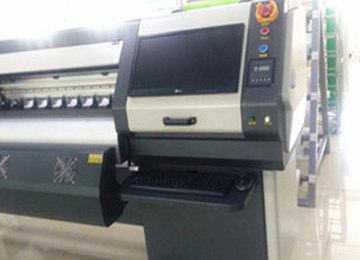

LCD monitor,easy to operate |

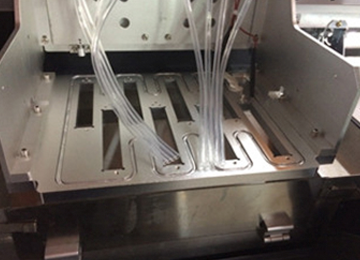

Konica 512i-30PL printhead,high speed and resolution |
 |
 |
|
Full aluminum structure rails,keep working stability and precision |

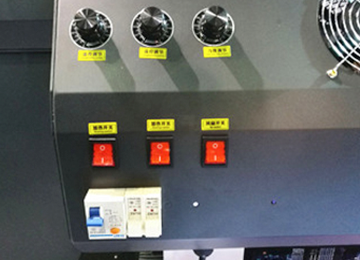

Heating system,front,middle,back and suction independent control,temperature control |
|

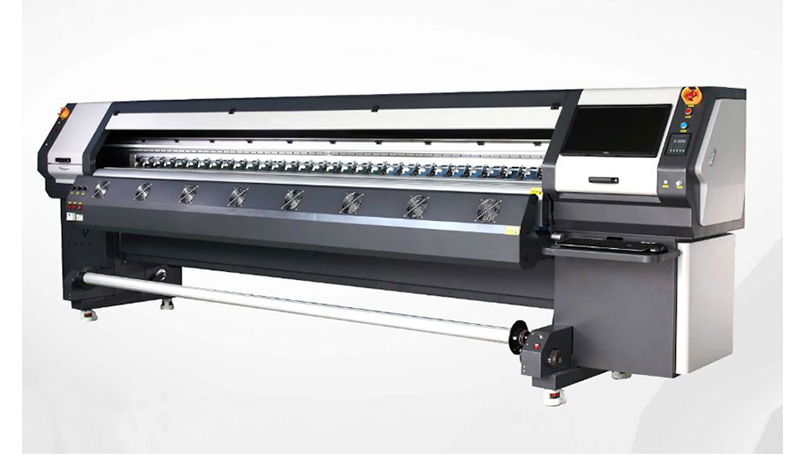

Model |
WT-3304L/3308L |
|
|
Print head |
Konica 512i/1024i |
|
|
Ink droplet |
30pl |
|
|
Print head quantity |
4/8 |
|
|
Color |
4 |
|
|
Resolution |
720dpi |
|
|
Adjustable height |
1-10mm |
|
|
Maximum print width |
3.2m |
|
|
Ink type |
Solvent ink |
|
|
Feeding ,take-up system |
Auto feeding & take-up system |
|
|
Material |
PVC flex banner,Vehicle wrap advertising,One-way vision etc. |
|
|
Photo file format |
PSD/DWG/HPG/HGL/PLT/PS/EPS/2PS |
|
|
Printing process |
Maintop direct output |
|
|
Cleaning system |
Automatic cleaning system(protecting print head during night) |
|
|
Print interface |
USB |
|
|
Software |
Maintop/Photo print/Wasatch |
|
|
Print speed (8 print heads) |
2pass |
3pass |
|
260-300m2/h |
160-200m2/h |
|
|

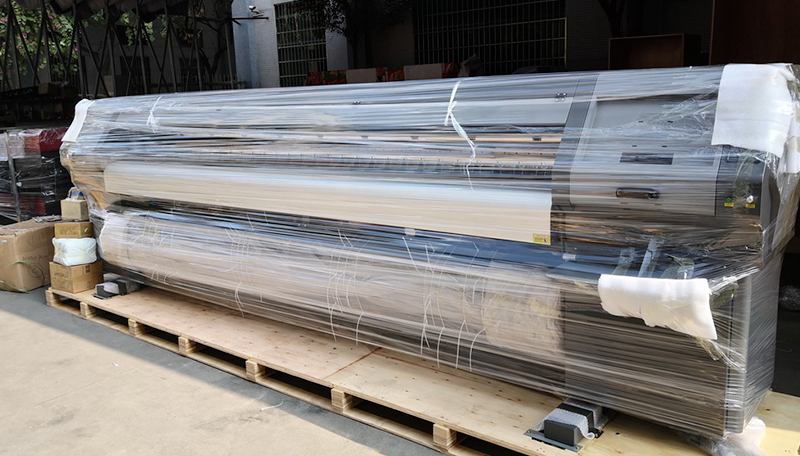

Machine packing size |
4800*1030*1580mm |
|
|
Gross weight |
950kg |
|
