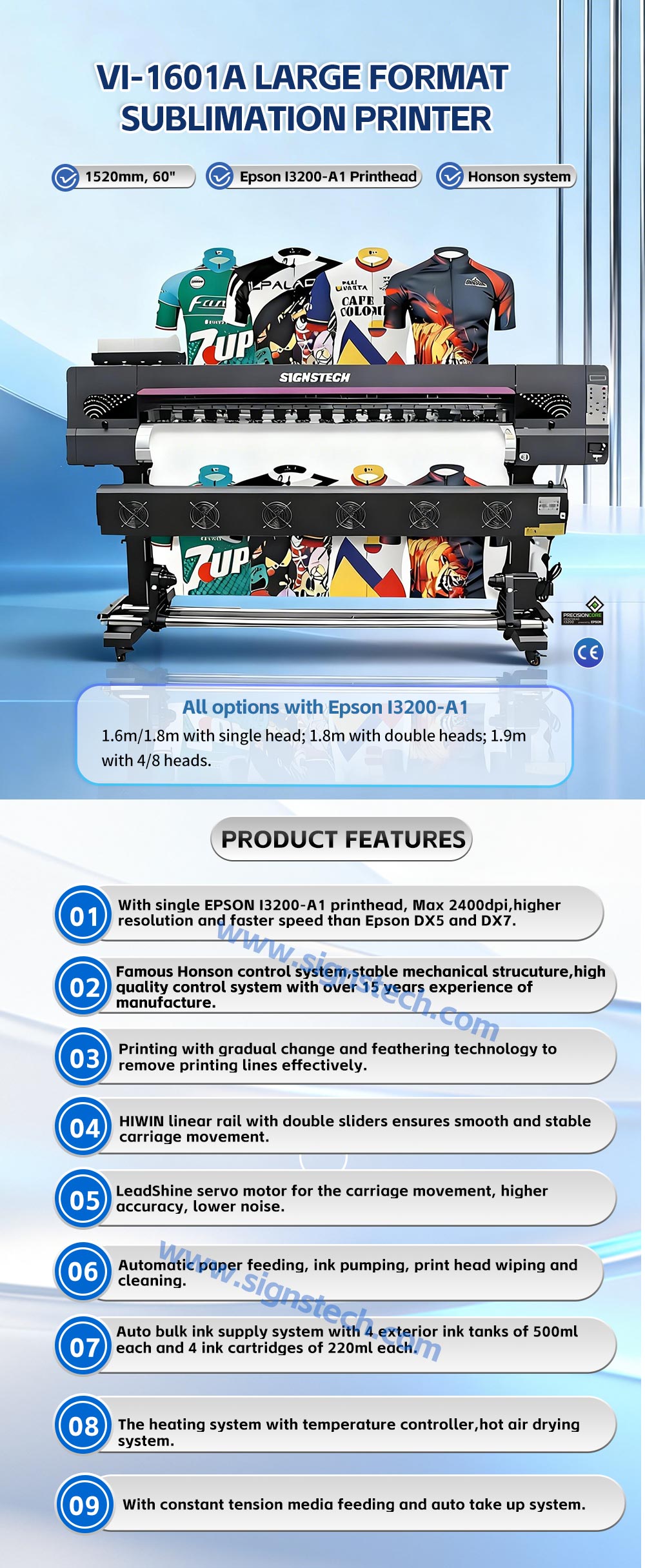

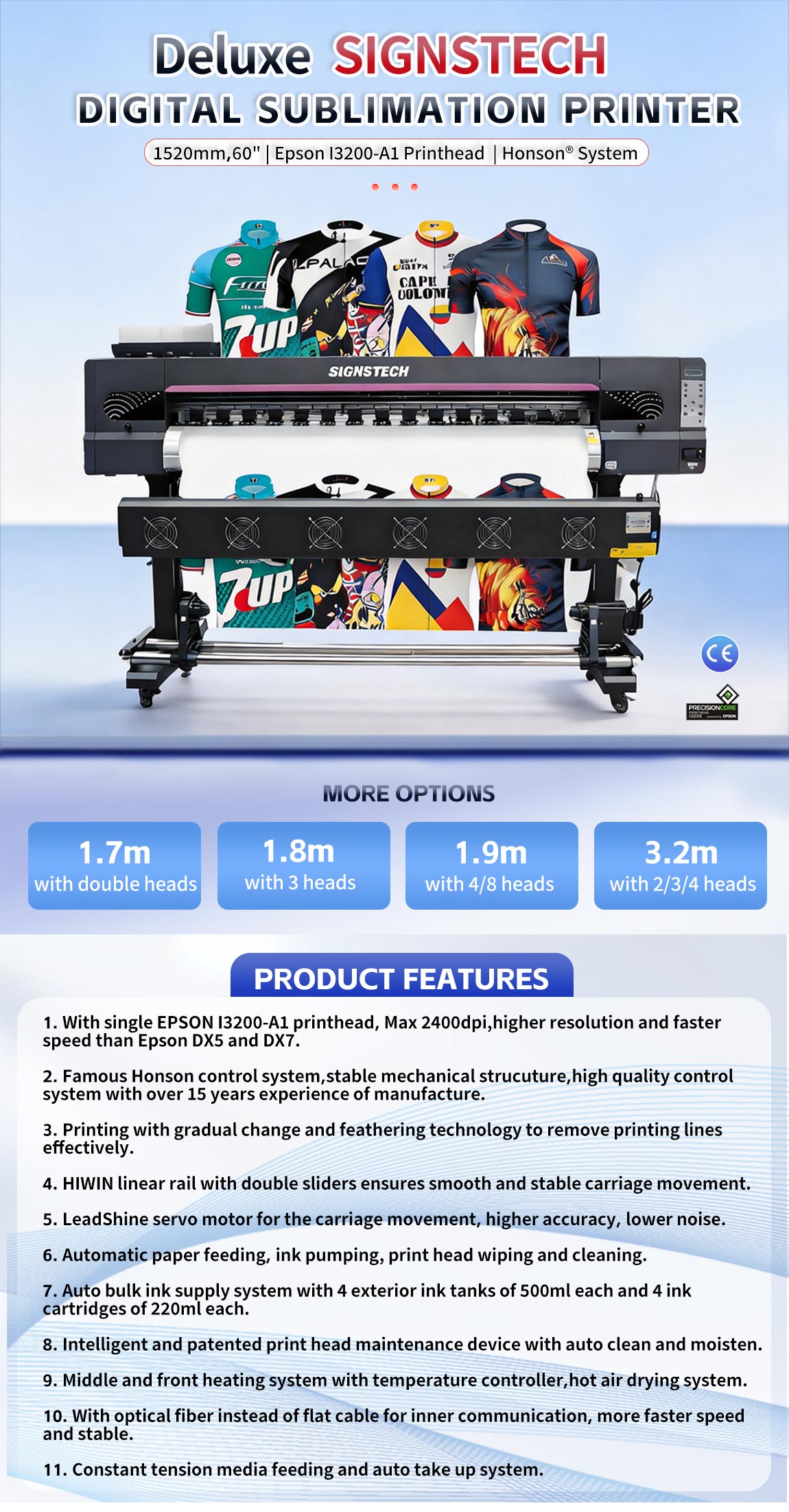

2.Famous Honson control system,stable mechanical strucuture,high quality control system with over 15 years experience of manufacture.
3.Printing with gradual change and feathering technology to remove printing lines effectively.
4.HIWIN linear rail with double sliders ensures smooth and stable carriage movement.
5.LeadShine servo motor for the carriage movement, higher accuracy, lower noise,
6.Automatic paper feeding, ink pumping, print head wiping and cleaning.
7.Auto bulk ink supply system with 4 exterior ink tanks of 500ml each and 4 ink cartridges of 220ml each.
8.Intelligent and patented print head maintenance device with auto clean and moisten
9.Middle and front heating system with temperature controller,hot air drying system.
10.With optical fiber instead of flat cable for inner communication, more faster speed and stable,
11.Constant tension media feeding and auto take up system.

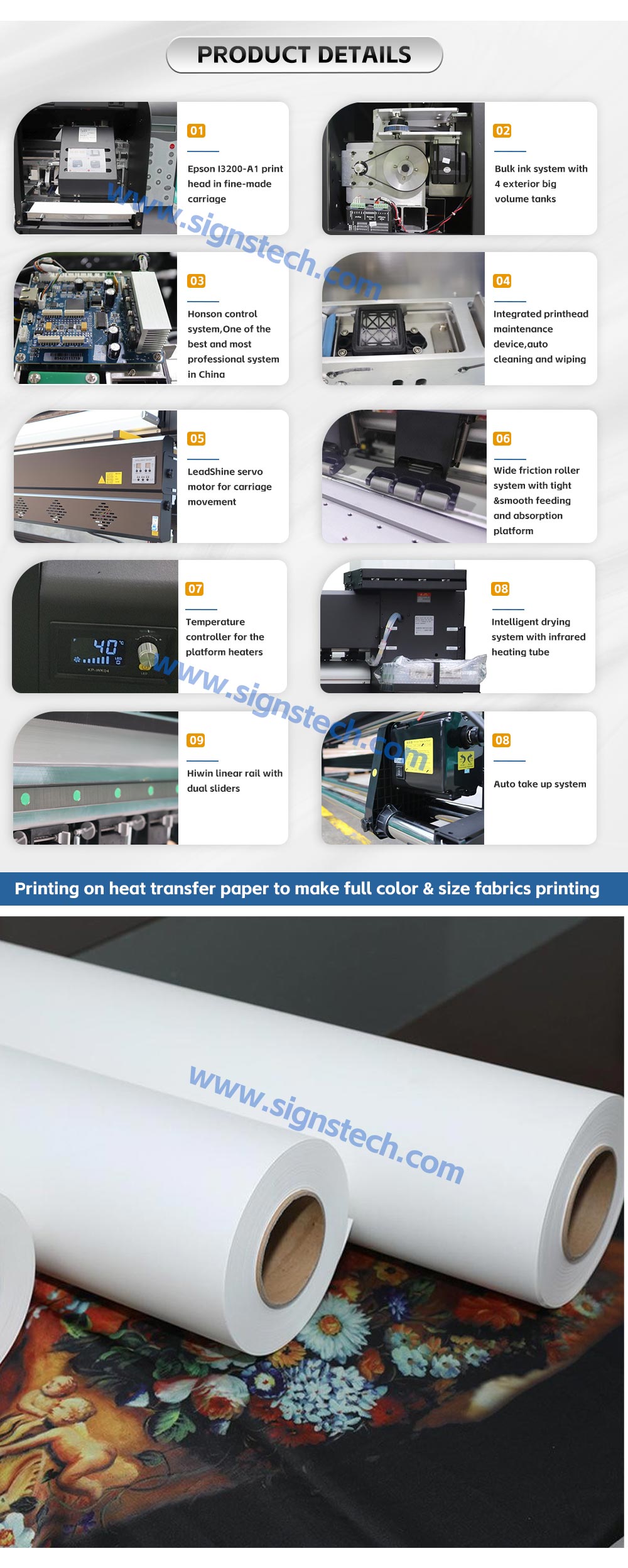

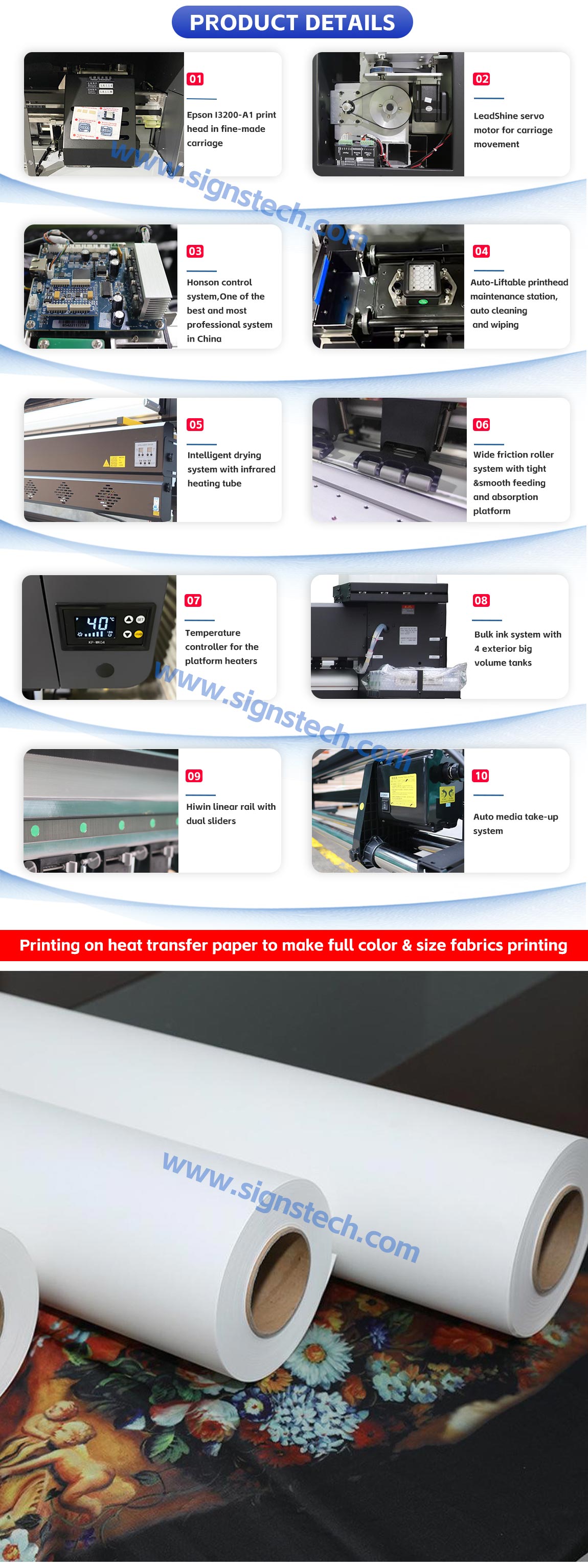

Details:

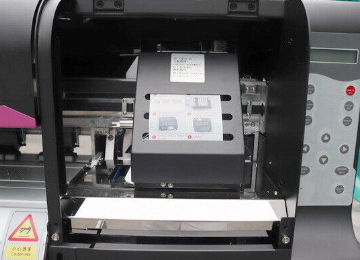

Epson I3200-A1 print head in fine-made carriage

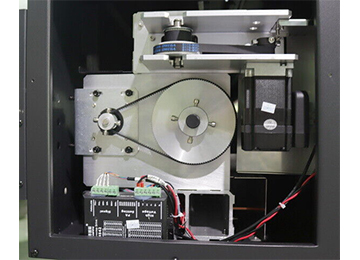

LeadShine servo motor for carriage movement

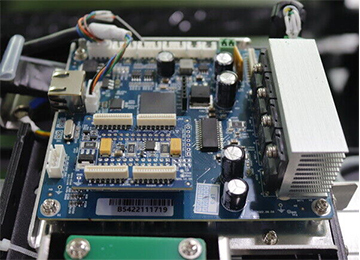

Honson control system,One of the best and most professional system in China

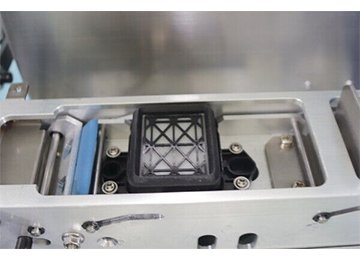

Integrated printhead maintenance device,auto cleaning and wiping

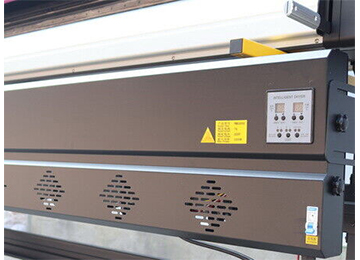

Intelligent drying system with infrared heating tube

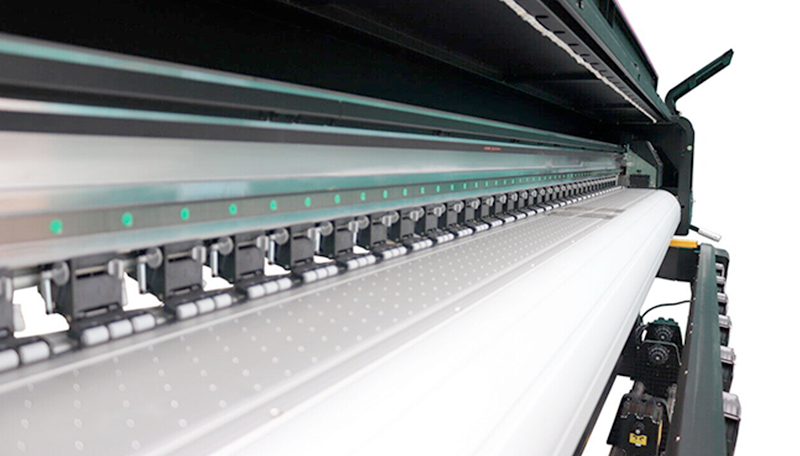

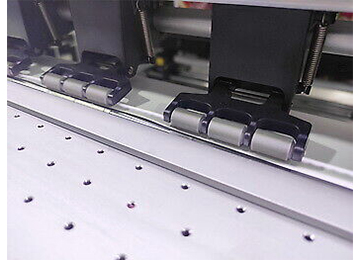

Wide friction roller system with tight &smooth feeding and absorption platform

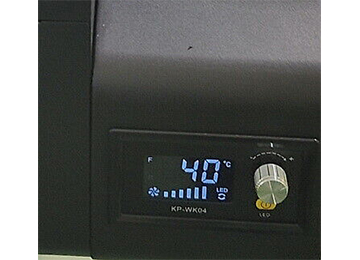

Temperature controller for the platform heaters

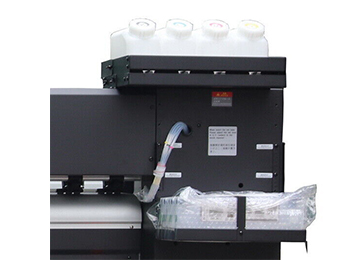

Bulk ink system with 4 exterior big volume tanks

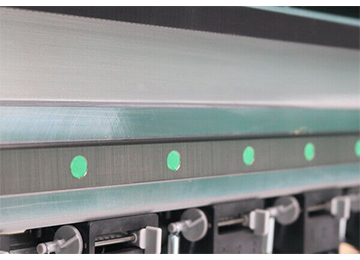

Hiwin linear rail with dual sliders

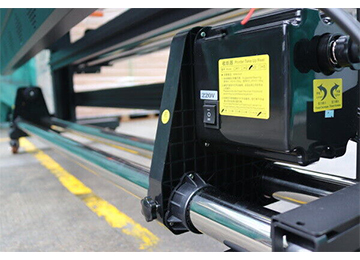

Auto take up system
Sololution:

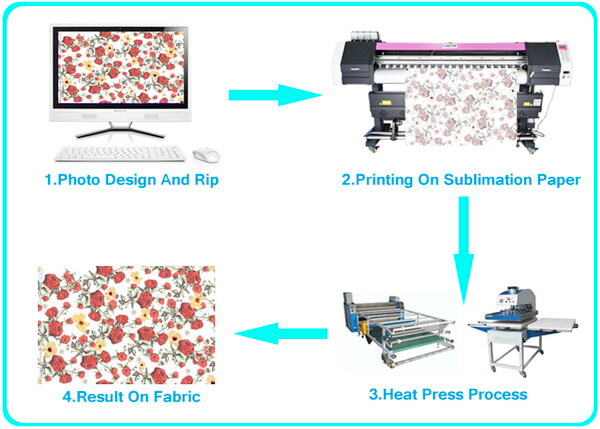

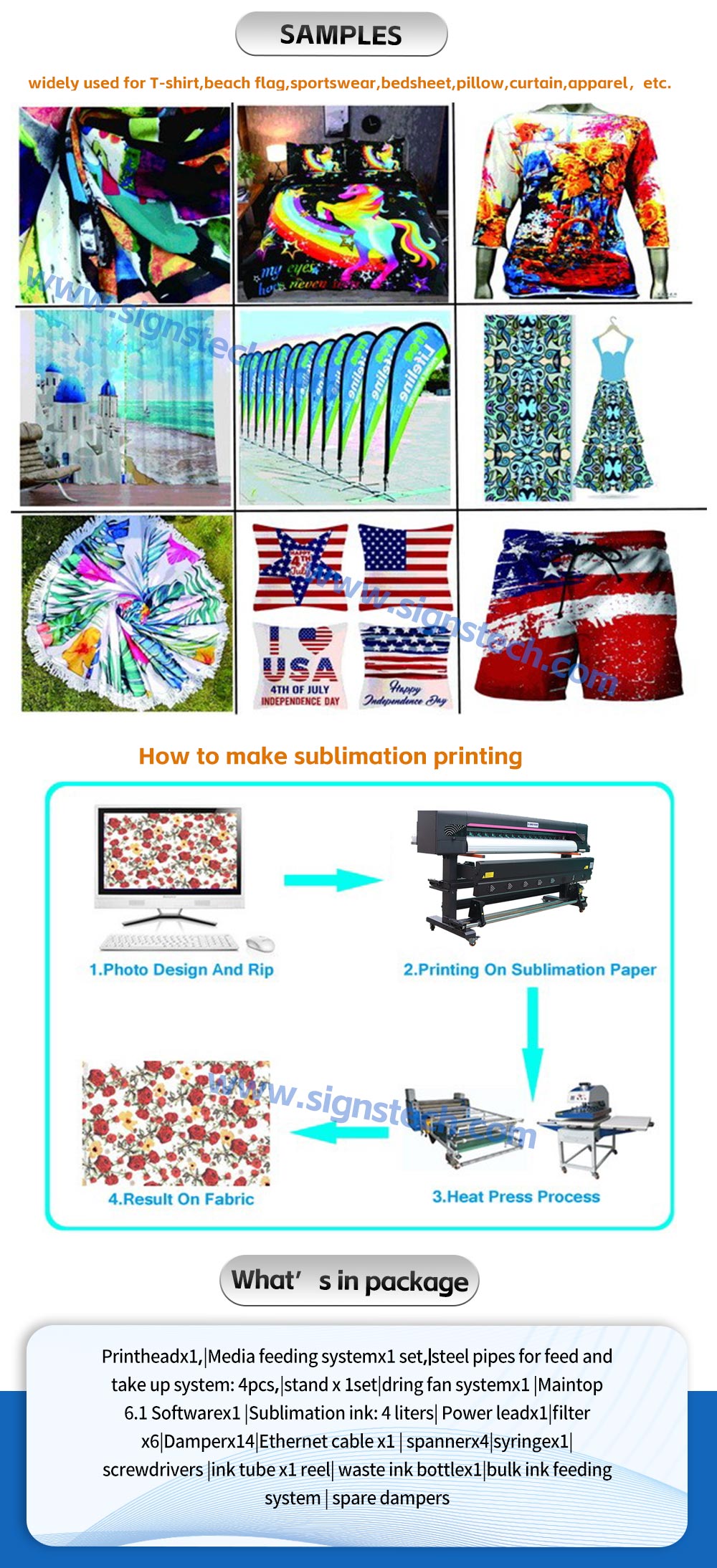

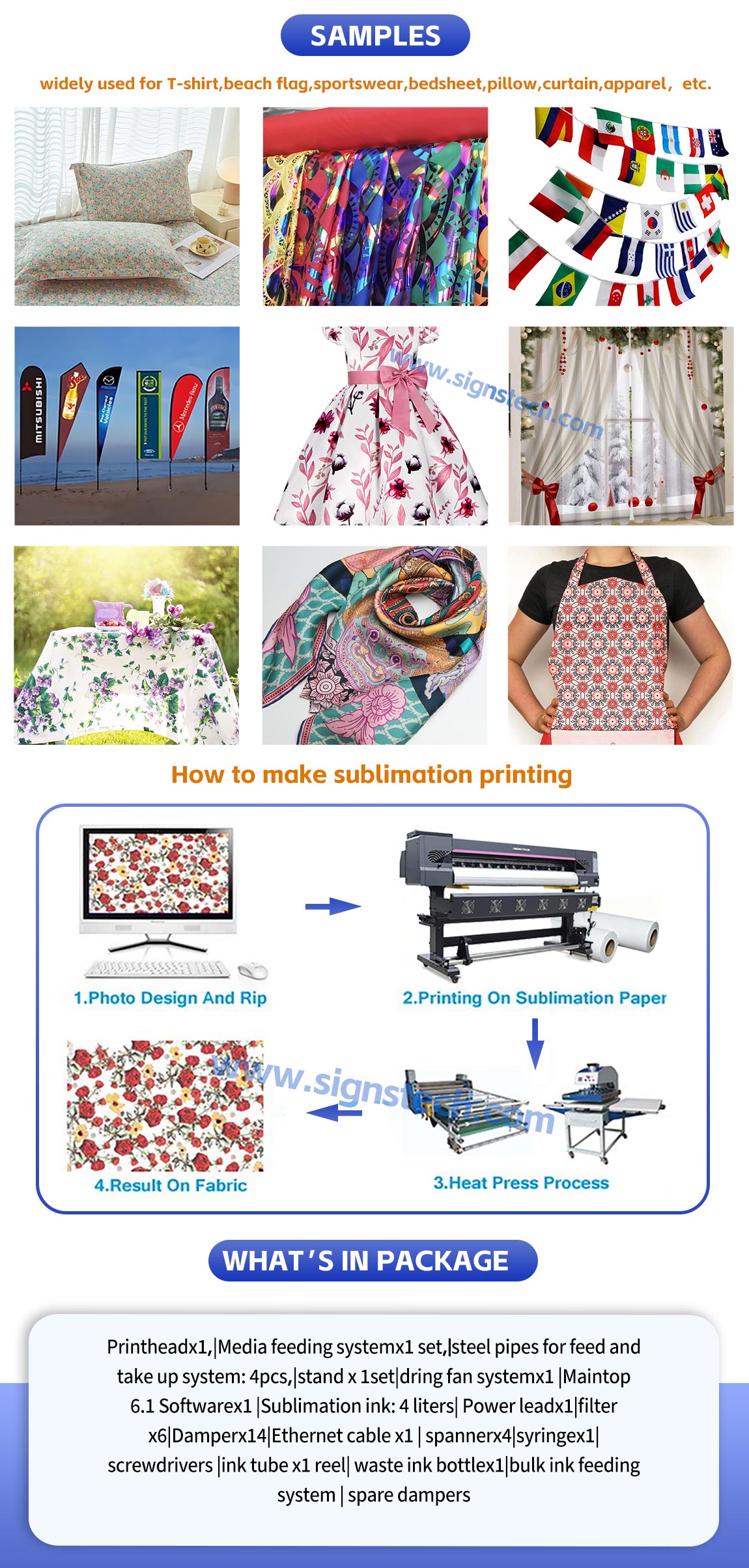

Widely used for T-shirt,beach flag,sportswear,bedsheet,pillow,curtain,apparel，etc.
|

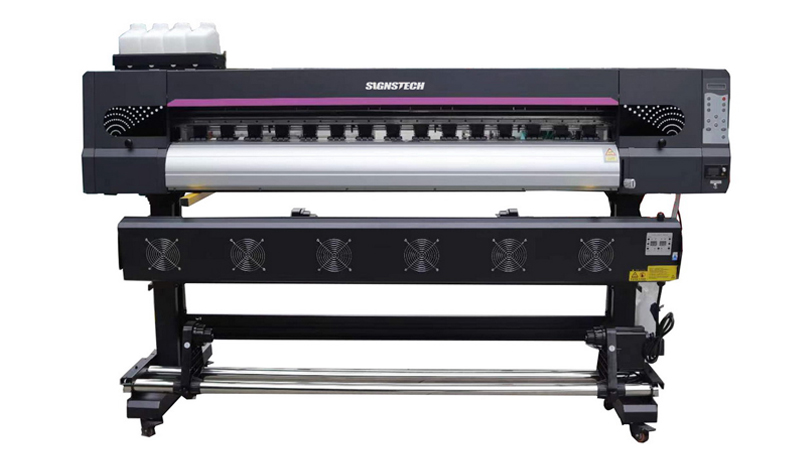

Model |
VI-1601A |
|
|
Max Print Width |
1520mm 60" |
|
|
Print head |
Epson I3200-A1 |
|
|
Amount of Prinhead |
1 |
|
|
Max Resolution |
2400dpi |
|
|
Color Mode |
C M Y K |
|
|
Speed |
3 Pass(Produce mode) |
22㎡/h |
|
4 Pass(Quality mode) |
16㎡/h |
|
|
6 Pass(High resolution) |
10㎡/h |
|
|
Ink Type |
sublimation ink/water based dye & pigment ink |
|
|
Drying Fan system |
With infrared heating tubes |
|
|
Auto take up System |
With |
|
|
Interface |
Ethernet |
|
|
Language |
English |
|
|
Software |
Maintop 6.1 with dongle, Optional Photoprint 12 |
|
|
Printer driver |
Win7 32/64bit, Win8 ,Win10 |
|
|
Print head Cleaning |
Automatic, anti-jam and keep nozzles moisten |
|
|
Driving System |
Leadshine servo and stepper |
|
|
Print head height |
1.8mm-3mm |
|
|
Power |
AC220v,50HZ/110v,60HZ |
|
|
Power consumption |
Machine 800w,External drying: 2400w |
|
|
Print Material |
Heat transfer paper/film/photo paper/PP/Canvas subject to ink |
|
|
Media process |
Roll to Roll |
|
|
Machine Dimensions |
2330mmx850mmx1560mm |
|
