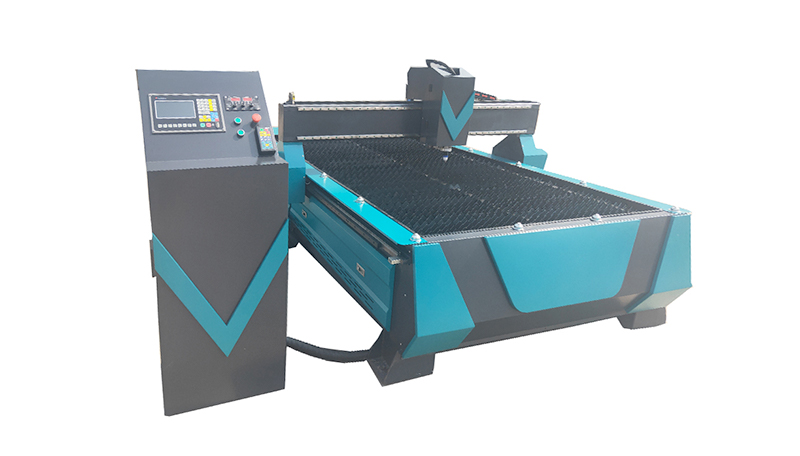

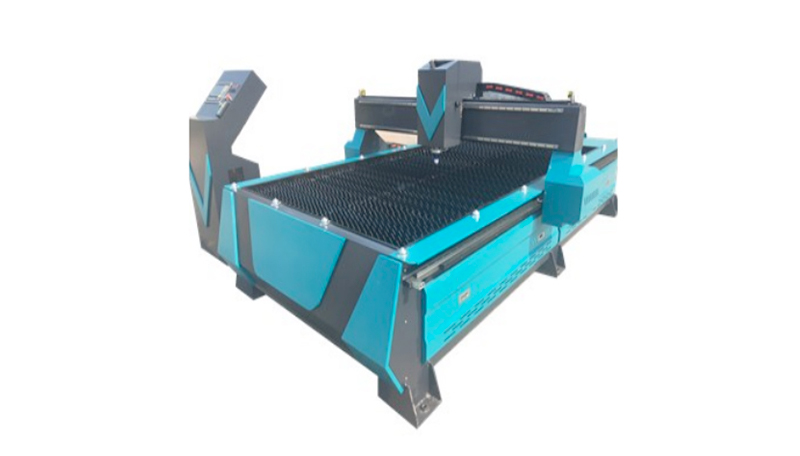

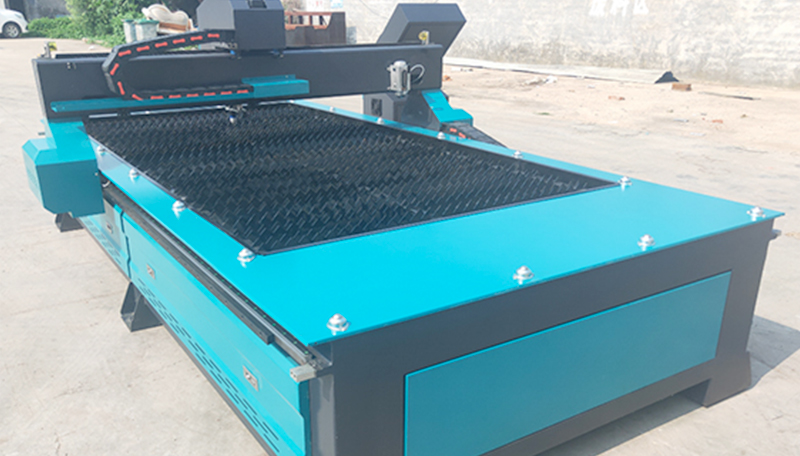

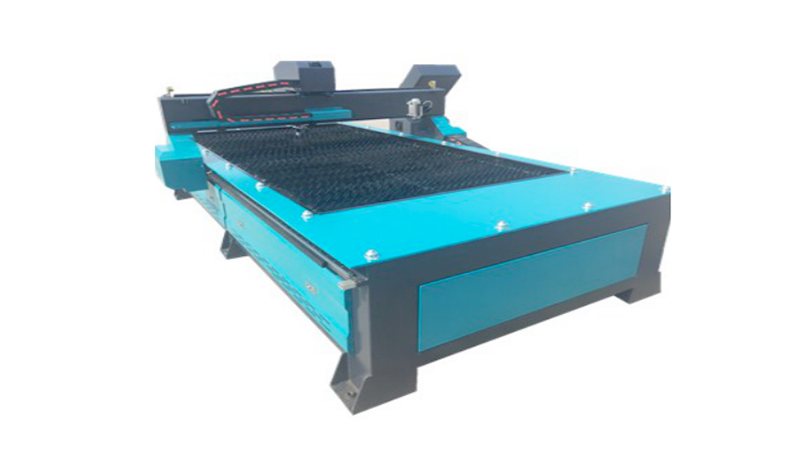

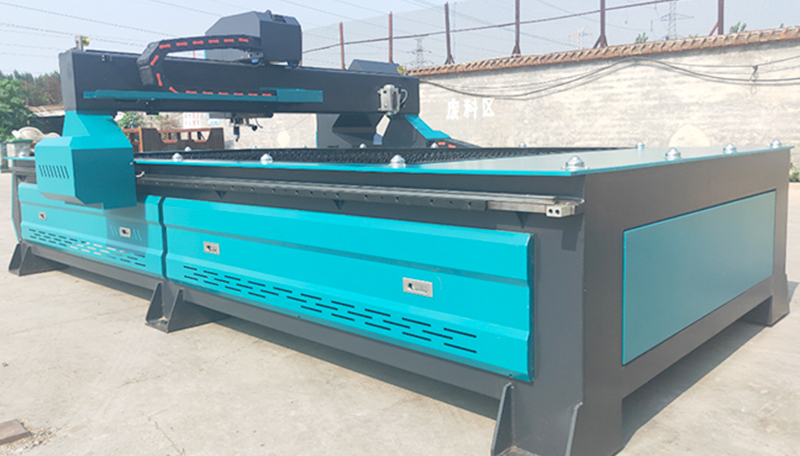

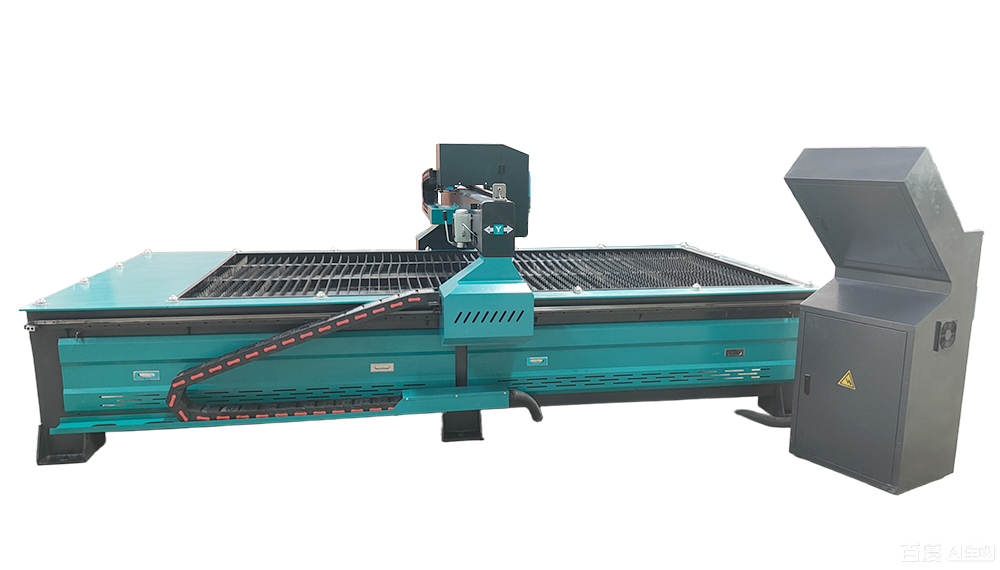

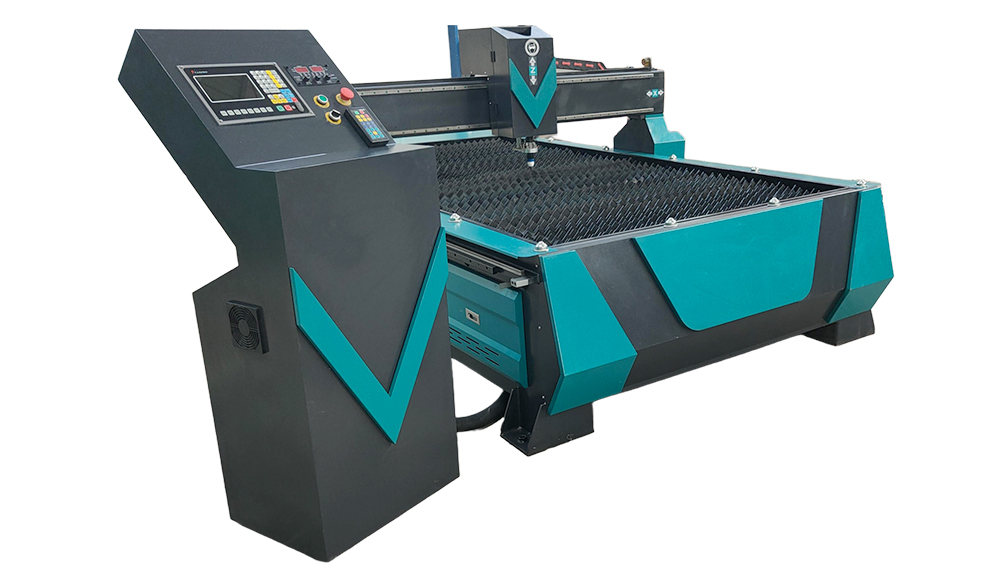

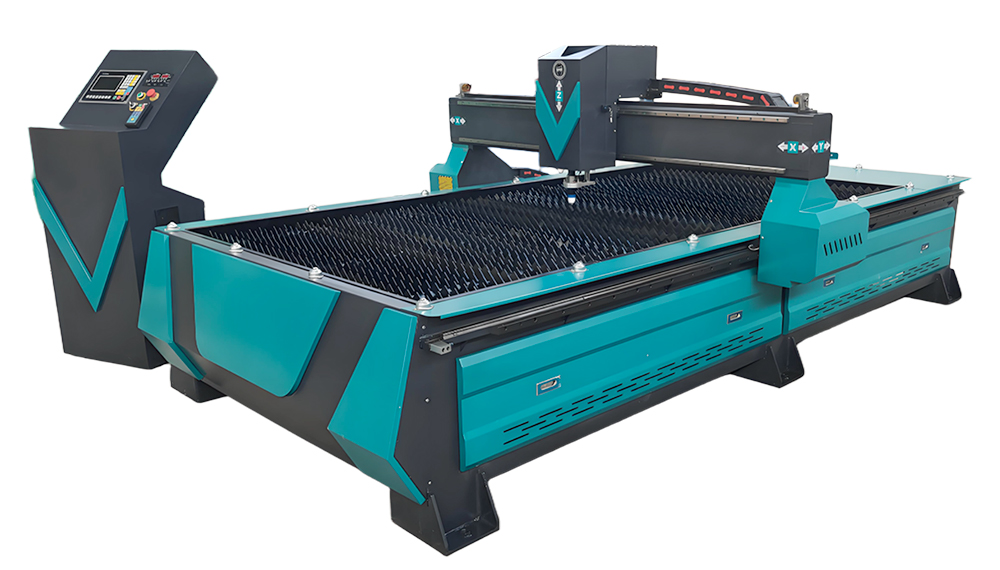

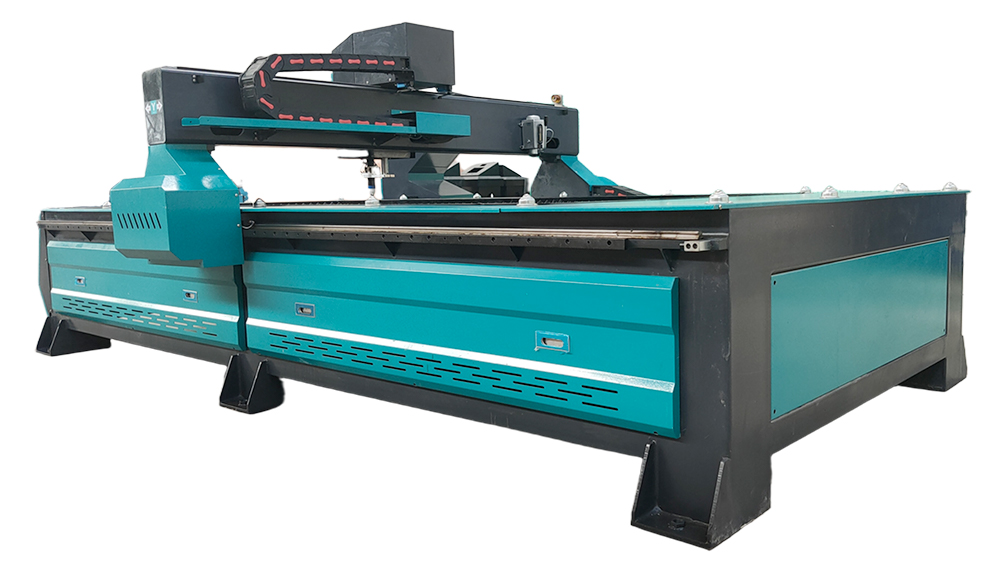

Large Plasma CNC Cutting Machine

Model:
1530 PCH
Remarks:
1500*3000mm working area ,Optional 1300mmx2500mm,With different power plasma sources for metals cutting
BROCHURE INQUIRY NOW
Captcha

Features

Parameters

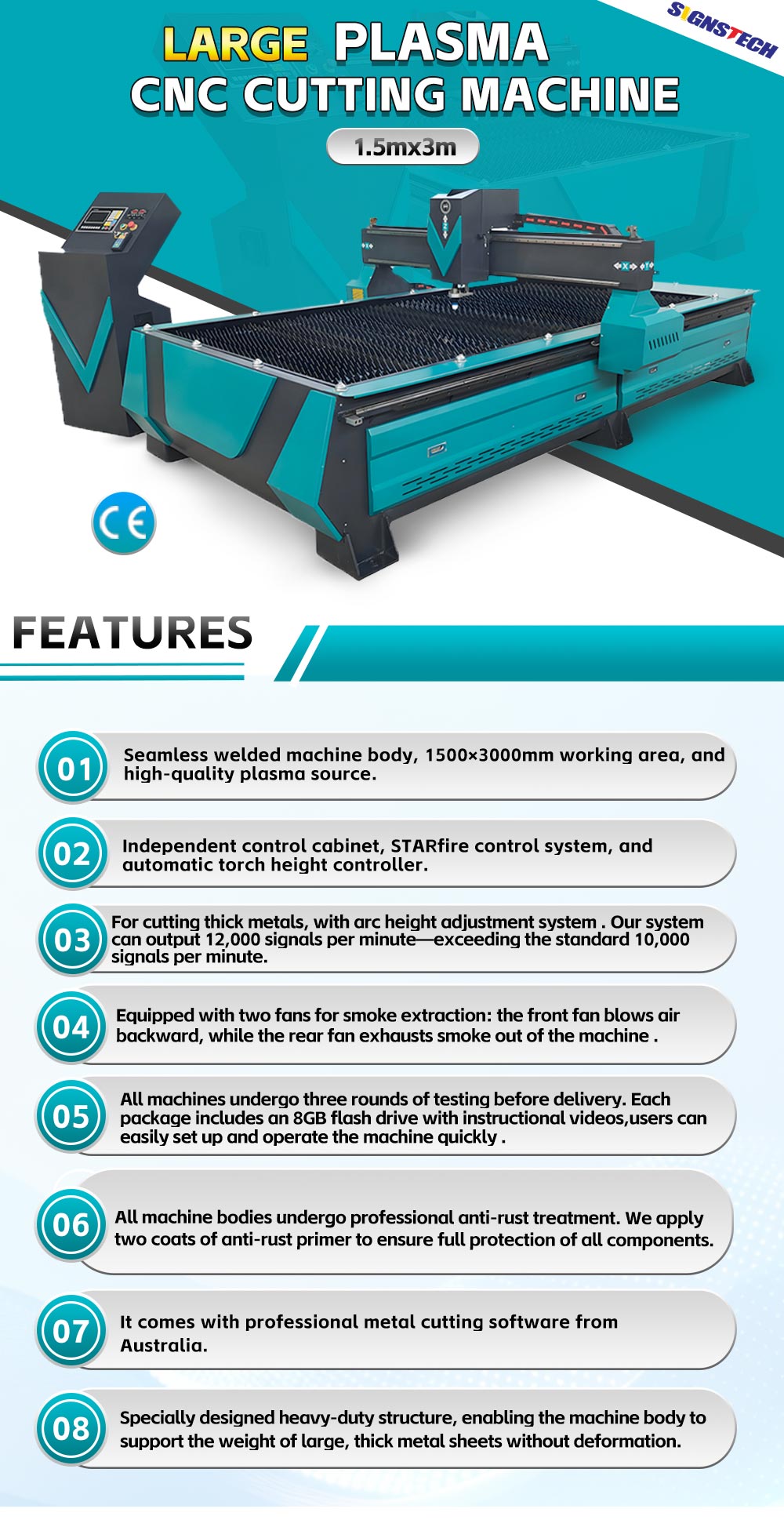

Features:

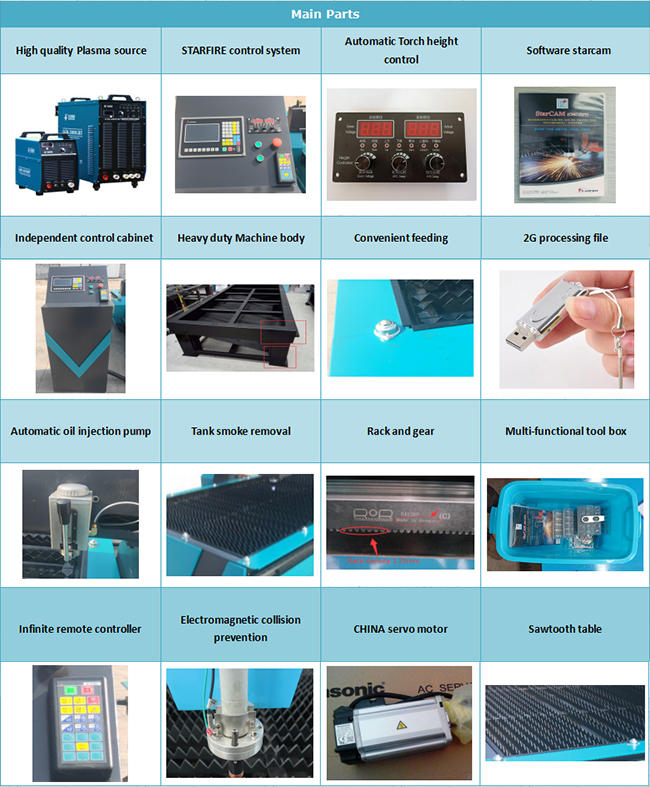

1.seamless welding machine body,1500*3000mm working area and High quality Plasma source.

2.Independent control cabinet ,STARfire  control system and Automatic Torch height controller

3.For cutting the thick metals, have to use the arc height adjust system, while our height adjust system use the high sensor, one minute can send out 12,000 signal per minute,more than the regular 10000 signal per minute.

4.It is equipped with two fans for take the smoke out, front fan will blow to back, the back fan will exhaust the smoke out from the machine and out from the room. This way, will efficiency to keep the workshop in the good environment.

Some other factories only have one,or smoke removal from water tank

5.All our machines will be tested three times before delivery, and it comes with one 8GB flash disk into the package, when you receive the machine, can easily learn from the videos to set it up and get it run in short time

6.The painting: all our machine body have been processed by professional anti-rust treatment. we spray 2 times anti-rust paint to ensure that all parts of the machine in a fully protected state, and then spray color. This can effectively prevent

the machine to be rusted, some other factories do not take anti-rust treatment or only spay 1 time rust paint.

7.Australia professional metal cutting software for you with the machine.

8.Heavy structure is specially designed by famous mechanical engineer the machine body is able to bear more weight for large, thick metal sheets without deforming.


Model

1530PCH

X,Y working area

1500*3000mm optional 1300mmx2500mm

Z working area

150mm

Packing dimension

2280mm*3950mm*1850mm

Lathe bed

Very thick steel structure

Machine Power

8.5kw

Working voltage

380V three phase 60hz

Reposition precision

0.02mm

Processing precision

0.1mm

Maximum cutting speed

12000mm/min

Torch Height control mode

Automatic

Cutting thickness

Max 12mm carbon steel

Plasma power supply

63A,120A,160A,200A,300A Plasma source optional Hypertherm source

Control system

STARfire

Motors

servo

Software

Starcam

Weight

1600KG

Plasma Air Pressure

Max.0.8Mpa

Working Temperature

-10°C-60°C. Relative Humidity, 0-95%.

LCD Display Dimension

7 Inches
